86093488315755E1LF: DescriptionDIN Straight Receptacle Wire Wrap Solder Style C/2 48 ways, Class II, Tail Length: 13.1mm; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

86093488315755E1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86093488315755E1LF	-	-	View	Buy Now

86093488315755E1LF Overview

DIN Straight Receptacle Wire Wrap Solder Style C/2 48 ways, Class II, Tail Length: 13.1mm

86093488315755E1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1600591553
package instruction	LEAD FREE
Contacts	48
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.7
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	48
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

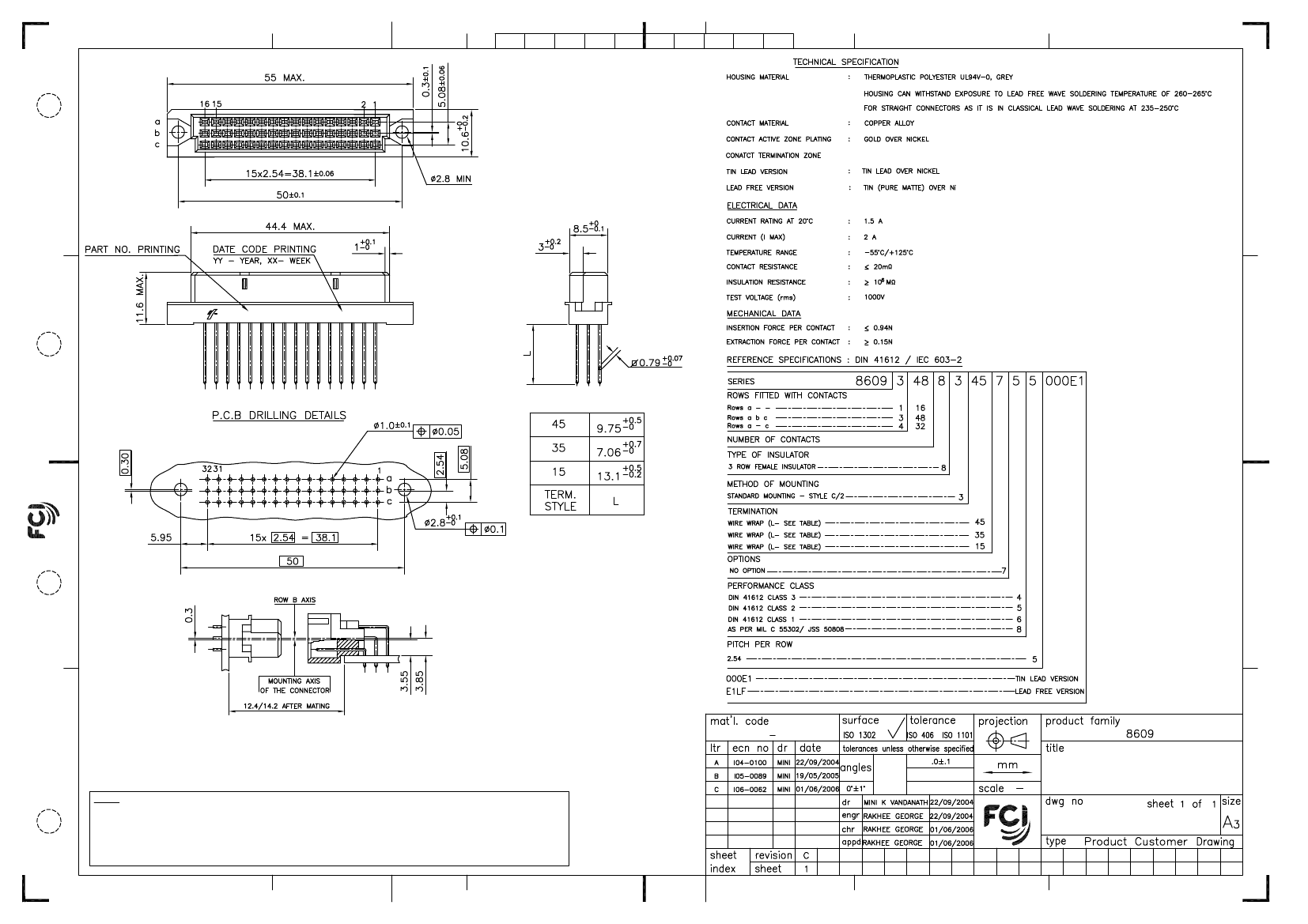

1

2 3

4

5

6

A

8609 XXX XX XX XXX XXXXX YY XX

B

FCIconnect.com

B

C

Copyright FCI

linear

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

DIN STANDARD RECEPTACLE

WIRE WRAP DIN 41612 STYLE-C/2

C-8609-2018

D

3

4

5

6

STATUS:

Released

Printed: May 14, 2011

.

D

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

1

2

PDM: Rev:C
