BWR-5/3-3.3/4.25-D12AL2-C datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> BWR-5/3-3.3/4.25-D12AL2-C

BWR-5/3-3.3/4.25-D12AL2-C: DescriptionDC-DC Regulated Power Supply Module, 2 Output, Hybrid, PACKAGE-8; CategoryPower/power management The power supply circuit; File Size158KB，6 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BWR-5/3-3.3/4.25-D12AL2-C Overview

DC-DC Regulated Power Supply Module, 2 Output, Hybrid, PACKAGE-8

BWR-5/3-3.3/4.25-D12AL2-C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	10 V
Nominal input voltage	12 V
JESD-30 code	S-PDMA-P8
JESD-609 code	e4
length	50.8 mm
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.465 V
Minimum output voltage	3.135 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Gold (Au)
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
width	50.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

www.murata-ps.com

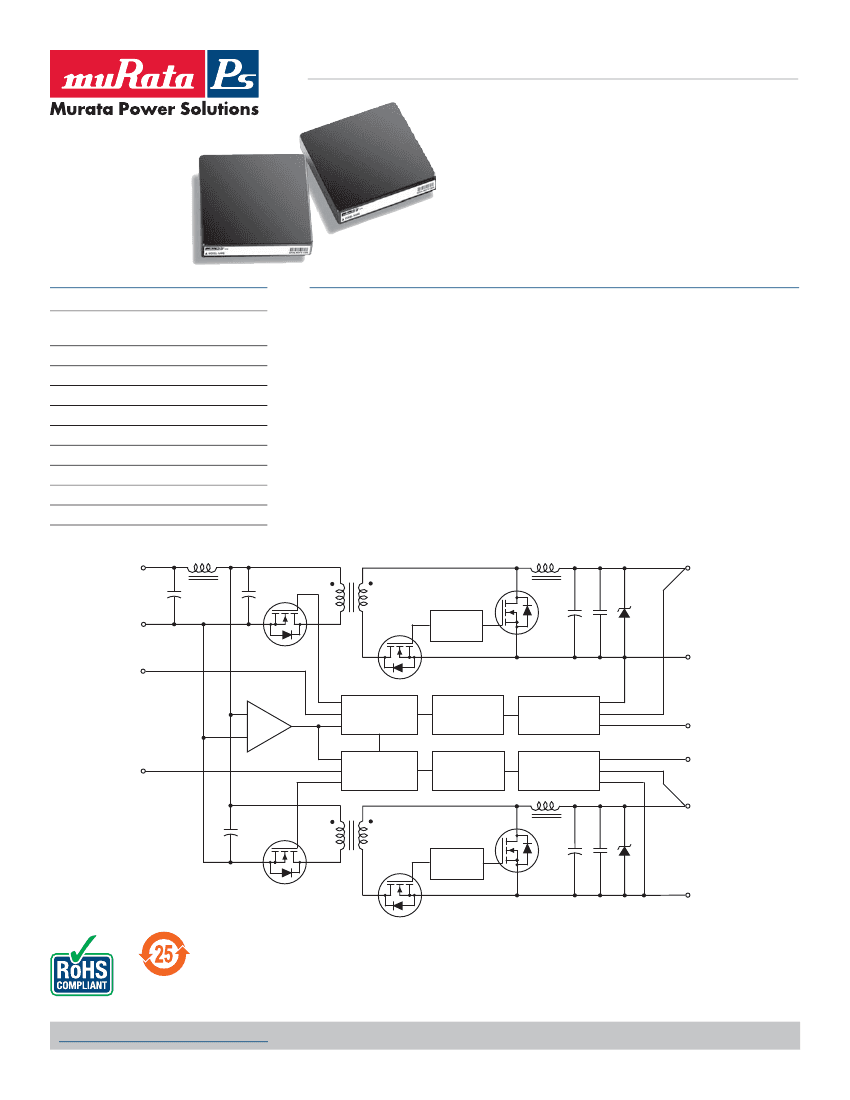

Dual Output BWR Models

Mixed Voltage, 5V and 3.3V, Independent Dual Output

30 Watt DC/DC Converters

Typical units

FEATURES



Independently regulated 5V/ 3.3V outputs



@ 3A/3.3V @ 4.25A simultaneously

delivered



Independent V

OUT

Trim pins for margining



Independent On/Off Control pins



efﬁciency; 75mV ripple/noise

88%



ranges: 10-18V, 18-36V or 36-75V

Input



1950 and EN60950-1 safety approvals



isolated, 1500Vdc guaranteed

Fully



under and overvoltage shutdown

Input



Independent OVP; short circuit protection



Thermal shutdown

PRODUCT OVERVIEW

Murata Power Solutions' BWR series of DC/DC con-

verters now includes two independent converters in

one 2" x 2" package. The BWR-5/3-3.3/4.25 family

provides both 5V at 3 Amps and 3.3V at 4.25 Amps

for a combined output power of 30 Watts from input

ranges of 10V to 18V (-D12A), 18 to 36V (-D24A), or

36 to 75V (-D48A).

Each output is regulated by its own control loop

to provide ±1% load and ±0.5% line regulation.

Individual trim pins and a negative or positive

on/off control pin allow independent adjustment of

output voltages and any combination of power-on

sequencing between the 5V and 3.3V outputs. A

high efﬁciency of 88% allows full load operation

up to +65°C ambient temperature in a still air

environment. Although functionally indepen-

dent, both outputs are driven from synchronized

PWMs to prevent asynchronously generated beat

frequencies.

Housed in a plastic case, all models include

input Pi ﬁltering, input overvoltage protection,

independent output short circuit and current

limiting protection and independent output

overvoltage protection as well as thermal shut-

down. These devices meet IEC950, UL1950 and

EN6950-1 safety standards. CB reports are avail-

able upon request. "D48A" models are CE marked

(meet LVD requirements).

+INPUT

(1)

+5V OUTPUT

(5)

–INPUT

(2)

5V ON/OFF

CONTROL

(3)

INPUT UNDERVOLTAGE

AND OVERVOLTAGE

COMPARATORS

PWM

CONTROLLER

SWITCH

CONTROL

+5V OUTPUT

RETURN

(6)

OPTO

ISOLATION

REFERENCE &

ERROR AMP

+5V TRIM

(7)

+3.3V TRIM

(10)

3.3V ON/OFF

CONTROL

(4)

PWM

CONTROLLER

OPTO

ISOLATION

REFERENCE &

ERROR AMP

+3.3V OUTPUT

(9)

SWITCH

CONTROL

+3.3V OUTPUT

RETURN

(8)

Typical topology is shown.

Figure 1. Simpliﬁed Schematic

For full details go to

www.murata-ps.com/rohs

www.murata-ps.com/support

MDC_BWR30.B06

Page 1 of 6
