DG301ACJ

Description
SPDT, 1 Func, 1 Channel, CMOS, PDIP14,
CategoryAnalog mixed-signal IC    The signal circuit
File Size314KB,9 Pages
ManufacturerTEMIC
Websitehttp://www.temic.de/
Download Datasheet Parametric View All

DG301ACJ Online Shopping

Suppliers Part Number Price MOQ In stock
DG301ACJ - - View Buy Now

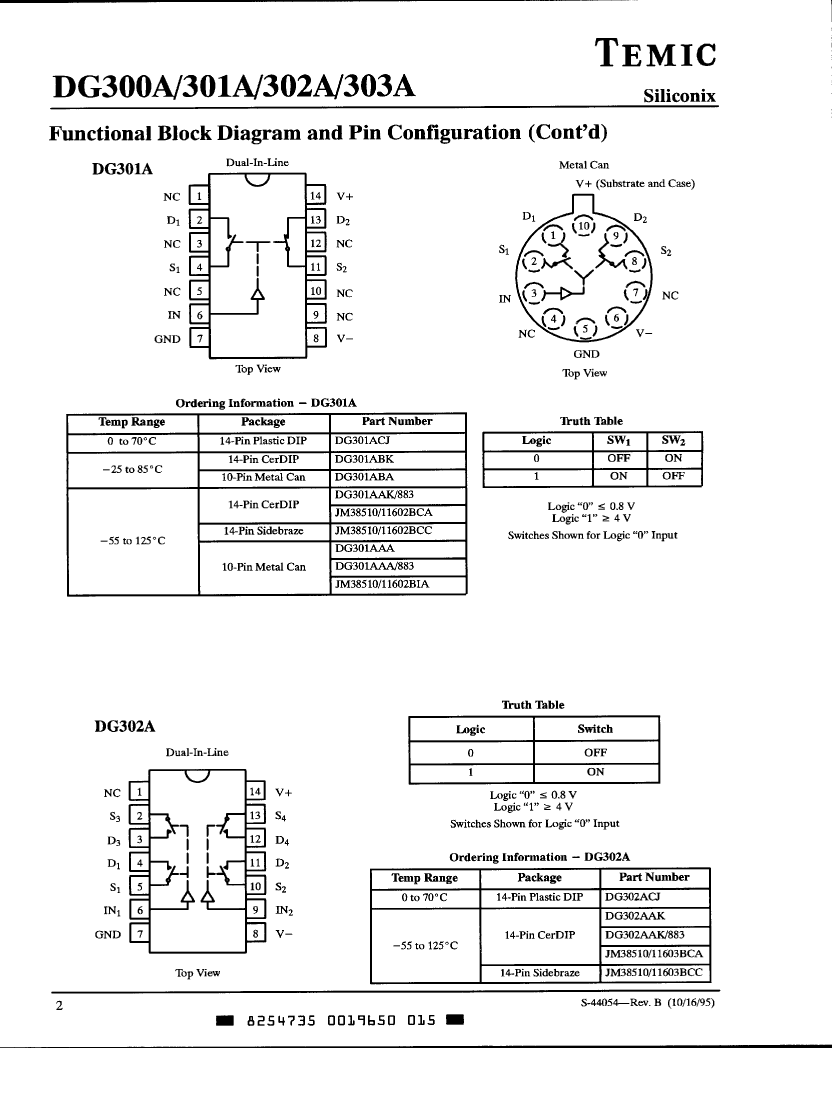

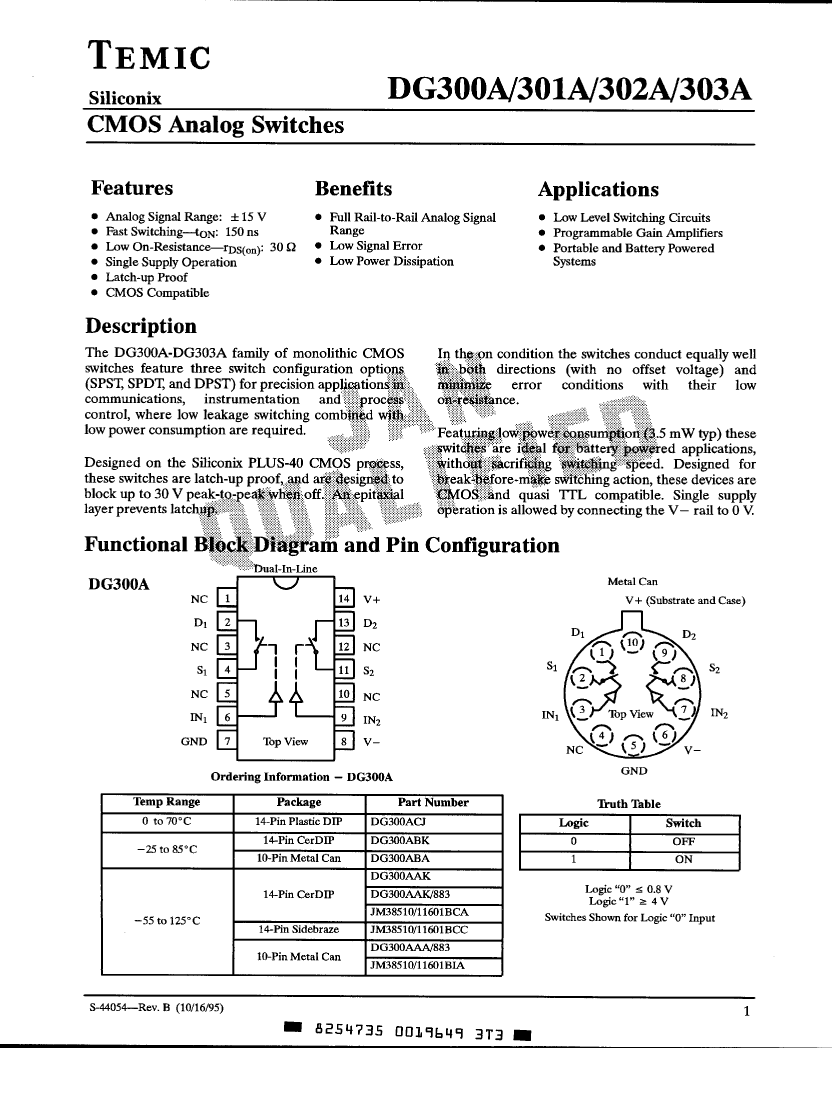

DG301ACJ Overview

SPDT, 1 Func, 1 Channel, CMOS, PDIP14,

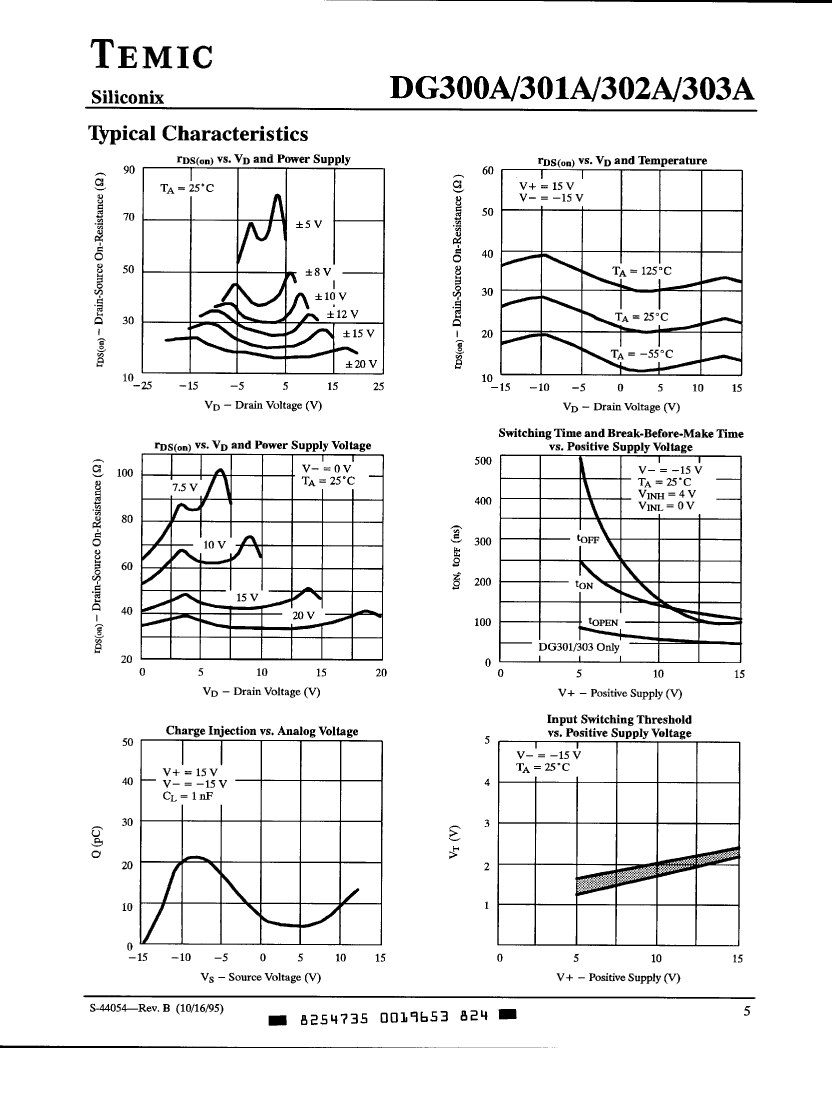

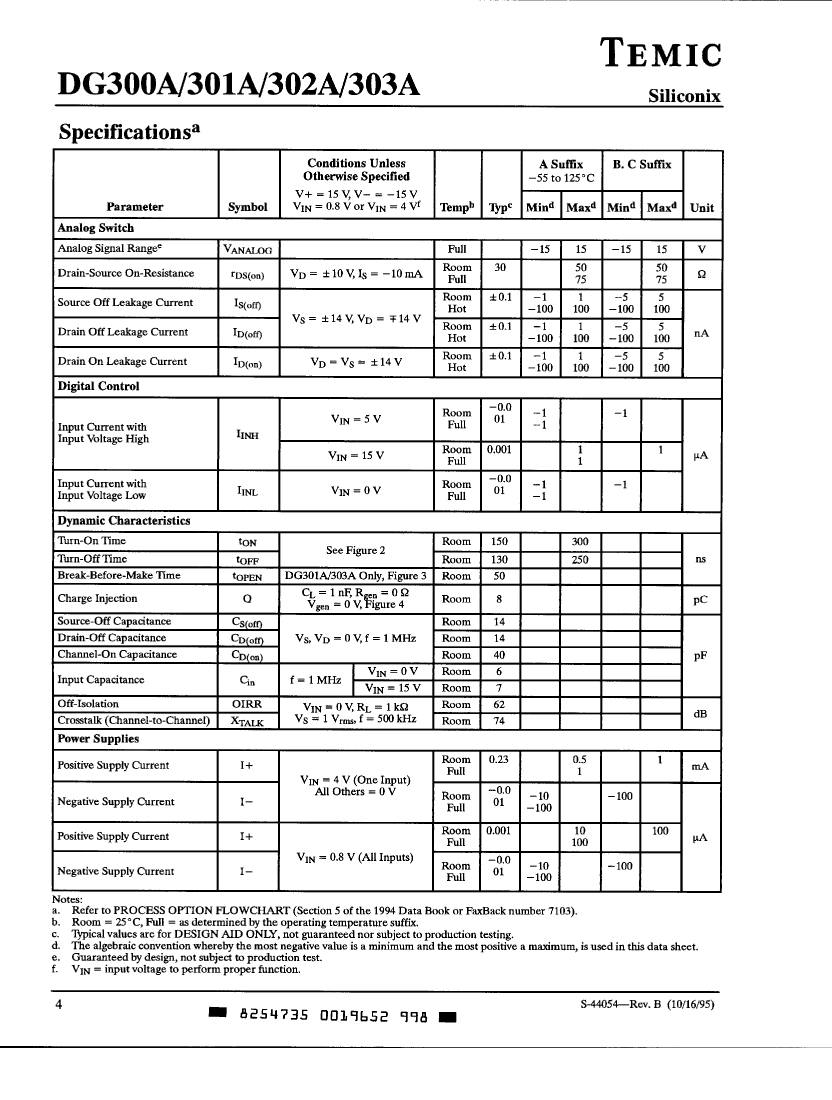

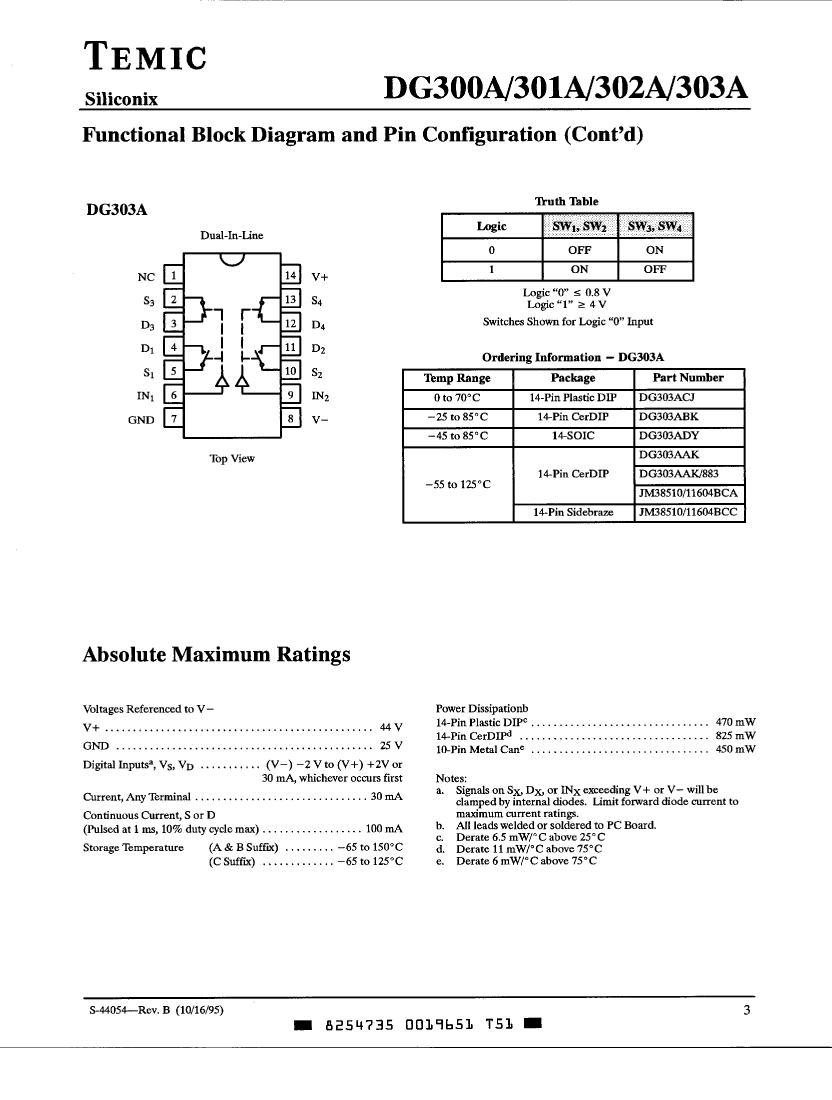

DG301ACJ Parametric

Parameter NameAttribute value
MakerTEMIC
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPDT
JESD-30 codeR-PDIP-T14
Nominal Negative Supply Voltage (Vsup)-15 V
Number of channels1
Number of functions1
Number of terminals14
Nominal off-state isolation62 dB
Maximum on-state resistance (Ron)50 Ω
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum supply current (Isup)1 mA
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer
