M85049/26-1-32N datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/26-1-32N

M85049/26-1-32N: Descriptioncircular mil spec strain reliefs & adapters shielding ring; CategoryThe connector Connector bracket; File Size196KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/26-1-32N Overview

circular mil spec strain reliefs & adapters shielding ring

M85049/26-1-32N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/26-1

Preview

Download Datasheet

View All

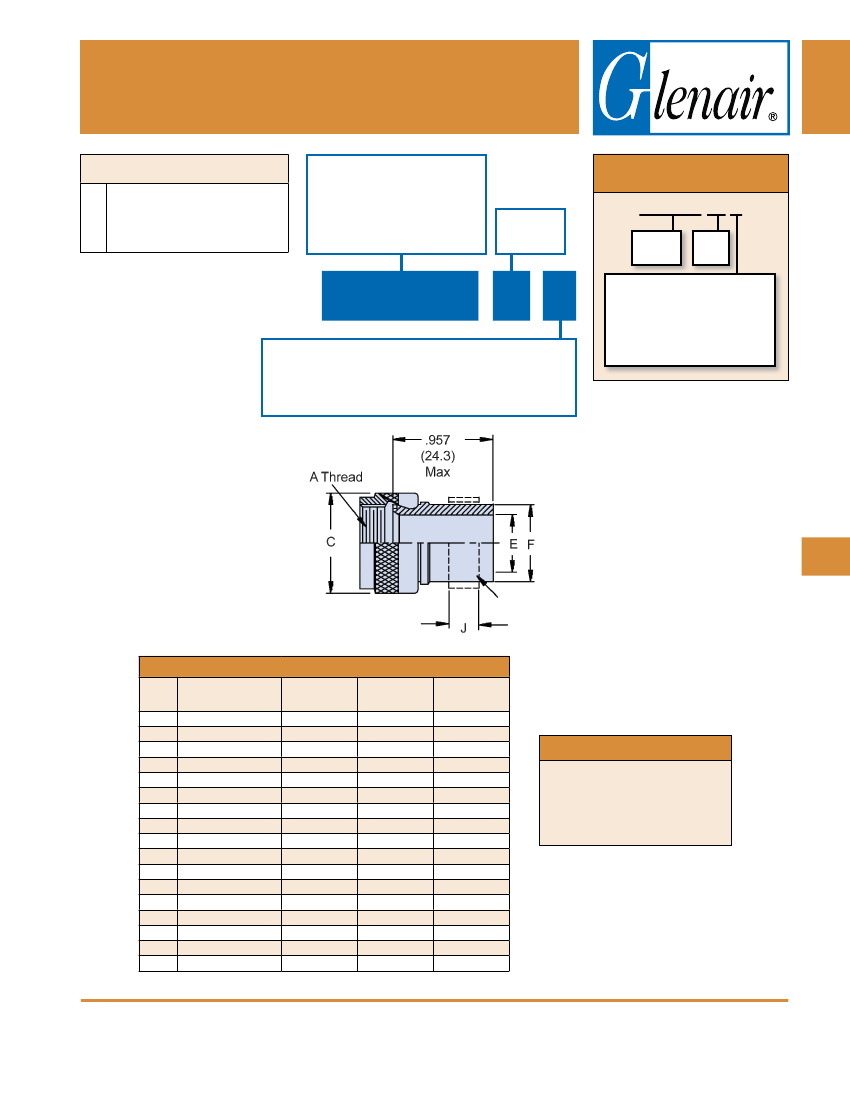

AS85049/26-1 and MS3419

Straight Crimp Ring Backshell

CONNECTOR DESIGNATOR:

Superseded

PART NUMBER

Shell Size

(Table II)

AS50151 Series AS34001

MIL-DTL-26482 Series II

AS81703 Series III

MIL-DTL-83723 Series I & III

Basic Part Number

M85049/26-1

= Adapter Only

M85049/26-2

= Crimp Ring Only

M85049/26-3

= Adapter with

Crimp Ring

(See Page 44-5 for Crimp Ring)

MS3419-21 C

Basic

Part No.

Shell

Size

M85049/26-1

(Material is Aluminum Only)

Electroless Nickel

= 500 Hr.

Cadmium Olive Drab

over Electroless Nickel

Finish

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel

= Aluminum, Nickel Fluorocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/26-2

Crimp Ring (See Page

44-5)

TABLE I: Adapter Shell Size,Thread, and Dimensions

Shell

Size

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

C Dia

Max

.670

.620

.730

.860

.980

1.110

1.220

1.350

1.470

1.590

1.970

2.220

2.470

2.720

2.970

3.220

1.650

(17.0)

(15.7)

(18.5)

(21.8)

(24.9)

(28.2)

(31.0)

(34.3)

(37.3)

(40.4)

(50.0)

(56.4)

(62.7)

(69.1)

(75.4)

(81.8)

(41.9)

Dia

.250

.325

.420

.540

.670

.789

.914

1.039

1.112

1.389

1.635

1.850

2.065

2.320

2.570

1.210

(6.4)

(8.3)

(10.7)

(13.7)

(17.0)

(20.0)

(23.2)

(26.4)

(28.2)

(35.3)

(41.5)

(47.0)

(52.5)

(58.9)

(65.3)

(30.7)

Dia

.337

.488

.500

.620

.750

.880

1.000

1.120

1.192

1.545

1.795

2.045

2.295

2.545

2.795

1.359

(8.6)

(12.4)

(12.7)

(15.7)

(19.1)

(22.4)

(25.4)

(28.4)

(30.3)

(39.2)

(45.6)

(51.9)

(58.3)

(64.6)

(71.0)

(34.5)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

See Page 44-4 for

AS85049/26-2 Crimp Ring

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

44-3

Crimp Ring &

Banding Backshells
