General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
n
n
n
n
n
n
n
n
SCHRACK

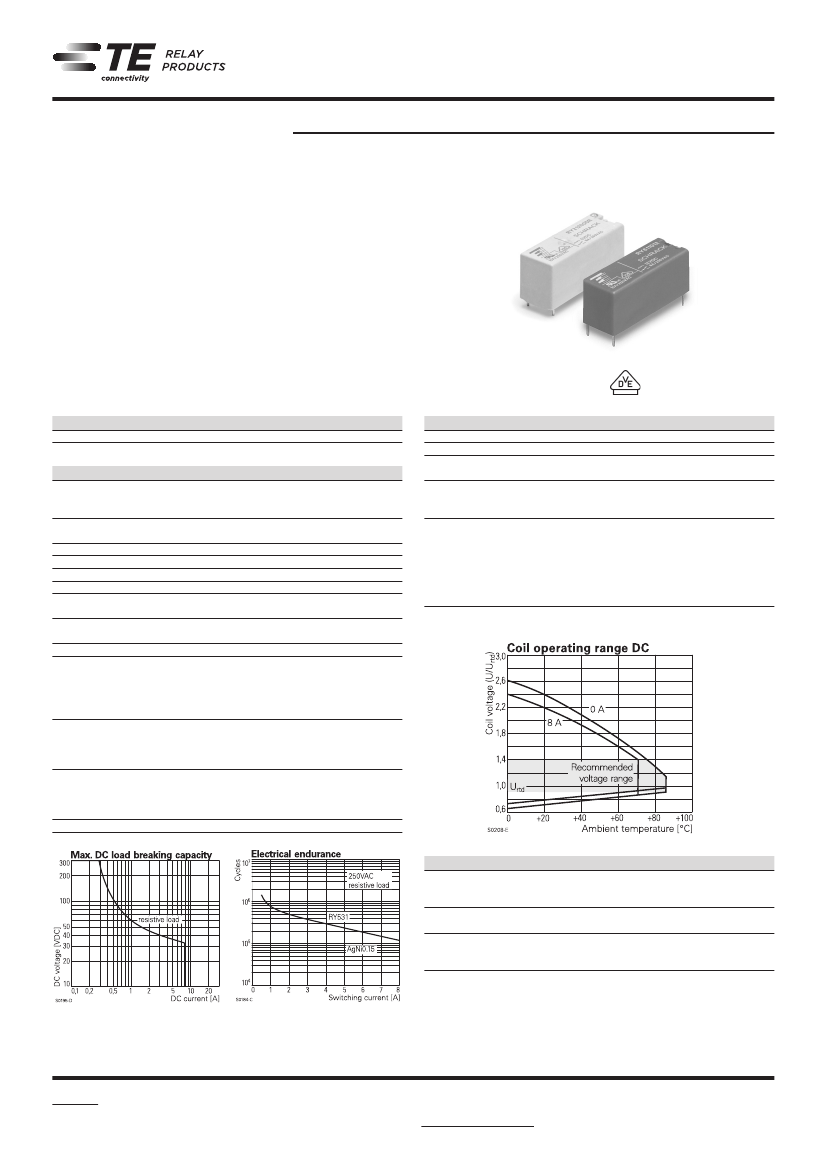

1 pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact
Low component height 12.3mm
5kV/8mm coil-contact
Reinforced insulation (protection class II)
Pinnings: 3.2mm and 5mm
Reflow-solderable version
Especially suitable for resistive and inductive loads on
form A (NO) and form B (NC) contacts
Plastic materials according to IEC 60335-1 (domestic appliances)
F0142-E
Typical applications
heating control, interface technology, domestic appliances, timers,
temperature control
Z
Coil Data
Coil voltage range
Operative range, IEC 61810
5 to 60VDC
2
Release
voltage
VDC
0.5
0.6
0.9
1.2
2.4
4.8
6.0
Coil
resistance
Ω±10%
112
162
320
627
2350
9391
14000
Rated coil
power
mW
223
222
253
230
245
245
257
Approvals
VDE Cert. No. 40009639, UL E214025
Technical data of approved types on request
Contact Data
Contact arrangement
Rated voltage
Max. switching voltage
Rated current
Breaking capacity max.
Contact material
Frequency of operation, with/without load
Operate/release time max.
Bounce time max., form A/form B
1 form C (CO) or
1 form A (NO) or
1 form B (NC)
250VAC
400VAC
8A
2000VA
AgNi0.15, AgSnO
2
6/1200min
-1
9/5ms
6/10ms
Cycles
100x10
3
100x10
3
50x10
3
50x10
3
30x10
3
30x10
3
6x10
3
100x10
3
50x10
3
30x10
3
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
009
9
6.3
012
12
8.4
024
24
16.8
048
48
33.6
060
60
42.0
All figures are given for coil without pre-energization, at ambient temperature +23°C
Other coil voltages on request
Contact ratings
Type
Contact
Load
IEC61810
RY531 A (NO)
8A, 250VAC, 70°C
RY211 A (NO)
8A, 250VAC, 75°C
RY211 A (NO)
8A, 250VAC, 85°C
RY211 B (NC)
8A, 250VAC, 70°C
UL508
RY211 A/B (NO/NC) 10A, 250VAC, general purpose, 70°C
RY211 A (NO)
1/2hp, 240VAC, 85°C
RY211 A/B (NO/NC) B300, 70°C
EN60730-1
RY211 A/B (NO/NC) 6(4)A, 250VAC, 85°C
RY211 A (NO)
8(4)A, 250VAC, 75°C
RY211 A (NO)
8(4)A, 250VAC, 85°C
Mechanical endurance, DC coil
30x10
6
operations
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
reflow-solderable version
1000V
rms
5000V
rms
≥8/8mm
IIIa
PTI250
PTI175
04-20120 Rev. 0420
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
(Continued)
Other Data

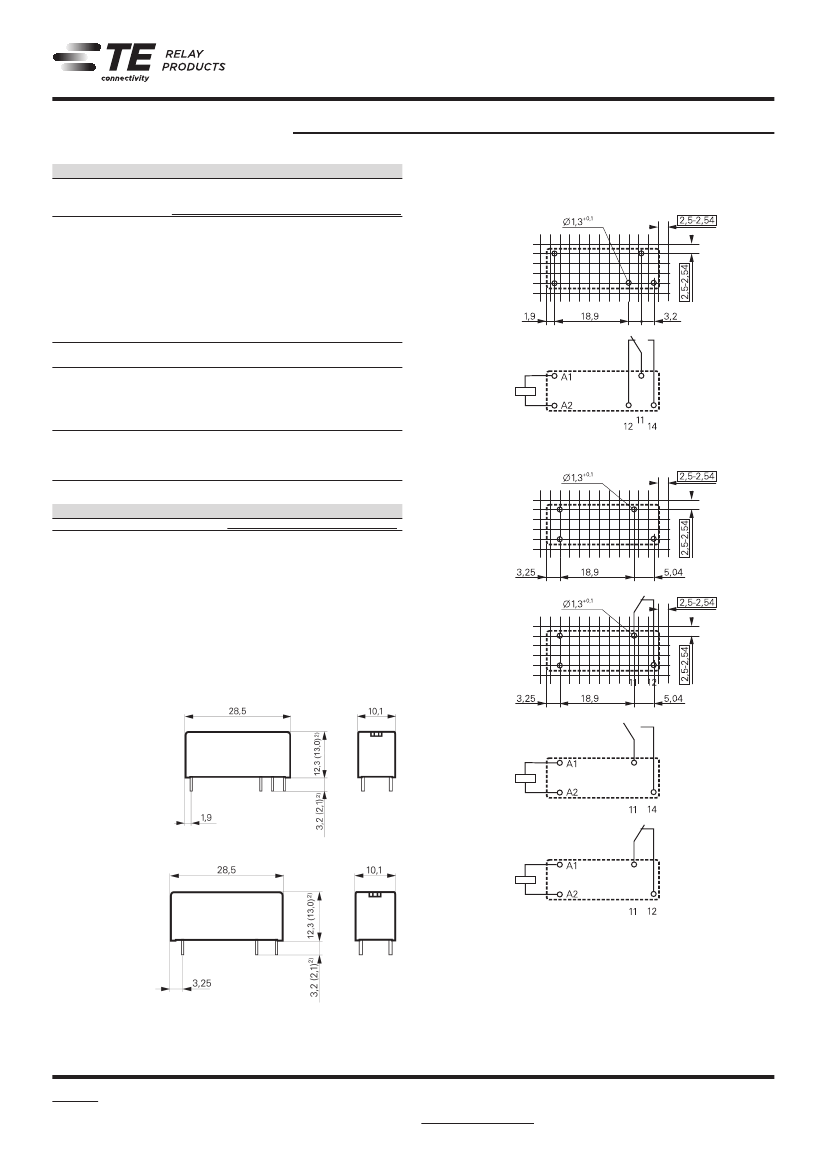

PCB layout / terminal assignment
Bottom view on solder pins
SCHRACK
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
+85°C at 6A
Category of environmental protection
IEC 61810
RTII - flux proof
RTIII - wash tight
1)
Vibration resistance (functional),
form A (NO)/form B (NC)
20/5g
Shock resistance (functional)
form A (NO)/form B (NC)
20/5g
Shock resistance (destructive)
100g
Terminal type
PCB-THT, PCB-THR
Weight
8g
Resistance to soldering heat THT
IEC 60068-2-20
RTII : 270°C/10s
RTIII : 260°C/5s
Resistance to soldering heat THR
IEC 60068-2-58
250°C, no infrared heating allowed
Packaging/unit
standard version
tube/20 pcs., box/500 pcs.
reflow version
reel/280 pcs.
box/1120 pcs. (4 reels)
1) not available as reflow-solderable version
1 form C (CO) contact, 3.2mm
S0254-AA
S0254-AB
1 form A (NO), 1 form B (NC) contact 5mm
Accessories
For details see datasheet
Accessories Miniature PCB Relay RY
S0254-AC
Dimensions
Pinning 3.2mm
S0254-AE
S0274_CA
S0254-AD
Pinning 5mm
S0254-AF
S0274-CB
2) Values in brakets are valid for reflow-solderable version
2
04-2020, Rev. 0420
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
(Continued)

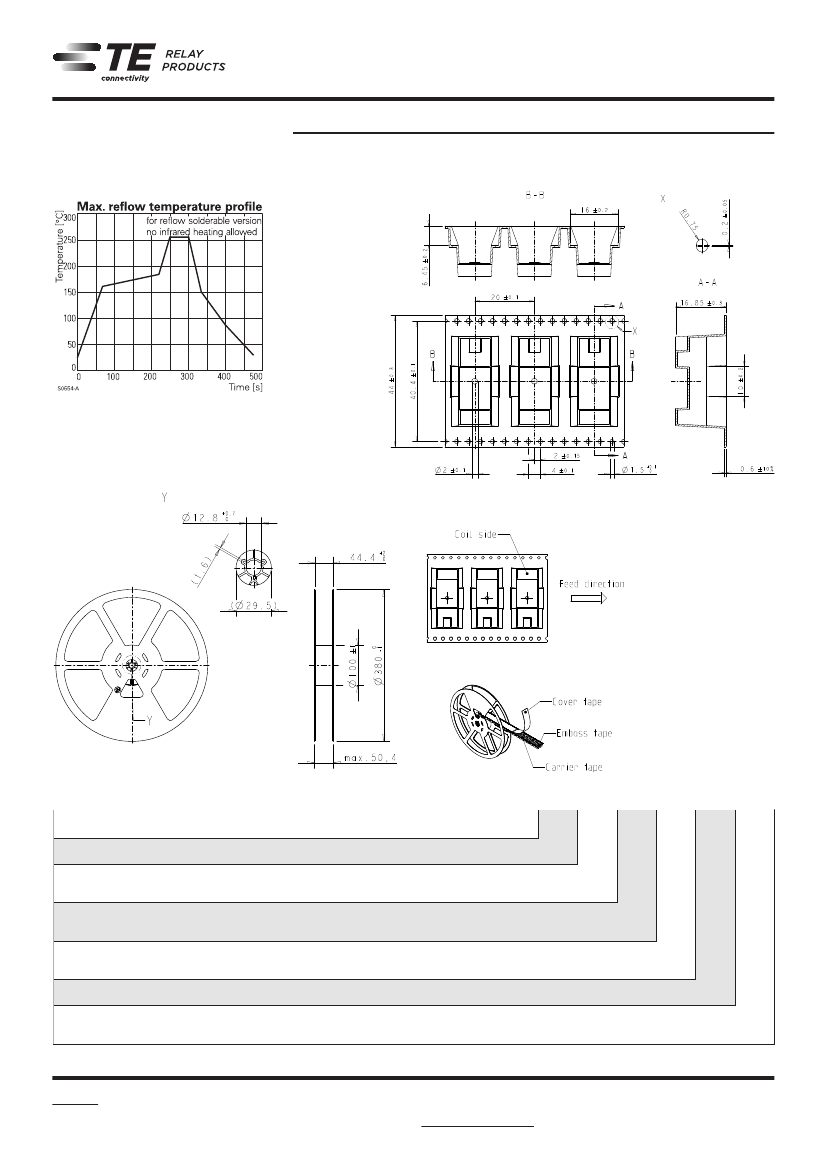

Soldering profile for reflow-solderable version
Tape dimensions
SCHRACK
Reel dimensions
Product code structure
Type
Typical product code
RY
6
1
1
012
RY
Miniature Power PCB RYII & RYII reflow solderable
Version
2
pinning 3.2mm, flux proof
6
pinning 3.2mm, wash tight
2)
5
pinning 5mm, flux proof
A
pinning 5mm, wash tight
2)
Contact arrangement
1
1 form C (1 CO), pinning 3.2mm
3
1 form A (1 NO), pinning 5mm
5
1 form B (1 NC), pinning 5mm
Contact material
1
AgNi 0.15
2
AgNi 0.15 gold plated
3
AgSnO
2
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
R
reflow-solderable
2) not available as reflow-solderable version
04-20120 Rev. 0420
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
(Continued)
Product code
RY211005
RY211012
RY211024
RY211048
RY212005
RY212012
RY212024
RY212048
RY213005
RY213012
RY213024
RY213048
RY531005
RY531012
RY531024
RY531048
RY532012
RY532024
RY533012
RY533024
RY533048
RY611005
RY611006
RY611012
RY611024
RY611048
RY612005
RY612012
RY612024
RY612048
RY613005
RY613012
RY613024
RY613048
RY631024
RYA31005
RYA31012
RYA31024
RYA31048
RYA32005
RYA32012
RYA32024
RYA33005
RYA33024
SCHRACK
Pinning 3.2 mm
flux proof
Version
1 form C,
1 CO contact
Contacts
Contact material
AgNi 0.15
AgNi 0.15
gold plated
AgSnO
2
Pinning 5 mm
flux proof
1 form A,
1 NO contact
AgNi 0.15
AgNi 0.15
gold plated
AgSnO
2
Pinning 3.2 mm
wash tight
1 form C,
1 CO contact
AgNi 0.15
AgNi 0.15
gold plated
AgSnO
2
Pinning 5 mm
wash tight
1 form A,
1 NO contact
AgNi 0.15
AgNi 0.15
gold plated
AgSnO
2
5VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
48VDC
12VDC
24VDC
12VDC
24VDC
48VDC
5VDC
6VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
48VDC
24VDC
5VDC
12VDC
24VDC
48VDC
5VDC
12VDC
24VDC
5VDC
24VDC
Coil
Part Number
4-1393224-2
4-1393224-6
4-1393224-9
5-1393224-1
5-1393224-2
5-1393224-5
5-1393224-8
5-1393224-9
6-1393224-0
6-1393224-1
6-1393224-2
6-1393224-3
7-1393224-6
7-1393224-9
8-1393224-2
8-1393224-3
8-1393224-4
8-1393224-5
8-1393224-8
8-1393224-9
9-1393224-0
1-1393225-7
1-1393225-8
1-1393225-9
2-1393225-1
2-1393225-2
2-1393225-3
2-1393225-6
2-1393225-9
3-1393225-0
5-1419136-2
3-1393225-1
3-1393225-3
3-1393225-4
4-1415400-1
1393224-7
1393224-9
1-1393224-2
1-1393224-3
1-1393224-4
1-1393224-6
1-1393224-8
1-1393224-9
2-1393224-1
Product code
RY211005R
RY211012R
RY211024R
RY531005R
RY531012R
RY531024R
pinning 3.2mm
flux proof
reflow solderable
pinning 5.0mm
flux proof
reflow solderable
Version
1 form C,
1 CO contact
1 form A,
1 NO contact
Contacts
Contact material
AgNi 0.15
5VDC
12VDC
24VDC
5VDC
12VDC
24VDC
Coil
Part number
1-1956170-2
1-1956170-6
1956164-1
1-1956171-1
1-1956171-4
1-1956171-7
4
04-2020, Rev. 0420
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
