IC42S16400A
1M x 16 Bits x 4 Banks (64-MBIT)
SYNCHRONOUS DYNAMIC RAM
FEATURES
• Single 3.3V (± 0.3V) power supply
• High speed clock cycle time -6: 166MHz,
-7: 133MHz<3-3-3>
• Fully synchronous operation referenced to clock
rising edge
• Possible to assert random column access in
every cycle
• Quad internal banks contorlled by A12 & A13
(Bank Select)
• Byte control by LDQM and UDQM for
IC42S16400A
• Programmable Wrap sequence (Sequential /
Interleave)
• Programmable burst length (1, 2, 4, 8 and full
page)
• Programmable
CAS
latency (2 and 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• LVTTL compatible inputs and outputs
• 4,096 refresh cycles / 64ms
• Burst termination by Burst stop and Precharge
command
• Package 400mil 54-pin TSOP-2 and 60ball(64M)
VF-BGA
• Pb(lead)-free package is available
DESCRIPTION
The IC42S16400A are high-speed 67,108,864-bit syn-
chronous dynamic random-access memories, orga-
nized as 1,048,576 x 16 x 4 (word x bit x bank),
respectively.
The synchronous DRAMs achieved high-speed data
transfer using the pipeline architecture and clock
frequency up to 166MHz for -6. All input and outputs are
synchronized with the positive edge of the clock.The
synchronous DRAMs are compatible with Low Voltage
TTL (LVTTL).These products are packaged in 54-pin
TSOP-2 and 60ball(64M) VF-BGA.

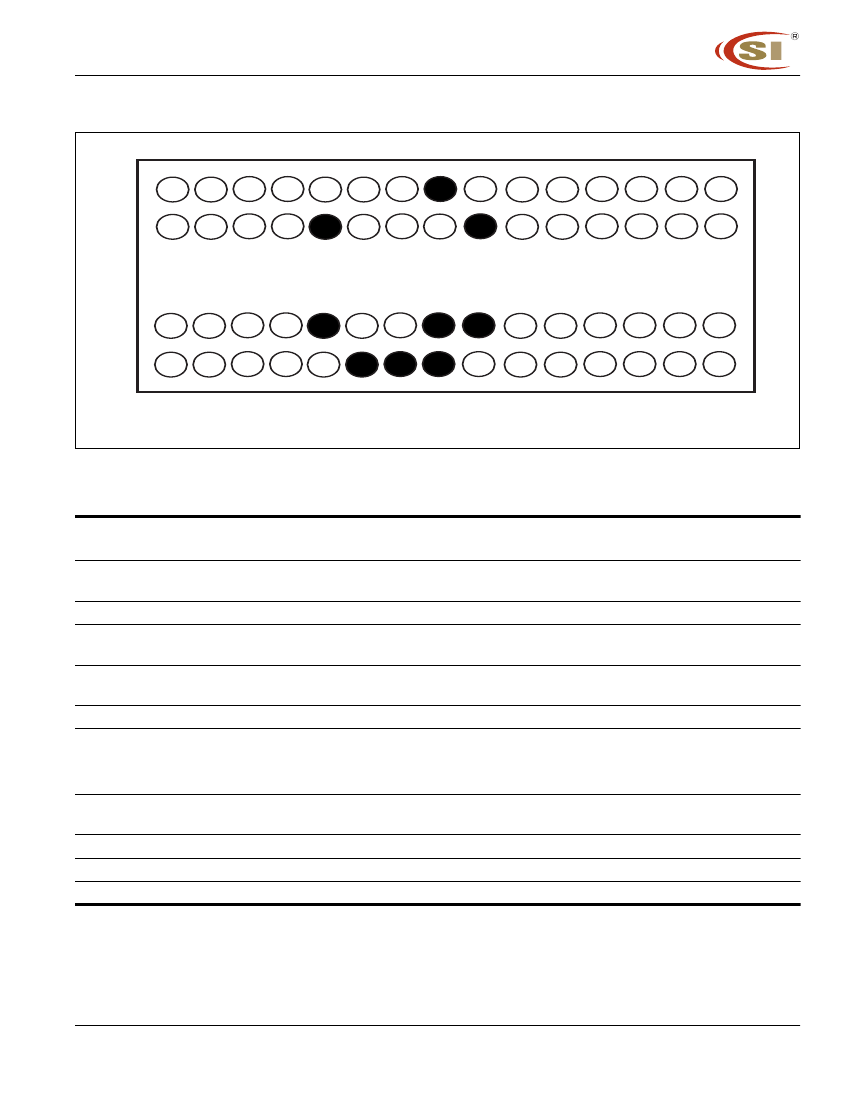

PIN CONFIGURATIONS
54-Pin TSOP-2
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
VDD
LDQM
WE
CAS
RAS
CS
BA0
BA1
A10
A0
A1
A2
A3
VDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
VSS
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VDDQ
DQ8
VSS
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
VSS
