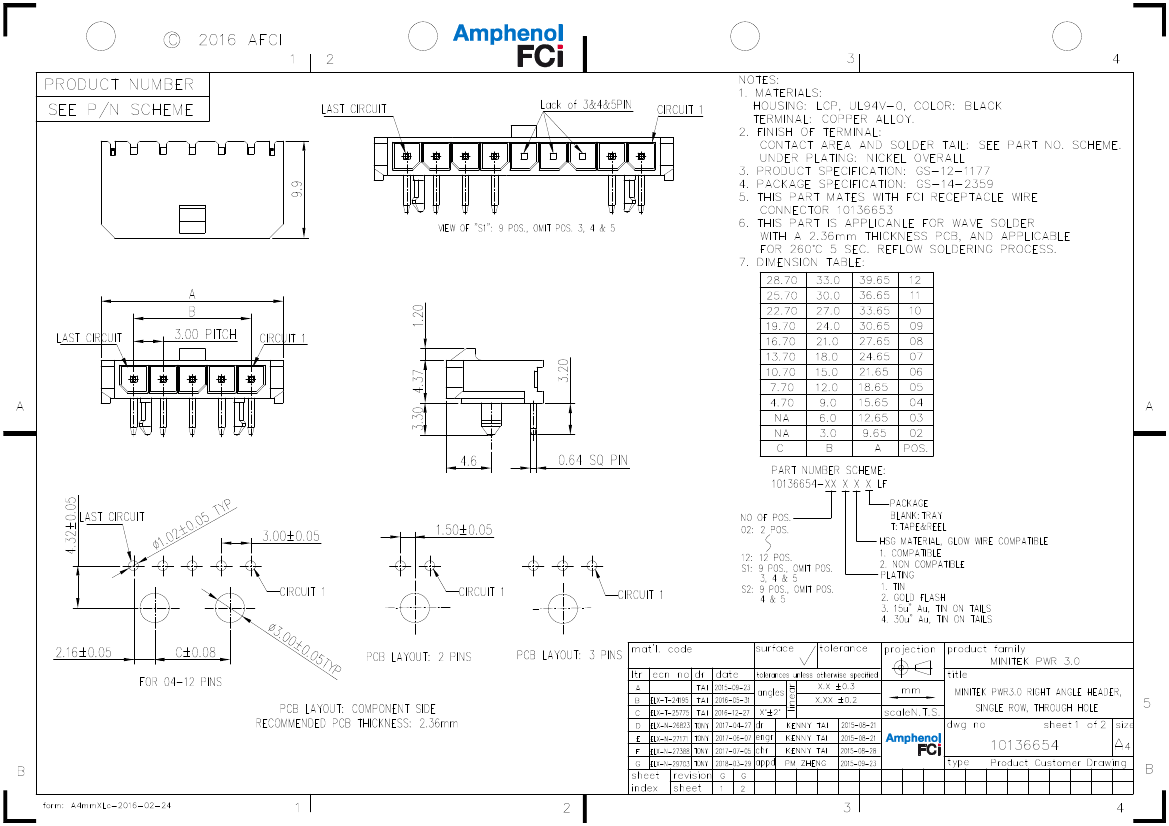

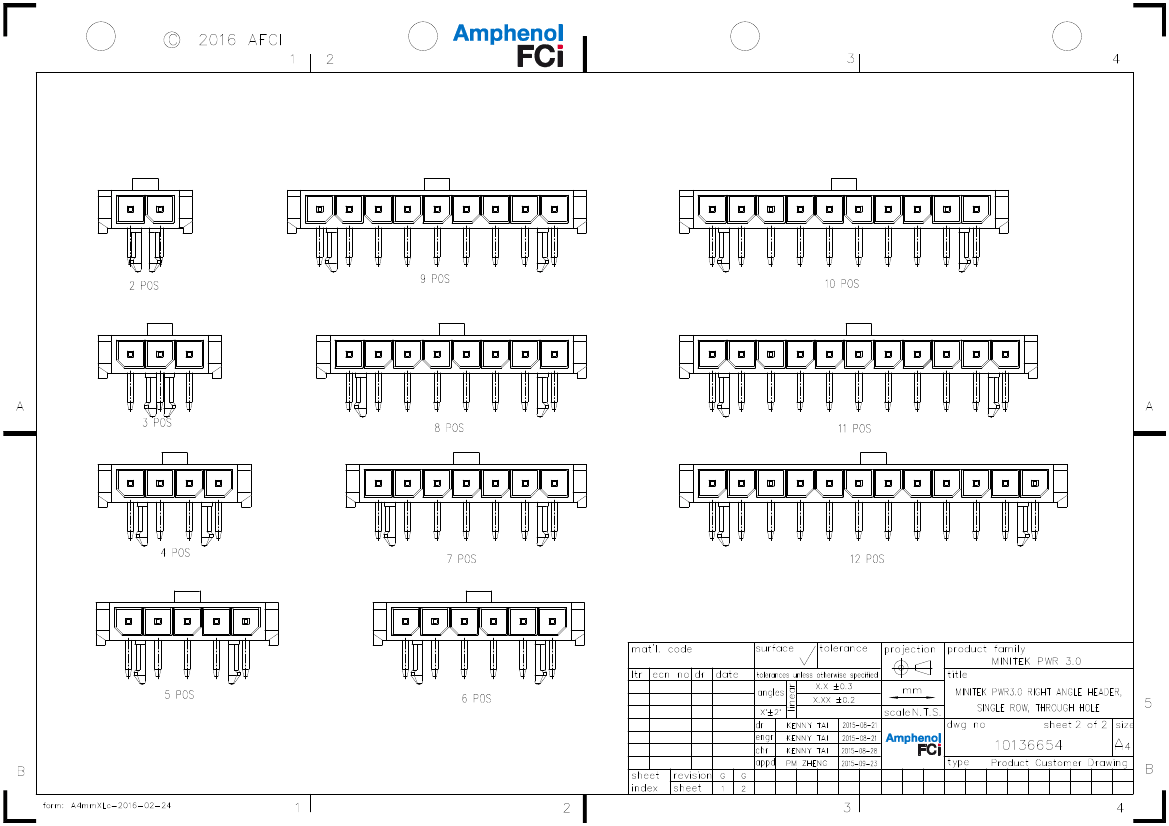

Board Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.118 inch Pitch, Solder Terminal, Locking, Black Insulator
| Parameter Name | Attribute value |
| Objectid | 7050192970 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| YTEOL | 8.61 |
| Board mount options | HOLE .112-.124 |
| body width | 0.219 inch |
| subject depth | 0.389 inch |
| body length | 1.206 inch |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| empty shell | NO |
| Filter function | NO |
| maximum insertion force | 4.448 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 |
| Plug contact pitch | 0.118 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 30u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell material | LCP |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.9972 mm |
| Termination type | SOLDER |
| Total number of contacts | 9 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 2.0016 N |
