69448-031 datasheet, PDF - EEWORLD Datasheet

69448-031: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size203KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

69448-031 Overview

Board Connector, 62 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	2135990724
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	PANEL MOUNTABLE
body width	0.56 inch
subject depth	0.915 inch
body length	4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHERIMIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	69448
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	62
UL Flammability Code	94V-0

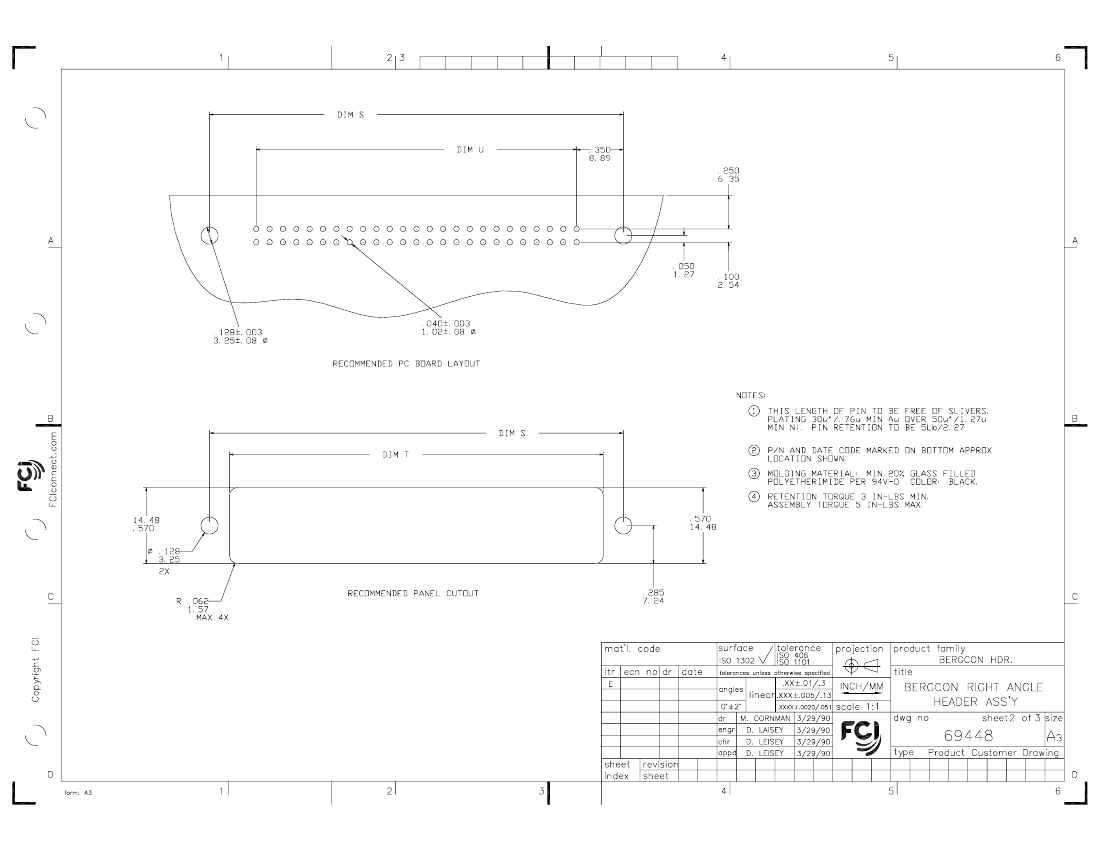

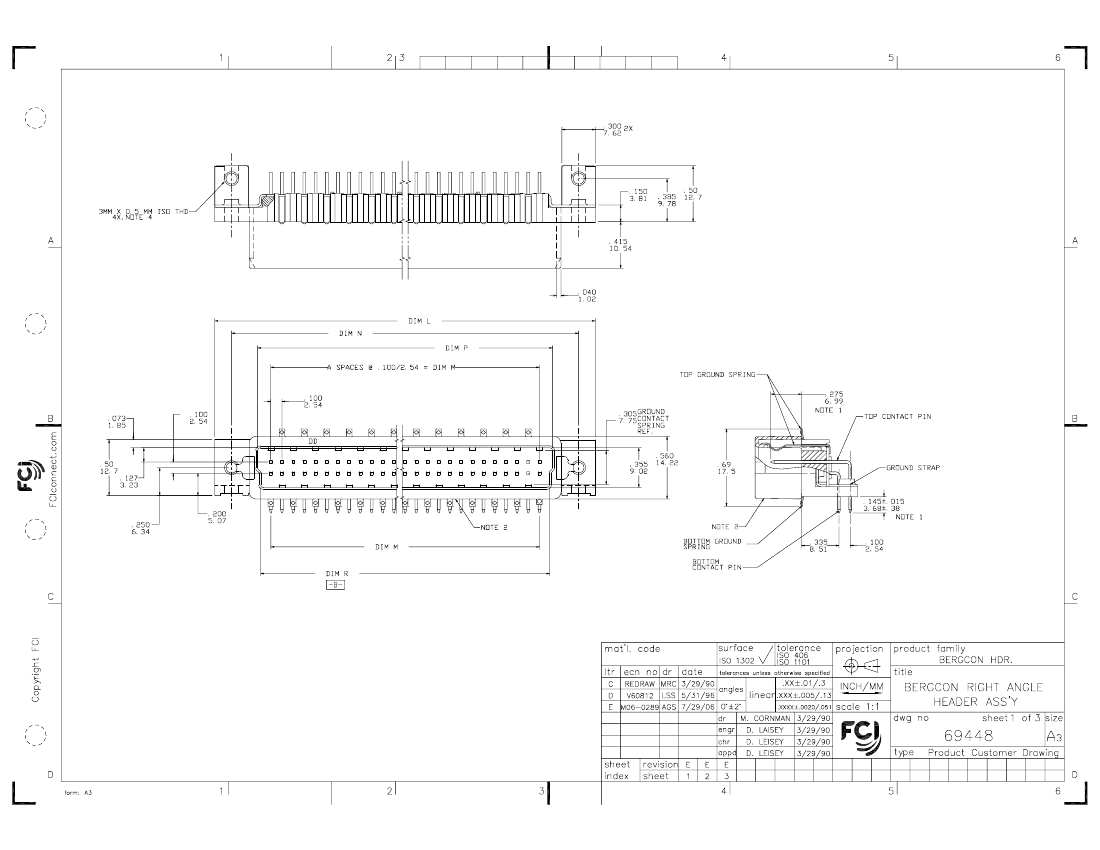

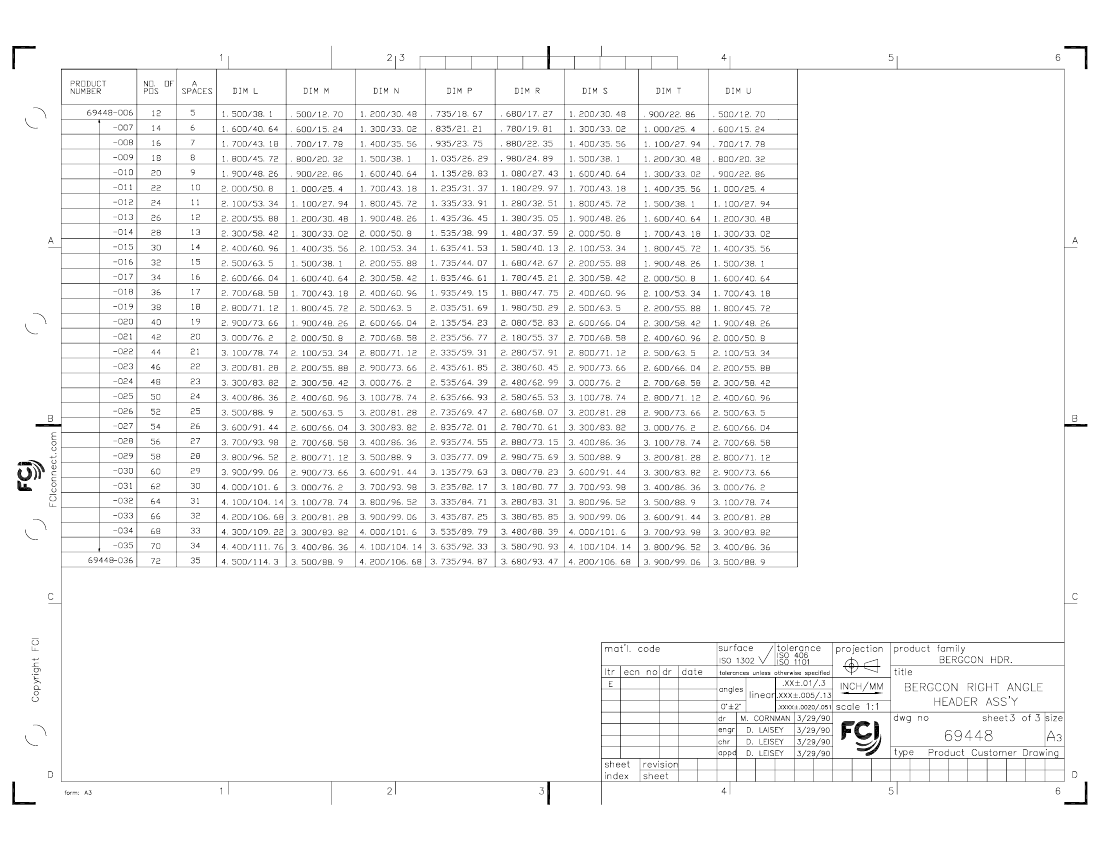

PDM: Rev:E

STATUS:

Released

Printed: Dec 01, 2010
