77317-S15-30LF datasheet, PDF - EEWORLD Datasheet

77317-S15-30LF: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size122KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

77317-S15-30LF Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1104454530
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.19 inch
subject depth	0.26 inch
body length	1.5 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER PALLADIUM NICKEL (15)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2121VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	CSA; UL
reliability	COMMERCIAL
Terminal length	0.646 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0

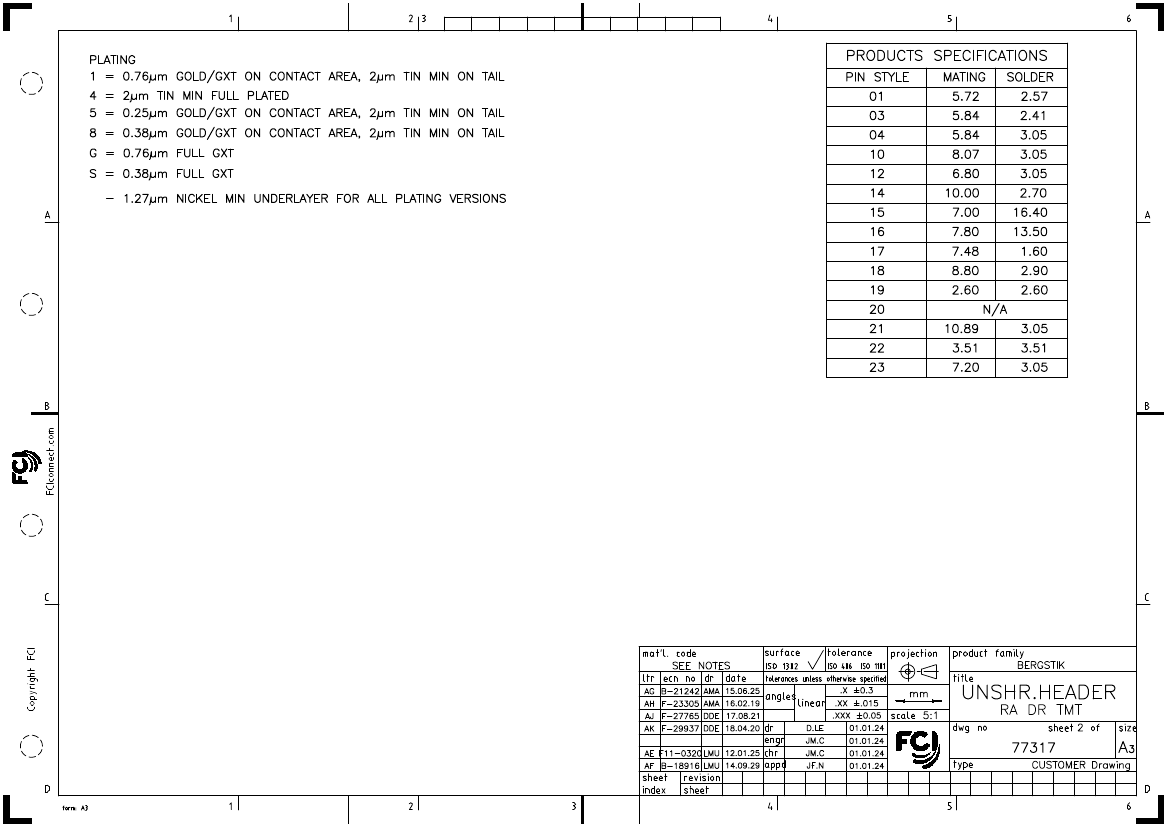

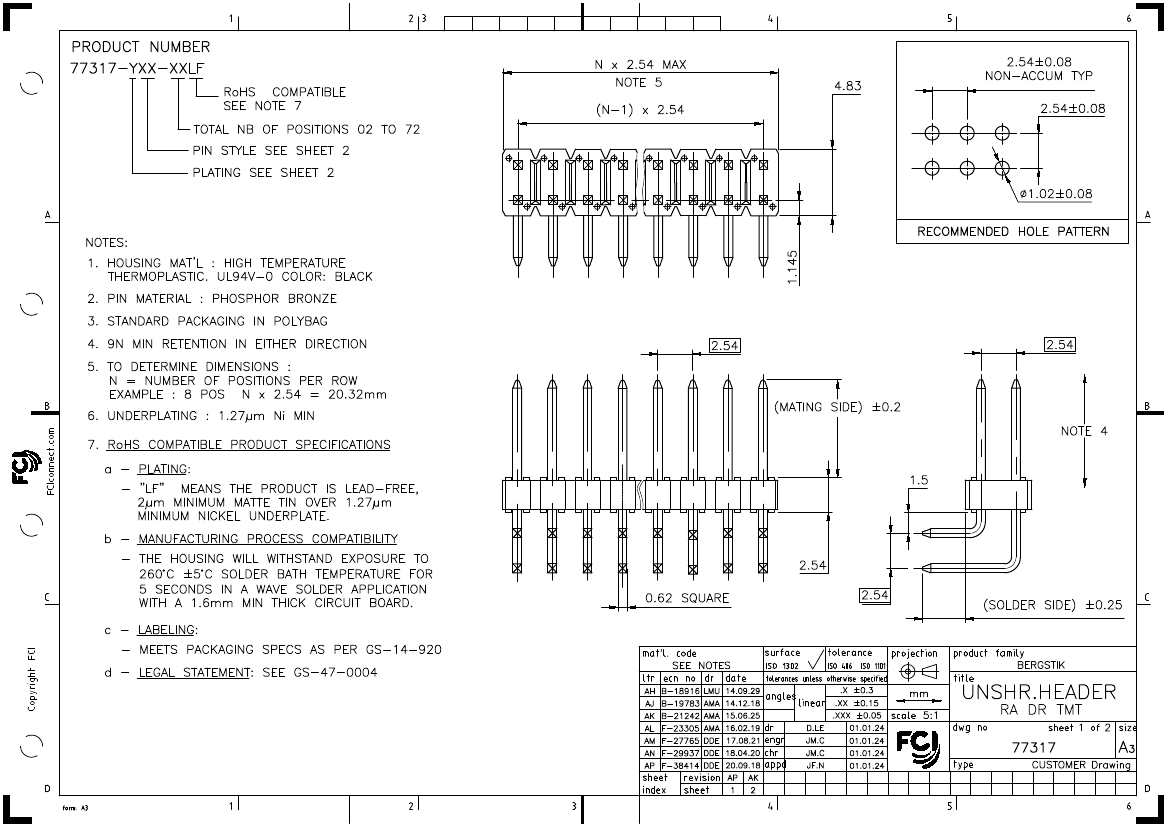

PDS: Rev :AP

STATUS:Released

Printed: Sep 23, 2020
