94262-638LF datasheet, PDF - EEWORLD Datasheet

94262-638LF: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size165KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

94262-638LF Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, LEAD FREE

Parameter Name	Attribute value
Objectid	2144551589
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.4
body width	0.157 inch
subject depth	0.098 inch
body length	1.496 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	MATTE TIN (150) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	94262
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0894 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	38
UL Flammability Code	94V-0

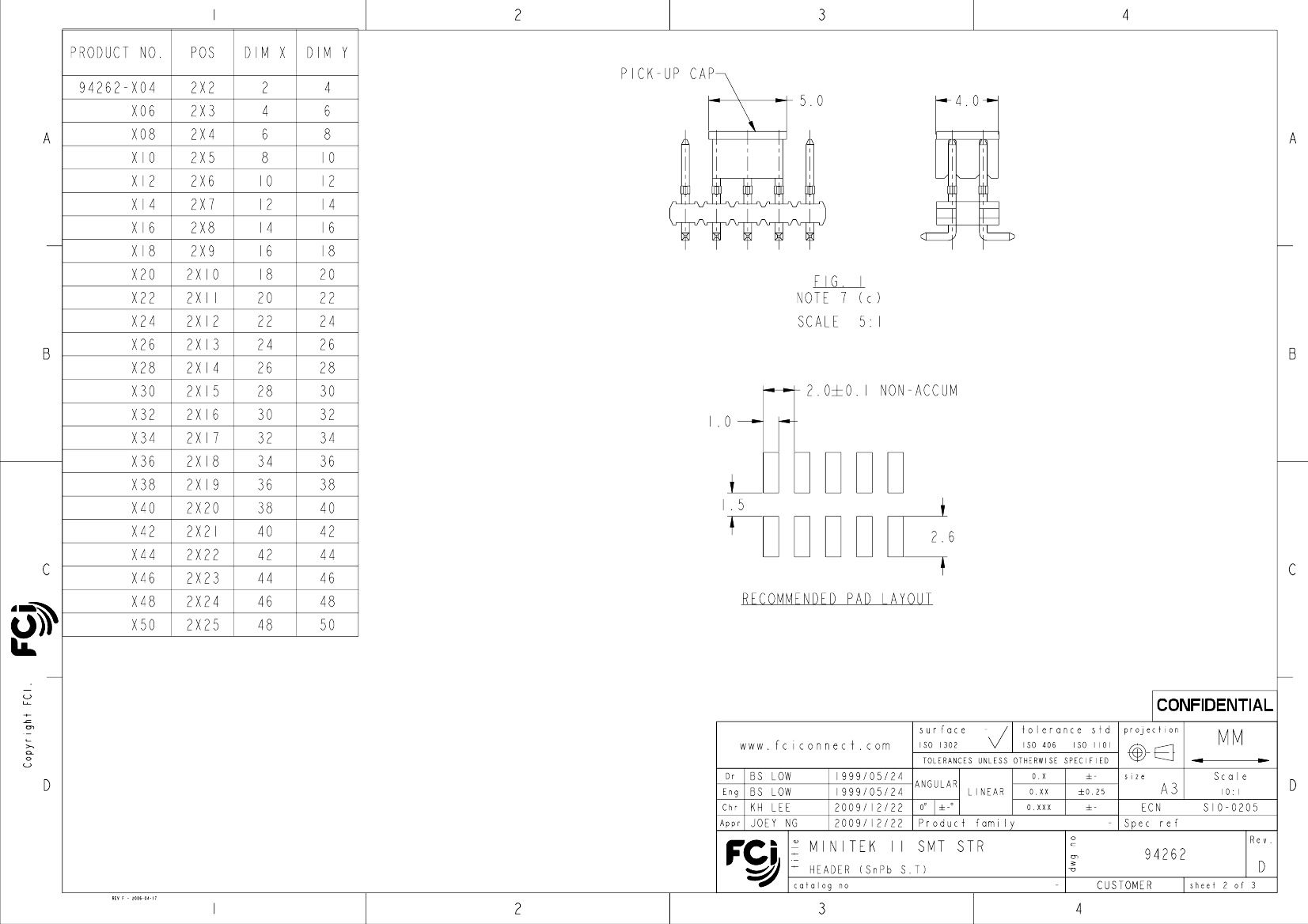

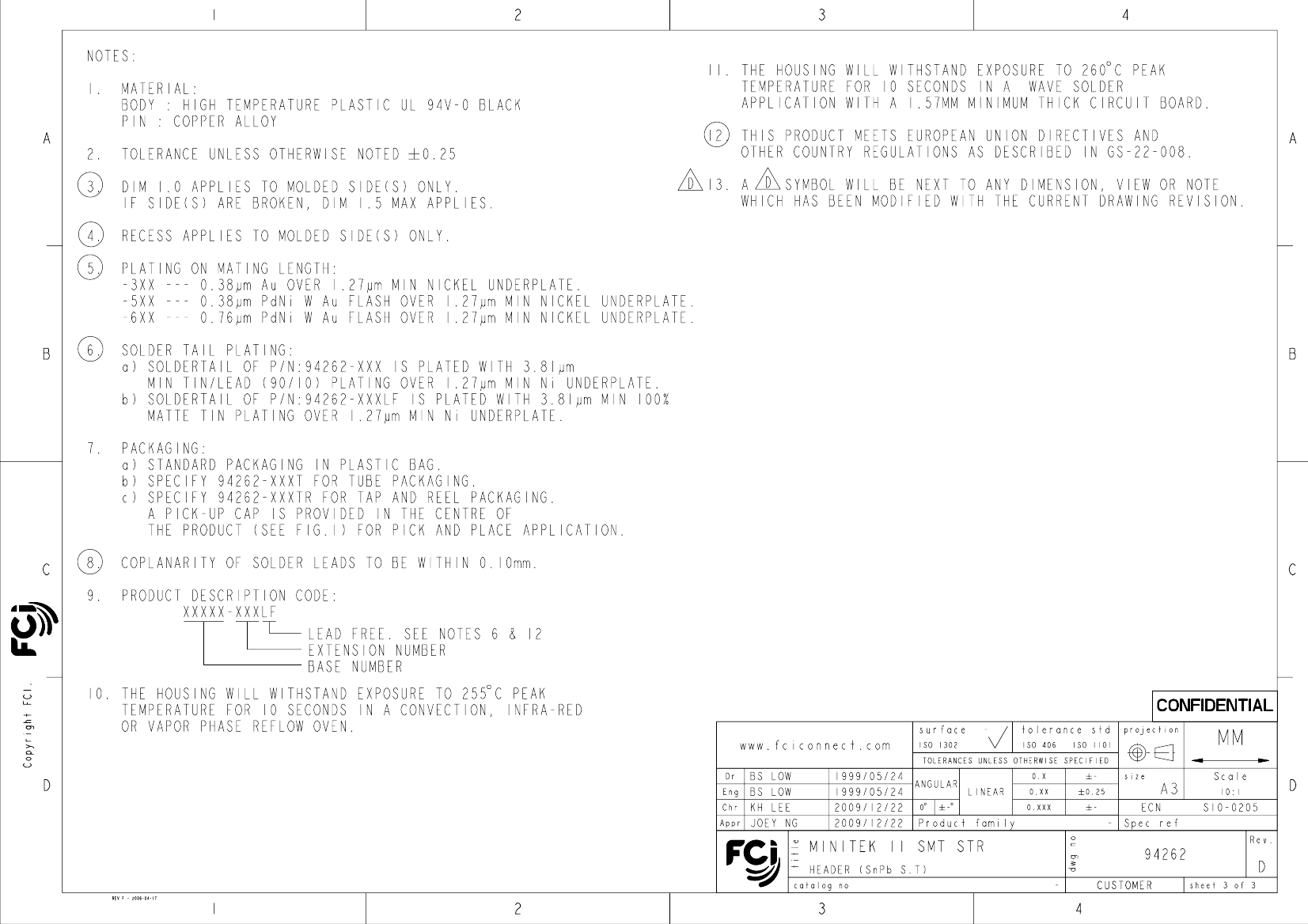

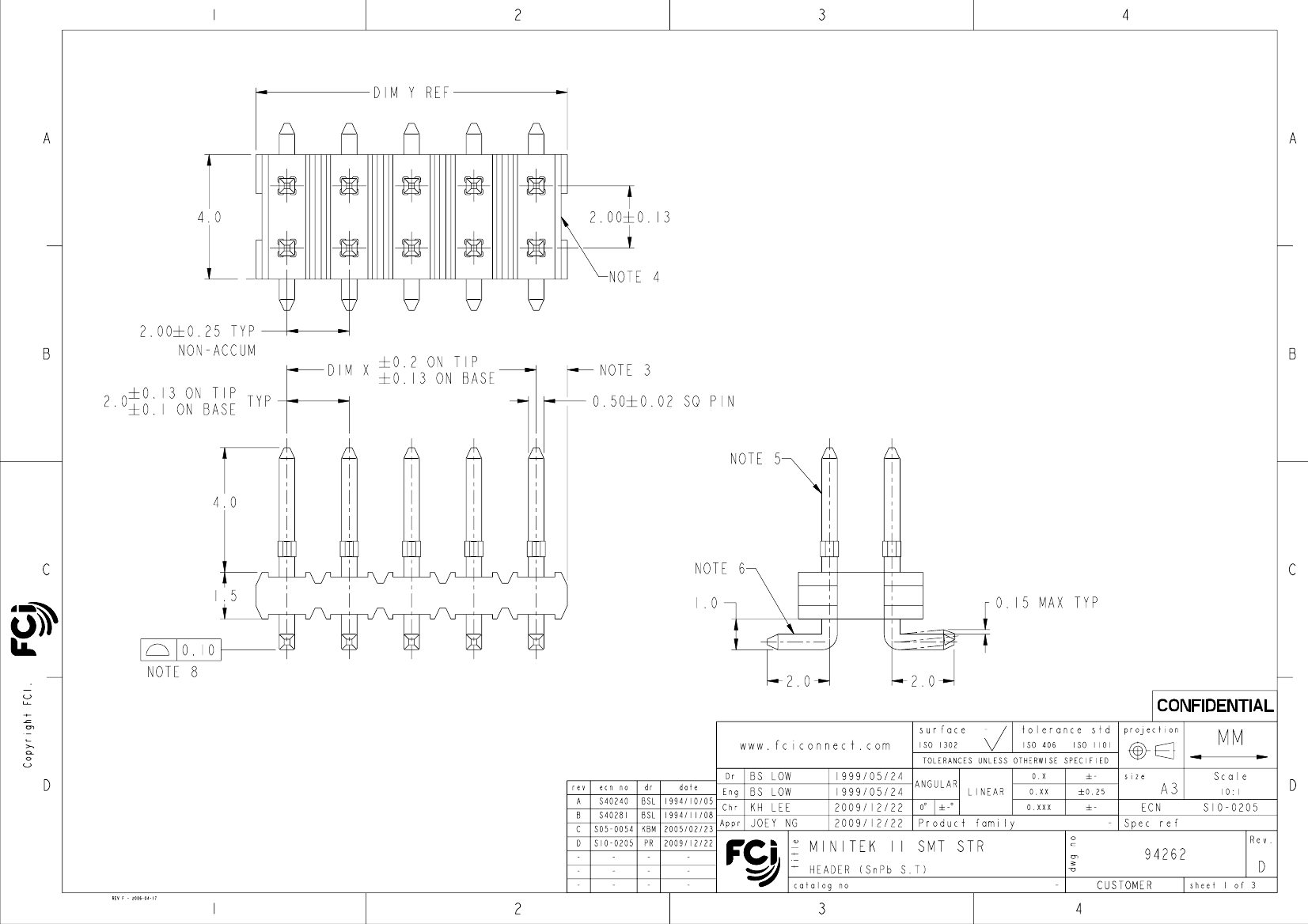

PDM: Rev:D

STATUS:

Released

Printed: Oct 12, 2010

.
