BGA Adapters
Table of Models

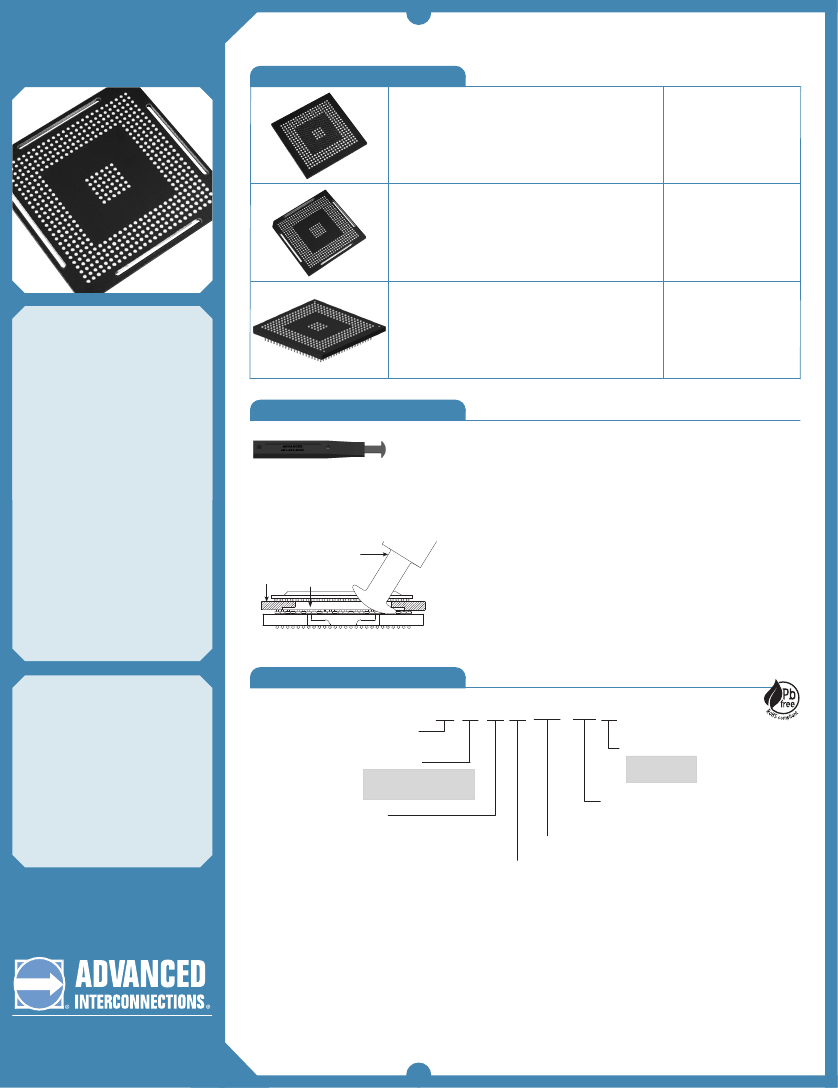

Ball Grid Array (BGA) Adapters
Description:
Standard Adapter (A)
Material: FR-4 Fiberglass Epoxy Board
Index: -40°C to 140°C (-40°F to 284°F)
Note: Mates with Standard Socket (S)
Insulator Size:
BGA device body
+.079/(2.00mm)
Description:
Extraction Slot Adapter (AX)
Material: FR-4 Fiberglass Epoxy Board
Index: -40°C to 140°C (-40°F to 284°F)
Note: Mates with Extraction Socket (SB)
Insulator Size:
BGA device body
+.157/(4.00mm)
Features:
• Soldering BGA Device to adapter
subjects BGA to less thermal
stress than soldering BGA directly
to a PCB due to the adapter’s
lower mass.
• Uses same footprint as BGA
device.
• Custom adapters available for
heat sink attachment.
• Gold plated screw-machined
terminals for superior durability.
• Unique SMT Adapter provides
reliable solution for mounting or
socketing LGA or re-worked BGA
devices.
• SMT Adapters mate with our BGA
Sockets for LGA to BGA
conversion or SMT Board to
Board applications.
Extraction
Tool
Adapter
Extraction
Slot
BGA Device
Description:
SMT Adapter (A or AX)
Material: FR-4 Fiberglass Epoxy Board
Index: -40°C to 140°C (-40°F to 284°F)
Note: For use with LGA or reworked BGA
devices
Insulator Size:
BGA device body
+.079/(2.00mm)[A]
+.157/(4.00mm)[AX]
Options
Extraction Tool
P/N 8125
• Insert “T” bar end of tool into extraction slot adapter.
• Slide tool to end of slot and pry adapter from socket.
• Repeat in additional slots until adapter is separated from socket.
• Works with LCP or FR-4 sockets.
Socket
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Plating:
G - Gold over Nickel
Gold per MIL-G-45204
Nickel per QQ-N-290
How To Order
1
Footprint Dash #
If Applicable
F
H A XXX - 715 G
Terminal Plating
RoHS Compliant:
Body Type
RoHS Compliant Insulators:
G - Gold
Terminal Type
See options
F - FR-4
Pitch
G = .050/(1.27mm)
H = .039/(1.00mm)
J = .0315/(0.80mm)
K = .0295/(0.75mm)
Number of Positions
See footprint section online
Model Type
A = Standard Adapter
AX = Extraction Slot Adapter
(1.27 and 1.00mm only)
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
CAT16-PREVIEW06 Rev. 1/06
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
2
inch/(mm)

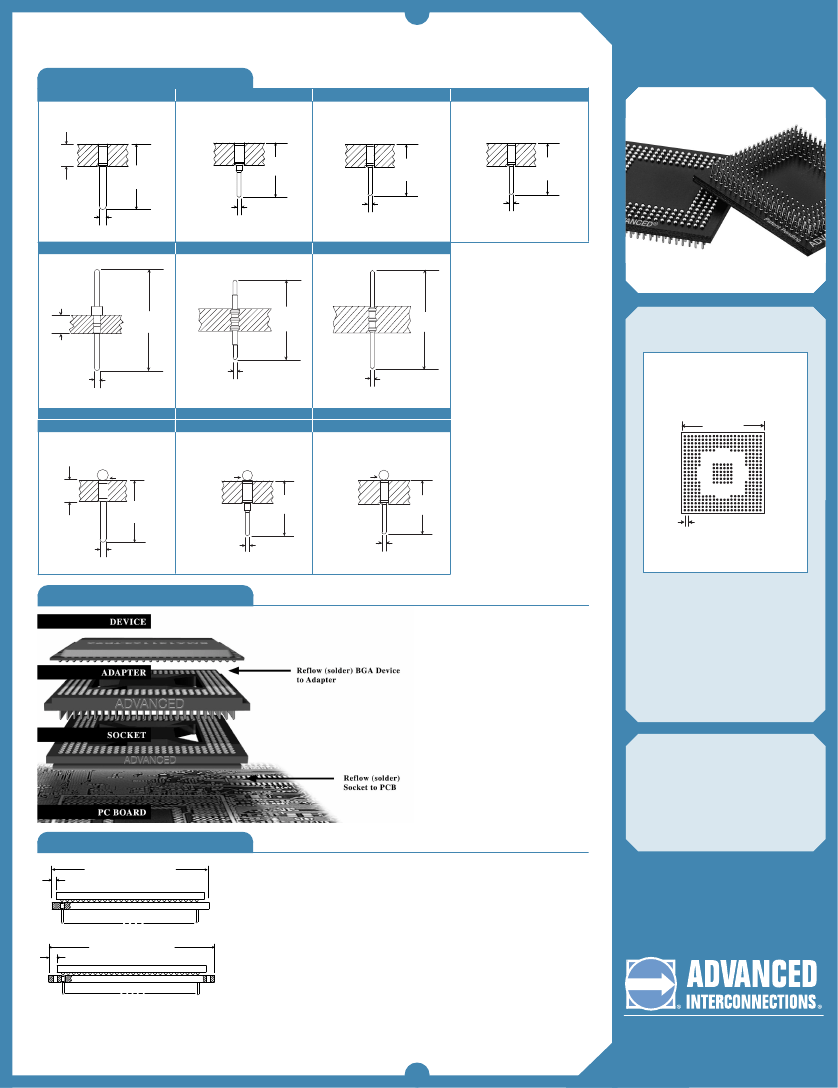

Ball Grid Array (BGA) Adapters
Standard Terminals
Type -638
1.27mm pitch
BGA Adapters
Type -700
0.80mm pitch
Additional standard and custom terminals available.
See Terminals section online or consult factory.
Type -715
1.00mm pitch
Type -757
0.75mm pitch
Standard
.062
(1.57)
.182
(4.62)
.159
(4.04)
.146
(3.71)
.009
(0.23)Dia.
.142
(3.61)
.018
(0.46) Dia.
.011/(0.28)
Dia.
.008
(0.20)Dia.
Type -721
Type -735
Type -732
Male to Male
.062
(1.57)
.342
(8.69)
.218
(5.54)
.230
(5.84)
Footprints:
360 Pins
Footprint Number 360-2
.906 Sq.
(23.00)
2X
.018/(0.44)
Dia.
2X
.011/(0.28)
Dia.
2X
.009/(0.23)
Dia.
Tin/Lead: Type -720
Lead-free: Type -823
Tin/Lead: Type -737
Lead-free: Type -824
Tin/Lead: Type -736
Lead-free: Type -829
SMT (Surface Mount)
.030/(0.76) Dia.
Solder Ball
.024/(0.61) Dia.
Solder Ball
.020/(0.51) Dia.
Solder Ball
.062
(1.57)
.182
(4.62)
.011/(0.28)
Dia.
.159
(4.04)
.146
(3.71)
.039/(1.00) Typ.
.009/(0.23)
Dia.
.018/(0.46)
Dia.
22 x 22 rows
• Footprint specific insulators
drilled to exact device pattern
• Over 900 footprints available -
search online or request BGA
Footprints Booklet
• Use our Build-A-Part feature or
search in our online BGA Socket
Finder
TM
at www.bgasockets.com
How It Works
Available Online:
• RoHS Qualification Test Report
• Technical articles
• Test data
• BGA Footprints
Dimensional Information
BGA Body + .079/(2.0)
.039/(1.0)
BGA Device
Standard Adapter (A)
• Mates with Standard Socket (S)
• Adapter size equals BGA Device body + .079/(2.00)
BGA Body + .157/(4.0)
.079/(2.0)
BGA Device
Extraction Slot Adapter (AX)
• Slots allow AIC extraction tool (sold separately) to easily
remove device/adapter assembly from socket
• Mates with Extraction Socket (SB)
• Adapter size equals BGA Device body + .157/(4.00)
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
CAT16-PREVIEW06 Rev. 1/06
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
