222-13-964-41-001100: DescriptionIC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size153KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

222-13-964-41-001100 Overview

IC Socket, DIP64, 64 Contact(s), ROHS COMPLIANT

222-13-964-41-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP64
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-PLASTIC
JESD-609 code	e4
Number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

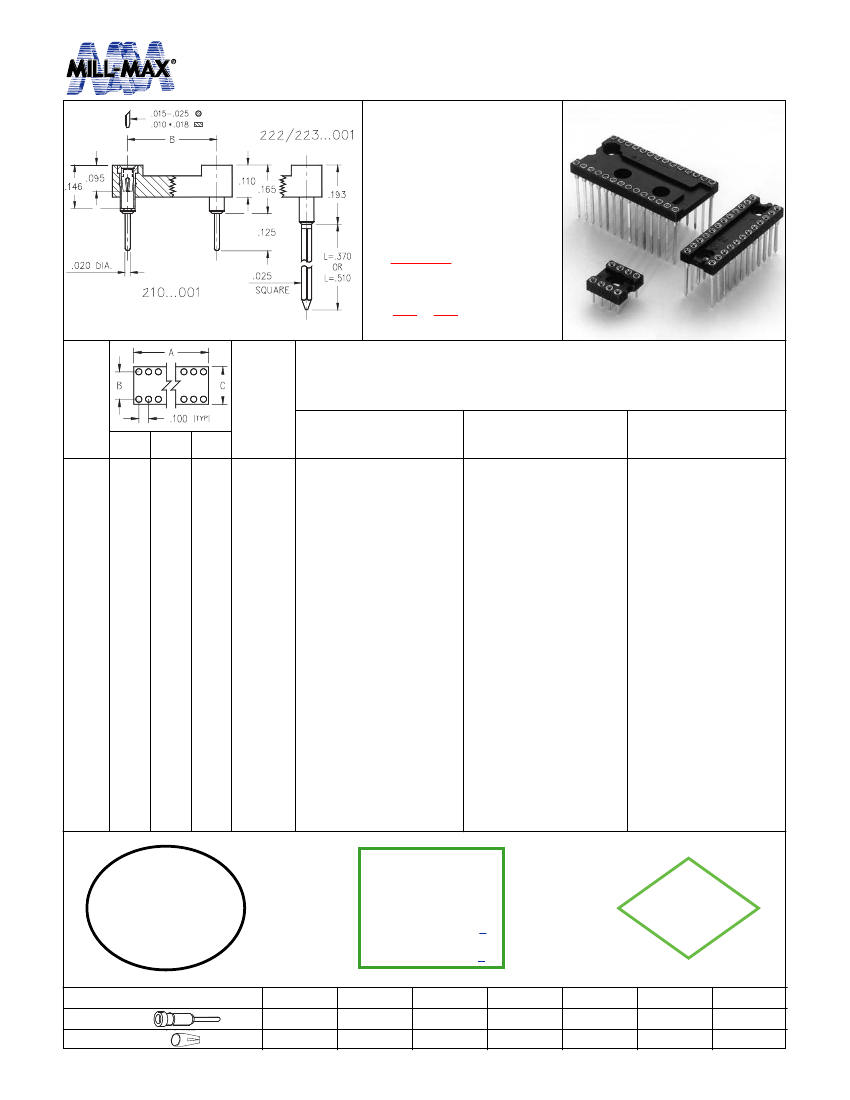

DUAL-IN-LINE SOCKETS

Solder Tail and Wrapost

Closed Frame

•

Closed frame insulator

withstands high

mechanical impact.

Low profile.

•

Available with standard

solder pins or 2-level

and 3-level wraposts.

•

Hi-Rel, 4-finger #30 clip.

rated at 3 amps. See

page 208 for details.

•

Uses M-M #1001, 0088,

or 0089 pins. See pages

134 & 162 for details.

Total number

of pins

Series 210, 222, 223

Quantity

per tube

Ordering Information

Solder Tail

2 Level Wrapost

L = .370

222-XX-306-41-001000

222-XX-308-41-001000

222-XX-310-41-001000

222-XX-314-41-001000

222-XX-316-41-001000

222-XX-318-41-001000

222-XX-320-41-001000

222-XX-322-41-001000

222-XX-324-41-001000

3 Level Wrapost

L = .510

223-XX-306-41-001000

223-XX-308-41-001000

223-XX-310-41-001000

223-XX-314-41-001000

223-XX-316-41-001000

223-XX-318-41-001000

223-XX-320-41-001000

223-XX-322-41-001000

223-XX-324-41-001000

A

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.1

1.2

1.4

1.6

1.8

2.0

3.2

B

0.3

0.4

0.6

0.9

C

0.4

0.5

0.7

1.0

67

50

40

28

25

22

20

18

16

18

16

14

12

11

10

6

8

10

14

16

18

20

22

24

22

24

28

32

36

40

64

210-XX-306-41-001000

210-XX-308-41-001000

210-XX-310-41-001000

210-XX-314-41-001000

210-XX-316-41-001000

210-XX-318-41-001000

210-XX-320-41-001000

210-XX-322-41-001000

210-XX-324-41-001000

210-XX-422-41-001000

210-XX-424-41-001000

210-XX-624-41-001000

210-XX-628-41-001000

210-XX-632-41-001000

210-XX-636-41-001000

210-XX-640-41-001000

210-XX-964-41-001000

222-XX-422-41-001000 223-XX-422-41-001000

222-XX-424-41-001000 223-XX-424-41-001000

222-XX-624-41-001000

222-XX-628-41-001000

222-XX-632-41-001000

222-XX-636-41-001000

222-XX-640-41-001000

223-XX-624-41-001000

223-XX-628-41-001000

223-XX-632-41-001000

223-XX-636-41-001000

223-XX-640-41-001000

222-XX-964-41-001000 223-XX-964-41-001000

XX= Plating Code

See Below

For RoHS compliance,

select plating code.

For the all gold option

(XX=13) also change

part number from

2XX-XX-XXX-41-001000

to

2XX-13-XXX-41-001100

13

10μ” Au

30μ” Au

91

10μ” Au

93

30μ” Au

99

200μ” Sn/Pb

41

200μ” Sn

10μ” Au

43

200μ” Sn

30μ” Au

44

200μ”Sn

200μ” Sn

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200μ” Sn/Pb

200μ”Sn/Pb
