BCS-148-L-S-TE-029

Description
Board Connector, 48 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size461KB,3 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

BCS-148-L-S-TE-029 Overview

Board Connector, 48 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

BCS-148-L-S-TE-029 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1155524211
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
YTEOL9.1
Other features29TH PIN POLARIZED
body width0.1 inch
subject depth0.29 inch
body length4.8 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (10) OVER NICKEL (50)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage375VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.39 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness10u inch
polarization keyPOLAR PIN POSITION
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts47
UL Flammability Code94V-0
Evacuation force-minimum value.834 N
REVISION CE
DO NOT
SCALE FROM
THIS PRINT
No OF POSITIONS x .100[2.54]
+.000[0.00]
(MOLD TO POSITION:
-.005[0.13]
)
(CUT TO POSITION: ±.010[.25] - SEE NOTE 4)
(No OF POS x .100[2.54]) - (.100[2.54])

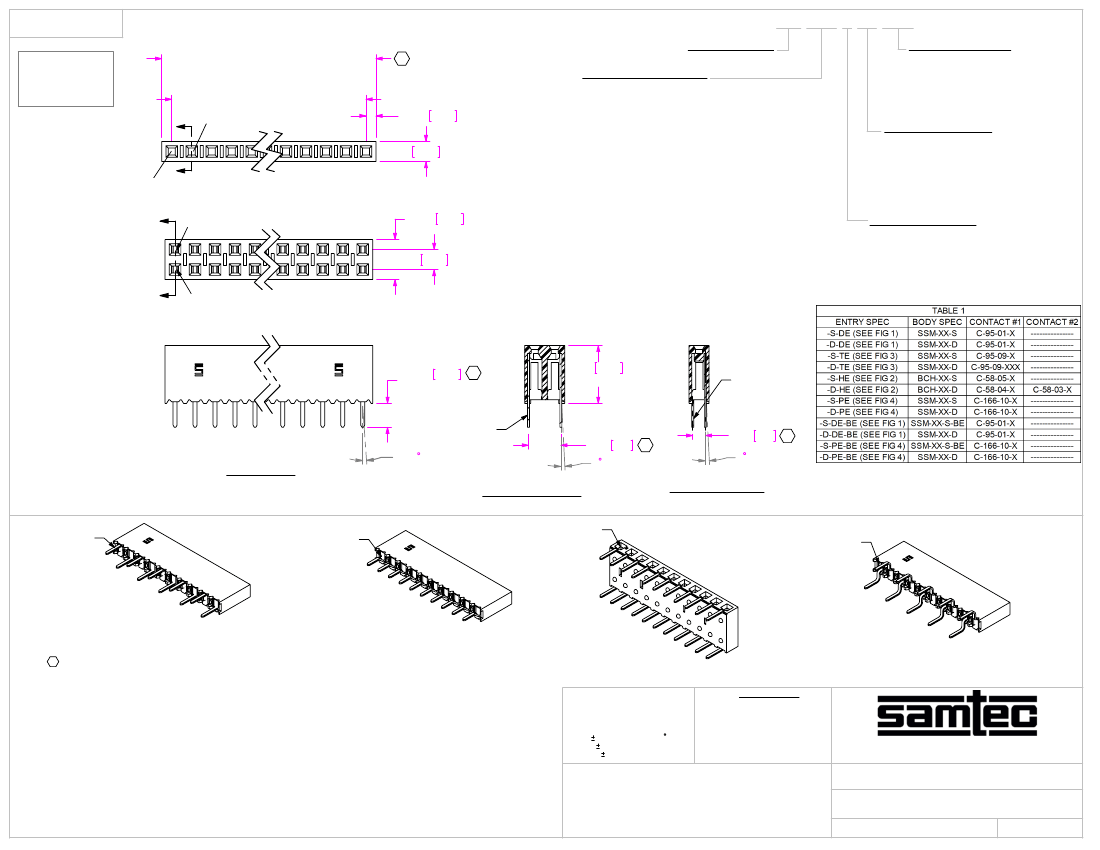

BCS-1XX-XXX-X-XX-XXX
C
-T:
-L:
No OF POSITIONS
-01 THRU -50
PLATING SPECIFICATIONS
(SEE TABLE 1)
.050 1.27 REF
MATTE TIN CONTACT AND TAIL
10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LTL: 10µ’’ LIGHT SELECTIVE GOLD IN CONTACT AREA,
TIN LEAD (90/10 +/-5%) ON TAIL
POLARIZING OPTION
INSERT PK-06-N INTO SPECIFIED
POS AND BREAK OFF TAB
(NOT AVAILABLE FOR -BE OPTION)
"B"
-02
-50
.100 2.54 REF
-01
"B"
-49
ENTRY SPECIFICATION
-DE: DUAL ENTRY (SEE TABLE 1)
-TE: TOP ENTRY (SEE TABLE 1)
-HE: HORIZONTAL ENTRY (SEE TABLE 1)
-PE: PASS-THROUGH ENTRY (SEE TABLE 1)
-DE-BE: (SEE TABLE 1)
-PE-BE: (SEE TABLE 1)
BODY SPECIFICATION
-S: SINGLE ROW (SEE TABLE 1)
-D: DOUBLE ROW (SEE TABLE 1)
"A"
-50
-02
.200 5.08 REF
.100 2.54 REF
"A"
-49
-01
.119 3.02
C
(SEE NOTE 9)
.290 7.37
REF
CONTACT #1
CONTACT #1
-DE/-DE-BE
FIG 1(SEE NOTE 11)
2 MAX SWAY
IN EITHER DIRECTION
.16 4.1
C
.06 1.6
C
2 MAX SWAY
2 MAX SWAY
SECTION "A"-"A"
BCS-1XX-X-D-DE
POSITION 01
SECTION "B"-"B"
BCS-1XX-X-S-DE
POSITION 01
POSITION 01
POSITION 01
NOTES:
1.
2.
3.
4.
5.
6.
7.
(-DE TAIL ORIENTATION)
(-TE TAIL ORIENTATION)
(-PE TAIL ORIENTATION)
PROPRIETARY NOTE
*
8.
9.
10.
11.
C
REPRESENTS CRITICAL DIM. FOR STATISTICAL PROCESS CONTROL.
MINIMUM PUSHOUT FORCE TO BE: 1 LB.
[ ] DIMENSIONS ARE IN MILLIMETERS.
MINIMUM WALL THICKNESS ON CUT PARTS: .009 [0.23].
CUT PARTS TO BE SYMMETRICAL ABOUT C .
L
1st POSITION WILL ALWAYS POINT UP ON TOP VIEW AS SHOWN.
1 THROUGH 4 POSITIONS ARE TO BE LAYER PACKAGED, 5 THROUGH
50 POSITIONS ARE TO BE TUBED FOR ALL ENTRY SPECIFCATION EXCEPT
BCS-S-HE AND BCS-D-HE. FOR BCS-S-HE AND BCS-D-HE, 1 THROUGH 3
POSITIONS ARE TO BE LAYER PACKAGED, 4 THROUGH 50 POSITIONS ARE TO BE TUBED.
DAMAGE TO THE CUT SURFACE CAN NOT EFFECT LEAD-IN OF THE CORES.
MAXIMUM VARIATION WITHIN A ROW: .006 [0.15].
MAXIMUM VARIATION FROM ROW TO ROW: .012 [0.30].
MAXIMUM CUT FLASH: .015 [0.38].
CHAMFERED END-WALLS MAY OR MAY NOT BE PRESENT ON ONE OR BOTH ENDS OF
FINISHED GOOD.
(-HE TAIL ORIENTATION)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: GLASS FILLED LCP UL 94 VO, COLOR: BLACK
CONTACT: PHOS. BRONZE
BOX CONNECTOR SOCKET STRIP
BCS-1XX-XXX-X-XX-XXX
09/12/1991
SHEET
1
OF
3
F:\DWG\MISC\MKTG\BCS-1XX-XXX-X-XX-XXX-MKT.SLDDRW
BY:
KOLB
