REVISION EK
DO NOT
SCALE FROM
THIS PRINT
NOTES:
TFM-1XX-XX-XXX-D-XXX
OPTION
-A: ALIGNMENT PIN (USE TFM-XX-D-XX-A,
SEE TABLE 1) (SEE FIG 8, SHT 3)
(NOT AVAILABLE FOR -RA OR -REX)
-LC: LOCKING CLIP (USE LC-05-TM)
(NOT AVAILABLE FOR -RA OR -REX)
(SEE FIG 10, SHT 3 & NOTES 3 & 11)
-P: PICK AND PLACE PAD (USE PPP-04)
(AVAILABLE IN ALL POSITIONS -05 THRU
-50 EXCEPT -05 WITH -WT)
(NOT AVAILABLE FOR -RA OR -REX,
SEE FIG 7, SHT 3)
-RA: RIGHT ANGLE
(AVAILABLE ONLY IN LEAD STYLE: -01
SEE FIG 5, SHT 2)
-TR: TAPE AND REEL (SEE FIG 4, SHT 5)
(NOT AVAILABLE WITH -DS OPTION)
-SA: STAKED ALIGNMENT PIN (SEE FIG 9, SHT 3)
(NOT AVAILABLE FOR -RA OR -RE)
-K: POLYIMIDE FILM (SEE FIG 3, SHT 2)
(NOT AVAILABLE FOR -RA OR -REX)
(ALL LEAD STYLES EXCEPT -21 AVAILABLE)
-WT: WELD TABS (USE WT-25-XX-T)
(AVAILABLE ON -01, -02 & -03 LEAD
STYLES ONLY) (SEE FIG 6, SHT 2)
(MATES WITH SFSS/SFSD -SR & -DR ONLY)
(NOT AVAILABLE WITH -A, -LC,
-RA, OR -SA OPTIONS)

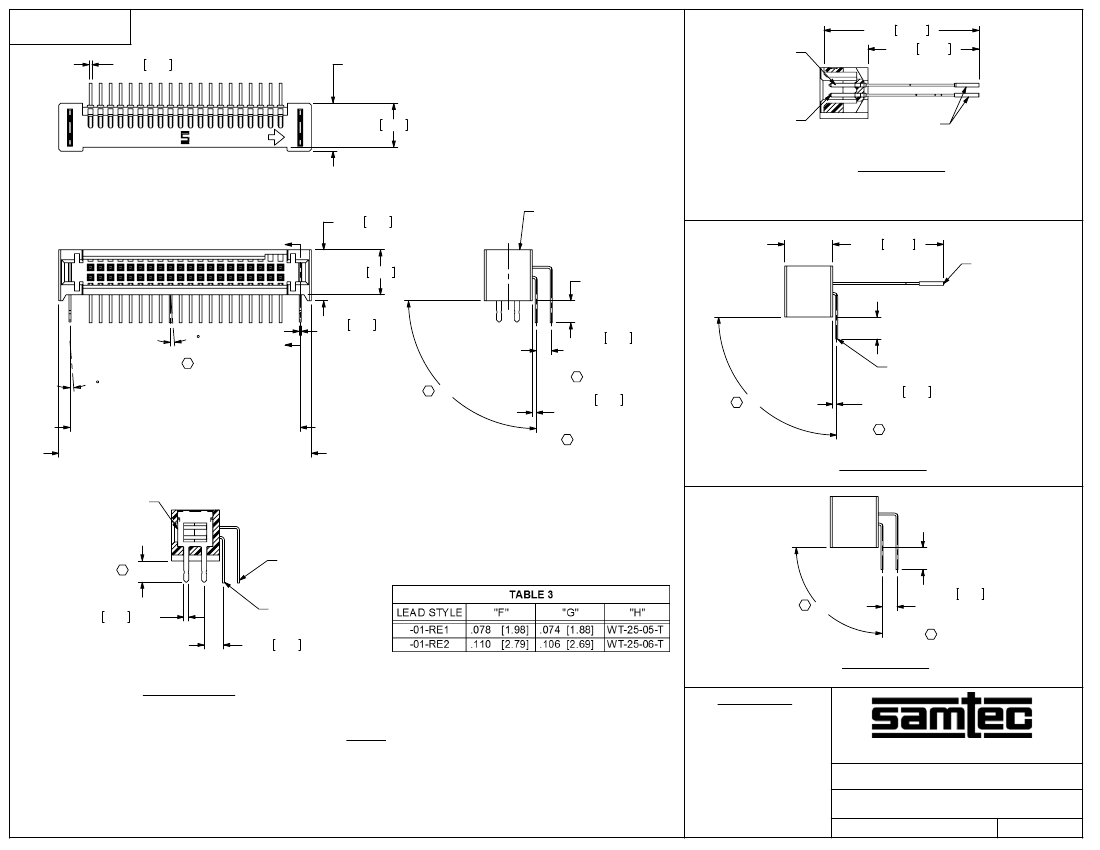

-RE1: RIGHT ANGLE ELEVATED .062 PCB
(USE TFM-XX-D-01-RE, NOT AVAILABLE
WITHOUT -WT, AVAILABLE IN LEAD
STYLE -01 ONLY, -03 THRU -50 POS)
(MATES WITH SFSS/SFSD -SR & -DR ONLY)
(SEE FIG 11, SHT 4)
-RE2: RIGHT ANGLE ELEVATED .093 PCB
(USE TFM-XX-D-01-RE, NOT AVAILABLE
WITHOUT -WT, AVAILABLE IN LEAD
STYLE -01 ONLY, -03 THRU -50 POS)
(MATES WITH SFSS/SFSD -SR & -DR ONLY)
(SEE FIG 11, SHEET 4)
-SN: SOLDER NAIL FOR .062 BOARD
(TFM-XX-D-01-SN AND WT-27-01-T)
(SEE FIG12, SHT 3)
(ONLY AVAILABLE WITH -02 LEAD STYLE)
(NOT AVAILABLE WITH OPTIONS -A, -LC,
-RA, -SA, -WT, -RE1 OR -RE2)
-SN2: SOLDER NAIL FOR .093 BOARD
(TFM-XX-D-01-SN AND WT-27-02-T)
(SEE FIG12, SHT 3)
(ONLY AVAILABLE WITH -02 LEAD STYLE)
(NOT AVAILABLE WITH OPTIONS -A, -LC,
-RA, -SA, -WT, -RE1 OR -RE2)

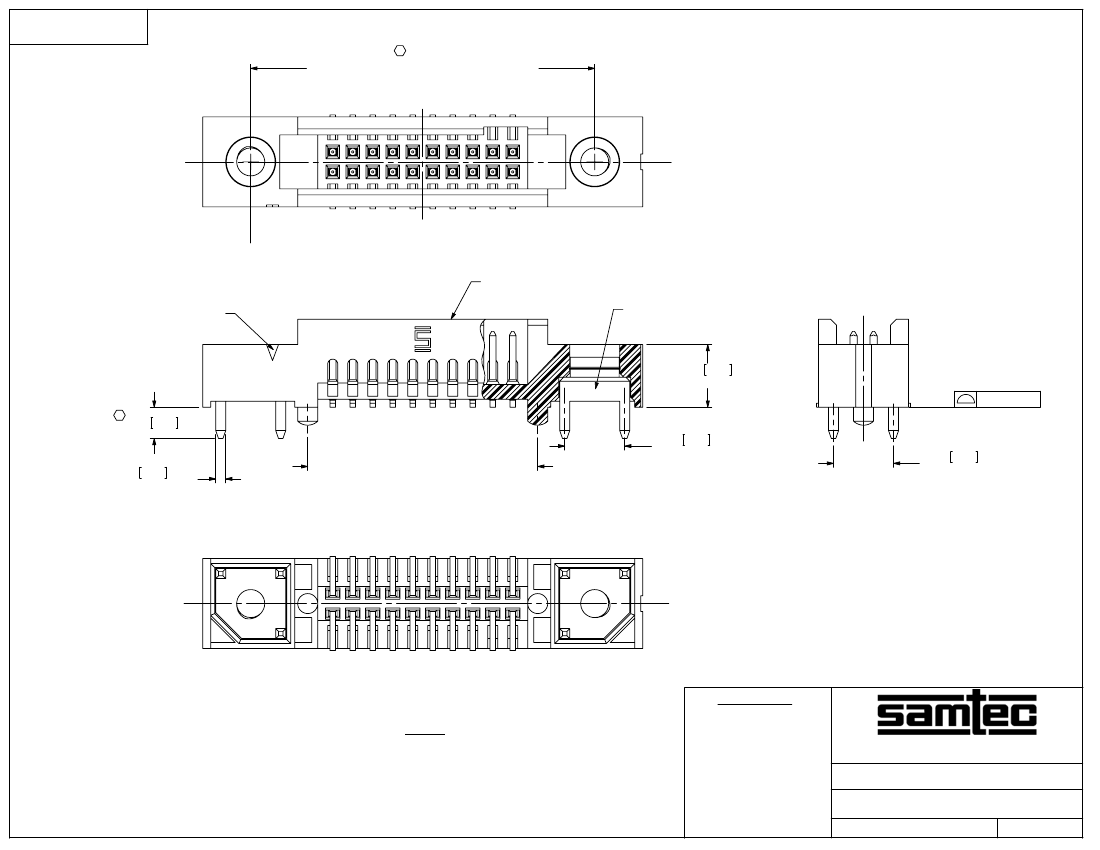

-DS: DUAL SCREW DOWN FOR .062 BOARD
(SEE FIG 17, SHT 5)
(ONLY AVAILABLE WITH -01 & -02 LEAD
STYLE, 02 THRU 40 POSITIONS)
(NOT AVAILABLE WITH OPTIONS -A, -LC, -P,
-RA, -TR, -SA, -K, -WT, -RE1, -RE2, -SN, -SN2)
(-01 LEAD STYLE USES TFM-XX-D-01-DSL
& T1-M2-4-VSFM-T, 02 LEAD STYLE USES
TFM-XX-D-01-DSA & T1-M2-4-VSFM-T)
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE FOR CONTACTS, WELD TABS AND THREADED INSERTS: 12 OZ.
No OF POSITIONS
3. MINIMUM LOCKING CLIP RETENTION: 8 OZS.
LEAD STYLE -01, -02, -03: -02 THRU -50 (ALL
4. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS: .005[0.13]
POSITIONS AVAILABLE)
5. MAXIMUM TERMINAL BURR: .003[0.08]
LEAD STYLES -11, -12, -13: (-05 THRU -50 MULTIPLES OF 5)
6. COPLANARITY: .004[0.10] = POS 02 THRU 26
POSITIONS 12, 16, 17 ALSO AVAILABLE
.006[0.15] = POS 27 THRU 50
C
LEAD STYLES -21, 22, 23: (-05 THRU -50 MULTIPLES OF 5)
7. MEASURED FROM BEND.
POSITIONS 12 & 13 ALSO AVAILABLE
8. DIMENSION CHANGED PER REVISION AD. CONTACT ENGINEERING
LEAD STYLES 31, 32: 12 POSITION ALSO AVAILABLE
FOR INFORMATION.
9. MEASURE FROM TIPS OF PIN.
10. THIS FEATURE ONLY PRESENT ON -01 &-02 LEAD STYLES.
LEAD STYLE
11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED,
THE –LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC
THROUGH HOLE
SURFACE MOUNT
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE
-01, -03 (SEE FIG 1)
-02 (SEE FIG 2)
–LC OPTION.
-11, -13 (SEE FIG 1)
-12 (SEE FIG 2)
12. SIDES OF PLASTIC BODIES ON ALL LEAD STYLES EXCEPT THE -01 & -02
-21,-23 (SEE FIG 1)
-22 (SEE FIG 2)
WILL BE SOLID, NOT RIBBED.
-31 (SEE FIG 1)
-32 (SEE FIG 2)
-S: 30µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-L: 15µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-F: 3µ" FLASH GOLD ON CONTACT AREA,
MATTE TIN TAIL
-H: 30µ" SELECTIVE GOLD ON CONTACT AREA,
3µ" FLASH GOLD ON TAIL
-SM: 30µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-LM: 15µ" SELECTIVE GOLD ON CONTACT AREA,
MATTE TIN TAIL
-FM: 3µ" FLASH GOLD ON CONTACT AREA,
MATTE TIN TAIL
-STL: 30µ" SELECTIVE GOLD ON CONTACT AREA,
TIN/LEAD (90/10 ±5%) TAIL
PLATING SPECIFICATION
(No. OF POSITIONS x .050[1.27]) + .125[3.18] REF
(No. OF POSITIONS x .050[1.27]) + .025[.64] REF
.110 2.79
REF
.155 3.94
REF
01
.075 1.91
REF
02
.050 1.27
REF
(No. OF POSITIONS x .050[1.27]) - .050[1.27]
C
.225 5.72
REF
SEE NOTE 10
BODY SPECIFICATION
-D: DOUBLE ROW
.050 1.27
.135 3.43 REF
2 MAX SWAY
(EITHER DIRECTION)
.018 0.46
"A"
2 MAX SWAY
(EITHER DIRECTION)
"D" REF
(SEE TABLE 1,
SHT 7)
.1635 4.153
"A" REF
REF
(SEE TABLE 1,
SHT 7)
SEE NOTE 12
.014 0.36 REF
"A"
2 MAX SWAY
(EITHER DIRECTION)
C
.096 2.44
(SEE NOTE 8)
"J" ± .003 [0.08]
(SEE TABLE 1, SHT 7)
C
.010 0.25 REF
C
.050 1.27
2 MAX SWAY
(EITHER DIRECTION)
(No OF POSITIONS x .050[1.27]) - .050[1.27]
C
C
+.004 [0.10]
"C"
- .002 [0.05]
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
F:\DWG\MISC\MKTG\TFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
(SEE TABLE 1,
SHT 7)

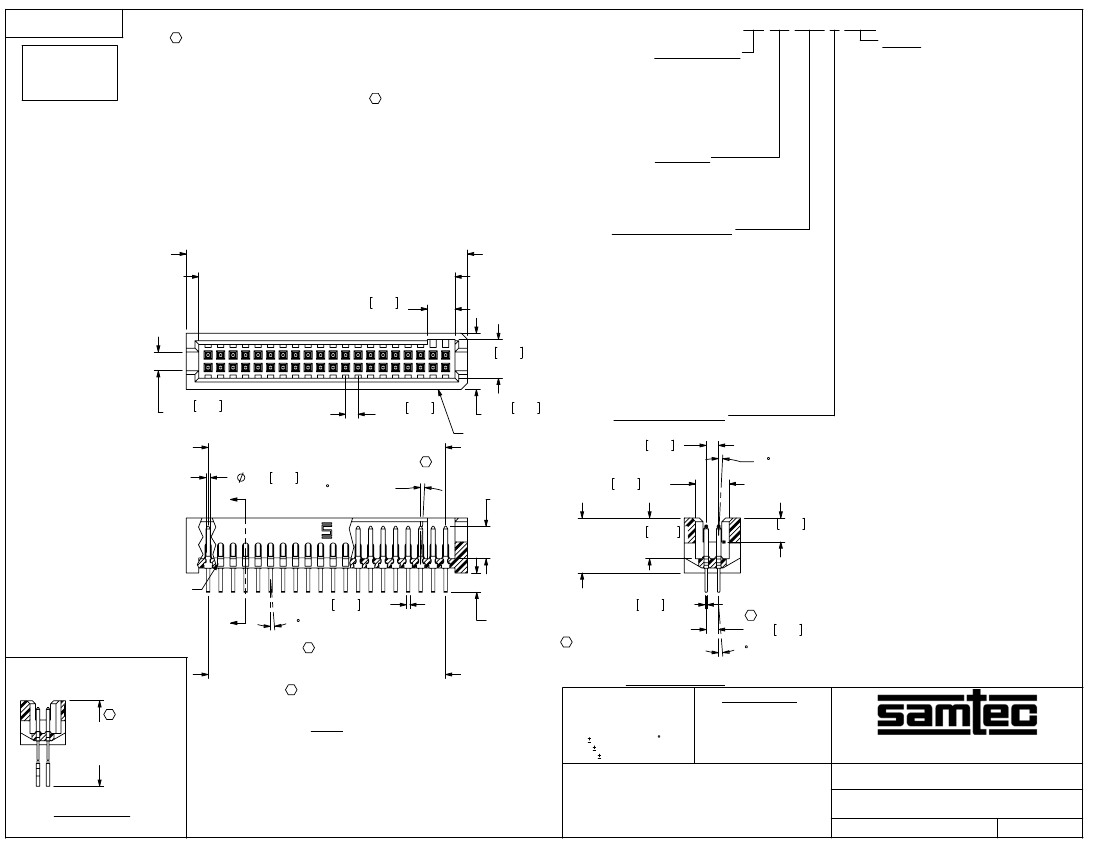

THROUGH HOLE
-01, -03, -11, -13, -21, -23, -31
FIG 1
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
IN-PROCESS
INSULATOR:
LCP, UL 94-VO
COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE
.050 X .050 TERMINAL STRIP
BY:
B RAY
TFM-1XX-XX-XXX-D-XXX
7-10-2007
SHEET
1
OF
7
REVISION EK
"B"
"A"
- .000
[0.00]
(SEE TABLE 1,SHT 7)
C
+.012
[0.30]
.216 5.49
90°
3
2
SEE NOTE 6
C
"E"
(SEE TABLE 1,
SHT 7)
SEE NOTE 12
C
"B"
FLUSH TO .012 [0.30] MAX
(SEE NOTE 7)
C
7 (-12, -22 & -32 STYLES)
3 (-02 STYLE ONLY)
.235 5.97
MAX
"S"
(SEE NOTE)
"R"
(SEE NOTE)
SEE NOTE 10
01 03
3 MAX SWAY
(EITHER DIRECTION)
SECTION "B"-"B"
02
No. OF POSITIONS x .050) -.050[1.27]
(TOL ACCUM ±.005[0.13] OVER 50 POS)
SEE NOTE 10
NOTE: “R” = OVERALL LENGTH (REF)
“S” = {(“R” - .216[5.49] /2} ±.020[.51]
SURFACE MOUNT
-02, -12, -22, -32
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
NOTCH TO BE
ORIENTED AS SHOWN
"C"
"A" REF
(SEE TABLE 1,
SHT 7)
TERMINAL 2
(SEE TABLE 1, SHT 7)
TERMINAL 1
(SEE TABLE 1, SHT 7)
FIG 2

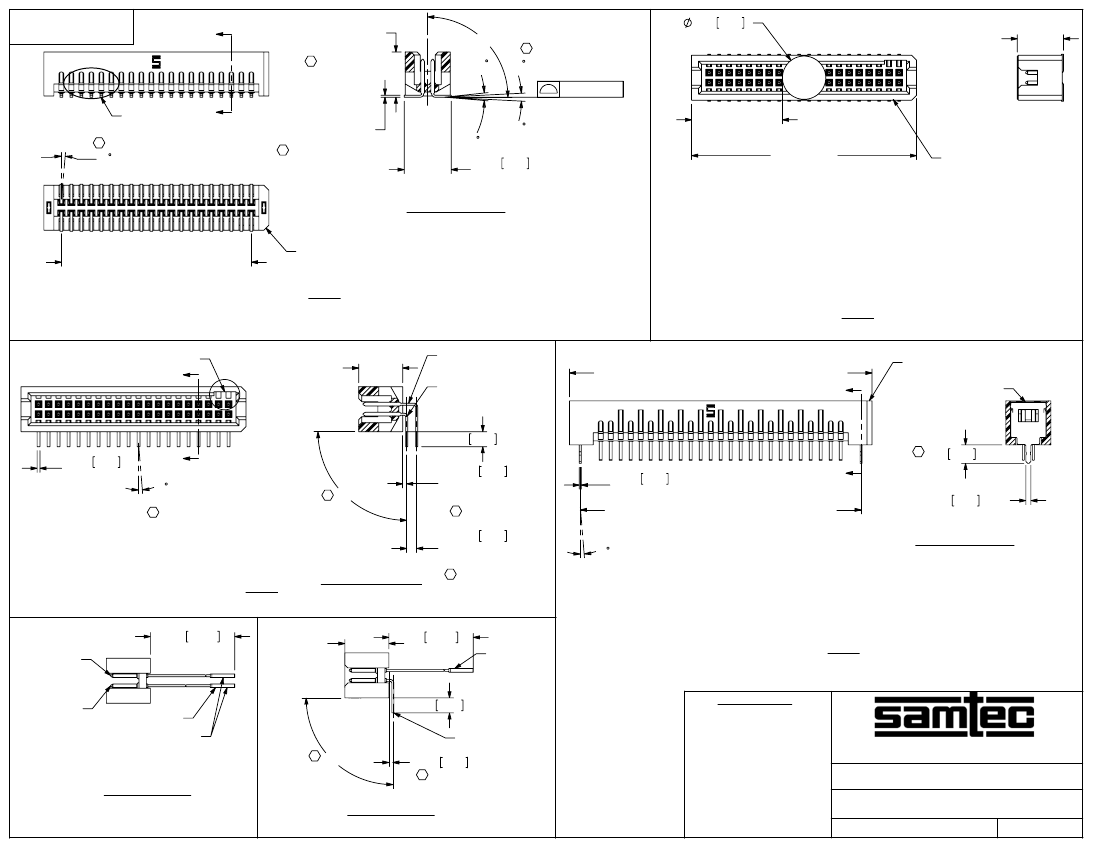

-K: POLYIMIDE FILM PAD
TFM-XX-D-XX-WT
WT-25-04-T
FIG 3
02
(No. OF POSITIONS X .050[1.27]) + .263[6.68] REF
"D"
01
.075 1.91 REF
.014 0.36
REF (TYP)
"C"
2 MAX SWAY
(EITHER DIRECTION)
C
C
C
.093 2.35 (TYP)
90°
.020 0.51
(SEE NOTE 9 &
TABLE 1, SHT 7)
C
.010 0.25
REF (TYP)
(No. OF POSITIONS x .050[1.27]) + .154[3.91]
"D"
.025 0.64 REF
-RA OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
TERMINAL 2
(SEE TABLE 1,
SHT 7)
TERMINAL 1
(SEE TABLE 1,
SHT 7)
.422 10.72
"A" REF
(SEE TABLE 1,
SHT 7)
.422 10.72
TERMINAL 2
(SEE TABLE 1,
SHT 7)
FIG 5
SECTION "C"-"C"
.050 1.27
(SEE NOTE 9 &
TABLE 1, SHT 7)
C
2 MAX SWAY
(EITHER DIRECTION)
SECTION "D"-"D"
-WT OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
F:\DWG\MISC\MKTG\TFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
FIG 6
CARRIER STRIP
I.D. MARK
C
.075 1.91 REF
TERMINAL 1
(SEE TABLE 1, SHT 7)
90°
.020 0.51
C
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(ORIENT I.D. MARK AS SHOWN)
(FOR -RA OPTION ONLY)
IN-PROCESS 1
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
IN-PROCESS 2
BY:
B RAY
TFM-1XX-XX-XXX-D-XXX
7-10-2007
SHEET
2
OF
7
REVISION EK
"M"
(SEE NOTE)
"P"
(SEE NOTE)
C
(No. OF POSITIONS x .050[1.27]) + .075[1.91]
.045 1.14
REF
R.025 [0.64] REF
.050 1.27
REF
.394 10.01
REF
.050 1.27
"E"
-A OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
*PPP-04 .225 5.72
REF
C
L
FIG 8
C
L
"E"
SM-A5
SECTION "E"-"E"
(No. OF POSITIONS x .050[1.27]) + .075[1.91]
.050 1.27
.035 0.89
REF
2 MAX SWAY
(EITHER DIRECTION)
NOTE: “M” = (No. OF POSITIONS X .050[1.27]) + .125[3.18] (REF)
WITH -WT “M” = (No. OF POSITIONS X .050[1.27]) + .263[6.68] (REF)
“P” = {(“M” - .394[10.01]) /2} ±.020[.51]
* NOTCH ON PAD TO BE ON SAME END
AS THE NOTCH IN THE TFM BODY
-SA OPTION: STAKED ALIGNMENT PIN
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
FIG 9
-P OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
(PAD TO BE POSITIONED ON C.L. AS SHOWN)
FIG 7
(No. OF POSITIONS x .050[1.27]) + .275 REF
TFM-XX-D-01-SN
"K"
C
L
FLUSH TO .005[0.13]
ABOVE
TFM-1XX-02-D-LC
C
L
WT-27-XX-T
"K"
"B" REF
.075 1.91 REF
.026 0.66 REF
.050 1.27
C
2 MAX SWAY
(EITHER DIRECTION)
LC-05-TM
.056 1.42 REF
(No. OF POSITIONS x .050[1.27]) + .175[4.45]
SECTION "K"-"K"
2 MAX SWAY
(EITHER DIRECTION)
.010 0.25 REF
2 MAX SWAY
(EITHER DIRECTION)

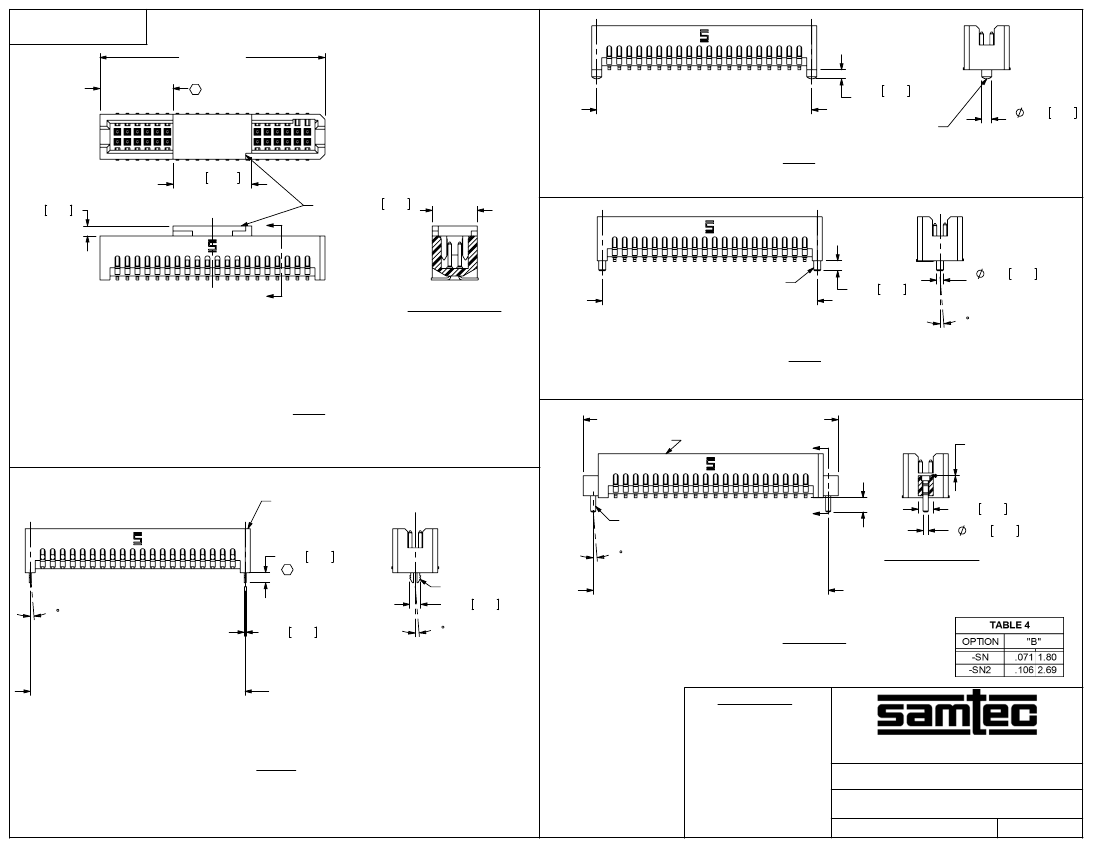

-SNX: SOLDER NAIL
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
F:\DWG\MISC\MKTG\TFM-1XX-XX-XXX-D-XXX-MKT.SLDDRW
FIGURE 12
((No. OF POS x .050[1.27]) + .075[1.91])±.002[0.05]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
-LC OPTION
DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1
(NOT AVAILBLE ON -RA)
FIG 10
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 X .050 TERMINAL STRIP
BY:
B RAY
TFM-1XX-XX-XXX-D-XXX
7-10-2007
SHEET
3
OF
7
