TMM-139-01-F-Q-RE datasheet, PDF

Datasheet> All Categories > The connector> The connector> TMM-139-01-F-Q-RE

TMM-139-01-F-Q-RE: DescriptionBoard Connector, 156 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size854KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TMM-139-01-F-Q-RE Overview

Board Connector, 156 Contact(s), 4 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,

TMM-139-01-F-Q-RE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1877435239
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
YTEOL	8.7
Other features	LOW PROFILE
body width	0.315 inch
subject depth	0.439 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	156

Preview

Download Datasheet

View All

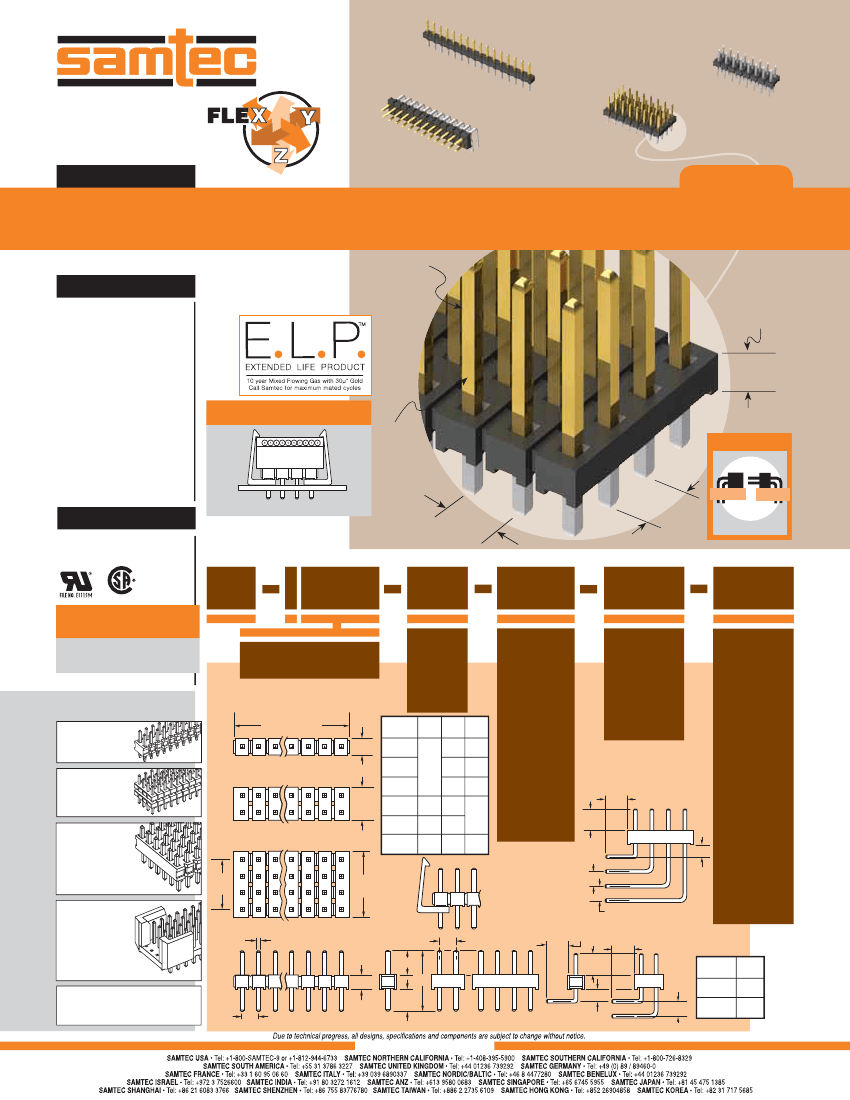

F-214

TMM–116–02–F–S

TMM–108–01–T–D

TMM–108–03–F–Q

(2,00 mm) .0787"

TMM–112–01–L–D–RA

TMM SERIES

LOW PROFILE THROUGH-HOLE HEADER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TMM

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating (SMM/TMM):

3.2 A per row

(1 pin powered per row)

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Voltage Rating:

500 VAC mated with SQW

450 VAC mated with SQT

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

Single, double

and quad row

Ultra-low proﬁle

(1,50 mm) .059"

APPLICATION

Choice

of ﬁve

lead styles

APPLICATIONS

SQT TMM

Retention Clip Option (–RC)

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(2,00 mm)

.0787"

(2,00 mm)

.0787" pitch

HORIZONTAL

FILE NO: 090871_0_000

TMM

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

below.

LEAD

STYLE

– 01

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

–F

= Gold ﬂash

on post,

Matte Tin on tail

–S

= Single Row

01 thru 50

(1,97)

.078

–RA &

–RE

= Right Angle

(Lead Style

–01 only)

(2 positions

minimum, –Q

row)

–D

= Double Row
