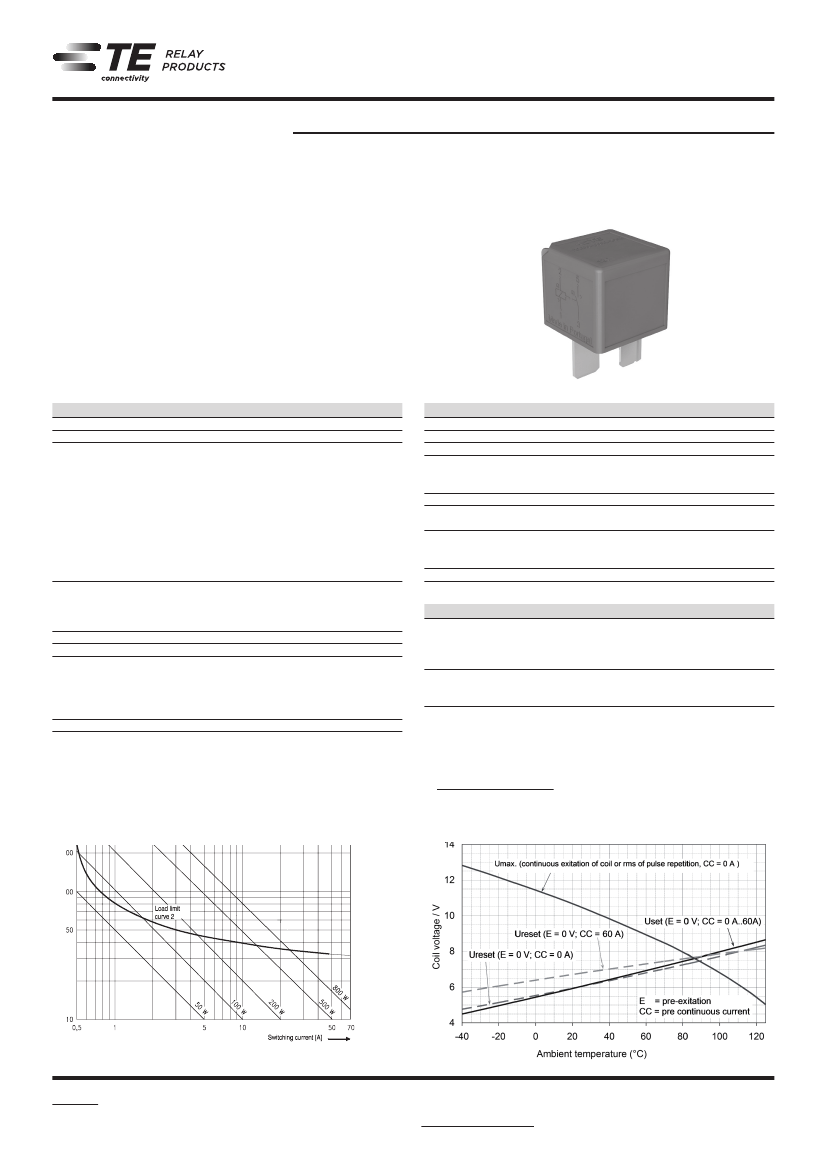

Automotive Relays
Plug-in Maxi ISO Relays
Power Relay F7 A Latching
Magnetically latched, ISO plug-in relay
n
One coil with set and reset function
n
Pin assignment similar to ISO 7588 part 1
n
Customized versions available (colour, parallel or serial
components etc.)
n
Mini version (40A with 6.3mm terminals) available on request
n
Typical applications
Cross carline, e.g. Power outlet switch off, start-stop, energy management
3D136L_fbw2
Contact arrangement
Rated voltage
Limiting continuous current
23°C
85°C
125°C
Limiting making current
1)
Limiting breaking current
Limiting short-time current
overload current, ISO 8820-3
2)
Contact Data
1 form A, 1 NO
12VDC
80A
60A
35A
300A
70A
1.35 x 50A, 1800s
2.00 x 50A, 5s
3.50 x 50A, 0.5s
6.00 x 50A, 0.1s
Silver based
1A at 5VDC
15/300mV
6 ops./min (0.1Hz)
2/1ms
Coil Data
Magnetic system
Rated coil voltage
Min./Max. energization duration
Polarity for set/reset
energization
Max. coil temperature
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
031
12
6
bistable (one coil system)
12VDC
10ms/100ms
set
reset
-
+
-
+
pin 2
pin 1
pin 1
pin 2
155°C
Release
voltage
VDC
6
Coil
resistance
Ω±10%
25
Impulse
length
ms
10-100
Contact material
Min. recommended contact load
3)
Initial voltage drop,
NO contact at 10A, typ./max.
Frequency of operation at nominal load
Set/reset time typ.
Electrical endurance
at cyclic temperature -40/+23/+85°C,
14VDC, 2s (on), 2s (off)
capacative load 300A (on)/ 30A (off)
motor load L=0.2mH, 200A (on)/ 40A (off)
Mechanical endurance
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Insulation Data
>2x10
5
ops
>1x10
5
ops
>1x10
7
ops
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Load dump test
ISO 7637-1 (12VDC), test pulse 5
ISO 7637-2 (24VDC), test pulse 5
500V
rms
500V
rms
500V
rms
V
s
=+86.5VDC
V
s
=+200VDC
1) The values apply to a resistive or inductive load with suitable spark suppression and at
maximum 14VDC for 12VDC load voltages. For a load current duration of maximum 3 s
for a make/break ratio of 1:10.
2) Current and time are compatible with circuit protection by a typical 50A automotive
fuse. Relay will make, carry and break the specified current.
3) See chapter Diagnostics of Relays in our Application Notes or consult the internet at
http://relays.te.com/appnotes/
Max. DC load breaking capacity
ECR0629N_b
ECR0629-N
Coil operating range
Operating voltage range V23136-L
08-2012, Rev. 0812
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Automotive Relays
Plug-in Maxi ISO Relays
Power Relay F7 A Latching
(Continued)
Other Data
Other Data
(continued)
EU RoHS/ELV compliance
compliant
Protection to heat and fire according UL94
HB or better
4)
Climatic cycling with condensation
EN ISO 6988
6 cycles, storage 8/16h
Temperature cycling
IEC 60068-2-14, Nb
10 cycles, -40/+85°C (5°C/min)
Damp heat cyclic
IEC 60068-2-30, Db, Variant 1
6 cycles, upper air temp. 55°C
Damp heat constant, IEC 60068-2-3, Ca
56 days
Category of environmental protection,
IEC 61810
RT I – dustproof
Degree of protection, IEC 60529
IP54 – dustproof
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep)
10 to 500Hz, min. 10g
5)
Shock resistance (functional)
IEC 60068-2-27 (half sine)
6ms, min. 30g
5)
Drop test, free fall, IEC 60068-2-32
1m onto concrete
6)
Terminal type
Cover retention
axial force
pull force
push force
Terminal retention
8)
pull force
push force
Weight
Plug-in, QC
150N
200N
200N
100N
100N
approx. 35g (1.2oz)
4) Refers to used materials
5) No change in the switching state >10μs. Valid for NC contacts, NO contact values
significantly higher.
6) Contact status can change due to drop
8) Values apply 2mm from the end of the terminal. When the force is removed, the terminal
must not have moved by more than 0.3mm.
Accessories
For details see datasheet
Connector for Maxi ISO Relays

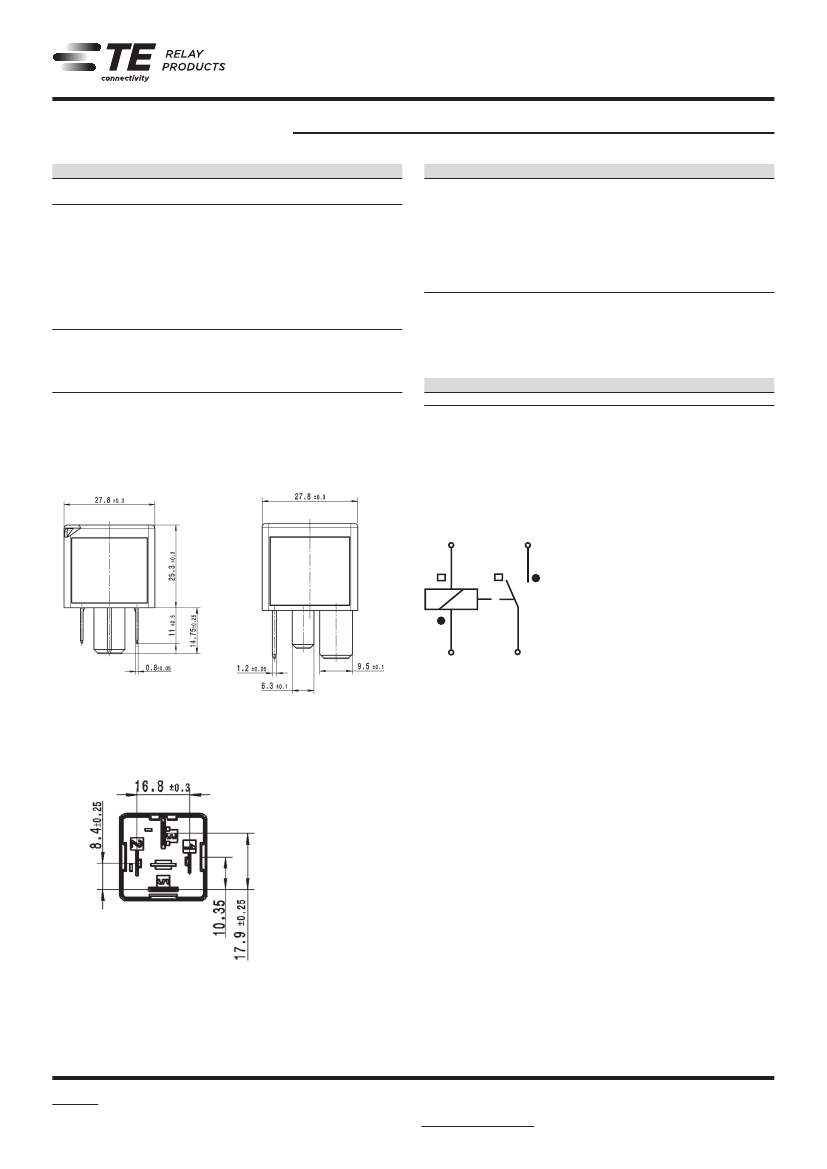

Dimensions
Terminal Assignment
1 form A, NO latching
2
5
1
136L_DD1
3
NO_L
View of the terminals (bottom view)
136L_DD2
2
08-2012, Rev. 0812
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Automotive Relays
Plug-in Maxi ISO Relays
Power Relay F7 A Latching
(Continued)
Product code structure
V23136
Power Relay F7 A
Feature
L
Latching
Cover
0
Standard
Coil
031
12VDC
Terminal/arrangement
D642
Standard version
Xnnn
Customized version
Other types on request.
Typical product code
V23136
-L
0
031 -D642
Type
Product code
V23136-L0031-D642
Other types on request.
Arrangement
1 form A, 1 NO
Feature
Latching
Standard
Cover
Circuit
NOL
12VDC
Coil
Contact material
Silver based
Terminals
Plug-in, QC
Part number
4-1904060-6
08-2012, Rev. 0812
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
