RX InveRteR
Customised to your machine
» B u i l t- i n k n ow - h o w f u n c t i o n a l i ty
» U n c o m p ro m i s i n g O m ro n q u a l i ty
» High motor-control performance
High performance
to match your application
Key features include:
Omron realises that you need quality
and reliability, plus the ability to easily and
quickly customise your inverter to the
application in hand. And with the RX, you have
the perfect tool for the job.
Naturally it combines the same high level of
quality and performance for which Omron is
renowned. It also has abundant application
functionality on board and you can customise it
yourself to match your precise requirements.
•
•
•
•
Up to 132 kW
Built-in EMC filter
Sensor-less and vector closed-loop control
High starting torque in open loop
(200% at 0.3 Hz)
Double rating VT 120%/1 min and CT
150%/1 min
Full torque at 0 Hz in closed loop
Drive Programming
Built-in application functionality
Micro-surge voltage suppression
Fieldbus communications: Modbus, DeviceNet,
Profibus, Componet,
EtherCAT & ML-II
•
•
•
•
•
•

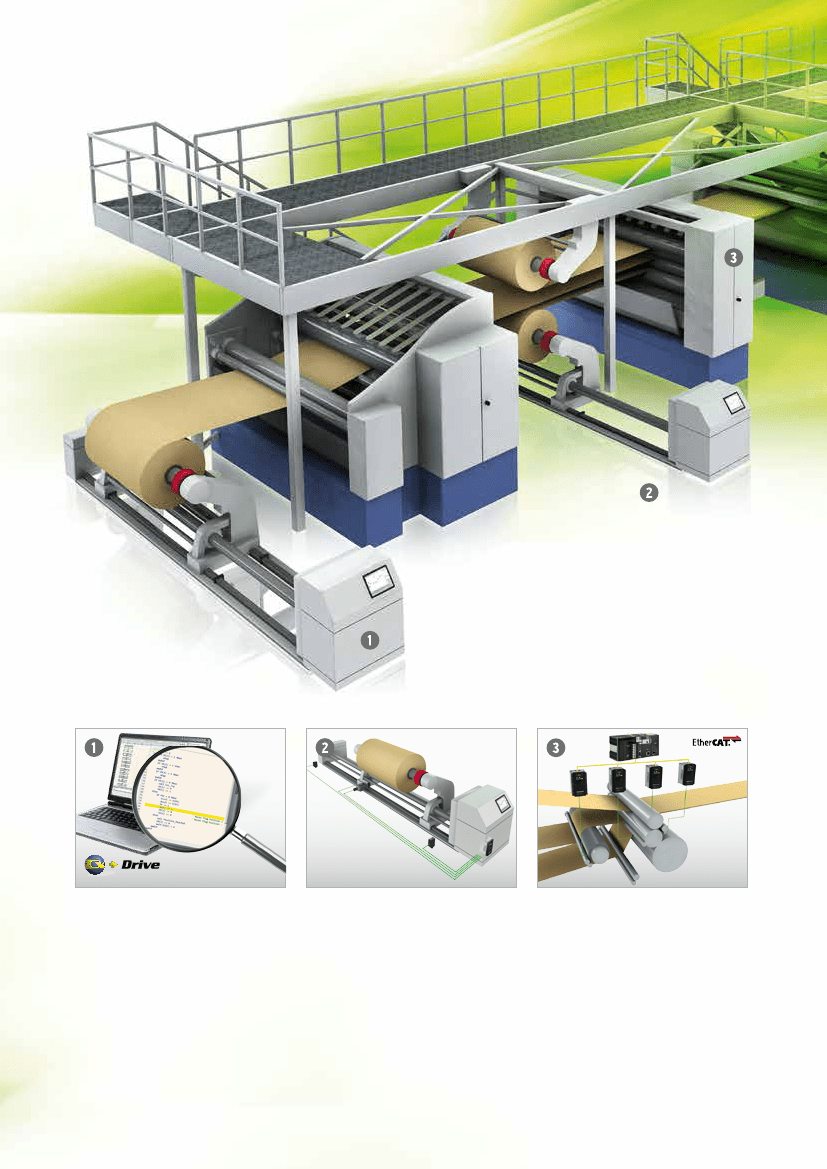

PROGRAMMING
Free to program
Drive Programming enables you to make
your own programs to suit your
machine, e.g. for an unwinding
application. Up to 1000 lines of code
and 5 tasks running in parallel in 2
programming modes:
- Intuitive Flow Chart programming
- Text Editor programming, including
code completion and user defined
aliases
Positioning functionality
Simple positioning is handled by
the inverter itself without the need for
an external motion controller.
Functions include pulse trace position
control mode, homing and position
teaching.
network Integration
Built-in RS485 Modbus
communications and the possibility for
integration in standard industrial
networks, such as DeviceNet, Profibus,
CompoNet or EtherCAT makes the RX
suitable for machine integration.
From high torque to
high motor efficiency...
3
Reliability with environmental
responsibility
Omron is renowned for the reliability
of its products. Moreover, Omron’s
policy is to offer environmentally
safe products free from any banned
substances.
4
4

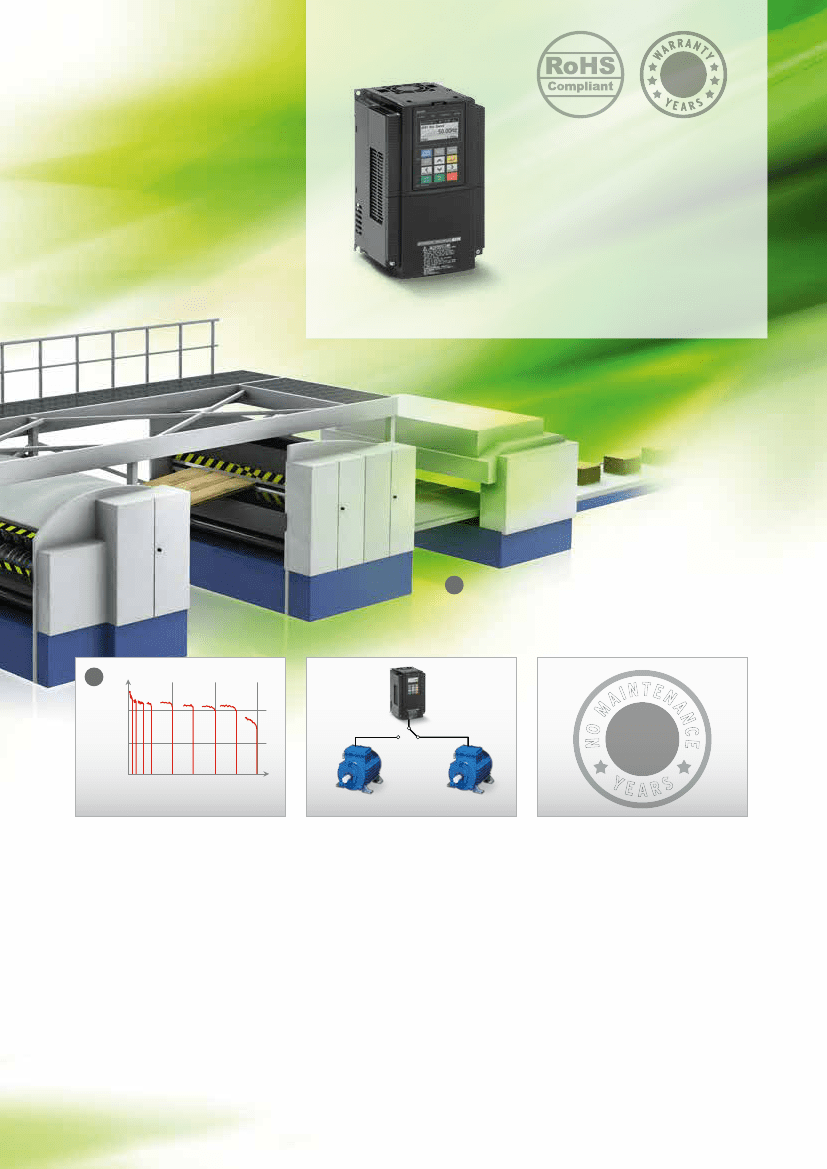

Torque
(percentage of rating)
200%
NO
M
AIN
TEN
22 kW
600
1200
1800
30 kW
Variable Torque
Rotation speed (min)
Constant Torque
YEARS
Long life design
RX has been designed with high
quality components to guarantee a
long operation life and minimise
downtime. It includes a versatile
maintenance function that warns the
user in the event of DC bus capacitor
temperature rise or cooling speed
reduction.
10
AN
CE
Sensor-less vector control
at 0 Hz domain
With the benefit of patented 0 Hz
domain open-loop control mode, the
RX can develop 150% torque at 0 Hz
allowing zero speed load holding.
Moreover, an improved sensor-less
vector control algorithm enables the
RX to develop more than 200% starting
torque at 0.3 Hz.
100%
Motor efficiency
RX is able to increase the output
current by around 20% when moving
from Constant Torque to Variable
Torque control. By doing that RX can
drive one frame size bigger motor.
Variable torque benefit is higher
energy saving at pumps and fans
applications.
