D2VW-5-3MS

Description
basic / snap action switches miniature basic switch
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size533KB,8 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

D2VW-5-3MS Online Shopping

Suppliers Part Number Price MOQ In stock
D2VW-5-3MS - - View Buy Now

D2VW-5-3MS Overview

basic / snap action switches miniature basic switch

D2VW-5-3MS Parametric

Parameter NameAttribute value
ManufactureOm
Product CategoryBasic / Snap Action Switches
RoHSYes
TypeStandard
Contact FormSPST
Switch FunctiON - (OFF)
ActuLeve
Current Rating5 A
Voltage Rating AC250 V
Voltage Rating DC125 V
Operating Force2 N
IP RatingIP 67
Termination StyleWire Leads
MountingPanel
Factory Pack Quantity10

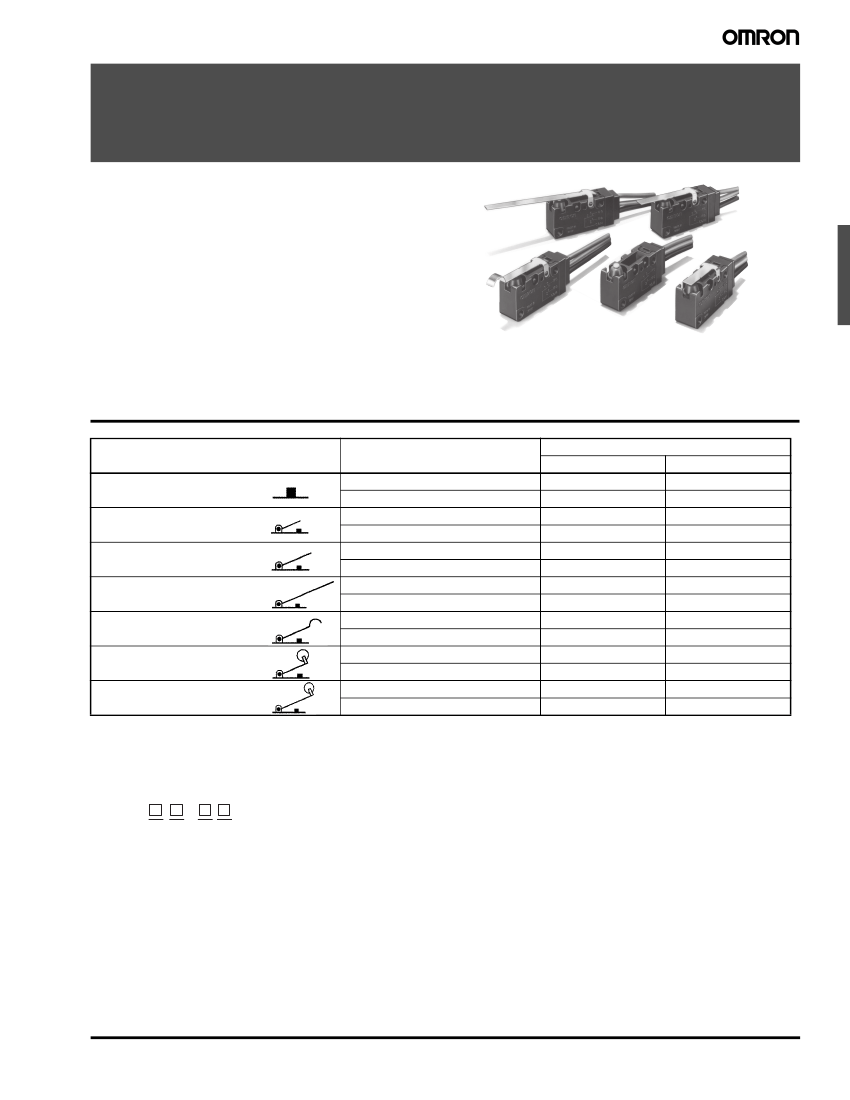

Sealed Snap Action Switch
D2VW
Watertight Miniature Snap Action Switch
• High-quality watertight, high-precision miniature Snap
Action switch. Switch Body meets IP67 requirements
• Use of epoxy resin assures high sealing capability and is
ideal for dusty places or where water is sprayed
• V-series internal mechanism assures high precision and
long life
• General-load (5 A at 250 VAC) models and micro-load
models are available
• RoHS Compliant
Ordering Information
Actuator
Pin plunger
Short hinge lever
Hinge lever
Long hinge lever
Simulated roller lever
Short hinge roller lever
Hinge roller lever
Terminal
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
With solder and #187 tab terminals
With lead wires
Model
Model 0.1 A
D2VW-01-1HS
D2VW-01-1MS
D2VW-01L1A-1HS
D2VW-01L1A-1MS
D2VW-01L1-1HS
D2VW-01L1-1MS
D2VW-01L1B-1HS
D2VW-01L1B-1MS
D2VW-01L3-1HS
D2VW-01L3-1MS
D2VW-01L2A-1HS
D2VW-01L2A-1MS
D2VW-01L2-1HS
D2VW-01L2-1MS
Model 5 A
D2VW-5-1HS
D2VW-5-1MS
D2VW-5L1A-1HS
D2VW-5L1A-1MS
D2VW-5L1-1HS
D2VW-5L1-1MS
D2VW-5L1B-1HS
D2VW-5L1B-1MS
D2VW-5L3-1HS
D2VW-5L3-1MS
D2VW-5L2A-1HS
D2VW-5L2A-1MS
D2VW-5L2-1HS
D2VW-5L2-1MS
Note: 1.
The standard lengths of the lead wires (UL1015 AWG20 for UL/CSA models, AV0.75f otherwise) of models incorporating them are 30 cm.
2.
Remove “-HS” from the end of solder/quick-connect models to obtain non-UL/CSA versions. (e.g.: D2VW-01-1HS
D2VW-01-1)
3.
Remove “S” from the end of lead wire models to obtain non-UL/CSA versions with AV0.75f wire. (e.g.: D2VW-5L3-1MS
D2VW-5L3-1M)
Model Number Legend
D2VW-
1 2
1.
-
3 4
2.
Actuator
3.
None: Pin plunger
L1A:
Short hinge lever
L1:
Hinge lever
L1B:
Long hinge lever
L3:
Simulated roller lever
L2A:
Short hinge roller lever
L2:
Hinge roller lever
Contact Form
1:
SPDT
2:
SPST-NC*
3:
SPST-NO*
*Lead
wire versions
only
4.
Terminals
None, HS: Solder terminals
(HS for UL and CSA approval.)
M, MS:
Molded lead
wires
(MS for UL and CSA approval)
Ratings
5: 5 A at 250
VAC
01: 0.1 A at 30
VDC
Sealed Snap Action Switch
D2VW
207
