Doc No.
TT4-EA-12546
Revision.
3
Product Standards
Transistors with Built-in Resistor
DRC5614T0L
DRC5614T0L
Silicon NPN epitaxial planar type
For digital circuits / Muting
DRC2614T in SMini3 type package
Features
Low collector-emitter saturation voltage Vce(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL:Level 1 compliant)
1
2
Unit: mm
2.0
0.3
3
0.13
1.25
2.1
0.9
(0.65)
(0.65)
1.3
Marking Symbol: VT
Packaging
Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard)
1. Base
2. Emitter
3. Collector
Panasonic
JEITA
Code
SMini3-F2-B
SC-85
―
Absolute Maximum Ratings Ta = 25
C
Parameter
Symbol
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Total power dissipation
Junction temperature
Operating ambient temperature
Storage temperature
VCBO
VCEO
VEBO
IC
PT
Tj
Topr
Tstg
Rating
30
20
5
600
150
150
-40 to +85
-55 to +150
Unit
V
V
V
mA
mW
°C
°C
°C
Internal Connection
B
R
1
C
E
Resistance
value
R1
10
k
Page 1 of 4
Established : 2010-04-22
Revised
: 2014-03-20
Doc No.
TT4-EA-12546
Revision.
3
Product Standards
Transistors with Built-in Resistor
DRC5614T0L
Electrical Characteristics Ta = 25
C
3
C
Parameter
Symbol
Conditions
Min
30
20
5
1
1
600
80
+30%
Typ
Max
Unit
V
V
V
μA
μA
-
mV
k
Collector-base voltage (Emitter open)
VCBO IC = 10
μA,
IE = 0
Collector-emitter voltage (Base open)
VCEO IC = 1 mA, IB = 0
Emitter-base voltage (Collector open)
VEBO IE = 10
μA,
IC = 0
Collector-base cutoff current (Emitter open)
VCB = 30 V, IE = 0
ICBO
Emitter-base cutoff current (Collector open)
IEBO
VEB = 5 V, IC = 0
*1
hFE
VCE = 5 V, IC = 50 mA
Forward current transfer ratio
Collector-emitter saturation voltage
VCE(sat) IC = 50 mA, IB = 2.5 mA
R1
Input resistance
*2
Ron
VI = 7 V, RL = 1 k,f = 1 kHz
On resistanc
100
-30%
10
2.5
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 Measuring methods for transistors.
2. *1 Pulse Test

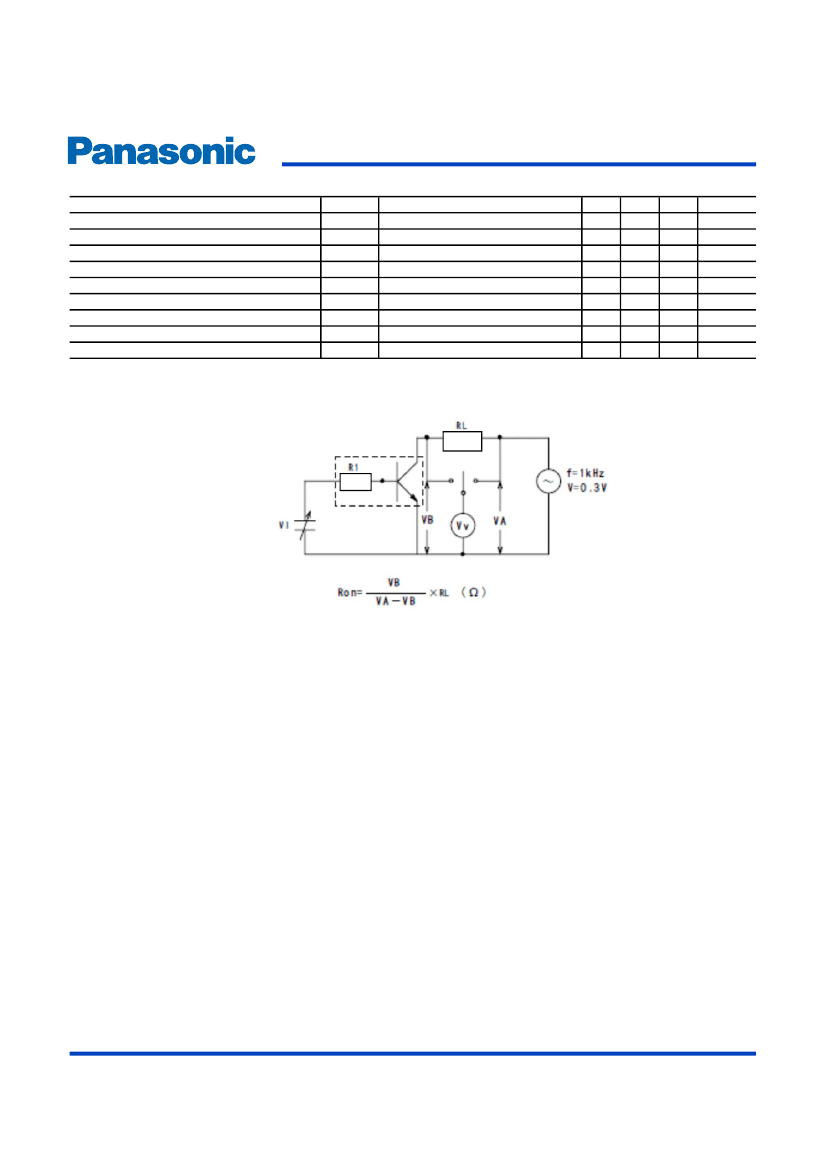

*2 On resistance test circuit
Page 2 of 4
Established : 2010-04-22
Revised

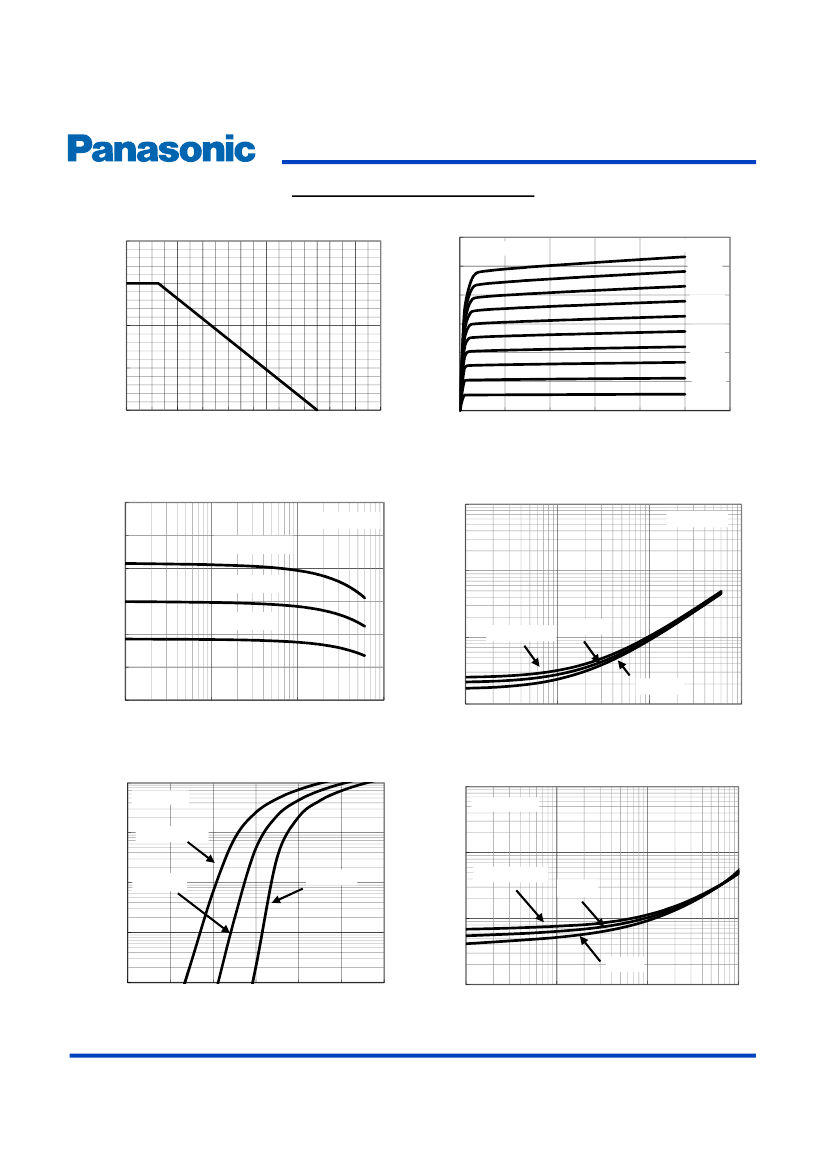

: 2014-03-20
