ta nta mount ® hi - re l cotS, ultr a- Low- eSr ,
confo r ma l - coate d ta nta lum ca pacito r
T97 SerieS
caPacitorS
Product Sheet
FeATUreS
•
•
•
hi-rel version of Vishay’s popular 597d series of dual-anode, commercial capacitors
dual anode construction ensures the lowest eSr in their class
Wide array of ratings, not found in available MiL specifications, provide the
flexibility and convenience of a commercial product without costly, time-
consuming specification development
high-reliability screening options available, including Weibull grading, and surge
current testing options in accordance with MiL-PrF-55365
–
•
•
•
ensure performance in hi-rel applications while still maintaining state-of-the-
art capacitance-voltage product
•
Maximum capacitance-voltage product in a wide variety of case sizes
eSr values range from 0.015 Ω to 0.17 Ω at +25º c and 100 khz
Sn/Pb terminations standard; with 100 % tin terminations available
APPLiCATiONS
•
•
•
•
Power management
Filtering
Signal processing
Sensing
w w w. v i s h a y. c o m
Datasheet is available on our web site at www.vishay.com
for CDR - http://www.vishay.com/doc?40092

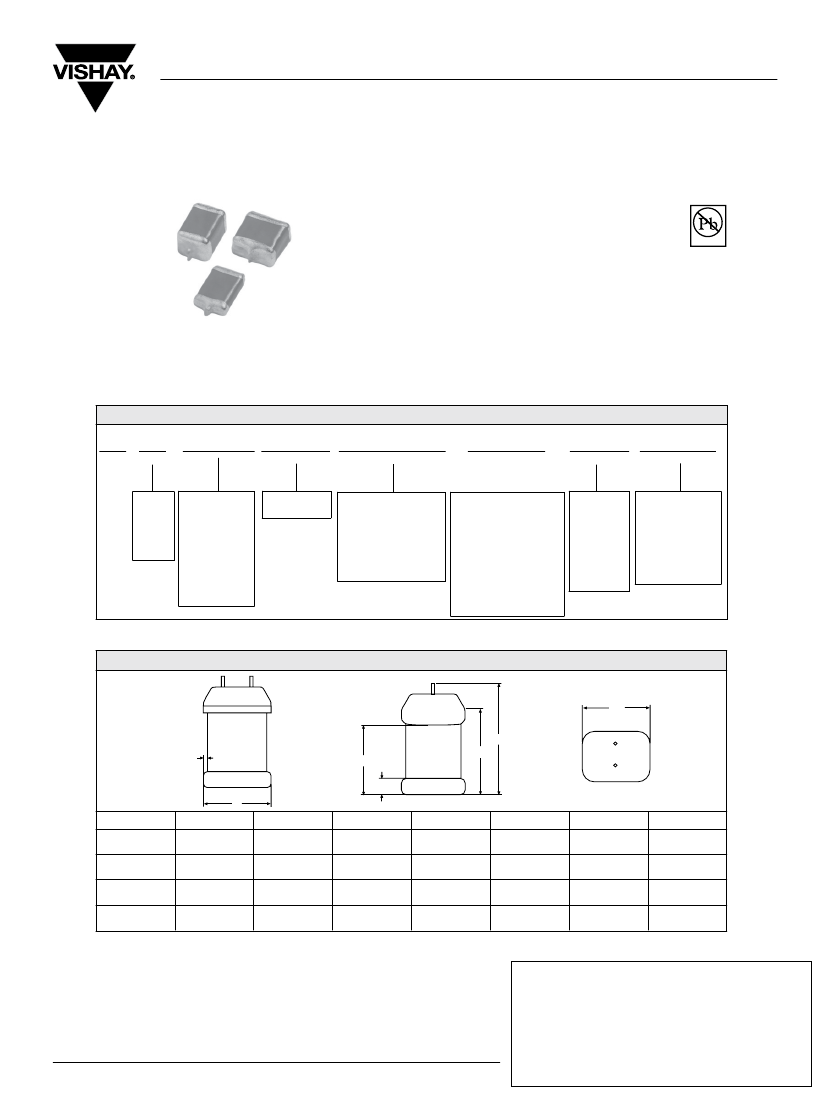

T97 Series
capacitors
Solid Tantalum Chip Capacitors TANTAMOUNT
®
,
Hi-rel COTS, Ultra-Low eSr, Conformal Coated Case
Features
• High reliability; Weibull Failure Rate
Grading available
• Surge current testing per MIL-PRF-55365
options available
• Ultra-low ESR
Pb-free
Available
RoHS*
COMPLIANT
Performance Characteristics
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Capacitance Range:
22 µF to 1500 µF
• Tin/Lead (SnPb) Termination available
Capacitance Tolerance:
±
10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 50 WVDC
ORDERING INFORMATION
T 97
TYPE
R
CASE
CODE
227
K
CAPACITANCE CAPACITANCE
TOLERANCE
02 0
DC VOLTAGE RATING
AT + 85 °C
E
TERMINATION/
PACKAGING
(Available options are
series dependent)
A = Gold/7" (178mm)
reels
E = Sn/Pb Solder/7"
(178 mm) reels
L = Sn/Pb Solder/7"
(178 mm), 1/2 reel
C = 100 % Tin/7"
(178 mm), reels
H = 100 % Tin/7"
(178 mm), 1/2 reel
S
RELIABILITY
LEVEL
A
SURGE
CURRENT
See
Ratings
and
Case
Codes
Table.
This is
expressed in
picofarads. The
first two digits
are the
significant
figures. The
third is the
number of
zeros to follow.
K = ± 10 %
M = ± 20 %
This is expressed in
volts. To complete the
three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an "R"
(6R3 = 6.3 volts).
A = 1.0 %
Weibull
B = 0.1 %
Weibull**
S = 40 hr.
Burn-in
Z = Non-
Established
Reliability
A = CYCLES
at + 25 °C
B = 10 CYCLES
at 55 °C/+ 85 °C
S = 3 CYCLES
AT 25 °C
ZV = NONE
Note: ** Available on select ratings. See ratings table on page 7.
DIMENSIONS
in inches [millimeters]
W
L
J
D
B
A
H
CASE CODE
E
F
R
V
L (Max.)
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
H
0.157 ± 0.016
[4.0 ± 0.4]
0.187 ± 0.016
[4.7 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.079
[2.0] Max.
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
B
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
D (Ref.)
0.253
[6.4]
0.243
[6.2]
0.243
[6.2]
0.253
[6.4]
J (Max.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note:
The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
* Pb containing terminations are not RoHS compliant, exemptions may apply
