CRF-238-H200: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric View All

CRF-238-H200 Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug

CRF-238-H200 Parametric

Parameter Name	Attribute value
Objectid	304916978
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.161 inch
subject depth	0.283 inch
body length	1.496 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	CR
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	90 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	38
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

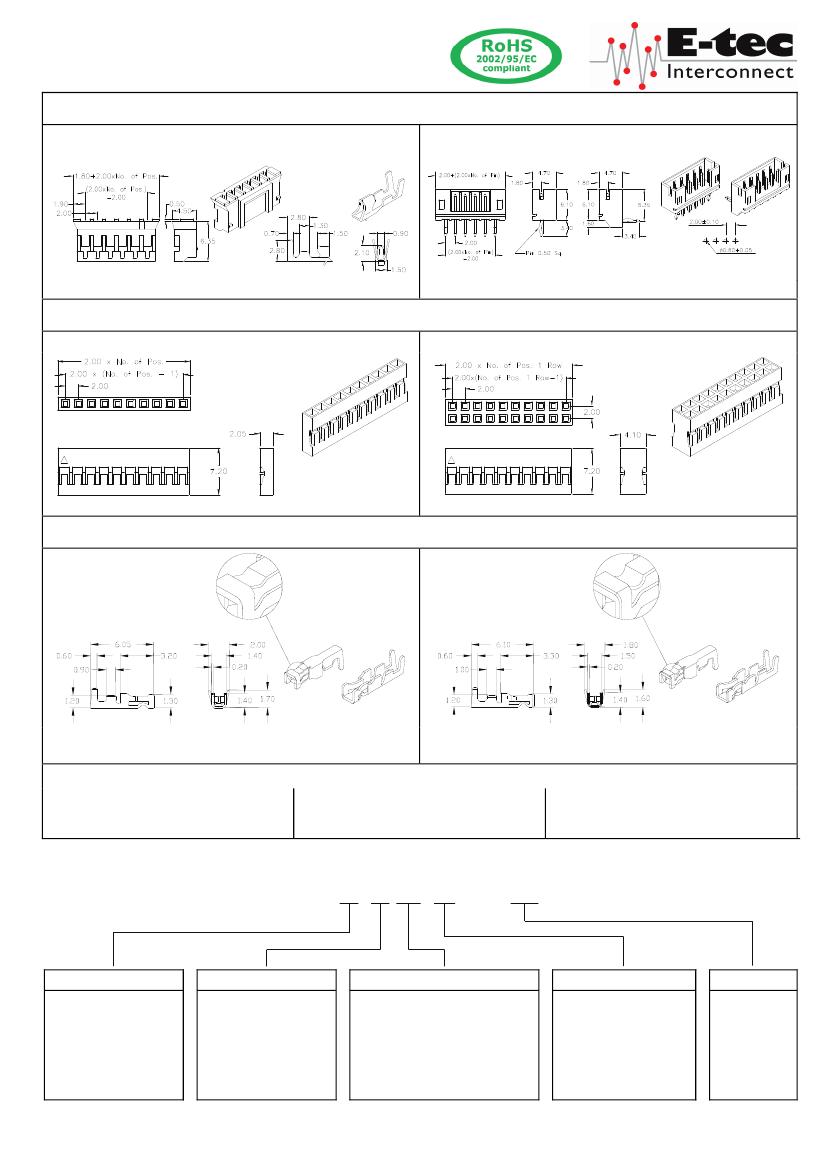

2.00mm

Crimp Contact Connectors

Shrouded Type - front open plastic

O - Type

female plug

(AWG 26 to 30)

O - Type

-THT- male

Order Code housing:

CRF-1xx-O200

contact:

CRF-999-O200-99

Order Code straight:

CRS-1xx-O200-99

right angle:

CRR-1xx-O200-99

Female Header Type

H - Type

single row

(AWG 26 to 30)

H - Type

dual row

(AWG 26 to 30)

Order Code housing:

CRF-1xx-H200

Order Code housing:

CRF-2xx-H200

H - Type

female contact

if for single row

Order Code:

01-19

& dual row

04-18 contacts:

Order Code:

if for single row

20-40

& dual row

20-80 contacts:

CRF-999L-H200-55

1A

1000 MΩ min.

100 V AC max.

Contact resistance

Withstanding voltage

Operating temp.

CRF-999-H200-55

Contact material

Insulator material

PCB Thickness

Copper alloy

Nylon UL 94 V-0

1.60 mm (.063“)

SPECIFICATIONS

Current rating

Insulator resistance

Voltage rating

20 mΩ max.

800 V AC

-25°C to +90°C

How to order

CR X - x xx - X 200 -

99

Type

F

= Female

R

= R/A male

S

= Straight male

Rows

1

= single row

2

= double row

9

= loose contacts

Nbr of contacts

02 - 16

= O - type

01 - 40

= H - type - 1 row

04 - 80

= H - type - 2 row

99

= loose contact

MOQ: 10K / reel

Execution

O

H

=

O - type

H – type

Plating

99

= tin

(leadfree)

55

= gold

Other platings

on request

Refer to above drawings

for details

125
