3000-2181 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 3000-2181

3000-2181: DescriptionIC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size118KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3000-2181 Overview

IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

3000-2181 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304385938
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.39 inch
subject depth	0.205 inch
body length	0.894 inch
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP18
Dielectric withstand voltage	1000VAC V
Shell material	LIQUID CRYSTAL POLYMER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	3000
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	18
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

2.54mm(.100”) DIP IC SOCKET

SERIES.

3000 SERIES

Dual In Line

Features

Available in 6, 8, 14, 16, 18, 20, 22, 24, 28, 32, 40,

and 48 circuits

Dual contact terminal in Phosphor Bronze

Dimensional Information

Insulator Material: Glass filled polyester UL 94V-0

Anti solder wicking

Low profile

Ordering and Dimensional Information

Circuit Size

Part Number

3000 - 2061

3000 - 2081

3000 - 2141

3000 - 2161

3000 - 2181

3000 - 2201

3000 - 2221

3000 - 2241

3000 - 2281

3000 - 2321

3000 - 2401

3000 - 2481

Dimensions

5.08 (0.200)

7.62 (0.300)

15.24 (0.600)

17.78 (0.700)

20.32 (0.800)

22.86 (0.900)

25.40 (1.100)

27.94 (1.100)

33.02 (1.300)

38.10 (1.500)

48.26 (1.900)

58.24 (2.300)

7.50 (0.295)

10.00 (0.394)

17.60 (0.693)

20.20 (0.795)

22.70 (0.894)

25.30 (0.996)

27.80 (1.094)

30.30 (1.193)

35.40 (1.394)

40.50 (1.594)

50.70 (1.996)

60.80 (2.394)

9.90 (0.390)

17.60 (0.693)

7.62 (0.300)

15.24 (0.600)

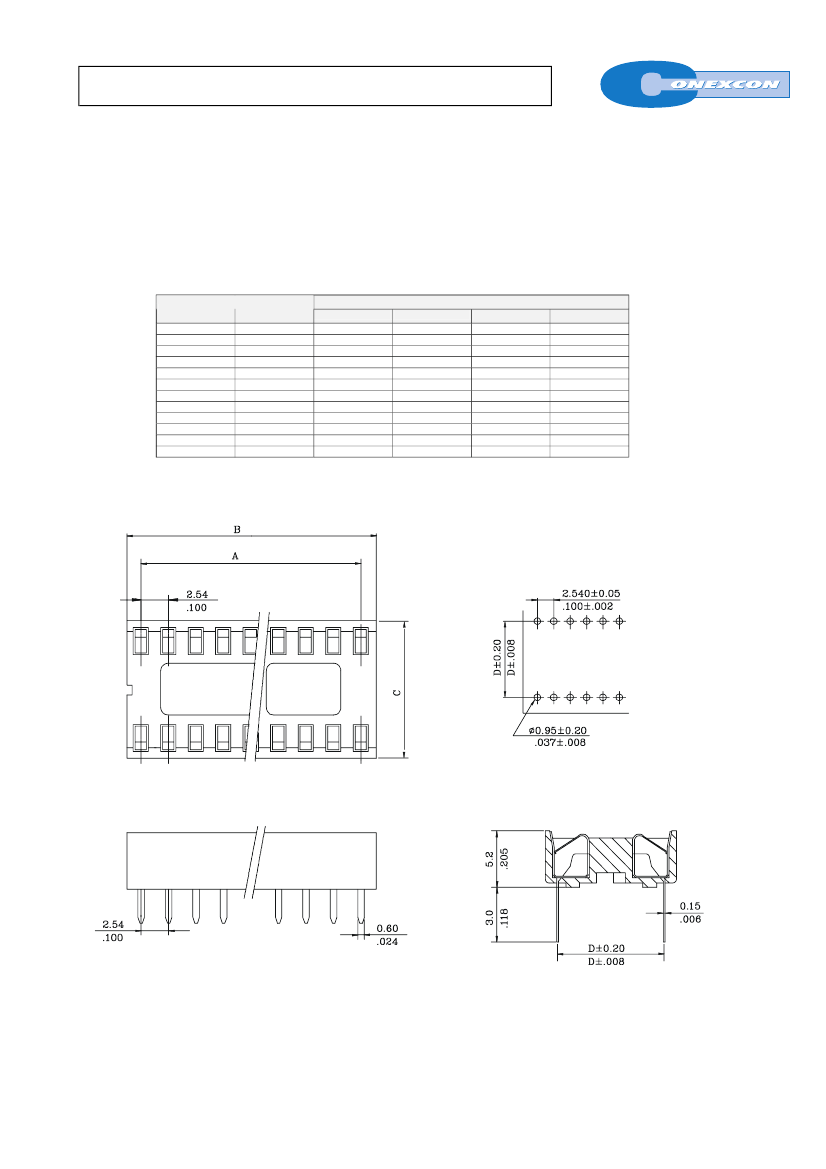

RECOMMENDED HOLE PATTERN

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
