5436-3-50-0: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking; CategoryThe connector The connector; File Size395KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5436-3-50-0 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking

5436-3-50-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307792611
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.276 inch
body length	2.8 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5436
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	50
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.3892 N

Preview

Download Datasheet

View All

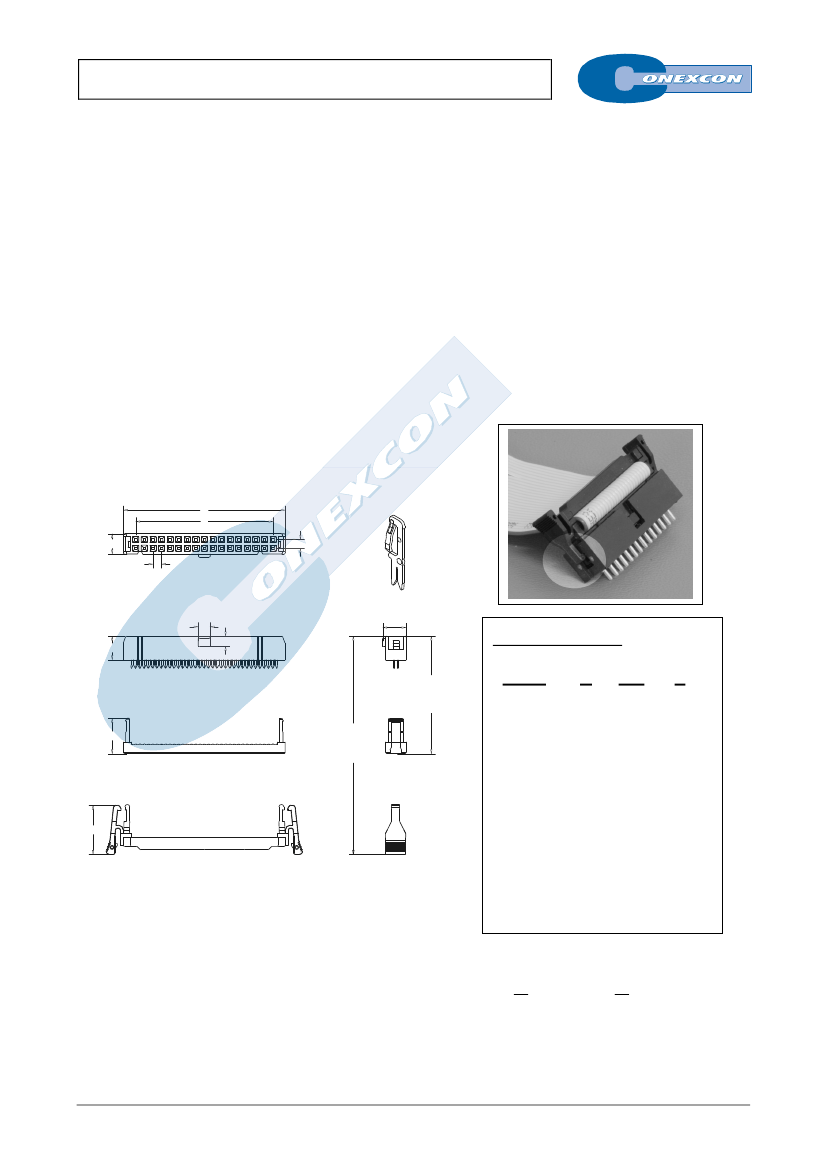

FLAT CABLE IDC SOCKET CONNECTOR

5436 SERIES.

2.54 x 2.54 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 36, 40,

44, 50, 56, 60 and 64 circuits

Mates with 2.54 mm pitch headers 5446, 5447, 4455

and 5543 series

Use flat cable 1.27 mm pitch 9127 series

Wires range : 28 AWG O.D max. 0.85 mm.

Strain relief with positive locking



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Mechanical Features



Insertion force to header: < 0.30 Kgf/pin

Withdrawal force from header: < 0.04 Kgf/pin

Durability: 50 Cycles

Dimension Information

6.0

2.54

A

B

C

7.0

3.0

6. 9

Ordering Information:

(10.5)

Te rmi n a te d

height

5436 -

1

T-

2

XX-

3

0

4

10.5

(17.0)

Te rmi n a te d

height

1. Connector Series

2. (T) Contact Plating



14.60

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel



3. (XX) Number of circuits

Available in 6 through 64 circuits

Dimensions:

(In mm.)

A

½

2.54





XX





1





2



B

½

2.54





XX







7.62



2



C = 1.85 mm. (6 and 8 circuits); 3.50 mm. (For the remainder)

(XX) = Number of circuits

A-XX

FULL LINE CATALOGUE
