2510H-05W-L: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Plug; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

2510H-05W-L Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Plug

2510H-05W-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305233925
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.264 inch
subject depth	0.504 inch
body length	0.512 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2510
Plug contact pitch	0.098 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	5
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

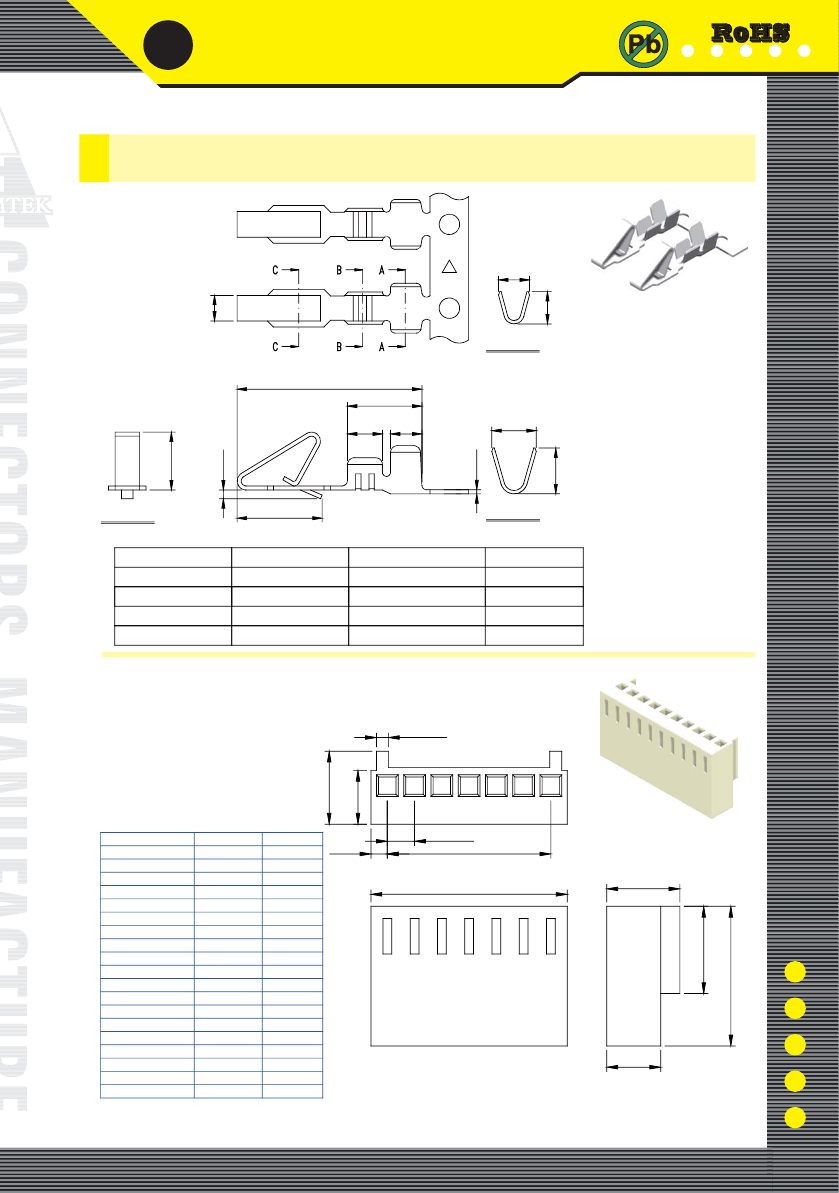

H

ousing Wafer Terminal

2.5mm Terminal / Housing

SEC. B-B

SEC. C-C

SEC. A-A

Part No.:2510-T-L

Part No.

2510-TTP-L

2510-TGP-L

2510-TTB-L

2510-TGB-L

Specifications

Wire Range

AWG#22-#28

Material

Phosphor Bronze

Brass

Finish

Tin-plated

Gold-plated

Tin-plated

Gold-plated

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -40°C to +105°C

Contact Resistance: 20m

Ω

Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1500V AC/minute

Material: Nylon 66,UL94V-0

Part No.

2510H-02W-L

2510H-03W-L

2510H-04W-L

2510H-05W-L

2510H-06W-L

2510H-07W-L

2510H-08W-L

2510H-09W-L

2510H-10W-L

2510H-11W-L

2510H-12W-L

2510H-13W-L

2510H-14W-L

2510H-15W-L

2510H-16W-L

2510H-17W-L

2510H-18W-L

2510H-19W-L

2510H-20W-L

A

2.50±0.08

5.00±0.10

7.50±0.10

10.00±0.10

12.50±0.10

15.00±0.15

17.50±0.15

20.00±0.15

22.50±0.15

25.00±0.15

27.50±0.20

30.00±0.20

32.50±0.20

35.00±0.25

37.50±0.25

40.00±0.30

42.50±0.30

45.00±0.30

47.50±0.35

B

5.50

8.00

10.50

13.00

15.50

18.00

20.50

23.00

25.50

28.00

30.50

33.00

35.50

38.00

40.50

43.00

45.50

48.00

50.50

Part No.:2510H-XXW-L

www.amtek-co.com.tw

3-82
