All QAM/OFDM loading or up to 30 NTSC channel plus 157 QAM
channel RF loading
supported
Two RF input ports to simplify common Broadcast and Narrowcast
content combining
Level control: Manual or AGC
Occupies only one full depth slot
Front access
–20
dB input test point
LED status indicators
Front panel Laser ON/OFF interlock switch and indicators
Hot plug-in/out
Local and remote status monitoring and management features

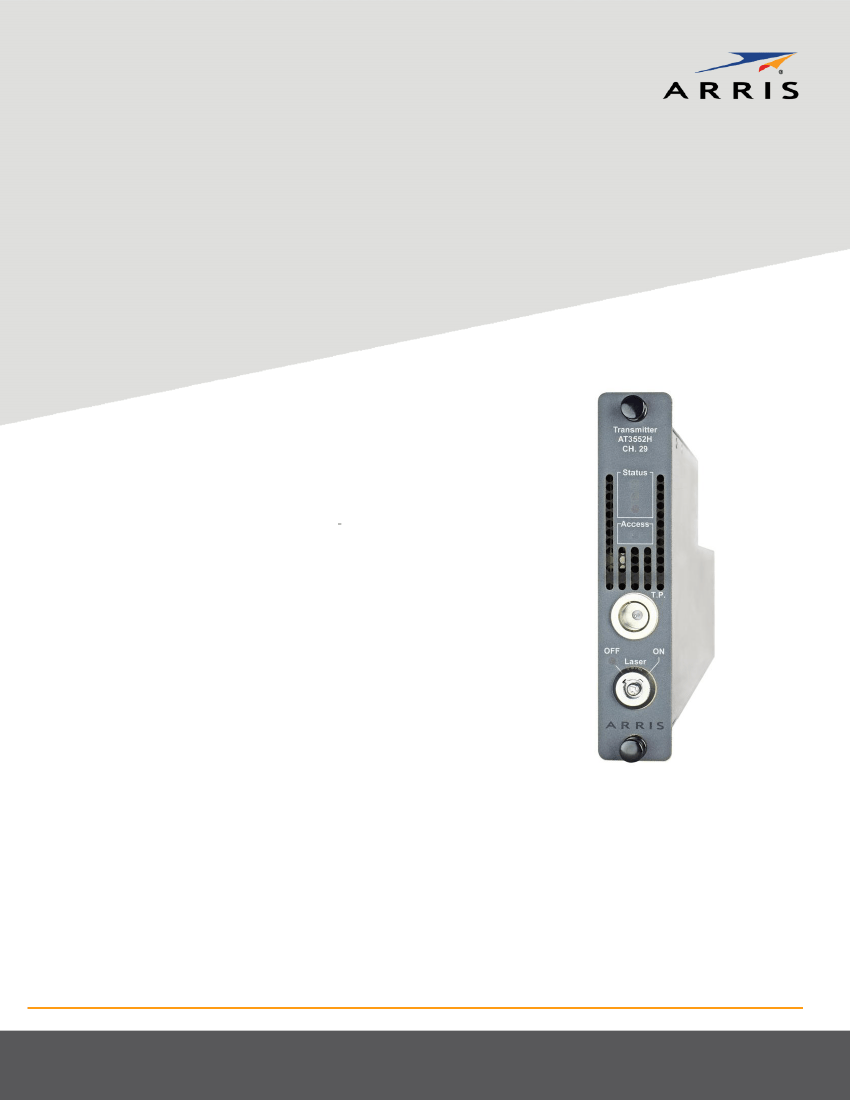

AT3552H
Ch. 29
PRODUCT OVERVIEW
The ARRIS AT3552H C-band externally modulated analog transmitters support 1.218 GHz bandwidth operation for DOCSIS
®
3.1
applications. These models provide high SBS suppression optimum for high launch powers into optical fiber for enhanced HFC, RFoG,
PON, and FTTH applications.
Ask us about the complete Access Technologies Solutions portfolio:
Headend Optics-AT3552H
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
AT3552H
Dual RF input ports allow combining of separate broadcast and narrowcast inputs within the transmitter to simplify deployment in
the head end. AGC circuitry compensates for variations in the RF input level to the transmitter to maintain
a
constant RF drive
level to the laser.
The characteristics of the transmitter’s
optical
source allow high carrier-to-noise ratio (CNR) while the proprietary pre-distortion
circuit provides excellent CSO,
CTB, BER, and MER
performance. AT3552H series transmitters are digital ready and can be fully
loaded with 100%
QAM/OFDM
signals.
The compact design minimizes rack space requirements and permits plugging the one-slot-wide, full-depth transmitter module in
either the front or rear of a CH3000 3-rack unit size chassis to optimize equipment installation and operating conditions. This
family of transmitters is part of the full complement of products developed by ARRIS to support and enhance the deployment of
HFC, RFoG, and fiber-to-the-home (FTTH) networks.
Several wavelength options are available on the DWDM ITU grid (ITU-T G.694.1).
RELATED PRODUCTS
CH3000 Chassis
Optical Transmitters
BP Back plates
FA3533M Optical Amplifiers
Optical Passives
Installation Services
Ask us about the complete Access Technologies Solutions portfolio:
Headend Optics-AT3552H
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
AT3552H
SPECIFICATIONS
Characteristics
Physical
Dimensions
Weight
Environmental
Operating temperature range
Storage temperature range
Humidity
RF and Optical Interface
Wavelength
Optical connector
RF input
RF test point
Power Requirements
Input voltage
Power consumption
General
Channel plans
Link length
Optical output power, minimum
Operating modes
Electrical
Passband
Frequency response (including slope)
AGC range
Manual gain control range
Manual gain control step size
Input return loss, minimum
Level stability
Nominal RF input levels (dBmV/ch)
Specification
13.0” D x 4.3” H x 1.0” W (3RU)
(33 cm x 11 cm x 2.5 cm)
1.8 lbs (0.82 kg)
0° to +50°C (32° to 122°F)
-40°C to +85°C (-40°F to +185°F)
5% to 95% non-condensing
Available in 8 channels on DWDM ITU Grid (ITU-T G.694.1), ITU Ch. 29 typical for RFoG and PON applications
SC/APC on back plate
F-type (female connectors at back plate)
G-type (male connector at front panel
–20
dB)
12 V
DC
10
W
Up to 30-channels NTSC channel loading plus 157 QAM channels, or All QAM/OFDM
Up to 65 km
11 dBm
Manual gain control and Automatic Gain Control (AGC)
46–1218 MHz
±1 dB
±3 dB
0 to
–6.0
dB
0.5 dB
18 dB
±1 dB
Mode
•
30 NTSC 54-258 MHz, BC RF input:
and 157 QAM 258-1218 MHz (using NC RF input):
AGC
18
18
13.5
Manual
15
15
10.5
AT3552H
dBm
dB
dB
dB
20
51
65
65
(Level of QAM signals through NC port RF input becomes 6 dB less after internal combiner. With AGC enabled, capture range is ±3 dB.)
256-QAM BER
(ITU-C
pre-FEC, with CW analog carriers)
•
191 QAM 54-1218 MHz, BC RF input:
1.0x10
-7
Fiber-only Link Performance
(over operating temperature range)
SBS Suppression
1
Carrier-to-noise Ratio (CNR)
2
In band (54–258 MHz)
Composite Second Order (CSO)
3
In band (54–258 MHz)
Composite Triple Beat (CTB)
In band (54–258 MHz)
Status Indicators, Alarms and Monitoring
Front panel LEDs (Laser On/Off and Alarms)
Local and remote status monitoring via ARRIS Opti-Trace
™
applications
Firmware download capability by local serial port
For more information about full spectrum multiwavelength applications with up to 8 DWDM wavelengths,
please contact your ARRIS representative.
NOTES:
1. 20 km fiber.
2. Full channel loading of 30 NTSC analog channels (4 MHz NBW) over 54–258 MHz, and 157 256-QAM channels over 258-1218 MHz. 20 km receive optical power +0.25 dBm.
3. All values are specified with un-modulated carriers of equal power at the input of the transmitter.
Ask us about the complete Access Technologies Solutions portfolio:
Headend Optics-AT3552H
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
AT3552H
ORDERING INFORMATION
A
T
3
5
5
2
H
–
*
*
–
0
2
–
A
S
1.218 GHz Analog Externally Modulated
High SBS
Suppression
Full Spectrum Transmitter
Wavelength Option **=ITU Channel Number
(reference
ARRIS DWDM ITU Grid Channel Plan Data Sheet)
Reserved Fields
AS = SC/APC Connector
Module Back Plates
AT3552H
series

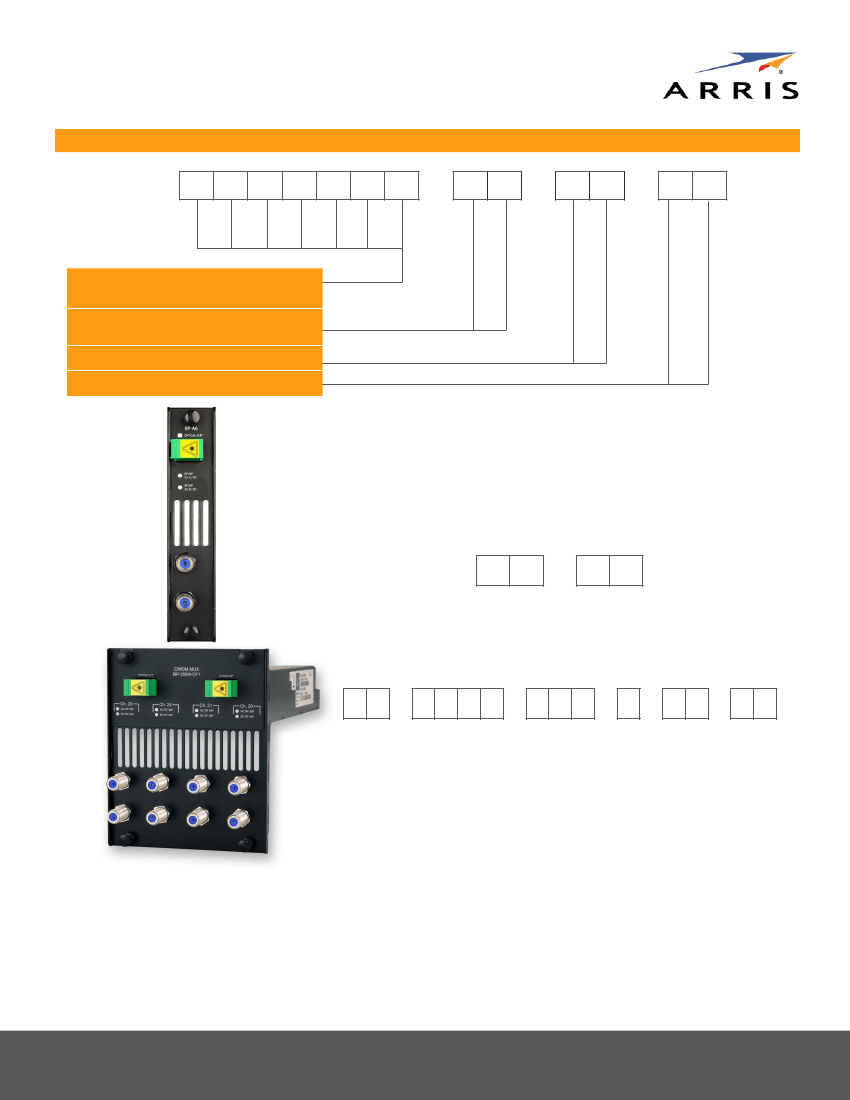

transmitters may be connected to one of two different
styles of chassis back plates, which must be ordered separately depending
on the application. One style provides connections for a single transmitter.
This single-width back plate may be ordered as:
B
P
–
A
6
The second style provides connections for a group of four transmitters
installed in adjacent chassis slots. These 4-channel mux back plates (for
which outputs can be cascaded from one back plate to another) may be
ordered for various channel groups. Please refer to the data sheet for
these back plates for further information.
B P
–
3 5 M 4
–
C F *
–
1
–
0 2
–
A S
Note:
Specifications are subject to change without notice.
