DS1233A-15+T&R datasheet, PDF - EEWORLD Datasheet

DS1233A-15+T&R: Descriptionsupervisory circuits 3.3V econoreset; CategoryPower/power management The power supply circuit; File Size521KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DS1233A-15+T&R Overview

supervisory circuits 3.3V econoreset

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim

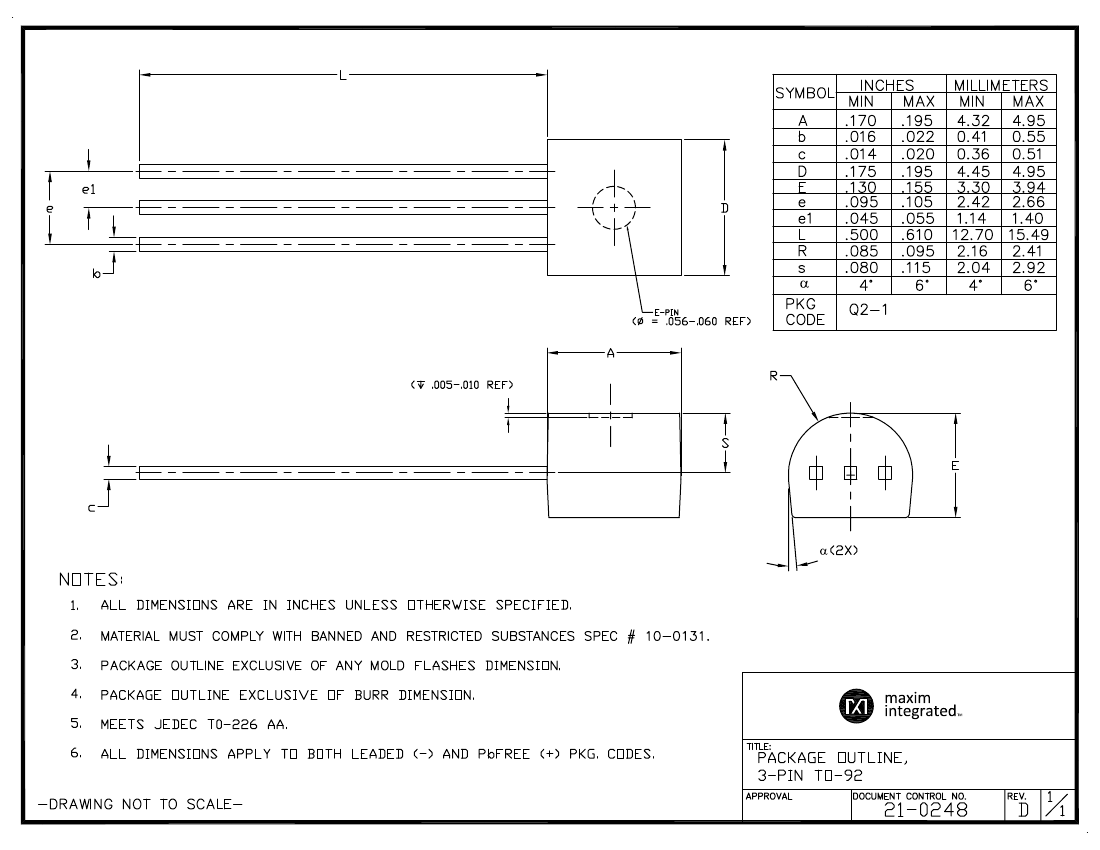

Parts packaging code	TO-92
package instruction	TO-92, SIP3,.1,50
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Is Samacsys	N
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Number of channels	1
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Certification status	Not Qualified
Maximum supply current (Isup)	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Threshold voltage nominal	+2.72V
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

JEROLD LEE 03/27/14

	DS1233A-15+T&R	DS1233AZ-10/TR/C16	DS1233AZ-10/T&R	DS1233AZ-15+	RM36W4P-1003	RM3W3S-00-TB	PT7M84112017TA6E	DS1233A-15/T&R
Description	supervisory circuits 3.3V econoreset	supervisory circuits 3.3V econoreset	supervisory circuits 3.3V econoreset	supervisory circuits 3.3V econoreset	36W4P D-SUB CONNECTOR WITH BREAKEWTS	3W3S D-SUB CONNECTOR	Regulator,	supervisory circuits 3.3V econoreset
Reach Compliance Code	compliant	-	_compli	compliant	-	-	unknown	not_compliant
ECCN code	EAR99	-	EAR99	EAR99	-	-	EAR99	EAR99
