BD030-08-A-A-0200-0300-L-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD030-08-A-A-0200-0300-L-G

BD030-08-A-A-0200-0300-L-G: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD030-08-A-A-0200-0300-L-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD030-08-A-A-0200-0300-L-G	-	-	View	Buy Now

BD030-08-A-A-0200-0300-L-G Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking,

BD030-08-A-A-0200-0300-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7122812537
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.134 inch
subject depth	0.059 inch
body length	0.2 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

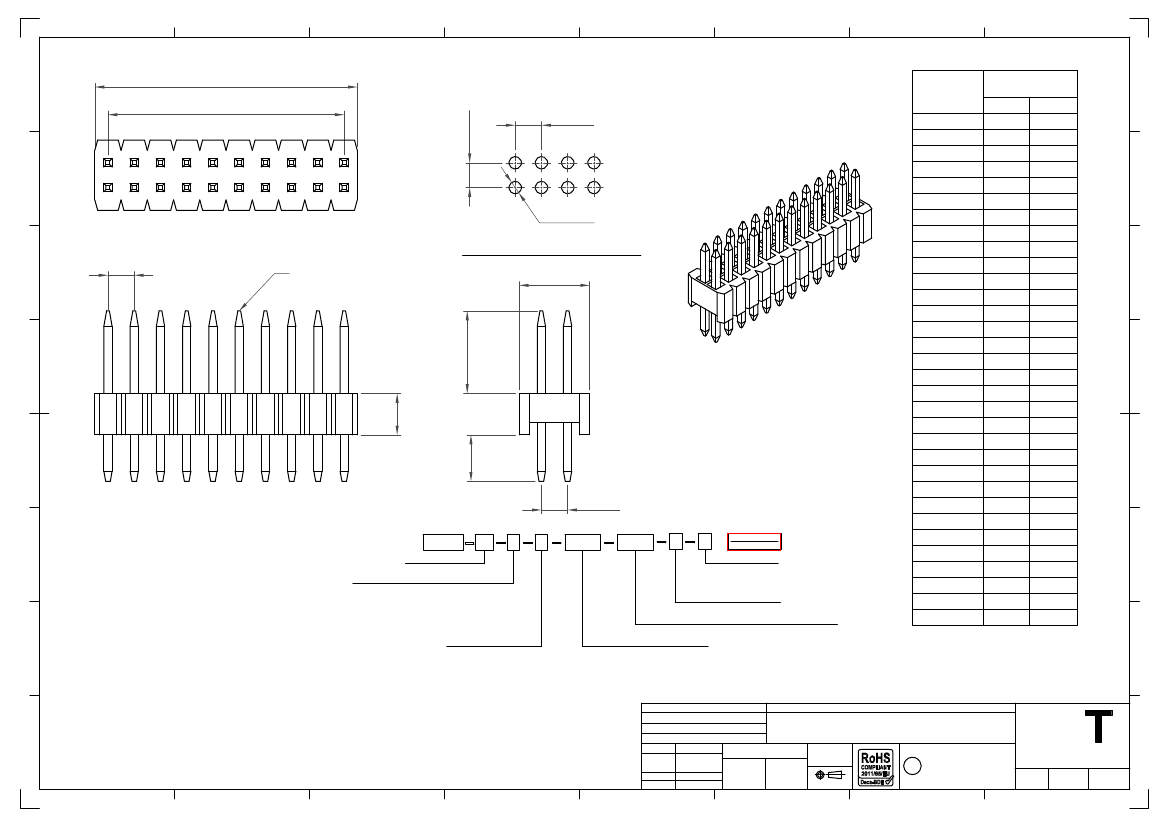

B±0.38

A±0.25

1.27

Contacts

Dimension

1.27

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

2.54

3.81

5.08

6.35

7.62

8.89

10.16

11.43

12.70

13.97

15.24

16.51

17.78

19.05

20.32

21.59

22.86

24.13

25.40

26.67

27.94

29.21

30.48

31.75

33.02

34.29

35.56

36.83

38.10

39.37

40.64

41.91

1.27

Ø0.65

Recommended PCB Layout

1.27

0.40 Sq. Pin

3.40

Specifications

规格

Material

物料

Insulator Material

绝缘½物料

Polymer

聚合物

,LCP, UL 94V-0

Contact Terminal

接触端子

: Copper Alloy

Plating

电镀

See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 1A per pin

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulating Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

耐电压

: 300V AC

Soldering Process

可焊性

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊：

250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

1.27

Ordering Grid

BD030

XXXX

Request Samples

and Quotation

No. of Contacts

04 to 66

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Height 'H'

A = 1.5mm

(Standard)

K = 1.0mm

G = 1.7mm

B = 2.0mm

L = 2.5mm

F = 3.0mm

Dimension C

(1/100mm) (Post Height)

0200 = 2.00mm

(Standard)

0350 = 3.50mm

(Standard)

or specify Custom Post Height

e.g. 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP

Dimension D

(1/100mm) (Tail Length)

0300 = 3.00mm

(Standard)

or specify Custom Tail Length

e.g. 0250 = 2.50mm

D±0.2

C±0.2

Part Number

Product Description

BD030

Drawing Date

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

)

21st December 2007

AJO

BD030

G PCN

06/03/17

Length

1.27mm Pitch Pin Header, Dual Row,

Through Hole, Vertical

Tolerances

(Except as Noted)

Angle

BD050

BD065

BD055

BD091

BD060

BD092

BD064

BD093

Detail

Revision

Date

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

www.gct.co

Not to

Scale

Sheet No.

1/1
