74AUP1G97 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate
October 2010
74AUP1G97
TinyLogic
®
Low Power Universal Configurable
Two-Input Logic Gate
Features
0.8V to 3.6V V
CC
Supply Operation
3.6V Over-Voltage Tolerant I/Os at V
CC
from 0.8V to 3.6V
High Speed t
PD
- 3.1ns: Typical at 3.3V
Power-Off High-Impedance Inputs and Outputs
Low Static Power Consumption
- I
CC
=0.9µA Maximum
Low Dynamic Power Consumption
- C
PD
=2.5pF Typical at 3.3V
Ultra-Small MicroPak™ Packages
Description
The 74AUP1G97 is a universal configurable 2-input
logic gate that provides a high performance and low
power solution ideal for battery-powered portable
applications. This product is designed for a wide low
voltage operating range (0.8V to 3.6V) and guarantees
very low static and dynamic power consumption across
the entire voltage range. All inputs are implemented
with hysteresis to allow for slower transition input
signals and better switching noise immunity.
The 74AUP1G97 provides for multiple functions as
determined by various configurations of the three
inputs. The potential logic functions provided are MUX,
AND, OR, NAND, and NOR, inverter and buffer. Refer
to Figures 3 to 9.
Ordering Information
Part Number
74AUP1G97L6X
74AUP1G97FHX
Top Mark
AD
AD
Package
6-Lead MicroPak™, 1.0mm Wide
6-Lead, MicroPak2™, 1x1mm Body, .35mm Pitch
Packing Method
5000 Units on
Tape & Reel
5000 Units on
Tape & Reel
© 2008 Fairchild Semiconductor Corporation
74AUP1G97 • 1.0.5
www.fairchildsemi.com
74AUP1G97 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate

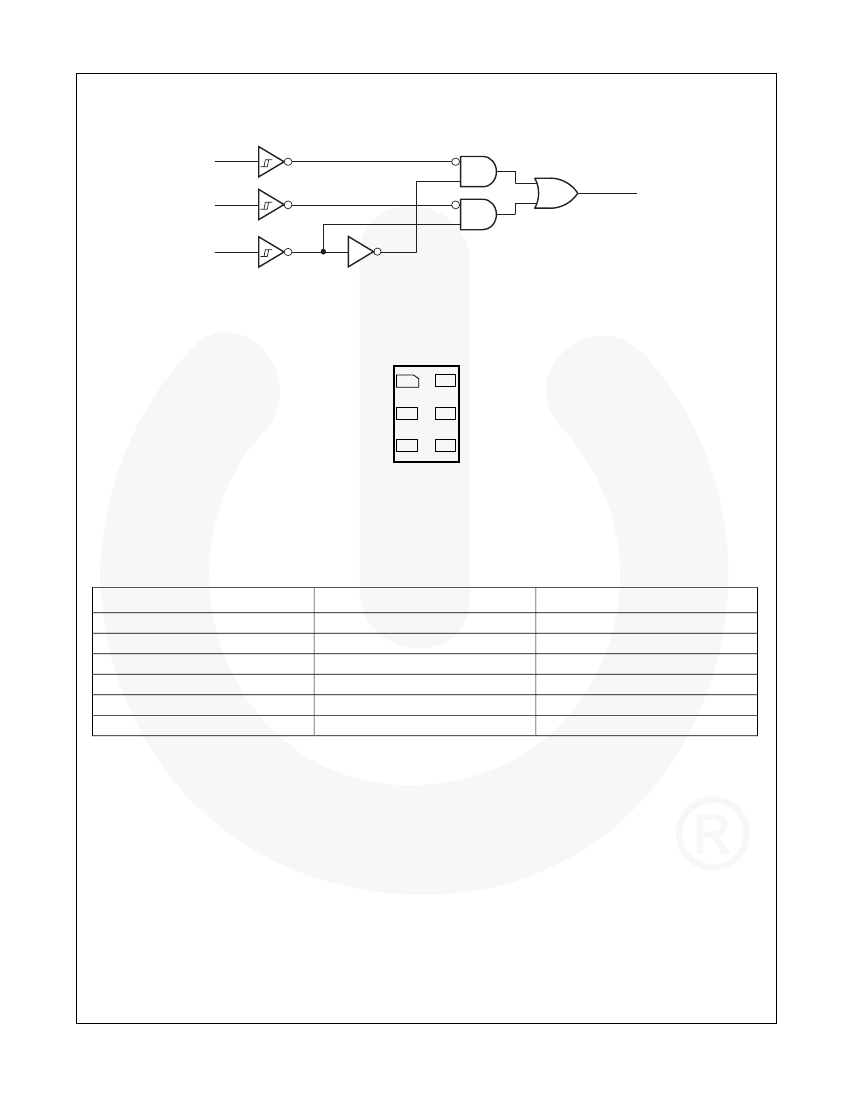

Logic Diagram
3
4
B
1
A
Y
C
6
Figure 1. Logic Diagram (Positive Logic)
Pin Configurations
B
GND
A
1
2
3
6
5
4
C
V
CC
Y
Figure 2. MicroPak™ (Top Through View)
Pin Definitions
Pin #
1
2
3
4
5
6
Name
B
GND
A
Y
V
CC
C
Description
Data Input
Ground
Data Input
Output
Supply Voltage
Data Input
© 2008 Fairchild Semiconductor Corporation
74AUP1G97 • 1.0.5
www.fairchildsemi.com
2
74AUP1G97 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate
Function Table
Inputs
C
L
L
L
L
H
H
H
H
74AUP1G97
A
L
H
L
H
L
H
L
H
B
L
L
H
H
L
L
H
H
Y=Output
L
L
H
H
L
H
L
H
H = HIGH Logic Level
L = LOW Logic Level
Function Selection Table
2-Input Logic Function
2-to-1 MUX
2-Input AND Gate
2-Input OR Gate with One Inverted Input
2-Input NAND Gate with One Inverted Input
2-Input AND Gate with One Inverted Input
2-Input NOR Gate with One Inverted Input
2-Input OR Gate
Inverter
Buffer
Connection Configuration
Figure 3
Figure 4
Figure 5
Figure 5
Figure 6
Figure 6
Figure 7
Figure 8
Figure 9
© 2008 Fairchild Semiconductor Corporation
74AUP1G97 • 1.0.5
www.fairchildsemi.com
3
74AUP1G97 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate

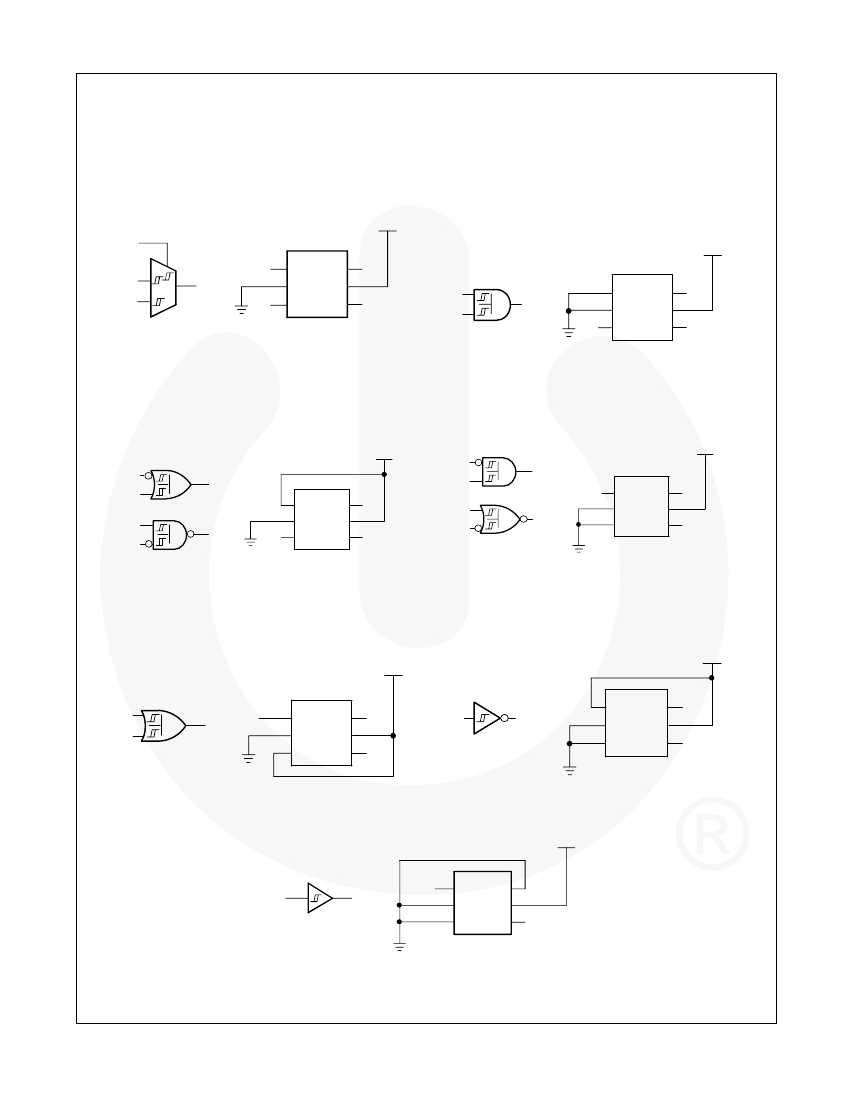

74AUP1G97 Logic Configurations
Figure 3 through Figure 9 show the logical functions
that can be implemented using the 74AUP1G97. The
diagrams show the DeMorgan’s equivalent logic duals
for a given two-input function. The logical
implementation is next to the board-level physical
implementation of how the pins of the function should
be connected.
V
CC
C
B
A
GND
B
Y
A
1
2
3
6
5
4
Y
C
C
A
Y
A
GND
1
2
3
6
5
4
Y
C
V
CC
Note:
1. When C is L, Y=B.
2. When C is H, Y=A.
Figure 3.
2-to-1 MUX
Figure 4.
2-Input AND Gate
V
CC
C
V
CC
B
Y
B
1
2
3
6
5
4
Y
C
C
A
C
A
Y
1
2
Y
GND
A
3
6
5
4
Y
C
C
B
Y
GND
Figure 5. Input OR Gate with One Inverted Input
Figure 6. 2-Input AND Gate with One Inverted Input
2-Input NAND Gate with One Inverted Input
2-Input NOR Gate with One Inverted Input
V
CC
V
CC
C
B
Y
B
1
2
3
6
5
4
C
Y
C
Y
1
2
3
6
5
4
C
Y
GND
GND
Figure 7. 2-Input OR Gate
Figure 8.
V
CC
Inverter
B
Y
B
1
2
3
6
5
4
Y
GND
Figure 9.
Buffer
© 2008 Fairchild Semiconductor Corporation
74AUP1G97 • 1.0.5
www.fairchildsemi.com
4
74AUP1G97 — TinyLogic
®
Low Power Universal Configurable Two-Input Logic Gate
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OH
/ I
OL
I
O
I
CC
or I
GND
T
STG
T
J
T
L
P
D
ESD
Supply Voltage
DC Input Voltage
DC Output Voltage
DC Input Diode Current
DC Output Diode Current
Parameter
Min.
-0.5
-0.5
Max.
4.6
4.6
V
CC
+ 0.5
4.6
-50
-50
+50
±50
±20
±50
Unit
V
V
V
mA
mA
mA
mA
mA
°C
°C
°C
mW
V
HIGH or LOW State
V
CC
=0V
V
IN
< 0V
V
OUT
< 0V
V
OUT
> V
CC
(3)
-0.5
-0.5
DC Output Source / Sink Current
Continuous Output Current
DC V
CC
or Ground Current per Supply Pin
Storage Temperature Range
Junction Temperature Under Bias
Junction Lead Temperature, Soldering 10s
Power Dissipation at +85°C
MicroPak-6
MicroPak2-6
-65
+150
+150
+260
130
120
5000+
1500
Human Body Model, JEDEC:JESD22-A114
Charged Device Model, JEDEC:JESD22-C101
Note:
3. I
O
absolute maximum rating must be observed.
Recommended Operating Conditions
(4)
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
V
CC
V
IN
V
OUT
Parameter
Supply Voltage
Input Voltage
Output Voltage
V
CC
=0V
Conditions
Min.
0.8
0
0
0
Max.
3.6
3.6
3.6
V
CC
±4.0
±3.1
±1.9
±1.7
±1.1
±20.0
Unit
V
V
V
HIGH or LOW State
V
CC
=3.0V to 3.6V
V
CC
=2.3V to 2.7V
V
CC
=1.65V to 1.95V
V
CC
=1.4V to 1.6V
V
CC
=1.1V to 1.3V
V
CC
=0.8V
I
OH
/I
OL
Output Current
mA
µA
°C
°C/W
T
A
θ
JA
Operating Temperature, Free Air
Thermal Resistance
MicroPak-6
MicroPak2-6
-40
+85
500
560
Note:
4. Unused inputs must be held HIGH or LOW. They may not float.
© 2008 Fairchild Semiconductor Corporation
74AUP1G97 • 1.0.5
www.fairchildsemi.com
5
