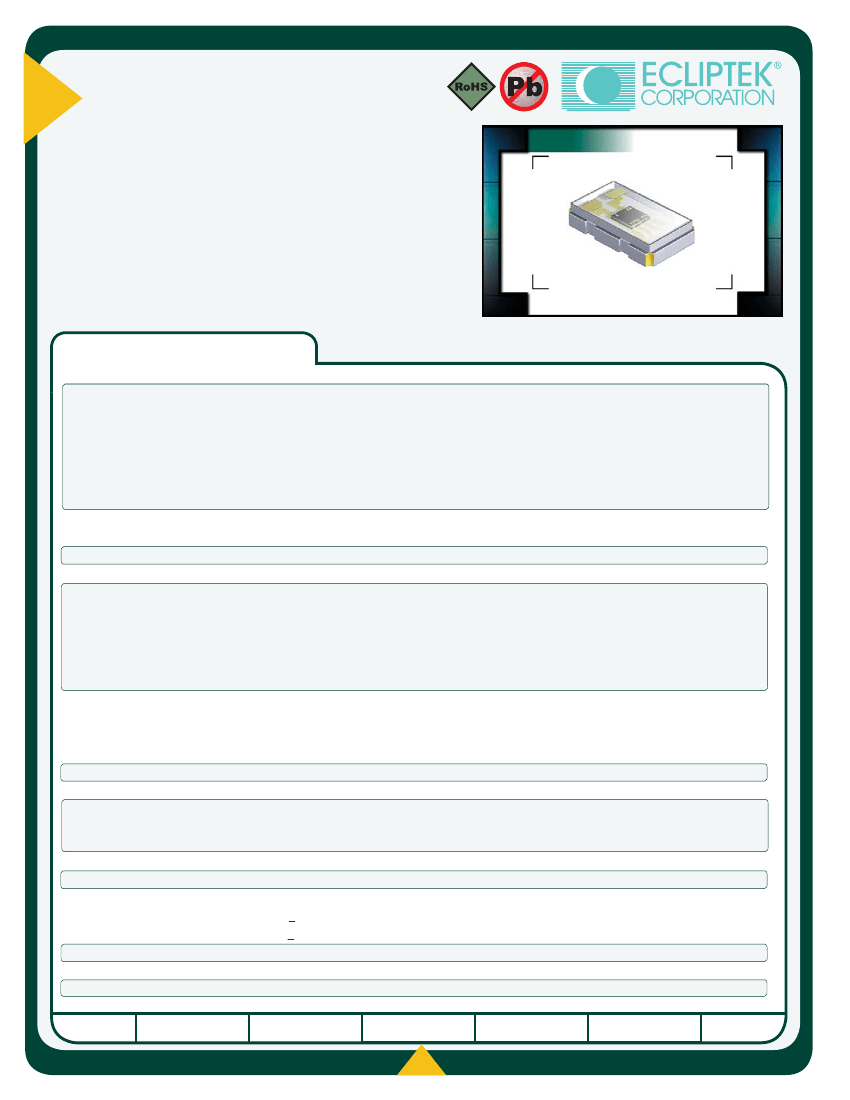

EB13E2
Series
• Crystal Clock Oscillators
• LVCMOS Output
• +3.3V Supply Voltage
• Tri-State Output Function
• 4 Pad Ceramic SMD Package
• Low Stand-by Current
• RoHS Compliant (Pb-Free)
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz)
EB13E2
H 0.9
L 3.2
W 2.5
OSCILLATOR
Operating Temperature Range (OTR)
Storage Temperature Range (STR)
Supply Voltage (V
DD
)
Input Current (I
DD
)
Frequency Tolerance/Stability
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time (T
R
/T
F
)
Duty Cycle (SYM)
Load Drive Capability (C
LOAD
)
Tri-State Input Voltage
Standby Current
Start Up Time (T
S
)
RMS Phase Jitter
MANUFACTURER
CATEGORY
1.8463, 2.000, 2.048, 2.4576, 3.6864, 4.000, 4.800, 5.000, 6.000, 7.040, 7.159, 7.3728, 8.000,
8.192, 10.000, 11.0592, 12.000, 12.288, 13.000, 13.1072, 13.500, 14.3181, 14.31818, 14.7456,
15.000, 16.000, 16.384, 16.6666, 16.66667, 16.6667, 18.000, 18.432, 19.200, 19.440, 19.6608,
20.000, 22.1184, 22.400, 24.000, 24.5454, 24.576, 25.000, 26.000, 26.2144, 26.973, 27.000,
28.375, 28.63636, 28.636363, 29.4912, 29.500, 30.000, 32.000, 32.768, 33.000, 33.200, 33.330,
33.333, 33.3333, 36.000, 38.400, 40.000, 40.0908, 48.000, 49.0908, 49.152, 50.000, 54.000, or
100.000MHz
-20°C to +70°C
-40°C to +85°C
-55°C to +125°C
3.3V
DC
±5%
3mA Maximum
1.8463MHz to 9.999MHz
4mA Maximum
10.000MHz to 19.999MHz
5mA Maximum
20.000MHz to 39.999MHz
6mA Maximum
40.000MHz to 50.000MHz
9mA Maximum
50.001MHz to 54.000MHz
14mA Maximum
100.000MHz
±100ppm Maximum
Inclusive of all conditions: Calibration Tolerance at 25°C,
±50ppm Maximum
Frequency Stability over the Operating Temperature Range,
±25ppm Maximum
Supply Voltage Change, Output Load Change, First Year
Aging at 25°C, Shock, and Vibration
90% of V
DD
Minimum (I
OH
= -4mA)
10% of V
DD
Maximum (I
OL
= +4mA)
5nSeconds Maximum
20% to 80% of Waveform, 1.8463MHz to 24MHz
4nSeconds Maximum
20% to 80% of Waveform, 24.001MHz to 50MHz
3nSeconds Maximum
20% to 80% of Waveform, 50.001MHz to 100MHz
50 ±5(%)
at 50% of Waveform
15pF Maximum
Enables Output
No Connection
Enables Output
V
IH
: >80% of V
DD
Disables Output: High Impedance
V
IL
: <20% of V
DD
10µA Maximum
Disabled Output: High Impedance
10 mSeconds Maximum
1 pSeconds Maximum
F
J
= 12kHz to 20MHz
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB13E2
CERAMIC
3.3V
OS5A
10/10
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.

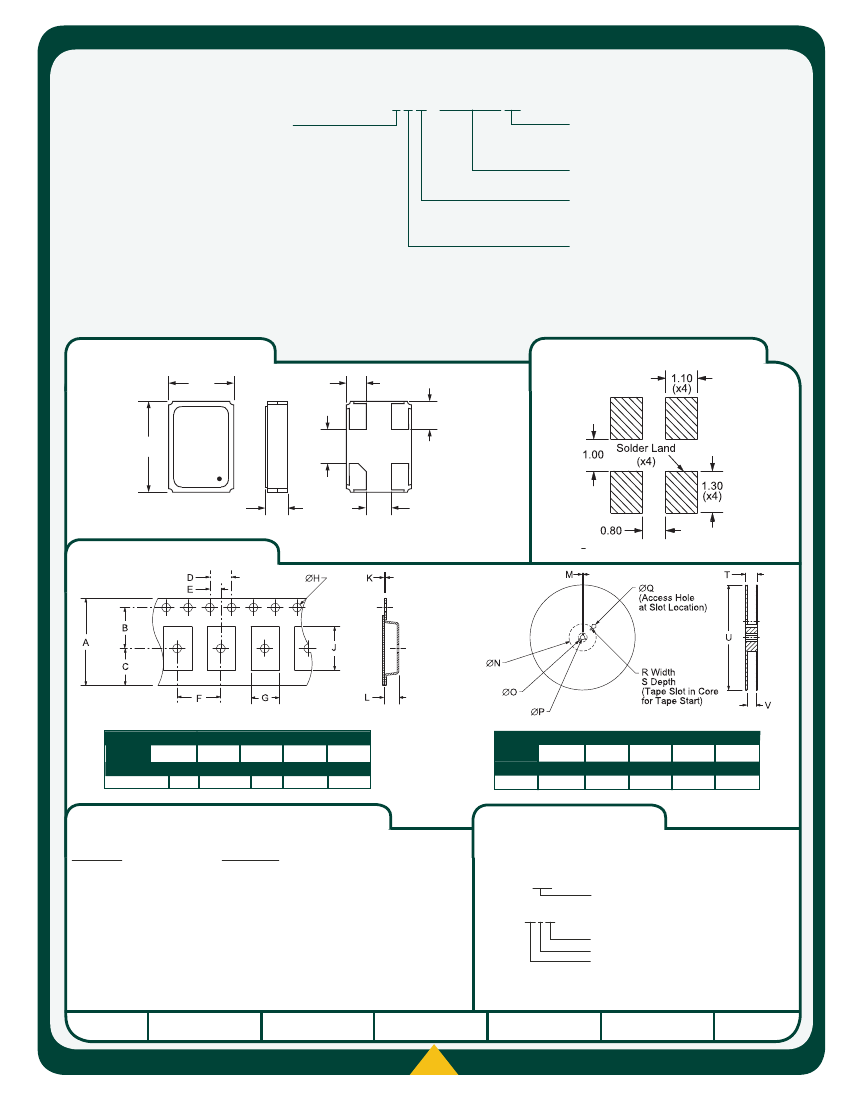

PART NUMBERING GUIDE
EB13E2 E 2 H - 40.000M TR
FREQUENCY TOLERANCE / STABILITY
C = ±100ppm Maximum over -20°C to +70°C
D = ±50ppm Maximum over -20°C to +70°C
E = ±25ppm Maximum over -20°C to +70°C
G = ±100ppm Maximum over -40°C to +85°C
H = ±50ppm Maximum over -40°C to +85°C
J = ±25ppm Maximum over -40°C to +85°C
PACKAGING OPTIONS
Blank = Bulk, TR = Tape & Reel
FREQUENCY
OUTPUT CONTROL FUNCTION
H = Tri-State
DUTY CYCLE
2 = 50 ±5(%)
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
2.50
±0.15
0.75 ±0.10
1.00
±0.10
MARKING
ORIENTATION
2
1.20
±0.10
1
3
3.20
±0.15
4
1.00
±0.10
0.90 ±0.20
Pin 1: Tri-State
Pin 2: Case Ground
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 3: Output
Pin 4: Supply Voltage
Tolerances= +0.1
TAPE
A
8.0±0.2
B
3.5±0.1
C
2.75±0.1
D
4.0±0.1
E
2.0±0.1
F
REEL
M
1.5 MIN
N
50 MIN
O
U
180 MAX
P
V
8.4+1.5-0
Q
40 MIN
QTY/REEL
1,000
20.2 MIN 13.0±0.5
F
4.0±0.1
G
2.7±.1
H
1.55 +0.5
J
K
L
1.4±.1
R
2.5 MIN
S
10 MIN
T
14.4 MAX
3.4±.1 0.25 ±0.05
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
PARAMETER
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
MANUFACTURER
MARKING SPECIFICATIONS
Specification
MIL-STD-883, Method 3015, Class 1, HBM: 1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
SERIES
PACKAGE
Line 1: E XX.X
Frequency in MHz (3 Digits Maximum + Decimal)
Line 2: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
CATEGORY
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB13E2
CERAMIC
3.3V
OS5A
10/10
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
