93A5-P10-10-75 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 93A5-P10-10-75

93A5-P10-10-75: DescriptionBoard Connector, 120 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

93A5-P10-10-75 Overview

Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

93A5-P10-10-75 Parametric

Parameter Name	Attribute value
Objectid	304339492
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.4 inch
subject depth	0.197 inch
body length	3.02 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9300
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	120

Preview

Download Datasheet

View All

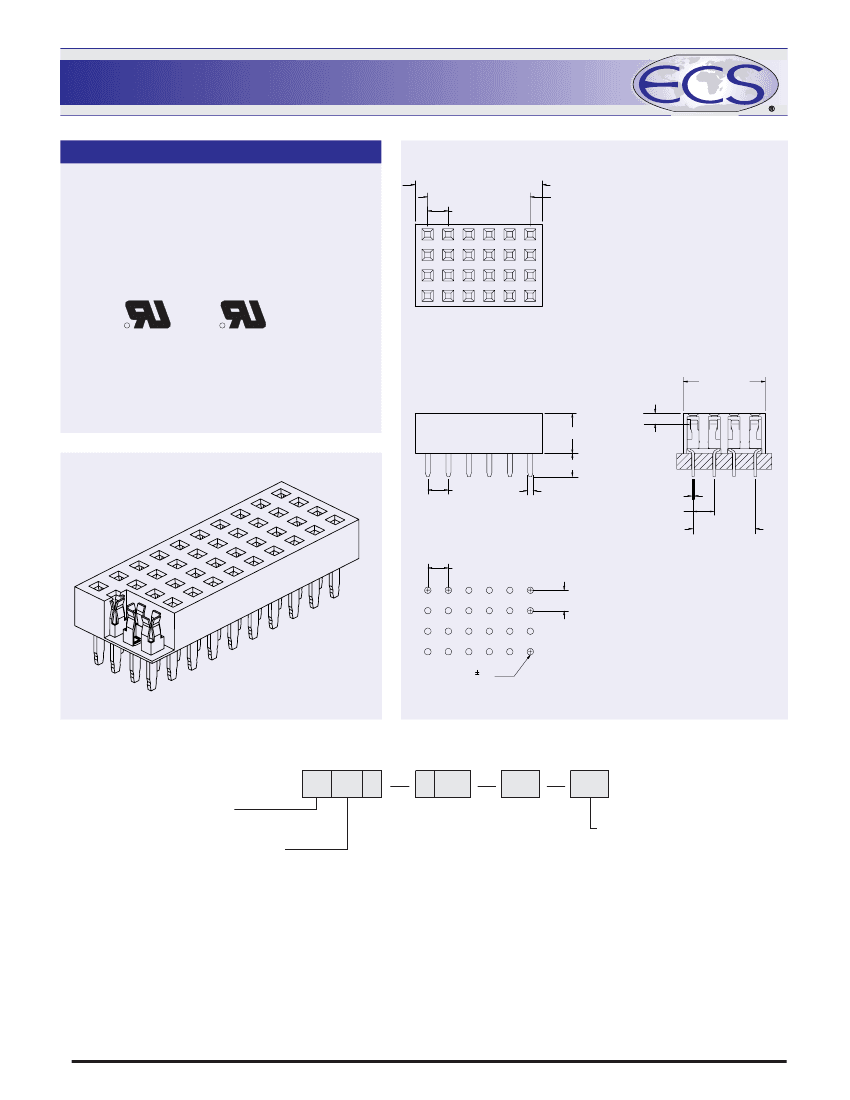

.100

[2.54] SOCKET

Specifications

Current Rating:

3 Amps

Insulator Resistance:

5000 Megohms min

Contact Resistance:

20m ohms max

Dielectric Withstanding: AC 1000V

Operating Temperature: -40° ~± 105° C

Contact Material:

Phosphor Bronze

Insulator Material:

Polyester, UL 94V-0, PBT

Finish:

See Contact Plating

.0197 [.500] + .100 [2.54] X No of Positions

.100 [2.54] X (No of Contacts/2-1)

.100 [2.54]

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

Products specifications are subject to be changed

without notice.

For drawings, technical data or samples,

contact E.C.S. at (714) 895-6351

.197 [5.00]

.054 [1.38]

.400 [10.2]

.112 [2.85]

.100 [2.54]

.028 [.700]

.010 [.25]

.100 [2.54]

.300 [7.62]

.100 [2.54]

1.02 .05

Dia. TYP.

Recommended P.C.B Layout

Dimensions are in inches [mm]

PART NUMBERING

93 XX S

SERIES CODE

NO. OF CONTACTS

= 100

= 104

= 108

= 112

= 116

= 118

P 10

CONTACT PLATING

Lead Free & RoHS Compliant

.000050” Nickel underplate

CONTACT

TAIL

= Gold Flash

= 10µ” Gold

= 15µ” Gold

= 30µ” Gold

= 100µ” Sn

= Au Flash

100µ” Tin

= 10µ” Au

100µ” Tin

= 15µ” Au

100µ” Tin

= 30µ” Au

100µ” Tin

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN

ELECTRONIC CONNECTOR SERVICE INC.

11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858

WWW.ECSCONN.COM
