ECS-159.99-20-30BQ-CTP-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-159.99-20-30BQ-CTP-TR

ECS-159.99-20-30BQ-CTP-TR: DescriptionParallel - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size609KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-159.99-20-30BQ-CTP-TR Overview

Parallel - Fundamental Quartz Crystal

ECS-159.99-20-30BQ-CTP-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1338451701
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.15
Other features	AEC-Q200; TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	15.999 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH0.85 (mm)/L0.197XB0.126XH0.033 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Compact and low profile

RoH Compliant (2011/65/EU)

MSL 1

Lead Finish: Au

AEC-Q200 Qualified

ECX-53BQ

SMD QUARTZ CRYSTAL

The ECX-53BQ is a miniature SMD Crystal with a 5.0 x 3.2 mm

footprint. AEC-Q200 Qualified.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

ECX-53BQ

MIN

10.000

TYP

MAX

40.000

± 30 *

± 100 *

Series

100

+125

±5

UNITS

MHz

ppm

µW

ppm

at +25°

-40 to +125° (DS Option)

Specify in P/N

DS Option

@ +25° ±3°

-40

-55

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

10.000 ~ 15.999

Fundamental

16.000 ~ 19.999

Fundamental

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

20.000 ~ 23.999

Fundamental

24.000 ~ 40.000

Fundamental

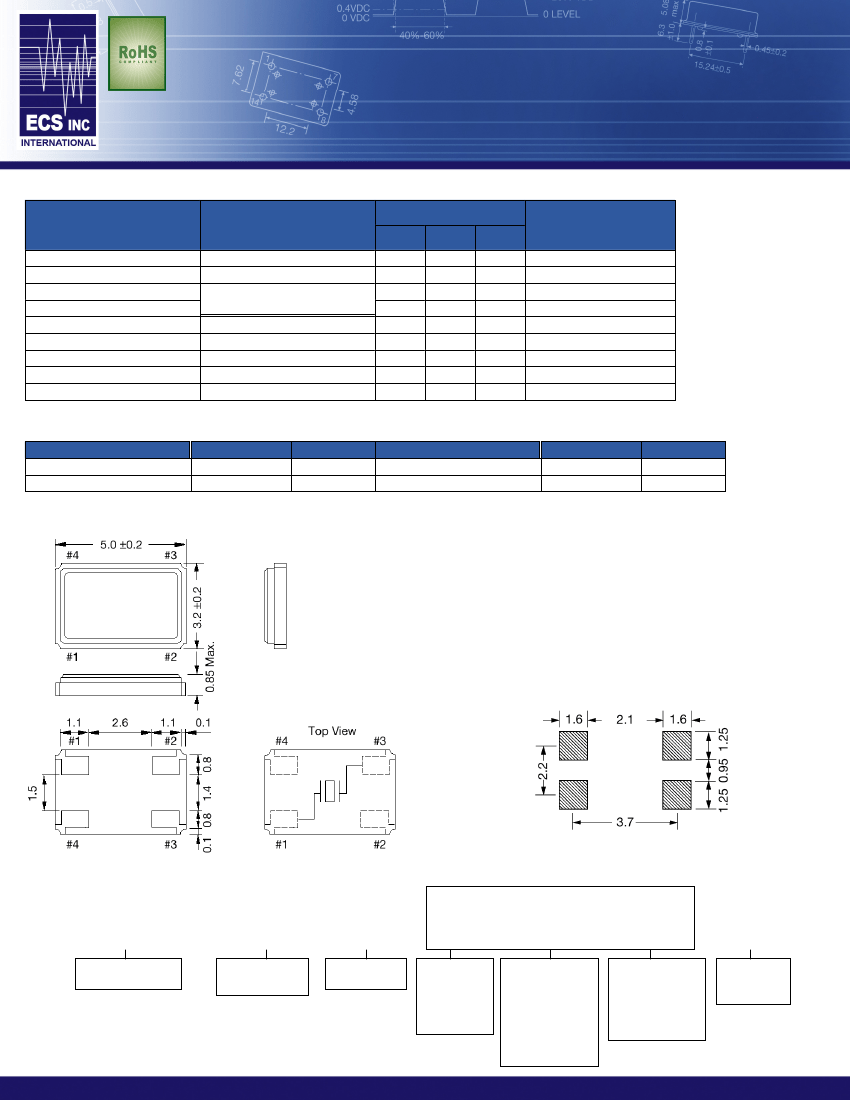

DIMENSIONS (mm)

Figure 2) Suggested Land Pattern

Figure 1) Top, Side, Bottom and End views

PART NUMBERING GUIDE: Example ECS-200-20-30BQ-DU-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

30BQ =

ECX-53BQ

Custom Options

Tolerance

* Stability

Blank = Std

D = ± 100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

Temp Range

Blank = Std

M = -20 ~ +70°

N = -40 ~ +85°

P = -40 ~ +105°

S = -40 ~ +125°

U = -55 ~ +125°

- Packaging

TR= Tape

& Reel

1K/Reel

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

Rev. 4/13

1105 South Ridgeview Road

Olathe, KS 66062

*Consult Factory for available stability

options over extended temp range.

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
