GT50G321 datasheet, PDF - EEWORLD Datasheet

GT50G321: DescriptionTOSHIBA INSULATED GATE BIPOLAR TRANSISTOR SILICON N CHANNEL IGBT; CategoryDiscrete semiconductor The transistor; File Size283KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

GT50G321 Overview

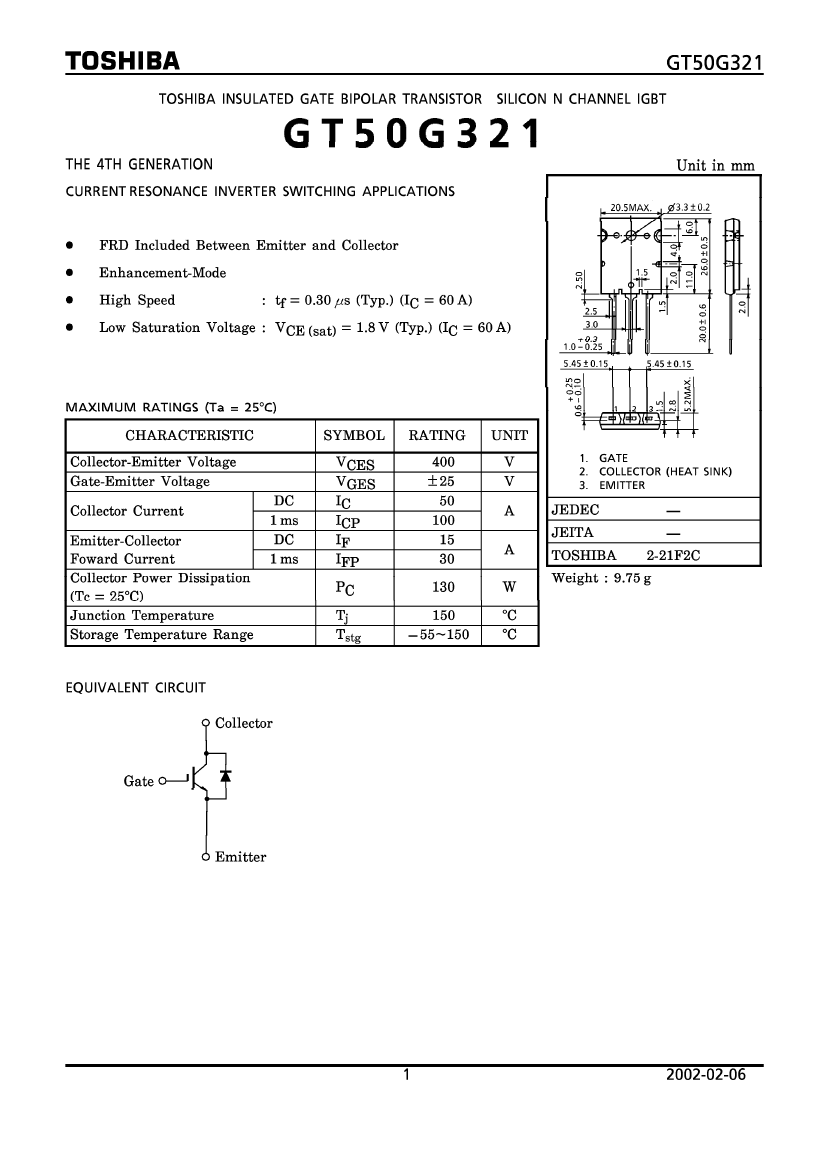

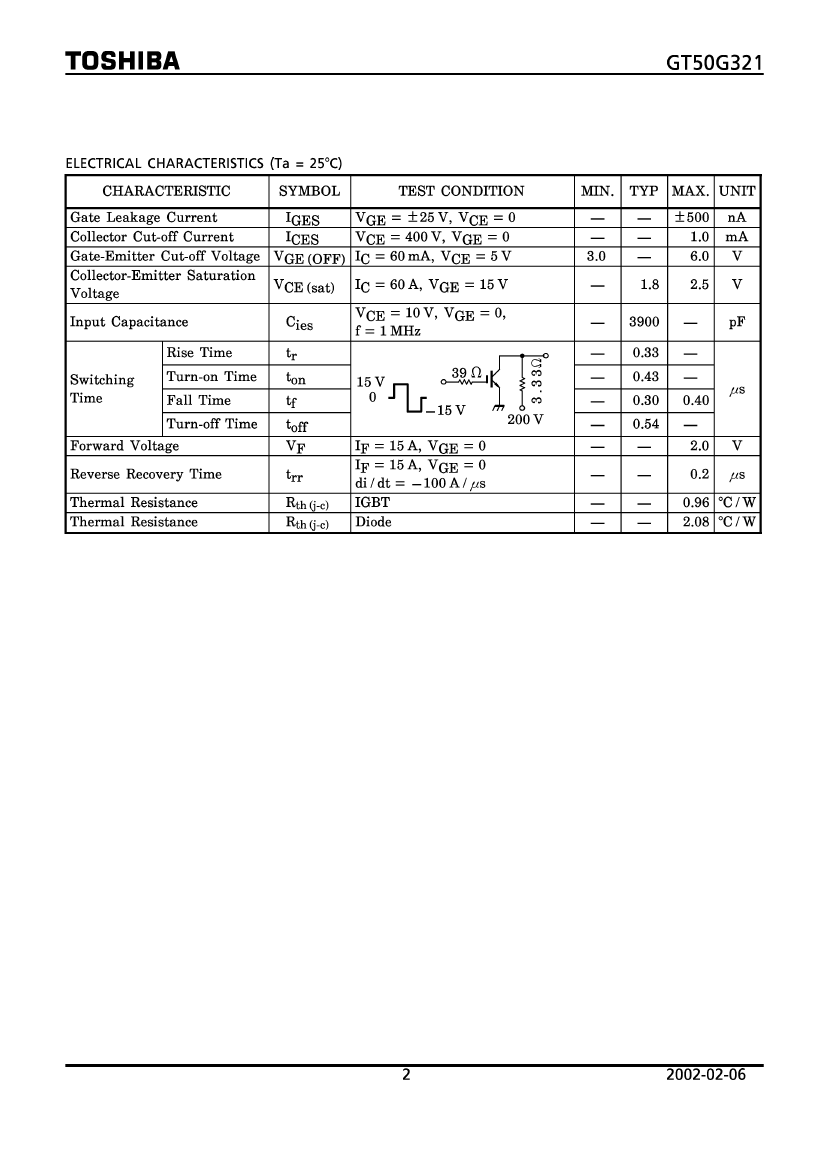

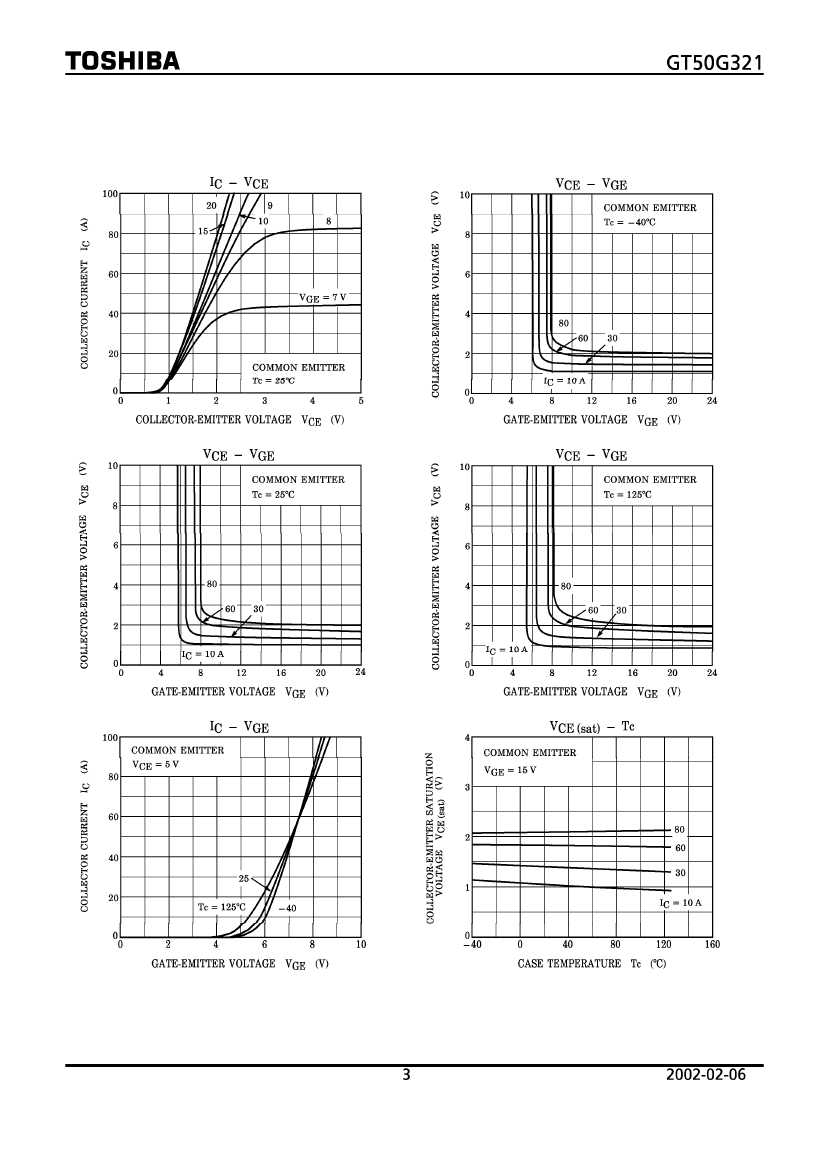

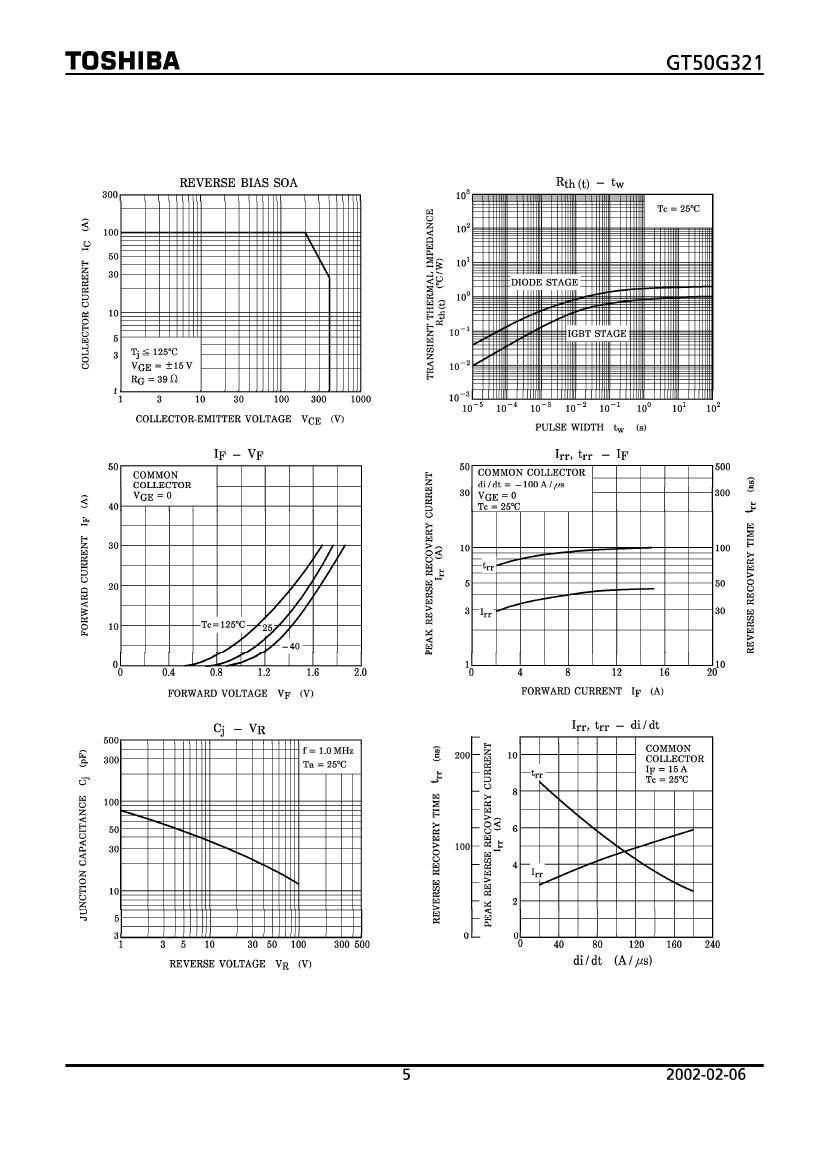

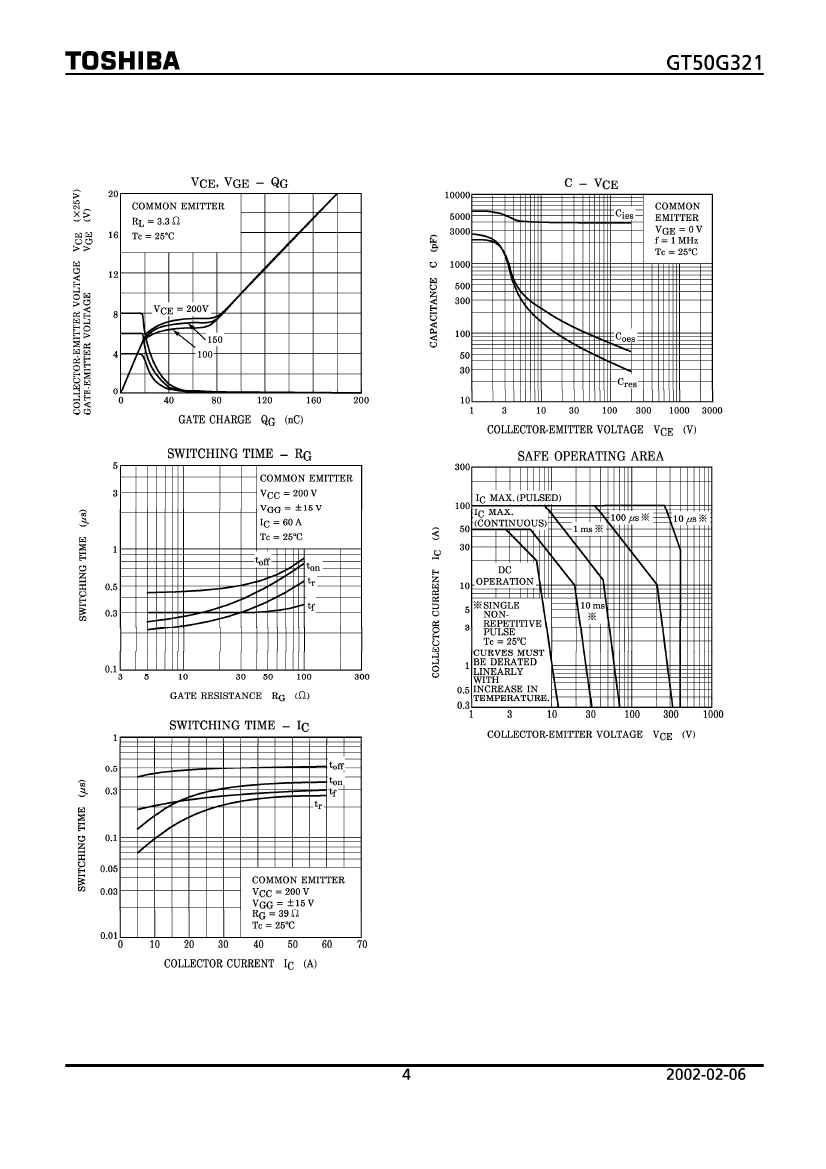

TOSHIBA INSULATED GATE BIPOLAR TRANSISTOR SILICON N CHANNEL IGBT

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
Other features	HIGH SPEED
Shell connection	COLLECTOR
Maximum collector current (IC)	50 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE WITH BUILT-IN DIODE
Maximum landing time (tf)	400 ns
Gate-emitter maximum voltage	25 V
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	130 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	540 ns
Nominal on time (ton)	430 ns
Base Number Matches	1
