FCN-747B050-AU/B datasheet, PDF

Datasheet> All Categories > The connector> The connector> FCN-747B050-AU/B

FCN-747B050-AU/B: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Socket; CategoryThe connector The connector; File Size270KB，5 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

FCN-747B050-AU/B Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Socket

FCN-747B050-AU/B Parametric

Parameter Name	Attribute value
Objectid	1932016861
Reach Compliance Code	unknown
YTEOL	0
Other features	CLOSED END COVER
body width	0.283 inch
subject depth	0.276 inch
body length	2.68 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	PALLADIUM
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	3.4194 N
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

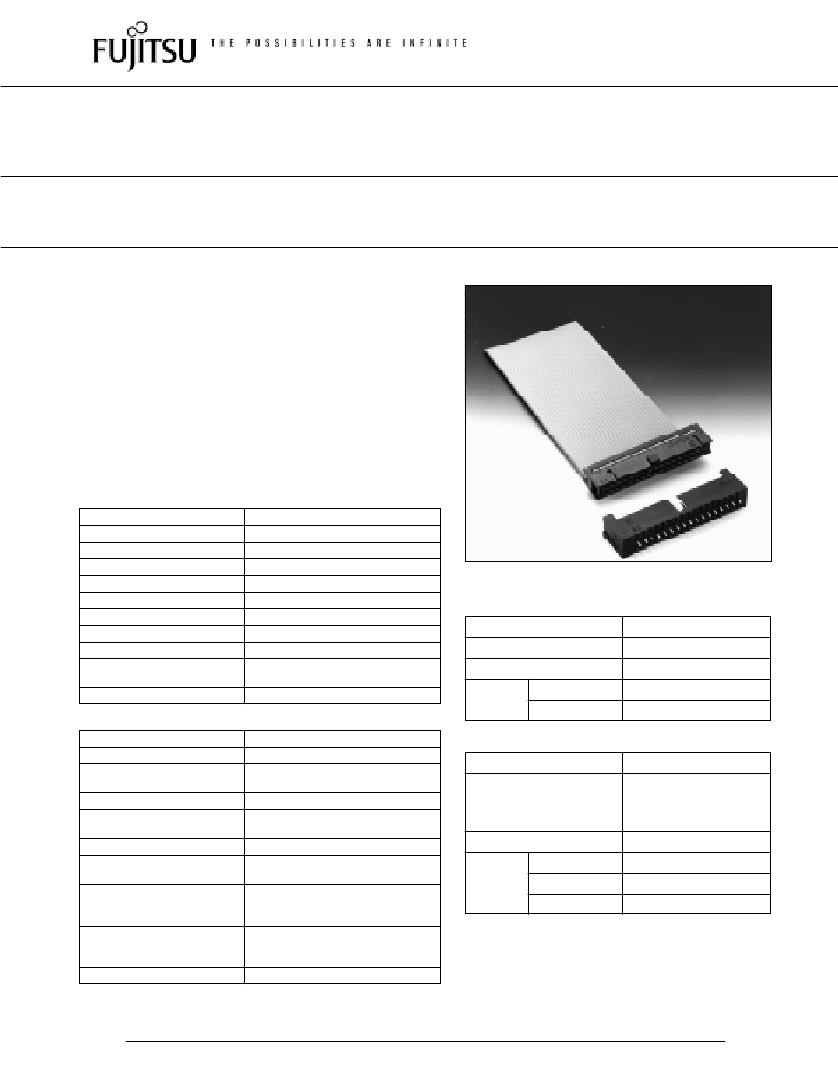

PC BOARD CONNECTORS

740 SERIES

FEATURES

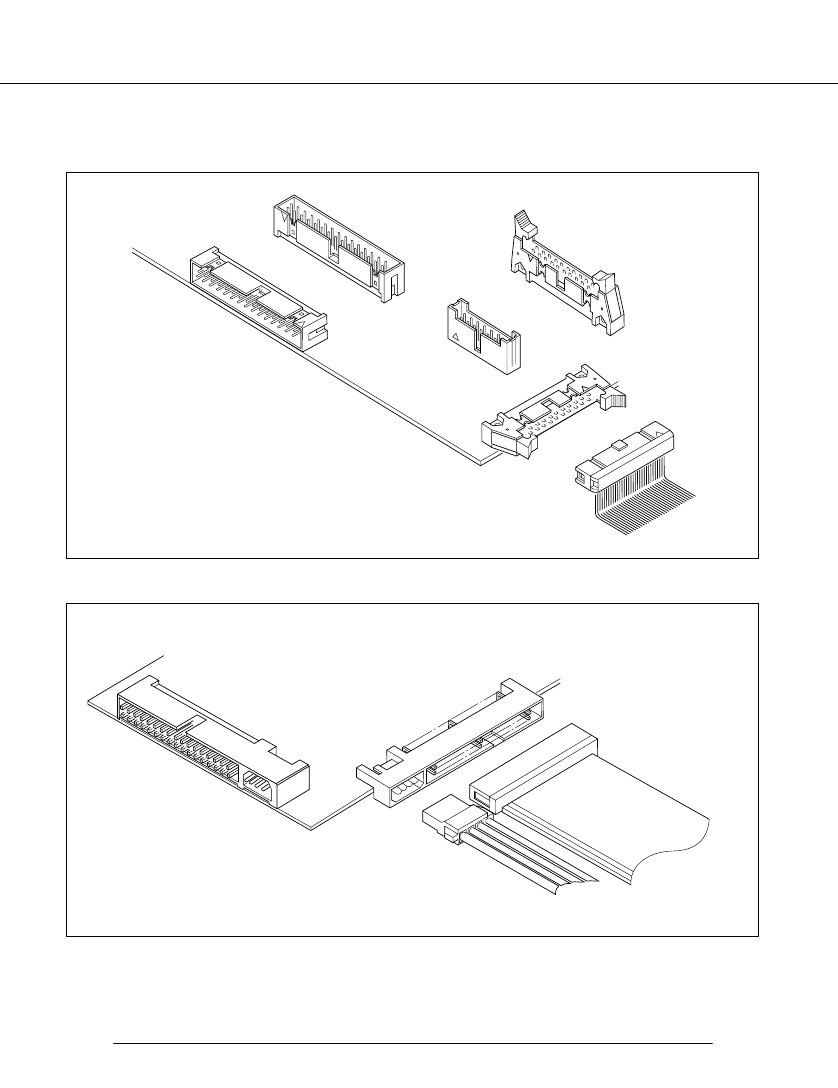

• Various types of headers are available: one side

shrouded, both sides shrouded, with simplified latch,

and box type.

• The connector having a simplified latch prevents the

connector from working loose because of vibration.

• The mini header has a clip to prevent incorrect

insertion.

• A 740 series connector with a power terminal (2 in 1)

for SCSI/IDE interface unit connections is also

available.

SPECIFICATIONS

1. Standard type

Item

Operating temperature range

Current rating

Voltage rating

Contact resistance

Insulation resistance

Dielectric strength

Insertion force

Withdrawal force

Applicable wire

Applicable PC board (standard)

DC 1 A

AC 250 V

15 mΩ max. (DC 6 V, 0.1 A)

1000 MΩ min. (DC 500 V)

AC 500 V for 1 minute

3.5 kg max. (10 pins), 10.5 kg max. (30 pins)

0.25 kg min. (10 pins), 1.0 kg min. (30 pins)

Flat cable: 1.27 mm (0.050 in.) pitch

AWG #28 (stranded) or AWG #30 (solid)

1.6 mm

Specification

–55°C to +105°C

MATERIALS

1. Standard type

Item

Insulating material

Conductor

Contact

Plating

Terminal

Palladium

Materials

Polyester (UL94V-0)

Copper alloy

Gold

2. Power connector integrated type

Item

Operating temperature range

Current rating

Voltage rating

Contact resistance

Insulation resistance

Dielectric strength

Specification

–55°C to +105°C

DC 1 A (signal pin)

DC 5 A (power pin)

AC 250 V

15 mΩ max. (signal pin, DC 6 V, 0.1 A)

10 mΩ max. (power pin, DC 6 V, 0.3 A)

1000 MΩ min. (DC 500 V)

AC 500 V for 1 minute (signal pin)

AC 1000 V for 1 minute (power pin)

50-contact signal pin: 17.5 kg max.

40-contact signal pin: 14.0 kg max.

Power pin (reference value): 8.8 kg max.

50-contact signal pin: 2.0 kg max.

40-contact signal pin: 1.5 kg max.

Power pin (reference value): 0.8 kg max.

1.6 mm (0.062 in.) (through hole type)

2. Power connector integrated type

Item

Materials

Through hole type:

Polyester (UL94V-0)

SMT type: PPS (UL94V-

Copper alloy

Signal pin contact

Plating

Signal pin tail

Power pin

Gold

Palladium

Solder

Insulating material

Conductor

Insertion force

Withdrawal force

Applicable PC board (standard)

Specifications

subject to change

Dimensions are in millimeters (inches)

www.fcai.fujitsu.com
