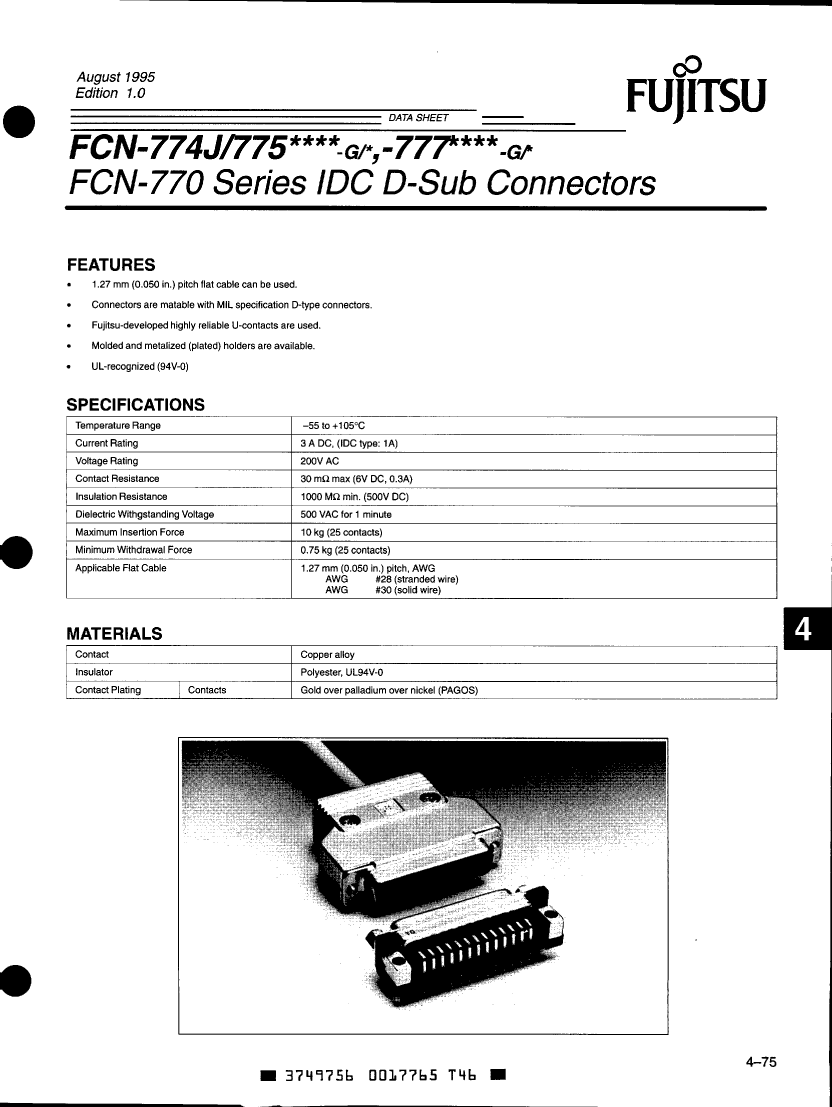

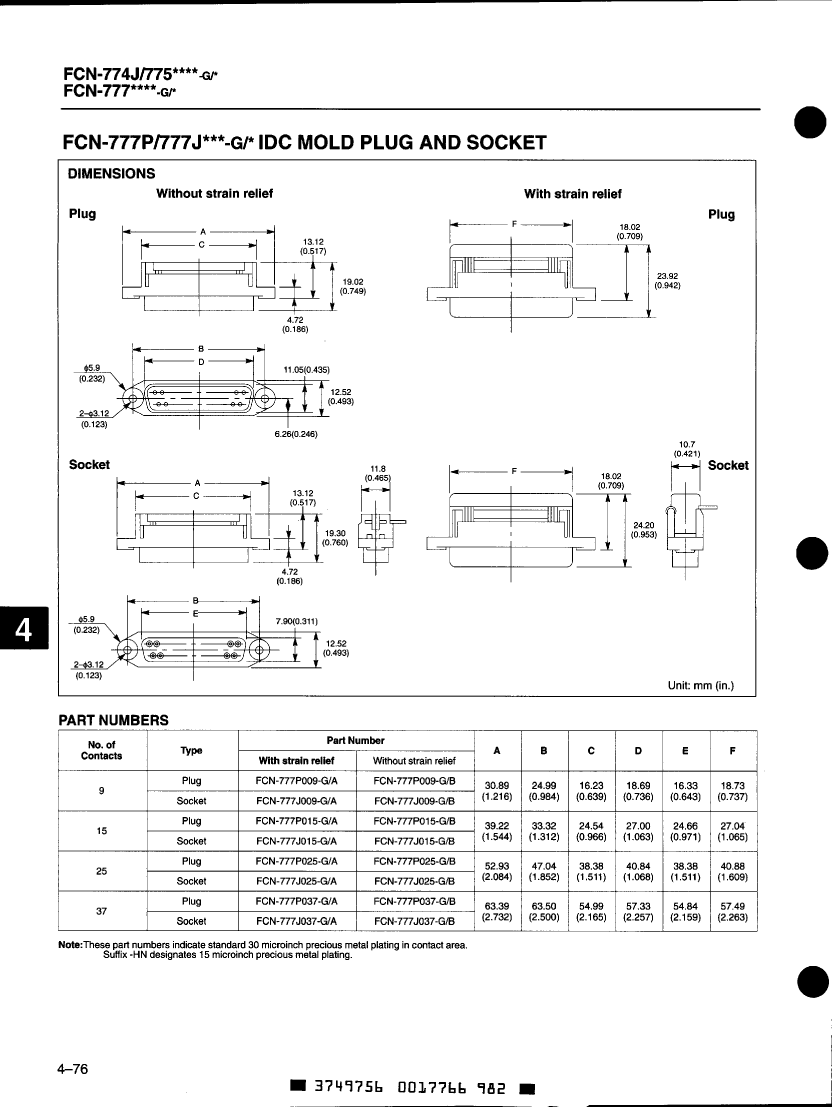

FCN-777J015-G/A datasheet, PDF

FCN-777J015-G/A: DescriptionCONNECTOR,D-SHELL,CABLE MNT,PLUG,15 CONTACTS,SKT,HOLE .112-.124; CategoryThe connector The connector; File Size147KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

FCN-777J015-G/A Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,15 CONTACTS,SKT,HOLE .112-.124

Parameter Name	Attribute value
Objectid	300001040
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH STRAIN RELIEF
body width	0.493 inch
subject depth	0.517 inch
body length	1.544 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	FCN-777
Installation option 1	HOLE .112-.124
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	15
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
