TCP
™
Series

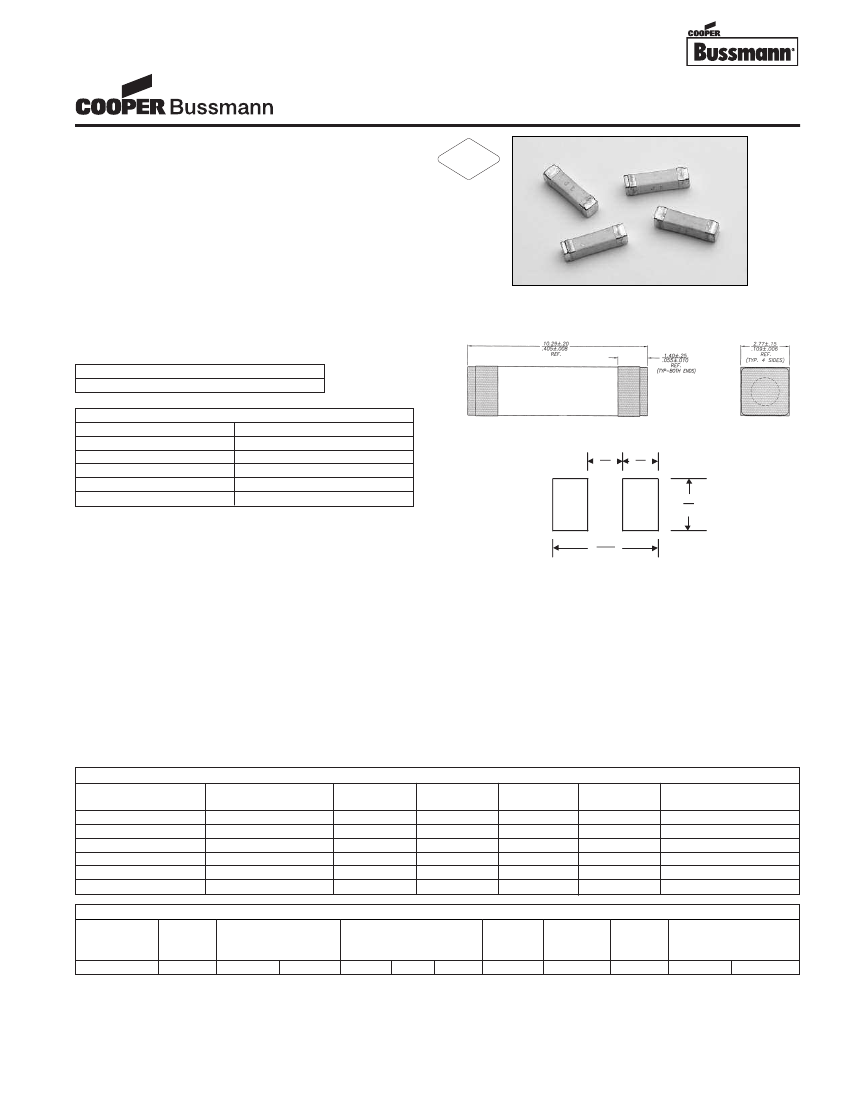

TCP1.25A, Telecom Circuit Protector
Description
• The first and most reliable surface mount telecom circuit
protector designed to protect against power cross faults
and comply with all surge requirements.
• Allows compliance with telecom regulatory standards
including Bellcore GR 1089, UL 1950/60950, and FCC part
68. Application circuit testing is recommended.
• Eliminates the need for a current limiting resistor.
• Protects against overcurrent conditions found in telecom
Subscriber Line Interface Cards (SLICs), xDSL Modem
Applications, Set-Top Boxes, and Consumer Premises
Equipment (CPE).
• TCP1.25A tested and confirmed compatible with
STMicroelectronics Trisil™ Transient Surge Arrestor
(list of part numbers below)
STMicroelectronics Trisil™ P/N’s
SMP100LC-XXX
SMP100MC-XXX
ELECTRICAL CHARACTERISTICS
% of Amp Rating
Opening Time
100%
4 Hours Minimum
250%
1 Second Minimum
250%
4-10 Seconds Typical
250%*
120 Seconds Maximum
300%
10 Seconds Maximum
* If the device does not open at 250% within 120 seconds, increase
current to 300% of amp rating. Device must open in 10 seconds max.
RoHS
2002/95/EC
Dimensions
mm
⁄
(inches)
Land Pattern
5.2
(0.204)
3.7
(0.145)
4.0
(0.157)
Environmental Data
• Life Test: MIL-STD-202, Method 108A, Test Condition D
• Load Humidity: MIL-STD-202, Method 103B
• Moisture Resistance: MIL-STD-202, Method 106E
• Thermal Shock: MIL-STD-202, Method 107D, air-to-air
• Case Resistance: EIA/IS-722
• Resistance to Dissolution of Metallization:
ANSI J-STD-002, Test D
• Mechanical Shock: MIL-STD-202, Method 213B, Test
Condition A
• High Frequency Vibration: MIL-STD-202, Method 204D,
Test Condition D
• Resistance to Solvents: MIL-STD-202, Method 215A
12.6
(0.496)
Agency Information
• UL Recognition Card: JDYX2/E19180
• CSA Component Certification Record and Class No.:
053787C000, 1422 30
Ordering
• Specify packaging, product and option code
(i.e., TR2/TCP1.25-R)
Soldering Method
• Wave Immersion: 260°C, 10 sec max.
• Infrared: 260°C, 30 sec max.
Surge Specification
FCC 47 Part 68
FCC 47 Part 68
Bellcore GR-1089-CORE
Bellcore GR-1089-CORE
Surge out
Surge out
Product
Code
TCP1.25A
Voltage
Rating
AC
250 V
Surge
LIGHTNING SURGE SPECIFICATIONS
Repetitions
2
2
50
50
1
1
Waveform
(µSec.)
10x160
10x560
10x1000
2x10
10x160
10x560
Current (A)
100 per fuse
100
100
500
160
115
Voltage (V)
1500
800
1000
2500
N/A
N/A
Typical
Voltage
Drop‡
150mV
Performance
Requirement
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Alpha Code
Marking
1st Code 2nd Code
J
R***
Longitudinal Type A
Metallic Type B
First Level Lightning
First Level Lightning
ELECTRICAL AND POWER CROSS SPECIFICATIONS
Interrupting
Rating*
250VAC 600VAC
50 A
60 A
DC Cold
Resistance** (ohms)
min. typ. max.
0.070 0.090 0.110
Typical
Melting
I
2
t†
22.2 A
2
s
Maximum
Total
Clearing
100 A
2
s
* AC Interrupting Rating (Measured at designated voltage, 100% power factor)
** DC Cold Resistance (Measured at 10% of rated current)
*** On RoHS Compliant Version (-R option)
† Typical Melting I
2
t (Measured with a battery bank at 60V DC, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)
‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)
TCP
™
Series
TCP1.25A, Telecom Circuit Protector
Special Investigation
The TCP1.25A is designed to provide overcurrent protection for telecom SLIC, xDSL modem, and set-top box applications
regardless of the overvoltage device selected. To provide an easier specification experience, Cooper Bussmann and
STMicroelectronics have joined together to provide a special test report confirming the coordination between the TCP1.25A
and SMP100MC-270 devices.
TEST CIRCUITS
Fuse TCP 1.25A
Tip L
Fuse TCP 1.25A
L1
T1
SMP100MC-270*
Tip S
SMP100MC-270*
Gnd
Gnd
L2
T2
Fuse TCP 1.25A
Ring L
SMP100MC-270*
Ring S
Test Circuit 1
Test Circuit 2
* Note:
or other STMicroelectronics Trisil™ part number listed in table on page 1
TEST PROGRAM
Test
Lightning Surge Tests
10/1000µs + and –1kV 100A (25 pulses of each polarity)
2/10µs + and –2.5 and 5kV 500A (10 pulses of each polarity)
10/560µs + and –800V 100A (1 pulse of each polarity)
10/160µs + and –1.5kV 200A (1 pulse of each polarity)
10/700µs + and –1.5kV 37.5A (5 pulses of each polarity)
Electrical and Power Cross Tests
600V 3A 1.1s (first level)
277V 25A (second level)
600V 60A 5s(second level)
600V 40A 1.5s
600V 2.2A 30min
600V 1A 0.2s (A criteria)
230V 1.44A/0.77A/0.38A 15min (A criteria)
230V 23A 15min (A criteria)
Standard
Bellcore GR-1089
Bellcore GR-1089
FCC Part 68
FCC Part 68
K20
Bellcore GR-1089
Bellcore GR-1089
Bellcore GR-1089
UL 60950
UL 60950
K20
K20
K20
Results
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
Passed
For additional information on STMicroelectronic’s Trisil™ Product line, please see www.st.com/protection
TCP
™
Series

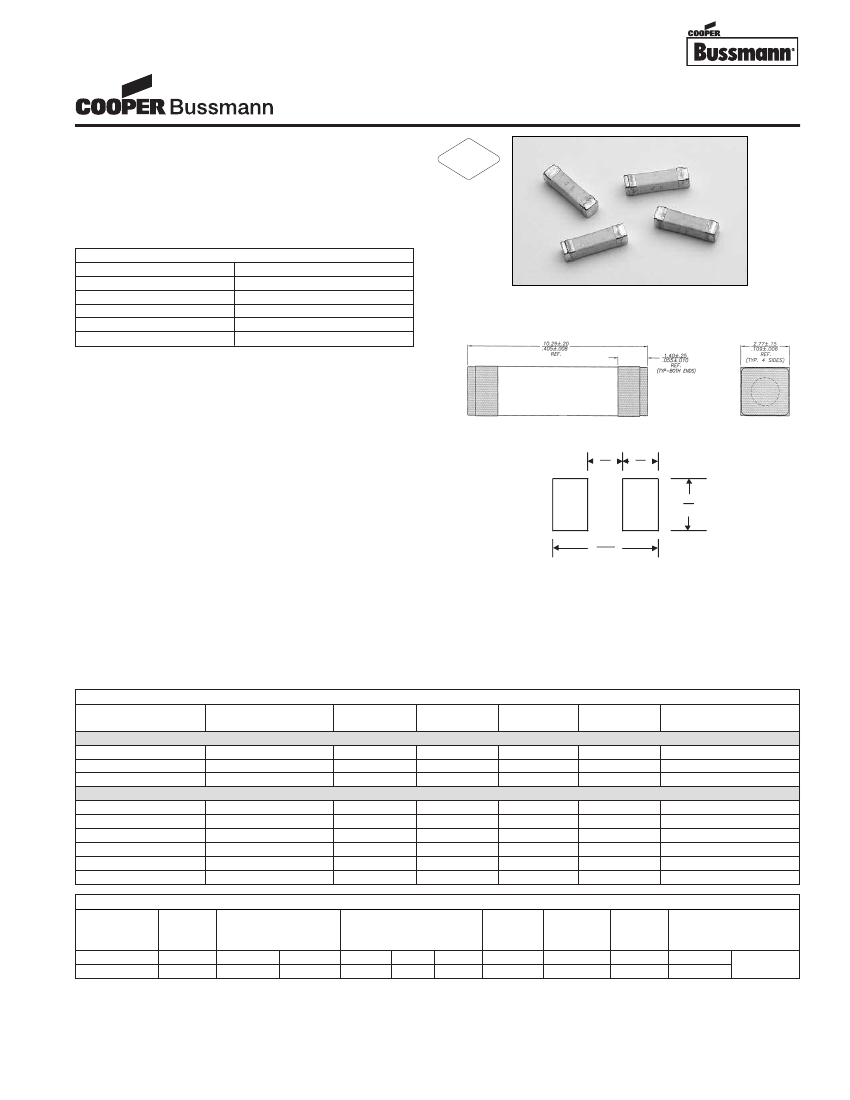

TCP500MA & TCP2A, Telecom Circuit Protector
Description
• Designed to protect Consumer Premises Equipment from
harmful overcurrents.
• Allows compliance with telecom regulatory standards
including UL 1950/60950, and FCC part 68. Application
circuit testing is recommended.
• Eliminates the need for a current limiting resistor.
ELECTRICAL CHARACTERISTICS
% of Amp Rating
Opening Time
100%
4 Hours Minimum
250%
1 Second Minimum
250%
4-10 Seconds Typical
250%*
120 Seconds Maximum
300%
10 Seconds Maximum
* If the device does not open at 250% within 120 seconds, increase
current to 300% of amp rating. Device must open in 10 seconds max.
RoHS
2002/95/EC
Dimensions
mm
⁄
(inches)
Agency Information
• UL Recognition Card: JDYX2/E19180
• CSA Component Certification Record and Class No.:
053787C000, 1422 30
Environmental Data
• Life Test: MIL-STD-202, Method 108A, Test Condition D
• Load Humidity: MIL-STD-202, Method 103B
• Moisture Resistance: MIL-STD-202, Method 106E
• Thermal Shock: MIL-STD-202, Method 107D, air-to-air
• Case Resistance: EIA/IS-722
• Resistance to Dissolution of Metallization:
ANSI J-STD-002, Test D
• Mechanical Shock: MIL-STD-202, Method 213B, Test
Condition A
• High Frequency Vibration: MIL-STD-202, Method 204D,
Test Condition D
• Resistance to Solvents: MIL-STD-202, Method 215A
Land Pattern
5.2
(0.204)
3.7
(0.145)
4.0
(0.157)
12.6
(0.496)
Ordering
• Specify packaging, product and option code
(i.e., TR2/TCP500-R)
Soldering Method
• Wave Immersion: 260°C, 10 sec max.
• Infrared: 260°C, 30 sec max.
Surge Specification
FCC 47 Part 68
FCC 47 Part 68
Surge out
FCC 47 Part 68
FCC 47 Part 68
Bellcore GR-1089-CORE
Bellcore GR-1089-CORE
Surge out
Surge out
Product
Code
TCP500mA
TCP2A
Voltage
Rating
AC
250 V
250 V
Surge
LIGHTNING SURGE SPECIFICATIONS
Repetitions
Waveform
(µSec.)
Current (A)
37.5
100
65
100 per fuse
100
100
500
160
115
Typical
Melting
I
2
t†
1.3 A
2
s
30 A
2
s
TCP 500mA tested
2
5x320
2
10x560
10x160
25
TCP2A tested
2
10x160
2
10x560
50
10x1000
50
2x10
1
10x160
1
10x560
DC Cold
Resistance** (ohms)
min. typ. max.
0.420 0.530 0.640
0.050 0.075 0.100
Voltage (V)
N/A
800
N/A
1500
800
1000
2500
N/A
N/A
Typical
Voltage
Drop‡
471mV
205mV
Performance
Requirement
Fuse cannot open
Fuse must open safely
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Fuse cannot open
Alpha Code
Marking
1st Code 2nd Code
F
R***
N
Longitudinal Type B
Metallic Type A
Longitudinal Type A
Metallic Type B
First Level Lightning
First Level Lightning
ELECTRICAL AND POWER CROSS SPECIFICATIONS
Interrupting
Rating*
250VAC 600VAC
50 A
40 A
50 A
60 A
Maximum
Total
Clearing
100 A
2
s
100 A
2
s
* AC Interrupting Rating (Measured at designated voltage, 100% power factor)
** DC Cold Resistance (Measured at 10% of rated current)
*** On RoHS Compliant Version (-R option)
† Typical Melting I
2
t (Measured with a battery bank at 60V DC, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)
‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)
TCP
™
Series
TCP500MA & TCP2A, Telecom Circuit Protector

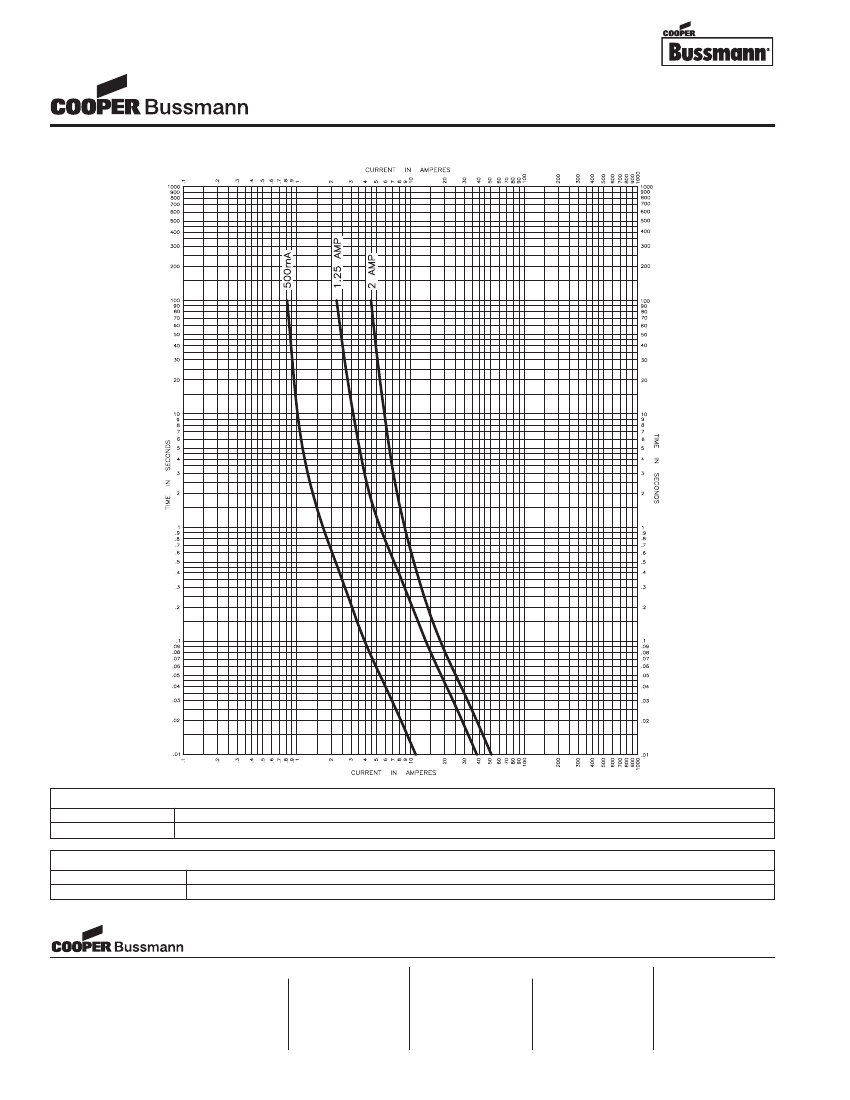

TIME CURRENT CURVE
PACKAGING CODE
Packaging Code
TR2
Description
2,500 pieces of fuses on 24mm tape-and-reel on 13 inch (330mm) reel per EIA Standard 481, 8mm pitch
OPTION CODE
Option Code
-R
Description
RoHS Compliant Version (Sn plating w/ Ni barrier)
