BK/ATM-15: Descriptionautomotive fuses 15a 32vdc 1ka IR blue; CategoryCircuit protection; File Size75KB，1 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

BK/ATM-15 Overview

automotive fuses 15a 32vdc 1ka IR blue

BK/ATM-15 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Automotive Fuses
RoHS	Yes
Current Rating	15 A
Voltage Rating DC	32 V
Mounting Style	Holde
Termination Style	Blade
Fuse Type	Fast Blow
Fuse Size / Grou	ATM
Col	Blue
Dimensions	10.92 mm L x 8.81 mm W
Indicator Style	Without Indic
Case Heigh	3.81 mm
Case Length	10.92 mm
Case Width	8.81 mm
Interrupt Rating	1 kA
Packaging	Bulk
Produc	Automotive Fuses
Factory Pack Quantity	500
Type	Miniature Blade Fuse with/without Indicati
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

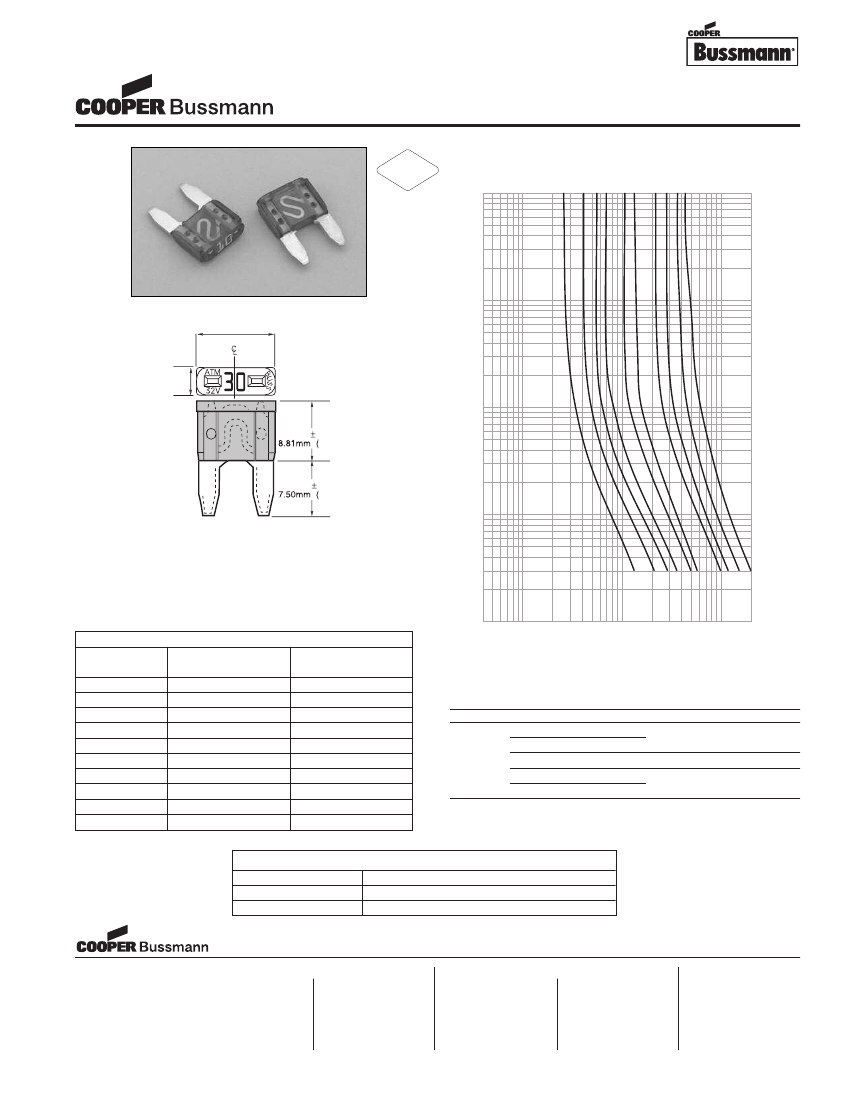

Blade-Type Fuses

ATM Series, Fast Acting

Time-Current Characteristic Curves–Average Melt

7.5A

10A

100

15A

20A

25A

30A

2A

3A

4A

5A

RoHS

2002/95/EC

AMPERE

RATING

10

Dimensional Data

.430"

10.92mm

TIME IN SECONDS

.15"

3.81mm

1

.347" ( 0.016)

±0.41)

.295" ( 0.012)

±0.30)

.1

Catalog Symbol:

ATM

Fast-Acting

Ampere Ratings:

2 to 30 Amperes

Interrupting Rating:

1,000 Amperes

Ordering:

Specify packaging and product code

.01

.4

1

10

100

—

2-20 Amps

Product

Code

ATM-2

ATM-3

ATM-4

ATM-5

ATM-7 1/2

ATM-10

ATM-15

ATM-20

ATM-25

ATM-30

Body

Color

Gray

Violet

Pink

Tan

Brown

Red

Lt. Blue

Yellow

Natural White

Green

Voltage

Rating DC

32V

CURRENT IN AMPERES

Recommended Bussmann Fuseholders

Blade-Type

Part

HHM

HHM-B

ATM

HHM-C

HHL

HHL-B

Description

Fuseholder w/Cover

Body Only

Cover Only

Fuseholder w/Cover

Body Only

Fuse Size

3-30 Amps

Wire Size

#12 Lead Wire;

4" Length

—

#16 Lead Wire;

4" Length

PACKAGING CODE

Packaging Code

Blank

BK

Description

5 pieces of fuses packed in a tin

500 pieces of fuses packed in a carton

Visit us on the web at:

www.cooperbussmann.com

OC-2606 3/07

Technologies 2007

North America

Cooper Electronic Technologies Cooper Bussmann

1225 Broken Sound Parkway NW P.O. Box 14460

Suite F

St. Louis, MO 63178-4460

Boca Raton, FL 33487-3533

Tel: 1-636-394-2877

Tel: 1-561-998-4100

Fax: 1-800-544-2570

Fax: 1-561-241-6640

Toll Free: 1-888-414-2645

Europe

Cooper Electronic Technologies Cooper Electronic Technologies

Cooper (UK) Limited

Avda. Santa Eulalia, 290

Burton-on-the-Wolds

08223

Leicestershire • LE12 5TH UK

Terrassa, (Barcelona), Spain

Tel: +44 (0) 1509 882 737

Tel: +34 937 362 812

Fax: +44 (0) 1509 882 786

+34 937 362 813

Fax: +34 937 362 719

Asia Pacific

Cooper Electronic Technologies

1 Jalan Kilang Timor

#06-01 Pacific Tech Centre

Singapore 159303

Tel: +65 278 6151

Fax: +65 270 4160

200

SPECIFICATIONS
