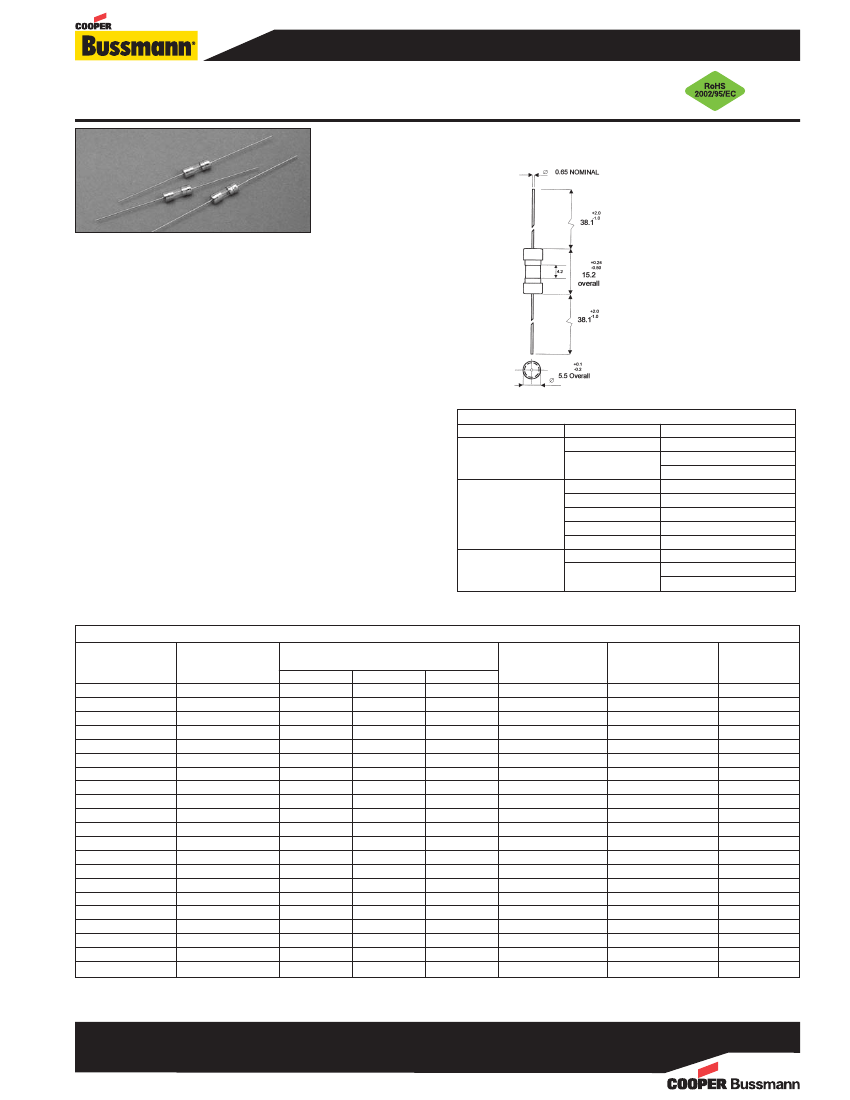

5 x 15mm Axial-Leaded, Time-Delay, Glass Tube Fuses

C515 Series

Dimensions

- mm

Drawing Not to Scale

Description

• Axial-leaded, time-delay

• 5 x 15mm physical size

• Nickel-plated brass endcap construction

• Leads are tin coated

• Optional sleeve is flexible flouropolymer

(UL Flammability rating VW-1).

• UL Listed product meets standard UL 248-14

Agency Information

• UL Listed Card: C515 125mA-250mA and 375mA-3A

(Guide JDYX, File E19180)

• UL Recognized Card: C515 350mA, and 3.5A-7A

(Guide JDYX2, File E19180)

• CSA Certification Card: C515 125mA-250mA and

375mA-3A (Class 1422-01, 53787

Ordering

Specify product code

• Insert packaging code prefix before part number.

E.g., BK (or TR2)/C515-2-R

• With TR2 packaging code, lead wire length is 20.3mm

Specify option code, if desired

• For insulation sleeve, insert “S” after part series.

E.g., BK/C515S-2-R

Voltage

Rating

Vac

250

125

Electrical Characteristics

Amp Rating

Opening Time

135%

60 minutes max.

125mA - 250mA

3 seconds min.

200%

120 seconds max.

100%

4 hours min.

470mA

30 minutes max.

350mA

600mA

90 seconds max.

2A

2 seconds max.

6A

500 milliseconds max.

135%

60 minutes max.

375mA - 7A

3 seconds min.

200%

120 seconds max.

Rated Current

Specifications

Product Code

C515-125-R

C515-250-R

C515-350-R

C515-375-R

C515-500-R

C515-600-R

C515-750-R

C515-800-R

C515-1-R

C515-1.25-R

C515-1.5-R

C515-1.6-R

C515-2-R

C515-2.25-R

C515-2.5-R

C515-3-R

C515-3.5-R

C515-4-R

C515-5-R

C515-6-R

C515-7-R

Interrupting

Rating (amps)

600Vac

250Vac

125Vac

-

35

10000

-

35

10000

25

35

10000

-

35

10000

-

35

10000

-

35

10000

-

35

10000

-

35

10000

-

35

10000

-

100

10000

-

100

10000

-

100

10000

-

100

10000

-

100

10000

-

100

10000

-

100

10000

-

400

-

400

-

400

-

400

-

400

Typical DC Cold

Resistance*

Ω

(Ω)

4.72

1.32

1.04

0.81

0.54

0.38

0.26

0.23

0.14

0.13

0.100

0.090

0.059

0.057

0.046

0.035

0.028

0.023

0.019

0.014

0.013

Typical

Melting I

2

t**

0.101

0.467

1.169

1.531

2.280

6.982

9.162

10.544

14.289

22.961

31.989

35.156

60.256

97.724

78.163

80.426

149.279

233.346

354.813

471.360

710.500

Max

Voltage

Drop (mV)***

770

430

530

470

440

350

310

260

230

220

240

200

170

180

190

150

130

150

125

100

*DC Cold Resistance (Measured at <10% of rated current)

**Typical Melting I

2

t (A

2

Sec) (Minimum I

2

t at 10 times rated current)

***Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)

1009

BU-SB09716

Page 1 of 2

Data Sheet 2006
