TR-0603FA750MA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> TR-0603FA750MA

TR-0603FA750MA: Descriptionsurface mount fuses; CategoryCircuit protection; File Size544KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

TR-0603FA750MA Overview

surface mount fuses

TR-0603FA750MA Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Surface Mount Fuses
RoHS	N
Current Rating	750 mA
Voltage Rating AC	32 V
Voltage Rating DC	32 V
Fuse Type	Fast Blow
Fuse Size / Grou	0603 (1608 metric)
Dimensions	1.6 mm L x 0.81 mm W
Case Heigh	0.48 mm
Case Length	1.6 mm
Case Width	0.81 mm
Packaging	Reel
Produc	Surface Mount Fuses
Type	Chip Fuse Fast Acting

Preview

Download Datasheet

View All

Chip

™

Fuses

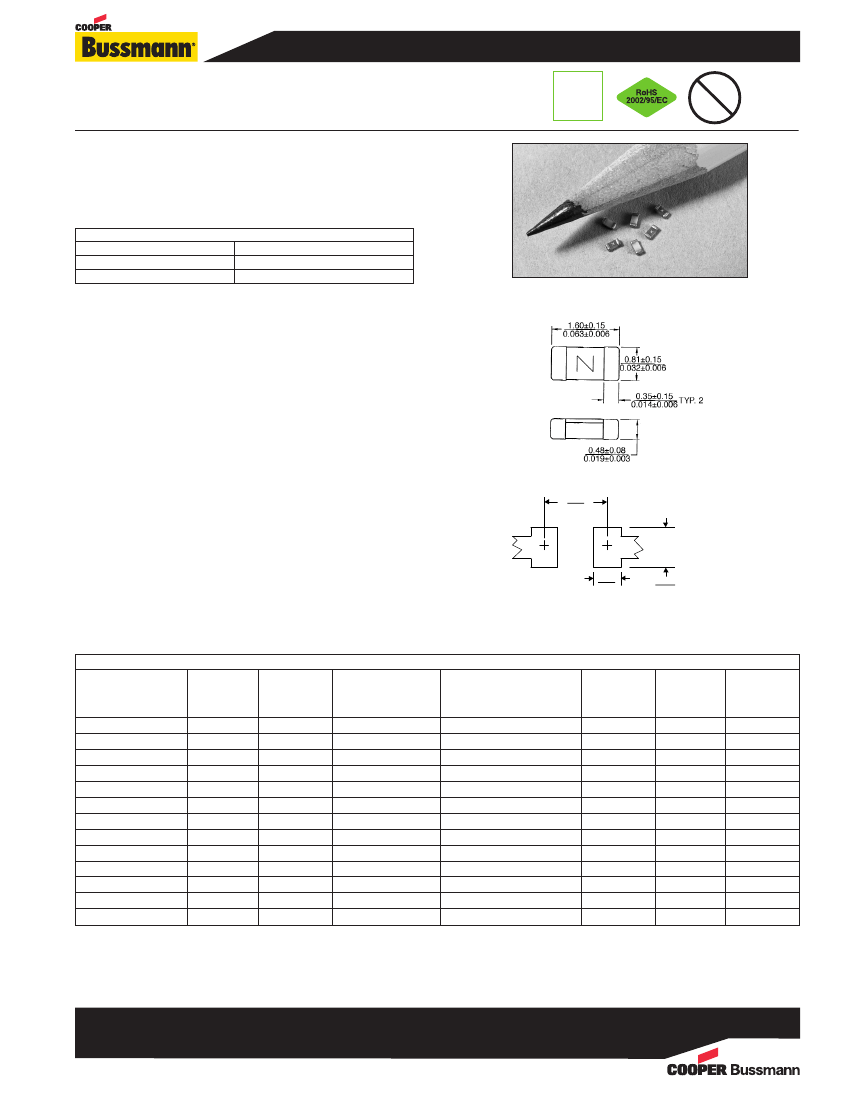

0603FA Series, Fast-Acting

Description

• Fast-acting 0603 surface mount fuse

• Excellent temperature and cycling characteristics

• Compatible with lead free solders and higher

temperature profiles

Electrical Characteristics

% of Amp Rating

Opening Time

100%

4 Hours Minimum

200%

60 Seconds Maximum

FREE

HALOGEN

Surface Mount Device

Dimensions – mm/inches

Drawing Not to Scale

Agency Information

• UL Recognition Guide & File numbers:

JDYX2 &E19180

• CSA Component Acceptance: 053787 C 000 &

Class Number: 1422 30

Environmental Data

• Operating temparture: -55ºC to 125ºC with proper

derating

• Load humidity test: MIL-STD-202, Method 103B

• Moisture resistance test: MIL-STD-202, Method 106E

• Thermal shock test: MIL-STD-202, Method 107D

• High frequency vibration test: MIL-STD-202,

Method 204D

Ordering

• Specify packaging and product code

(i.e., TR/0603FA250-R)

Recommended Pad Layout – mm/inches

1.25

(0.05)

0.50

(0.02)

Soldering Method

• Wave solder: 260°C, 10 sec max.

• Solder reflow: 260°C, 30 sec max.

0.90

(0.035)

Specifications

Par t Number

0603FA250-R

0603FA375-R

0603FA500-R

0603FA750-R

0603FA1-R

0603FA1.25-R

0603FA1.5-R

0603FA2-R

0603FA2.5-R

0603FA3-R

0603FA3.5-R

0603FA4-R

0603FA5-R

Current

Rating

(amps)

250mA

375mA

500mA

750mA

1.25

1.5

2.5

3.5

Voltage

Rating

50Vdc

32Vac/50dc

32Vac/dc

Interrupting

Rating (amps) at

Rated Voltage*

50ac/35dc

DC Cold

Resistance** (

)

Typical

3.100

1.250

1.025

0.450

0.150

0.108

0.086

0.051

0.037

0.028

0.022

0.017

0.011

Typical

Melting

t***

0.0004

0.0009

0.00193

0.0090

0.0025

0.0130

0.0319

0.0491

0.0625

0.0699

0.1200

0.2430

0.6950

Typical

Voltage

Drop†

0.921

0.605

0.600

0.440

0.211

0.151

0.138

0.116

0.113

0.110

0.103

0.097

0.090

Alpha

Code

Marking‡

* DC Interrupting rating (Measured at designated voltage, time constant of less than 50 microseconds, battery source)

** DC Cold resistance (Measured at ≤10% of rated current)

*** Typical melting I

t (Measured with a battery bank at rated DC voltage, 10x-rated current, not to exceed IR, time constant of calibrated circuit less than 50

microseconds) (0603FA4A and 5A measured at interrupting rating)

† Typical voltage drop (Measured at rated current after temperature stabilizes)

‡ Alpha code to be marked on the top of fuse body for all ratings

0210

BU-SB10140

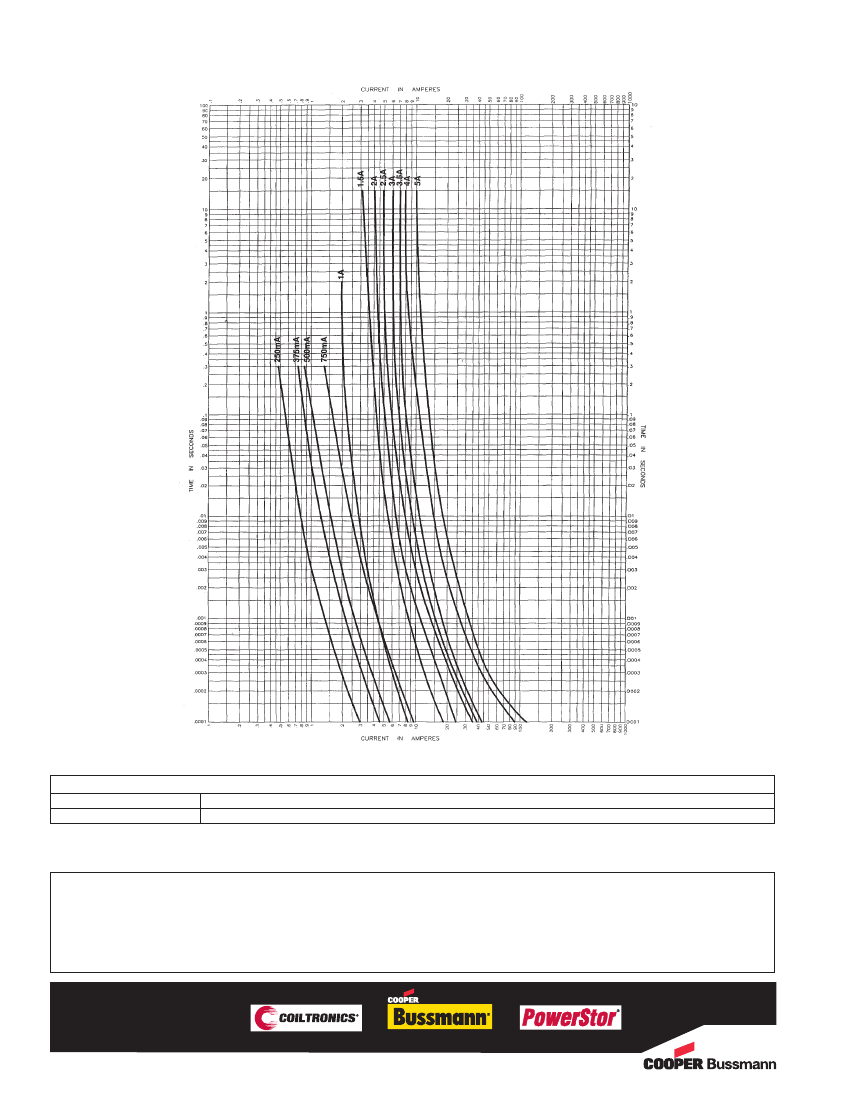

Page 1 of 2

Data Sheet 4336

TR-0603FA750MA Related Products

	TR-0603FA750MA	TR-0603FA500MA	TR-0603FA375MA	TR-0603FA750-T	TR-0603FA500-T	TR-0603FA250-T	TR-0603FA5-T	TR-0603FA375-T	TR2-6125T625MA
Description	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses	surface mount fuses
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
RoHS	N	N	N	N	N	N	N	N	N
Current Rating	750 mA	500 mA	375 mA	750 mA	500 mA	250 mA	5 A	375 mA	625 mA
Fuse Type	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Fast Blow	Time Delay / Slow Blow
Fuse Size / Grou	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	0603 (1608 metric)	2410 (6125 metric)
Dimensions	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	1.6 mm L x 0.81 mm W	6.1 mm L x 2.72 mm W
Case Heigh	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	2.72 mm
Case Length	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	6.1 mm
Case Width	0.81 mm	0.81 mm	0.81 mm	0.81 mm	0.81 mm	0.81 mm	0.81 mm	0.81 mm	2.72 mm
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
Produc	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
Type	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Chip Fuse Fast Acting	Brick Fuse Time Delay
Voltage Rating AC	32 V	32 V	-	32 V	32 V	32 V	32 V	-	60 V
Voltage Rating DC	32 V	50 V	50 V	32 V	50 V	50 V	32 V	50 V	-
