0676.500MXE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0676.500MXE

0676.500MXE: Descriptioncartridge fuses .5A glass body fast acting; CategoryCircuit protection Circuit protection; File Size38KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0676.500MXE Overview

cartridge fuses .5A glass body fast acting

0676.500MXE Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	FAST
body height	11 mm
Body length or diameter	3.9 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e0
Joule integral nominal
Installation features	THROUGH HOLE
method of packing	BULK
physical size	3.9mm x 11mm
Pre-discharge rating	0.13 A2/s
Rated breaking capacity	35 A
Rated current	0.5 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

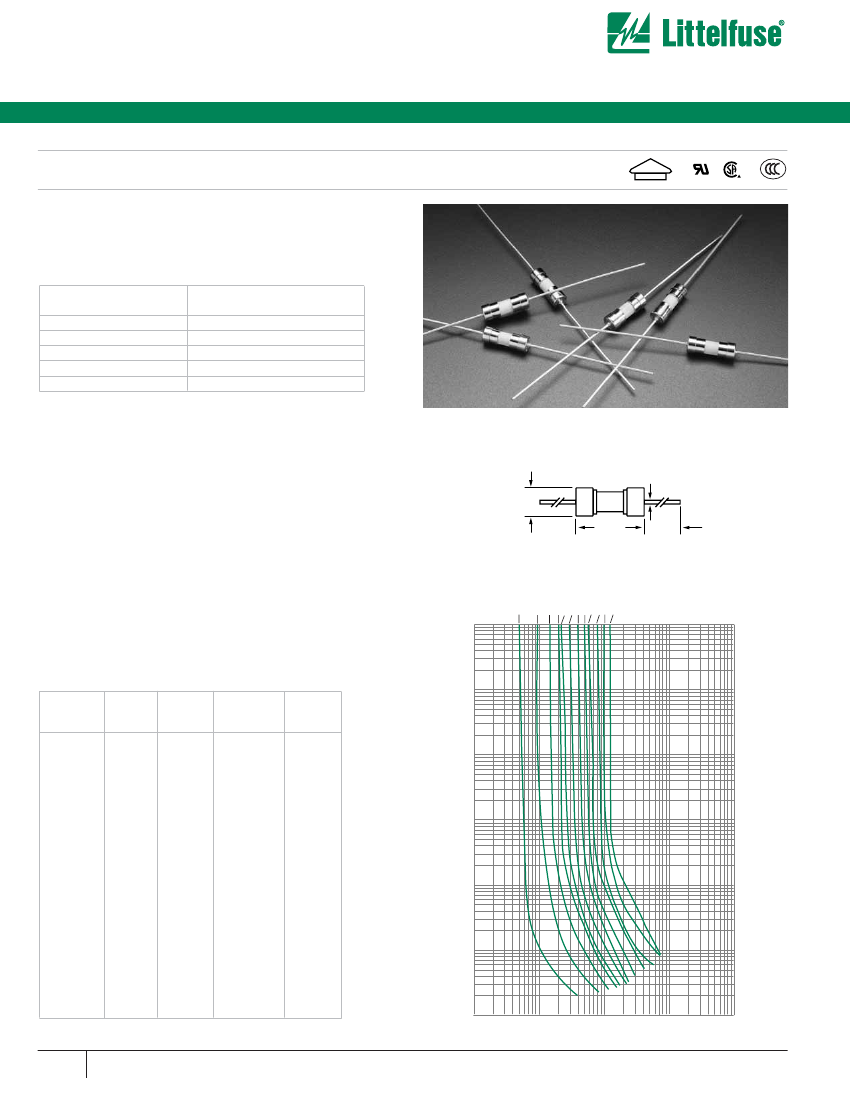

Axial Lead and Cartridge Fuses

Ceramic Body

3.6 x 10 mm

Fast-Acting Fuse 676 Series

• Meets the requirements of IEC 60127-3, Standard Sheet 3.

• Fast-Acting, ceramic body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply, and

adapter applications.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Opening

Rating

Time

150%

210%

275%

400%

1000%

60 minutes, Minimum

30 minutes, Maximum

10 msec., Min.; 3 sec. Max.

3 msec., Min.; .3 sec. Max.

20 msec, Max.

AGENCY APPROVALS:

Recognized under the Components Program of Underwriters

Laboratories and recognized by CSA from 0.050 through 6.3 Amps.

VDE approved from 1 through 5 Amps. CCC approval pending

(1 through 5 Amps).

676

000

Series

0.6 (.024") ( 0.05 -4A)

0.8 (.031") (5 -6.3A)

3.9 (.153")

INTERRUPTING RATING:

35A or 10 x rated current, whichever is greater @ 250V AC

PACKAGING OPTIONS:

Please refer to the following suffixes when ordering:

Bulk (1000 pieces): Add MXE suffix to the catalog part number.

Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog

part number.

30.0

(1.181") TYP.

Axial Lead Material: Solder coated copper.

11.0

(.433")

Average Time Current Curves

250mA

500mA

800mA

1.25A

1.6A

2.5A

3.15A

6.3A

TAPE AND REEL SPECIFICATIONS:

Per EIA-296 with 10mm pitch and 56.5mm inside tape spacing.

1000

ORDERING INFORMATION:

Catalog

Number

0676.050

0676.063

0676.080

0676.100

0676.125

0676.160

0676.200

0676.250

0676.315

0676.400

0676.500

0676.630

0676.800

0676

001.

0676

1.25

0676

01.6

0676

002.

0676

02.5

0676

3.15

0676

004.

0676

005.

0676

06.3

Ampere

Rating

.050

.063

.080

.100

.125

.160

.200

.250

.315

.400

.500

.630

.800

1.00

1.25

1.60

2.00

2.50

3.15

4.00

5.00

6.30

Voltage

Rating

250

Nominal

Resistance

Cold mOhms

9.400

6.900

4.700

3.300

2.300

1.700

0.500

0.390

0.285

0.195

0.150

0.105

0.083

0.063

0.053

0.042

0.032

0.025

0.019

0.014

0.010

0.006

Nominal

Melting i

Sec.

0.00050

0.00080

0.00100

0.00160

0.00790

0.0128

0.0200

0.0250

0.0300

0.112

0.130

0.202

0.320

0.450

0.750

1.79

3.01

5.15

8.55

14.6

20.4

33.8

100

TIME IN SECONDS

0.1

0.01

0.001

0.1

CURRENT IN AMPERES

100

436

w w w. l i t t e l f u s e . c o m
