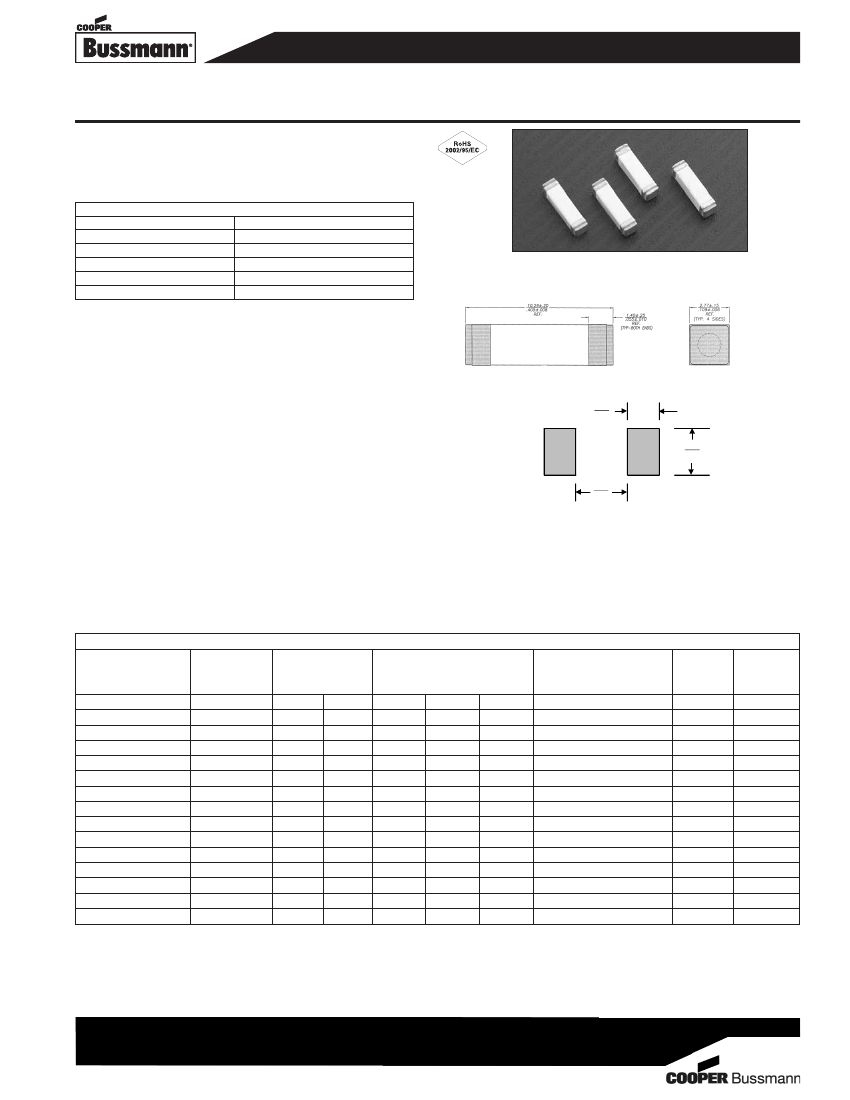

Brick™ Fuses
1025FA Series, Fast-Acting
Description
• Fast-acting surface-mount fuse
• Satisfies the EIA/IS-722 Standard
• Solder immersion compatible
Electrical Characteristics
% of Amp Rating
Opening Time
100%
4 Hours Minimum
200% (250mA-5A)
5 Seconds Maximum
250% (250mA-5A fuse)
1 Second Maximum
200% (7-15A fuse)
20 Seconds Maximum
250% (7-15A fuse)
4 Seconds Maximum
Note: 30vde constant current source required for 200%
overload tests on 250mA-1A.
Dimensions – mm/in
Drawing Not to Scale
Agency Information
• UL Recognition Guide & File numbers:
JDYX2 & E19180 (250mA - 15A)
• CSA Component Acceptance:
File # 053787 C000, Class # 1422 30
Environmental Data
• Life test: MIL-STD-202, Method 108A, Test Condition D
• Load humidity: MIL-STD-202, Method 103B
• Moisture resistance: MIL-STD-202, Method 106E
• Terminal strength: MIL-STD-202, Method 211A
• Thermal shock: MIL-STD-202, Method 107D, air-to-air
• Case resistance: EIA/IS-722
• Resistance to dissolution of metallization:
ANSI J-STD-002, Test D
• Mechanical shock: MIL-STD-202, Method 213B with
exceptions per EIA/IS-722 Standard
• High frequency vibration: MIL-STD-202, Method 204D,
Test Condition D
• Resistance to solvents: MIL-STD-202, Method 215A
Recomended Pad Layout – mm (in)
3.30
(0.130)
4.38
(0.172)
6.79
(0.267)
Ordering
• Specify packaging and product code
(i.e., TR2/1025FA250-R)
Soldering Method
• Wave solder: 260°C, 10 Sec max.
• Infrared reflow: 260°C, 30 Sec max.
DC Cold
Resistance** (Ω)
Typical
4.7500
1.1500
0.5550
0.2800
0.1140
0.0750
0.0510
0.0384
0.0305
0.0275
0.0195
0.0116
0.0072
0.0056
0.0039
Typical
Melting
I
2
t†
0.1212
0.0415
0.143
1.750
1.460
6.086
8.48
18.15
17.83
23.32
38.74
138
457
498
1451
Typical
Voltage
Drop‡
2019mV
1500mV
880mV
560mV
260mV
258mV
232mV
205mV
185mV
190mV
180mV
150mV
146mV
120mV
110mV
Specifications
Product Code
1025FA250-R
1025FA500-R
1025FA750-R
1025FA1-R
1025FA1.5-R
1025FA2-R
1025FA2.5-R
1025FA3-R
1025FA3.5-R
1025FA4-R
1025FA5-R
1025FA7-R
1025FA10-R
1025FA12-R
1025FA15-R
Current
Rating
(amps)
250mA
500mA
750mA
1
1.5
2
2.5
3
3.5
4
5
7
10
12
15
Voltage
Rating
AC
DC
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
125V
250V
60V
250V
60V
250V
60V
250V
60V
Interrupting
Rating (amps)*
250Vac 125Vdc 60Vdc
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
50
-
50
-
50
50
-
50
50
-
50
50
-
50
* AC interrupting rating (measured at designated voltage, 100% power factor random closing); DC interrupting rating (measured at designated voltage, time constant of
less than 50 microseconds, battery source)
** DC cold resistance (measured at
≤10%
of rated current)
† Typical Melting I
2
t (measured with a battery bank at rated DC voltage, 10x-rated current, but not exceeding the interrupting rating. Time constant of calibrated circuit less
than 50 microseconds). Test current not to exceed interrupting rating of 50A.
‡ Typical voltage drop (measured at rated current after temperature stabilizes)
• Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at
elevated ambient temperatures.
0308
BU-SB08026
Page 1 of 2
Data Sheet 4322

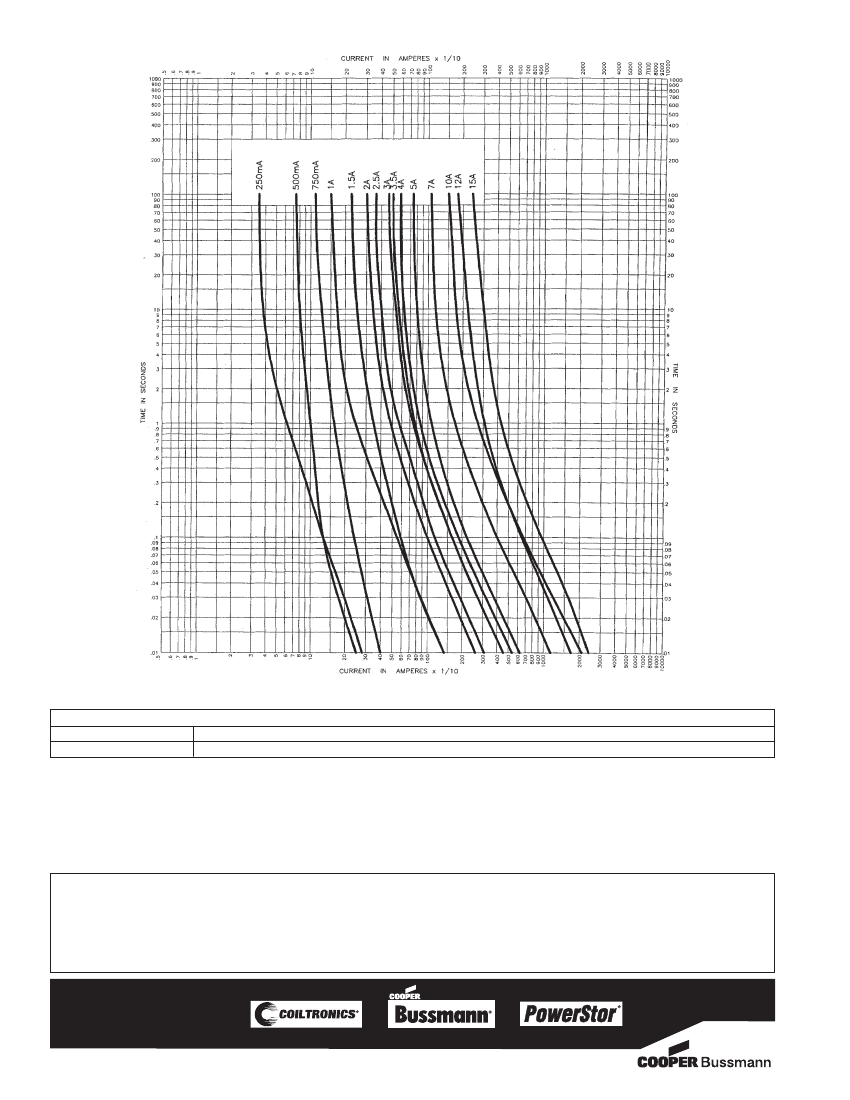

Time Current Curve
Packaging Code
Packaging Code Prefix
TR2
North America
Cooper Electronic Technologies
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Description
2,500 fuses on 24mm tape-and-reel on 13 inch (330mm) reel per EIA Standard 481
Europe
Cooper Electronic Technologies
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Asia Pacific
Cooper Electronic Technologies
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Cooper Electronic Technologies
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2008 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0308
BU-SB08026
Page 2 of 2
Data Sheet 4322
