TR2/1025TD4A: Descriptionsurface mount fuses 250vac 125vdc 50a time delay brick; CategoryCircuit protection; File Size229KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

TR2/1025TD4A Overview

surface mount fuses 250vac 125vdc 50a time delay brick

TR2/1025TD4A Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Surface Mount Fuses
RoHS	No RoHS Version Available
Current Rating	4 A
Voltage Rating AC	125 V
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	4010 (10228 metric)
Dimensions	10.29 mm L x 2.77 mm W
Case Heigh	2.77 mm
Case Length	10.29 mm
Case Width	2.77 mm
Interrupt Rating	50 Amps
Packaging	Reel
Produc	Surface Mount Fuses
Resistance	22 mOhms
Factory Pack Quantity	2500
Type	Brick Fuse Time Delay
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

Brick

™

Fuses

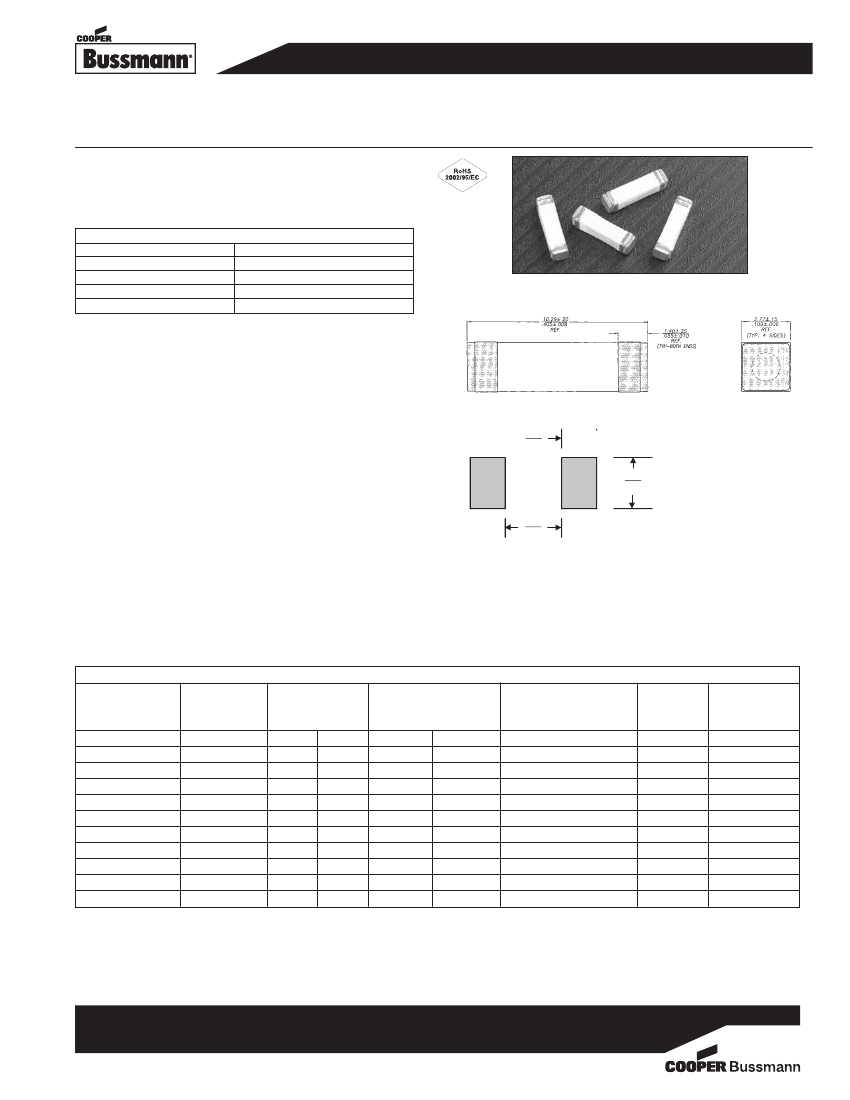

1025TD Series, Time-Delay

Description

• Time-delay surface mount fuse

• Satisfies the EIA/IS-722 Standard

• Solder immersion compatible

Electrical Characteristics

% of Amp Rating

Opening Time

100%

4 Hours Minimum

200%

1 Second Minimum

200%

60 Seconds Maximum

250% *

10 Seconds Maximum

* If fuse does not open @ 200% in 60 seconds, raise current to 250%

and the fuse must open in 10 seconds maximum.

Dimensions – mm (in)

Drawing Not to Scale

Agency Information

• UL Recognition Guide & File numbers:

JDYX2 & E19180 (250mA - 5A)

• CSA Component Acceptance:

File # 053787 C000, Class # 1422 30

Environmental Data

• Life test: MIL-STD-202, Method 108A, Test Condition D

• Load humidity: MIL-STD-202, Method 103B

• Moisture resistance: MIL-STD-202, Method 106E

• Terminal strength: MIL-STD-202, Method 211A

• Thermal shock: MIL-STD-202, Method 107D, air-to-air

• Case resistance: EIA/IS-722

• Resistance to dissolution of metallization:

ANSI J-STD-002, Test D

• Mechanical shock: MIL-STD-202, Method 213B with

exceptions per EIA/IS-722 Standard

• High frequency vibration: MIL-STD-202, Method 204D,

Test Condition D

• Resistance to solvents: MIL-STD-202, Method 215A

Recommended Pad Layout – mm (in)

3.30

(0.130)

4.38

(0.172)

6.79

(0.267)

Ordering

• Specify packaging and product code

(i.e., TR2/1025TD250-R)

Soldering Method

• Wave immersion: 260°C, 10 sec max.

• Infrared: 260°C, 30 sec max.

DC Cold

Ω

Resistance** (Ω)

Typical

4.200

0.5500

0.317

0.2030

0.1025

0.0680

0.0420

0.0330

0.0270

0.0220

0.0160

Typical

Melting

I

2

t†

0.128

1.47

0.93

9.91

11.79

17.27

16.51

42.74

43.33

66.96

88.38

Typical

Voltage

Drop‡

1900 mV

455 mV

400 mV

387 mV

310 mV

250 mV

201 mV

184 mV

180 mV

152 mV

145 mV

Specifications

Product Code

1025TD250-R

1025TD500-R

1025TD750-R

1025TD1-R

1025TD1.5-R

1025TD2-R

1025TD2.5-R

1025TD3-R

1025TD3.5-R

1025TD4-R

1025TD5-R

Current

Rating

Amps

250mA

500mA

750mA

1

1.5

2

2.5

3

3.5

4

5

Voltage

Rating

AC

DC

250

125

250

125

250

125

250

125

250

125

250

125

250

125

250

125

250

125

250

125

250

125

Interrupting

Rating*

250Vac 125Vdc

50A

* AC Interrupting Rating (Measured at designated voltage, 100% power factor random closing); DC Interrupting Rating (Measured at designated voltage, time

constant of the calibrated circuit is less than 50 microseconds, battery source)

** DC Cold Resistance (Measured at ≤10% of rated current)

† Typical Melting I

2

t (Measured with a battery bank at rated DC voltage, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)

‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)

• Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at

elevated ambient temperatures.

0608

BU-SB08288

Page 1 of 2

Data Sheet 4344

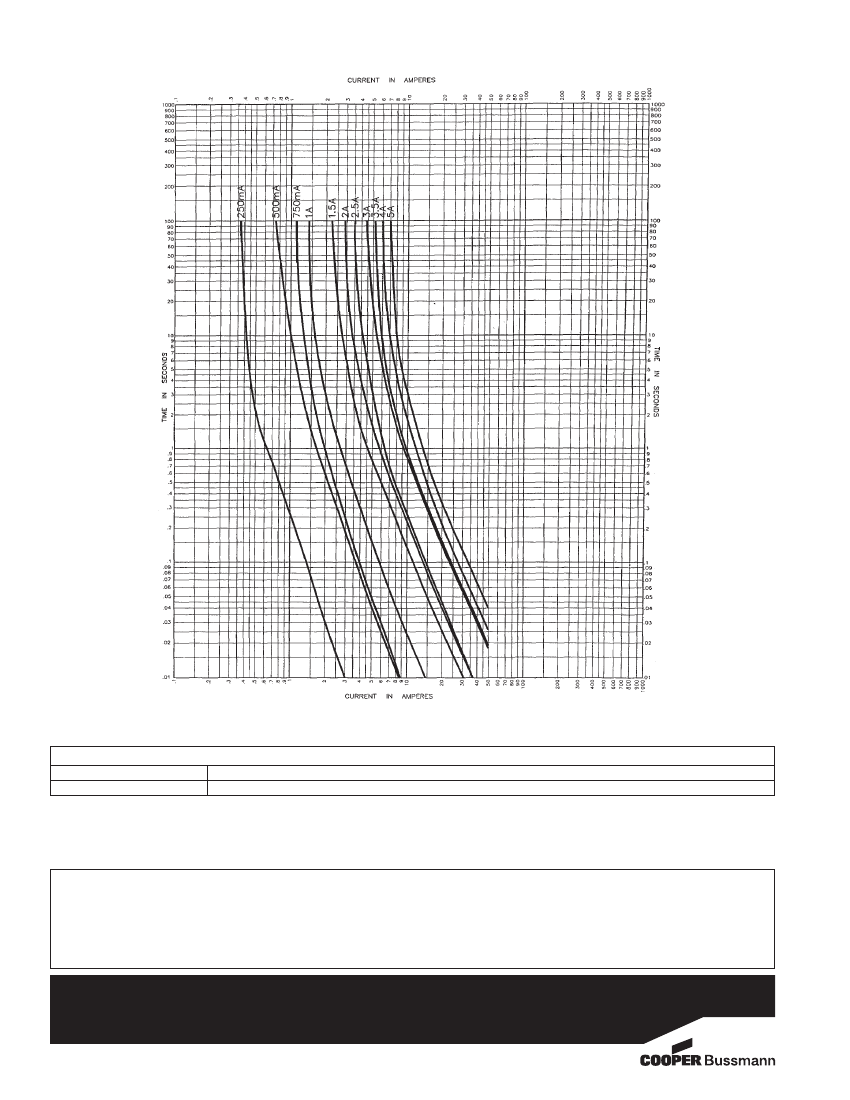

TR2/1025TD4A Related Products

	TR2/1025TD4A	TR2/1025TD750MA	TR2/1025TD500MA	TR2/1025TD2A	TR2/1025TD1-R
Description	surface mount fuses 250vac 125vdc 50a time delay brick	surface mount fuses 250vac 125vdc 50a time delay brick	surface mount fuses 250vac 125vdc 50a time delay brick	surface mount fuses 250vac 125vdc 50a time delay brick	surface mount fuses 250vac 125vdc 1A time delay brick
Manufacture	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm	Cooper Bussm
Product Category	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
RoHS	No RoHS Version Available	No RoHS Version Available	No RoHS Version Available	No RoHS Version Available	Yes
Current Rating	4 A	750 mA	500 mA	2 A	1 A
Voltage Rating AC	125 V	125 V	125 V	125 V	125 V
Fuse Type	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow	Time Delay / Slow Blow
Fuse Size / Grou	4010 (10228 metric)	4010 (10228 metric)	4010 (10228 metric)	4010 (10228 metric)	4010 (10228 metric)
Dimensions	10.29 mm L x 2.77 mm W	10.29 mm L x 2.77 mm W	10.29 mm L x 2.77 mm W	10.29 mm L x 2.77 mm W	10.29 mm L x 2.77 mm W
Case Heigh	2.77 mm	2.77 mm	2.77 mm	2.77 mm	2.77 mm
Case Length	10.29 mm	10.29 mm	10.29 mm	10.29 mm	10.29 mm
Case Width	2.77 mm	2.77 mm	2.77 mm	2.77 mm	2.77 mm
Interrupt Rating	50 Amps	50 Amps	50 Amps	50 Amps	50 Amps
Packaging	Reel	Reel	Reel	Reel	Reel
Produc	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses	Surface Mount Fuses
Resistance	22 mOhms	317 mOhms	550 mOhms	68 mOhms	203 mOhms
Factory Pack Quantity	2500	2500	2500	2500	2500
Type	Brick Fuse Time Delay	Brick Fuse Time Delay	Brick Fuse Time Delay	Brick Fuse Time Delay	Brick Fuse Time Delay
Unit Weigh	453.592 mg	1 g	1 g	453.592 mg	453.592 mg
