DATA SHEET
ZENER DIODES
RD2.0FM to RD120FM
ZENER DIODES
1 W 2 PIN POWER MINI MOLD
DESCRIPTION
Type RD2.0FM to RD120FM series are 2 pin power
mini mold
package
zener
diodes
possessing
an
PACKAGE DIMENSIONS
(Unit: mm)
4.7 ±0.3
4.3 ±0.1
1.1 ±0.1 0.8 ±0.1
allowable power dissipation of 1 W.
QUALITY GRADE
0 to 0.15
Standard.
Please refer to “Quality Grades On NEC Semiconductor
Devices” (Document number C11531E) published by
NEC Corporation to know the specification of quality
1.3 ±0.2
1.55 ±0.1
1.4 ±0.1
FEATURES
•
Sharp breakdown characteristics
•
V
Z
: Applied E24 standard
Cathode
Indication
APPLICATIONS
Circuits for, constant voltage, constant current, waveform clipper, surge absorber, etc.
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Power Dissipation
Forward Current
Junction Temperature
Storage Temperature
P
I
F
T
j
T
stg
1
200
150
−55
to +150
W
mA
°C
°C
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No.
D16083EJ1V0DS00 (1st edition)
Date Published March 2002 NS CP(K)
Printed in Japan
2.5 ±0.1
grade on the devices and its recommended applications.
©
2002
RD2.0FM to RD120FM
ELECTRICAL CHARACTERISTICS (T
A
= 25 ±2°C)
Type Number
Class
Zener Voltage
V
Z
(V)
MIN.
RD2.0FM
RD2.2FM
RD2.4FM
RD2.7FM
RD3.0FM
RD3.3FM
RD3.6FM
RD3.9FM
RD4.3FM
RD4.7FM
RD5.1FM
RD5.6FM
RD6.2FM
RD6.8FM
RD7.5FM
RD8.2FM
RD9.1FM
RD10FM
RD11FM
RD12FM
RD13FM
RD15FM
RD16FM
RD18FM
RD20FM
RD22FM
RD24FM
RD27FM
RD30FM
RD33FM
RD36FM
RD39FM
RD43FM
RD47FM
RD51FM
RD56FM
RD62FM
RD68FM
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
1.9
2.1
2.3
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.3
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
40.0
44.0
48.0
53.0
58.0
64.0
Note1
(1/2)
Dynamic Impedance
Z
Z
(Ω)
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
2
MAX.
140
140
140
140
140
140
140
140
140
100
100
70
40
25
25
25
25
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
220
220
220
230
Note2
Reverse Current
I
R
(
µ
A)
MAX.
200
200
200
150
100
80
60
40
20
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10
11
12
13
15
17
19
21
23
25
27
30
33
36
39
43
47
52
MAX.
2.2
2.4
2.6
2.9
3.2
3.5
3.8
4.1
4.5
4.9
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.6
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
45.0
49.0
54.0
60.0
66.0
72.0
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
2
Note 1.
V
Z
is tested with pulsed (40 ms).
2.
Z
Z
is measured at I
Z
by given a very small A.C. signal.
2
Data Sheet D16083EJ1V0DS
RD2.0FM to RD120FM
ELECTRICAL CHARACTERISTICS (T
A
= 25 ±2°C)
Type Number
Class
Zener Voltage
V
Z
(V)
Note1
MIN.
RD75FM
RD82FM
RD91FM
RD100FM
RD110FM
RD120FM
B
B
B
B
B
B
70.0
77.0
85.0
94.0
104.0
114.0
MAX.
79.0
87.0
96.0
106.0
116.0
126.0
I
Z
(mA)
2
2
2
2
2
2
Dynamic Impedance
Z
Z
(Ω)
Note2
MAX.
250
270
340
430
530
620
I
Z
(mA)
2
2
2
2
2
2
MAX.
5
5
5
5
5
5
I
R
(
µ
A)
V
R
(V)
57
63
69
76
84
91
(2/2)
Reverse Current
Note 1.
V
Z
is tested with pulsed (40 ms).
2.
Z
Z
is measured at I
Z
by given a very small A.C. signal.
Data Sheet D16083EJ1V0DS
3
RD2.0FM to RD120FM
TYPICAL CHARACTERISTICS (T
A
= 25°C)

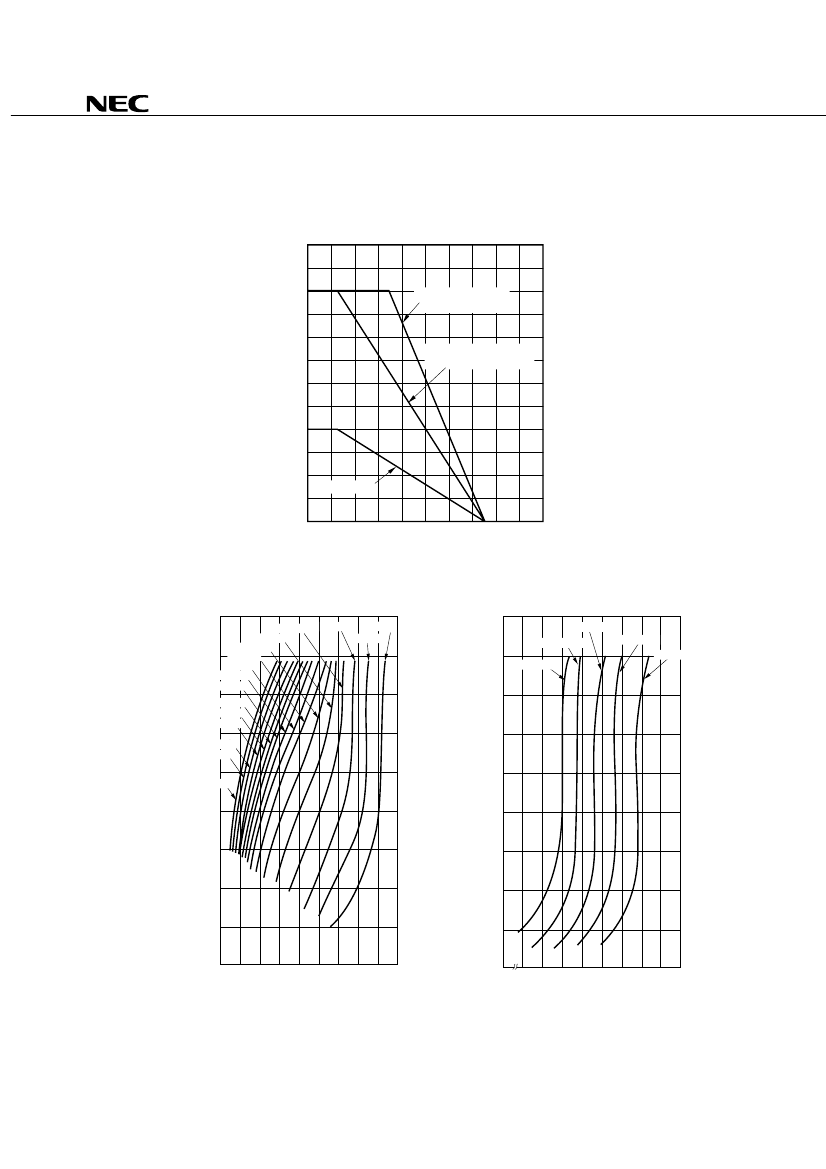

Fig.1 P - T
A
RATING
1.0
P - Power Dissipation - W
30 x 8 x 0.7
P.C.B (Ceramic)
20 x 30 x 1.6
P.C.B (Glass Epoxy)
0.5
Free Air
0
100
T
A
- Ambient Temperature - ˚C
200

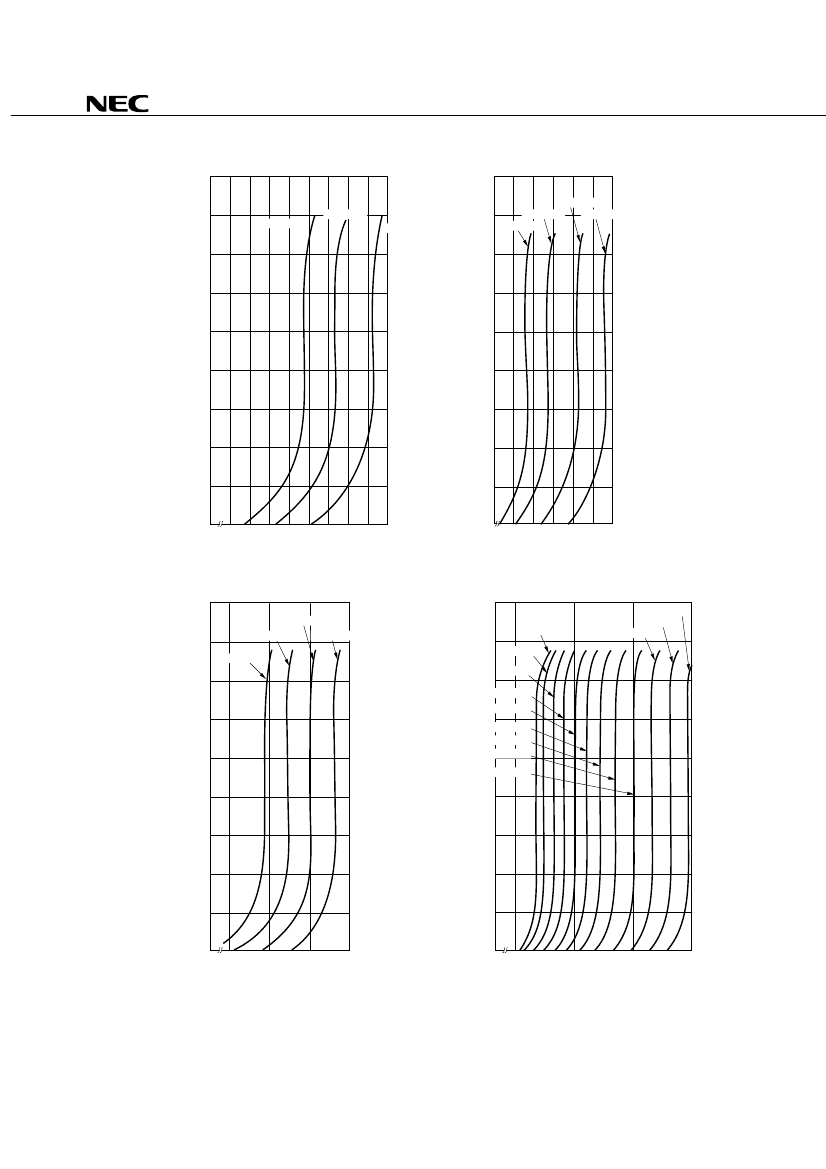

Fig.2 I
Z
- V
Z
CHARACTERISTICS (a to f)
RD6.2FM
RD5.6FM
RD5.1FM
100 m RD4.7FM
RD4.3FM
RD3.9FM
RD3.6FM
10 m
RD3.3FM
RD3.0FM
RD2.7FM
1m
RD2.4FM
RD2.2FM
100
µ
RD2.0FM
10
µ
1
µ
RD6.8FM RD8.2FM
RD7.5FM
100 m
RD11FM
RD12FM
RD10FM
RD13FM
RD9.1FM
10 m
1m
I
Z
- Zener Current - A
I
Z
- Zener Current - A
100
µ
10
µ
1
µ
100 n
100 n
10 n
1n
10 n
1n
0
1
2
3
4
5
6
7
8
9
0
7
8
9 10 11 12 13 14 15
V
Z
- Zener Voltage - V
(a)
V
Z
- Zener Voltage - V
(b)
4
Data Sheet D16083EJ1V0DS
