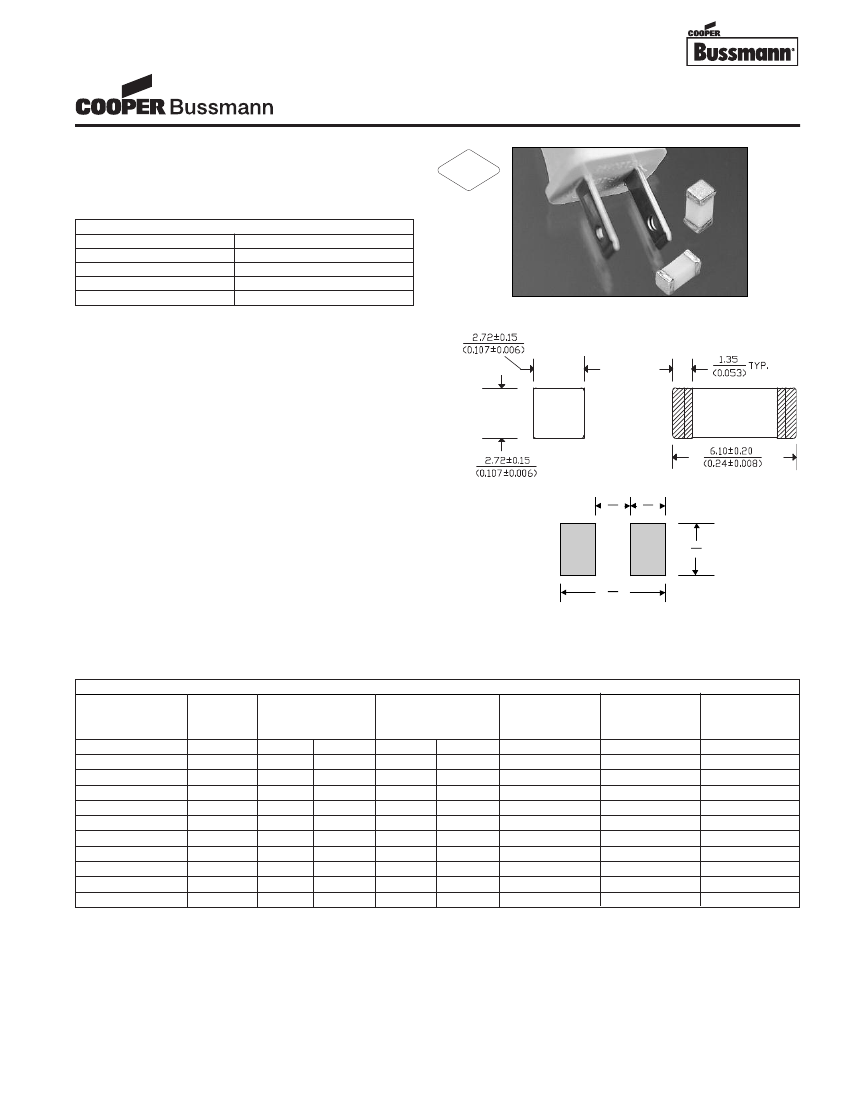

Brick

™

Fuses

6125TD Series, Time Delay

Description

• Time Delay surface mount fuse

• Complies with EIA-IS-722 Standard

• Solder Immersion Compatible

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

4 Hours Minimum

100%

1 Second Minimum

200%

2-4 Seconds Typical

200%

60 Seconds Maximum

RoHS

2002/95/EC

Agency Information

• UL Recognition Guide & File numbers:

JDYX2 & E19180.

• CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30.

Environmental Data

• Life Test: MIL-STD-202, Method 108A, Test Condition D

• Load Humidity: MIL-STD-202, Method 103B

• Moisture Resistance: MIL-STD-202, Method 106E

• Thermal Shock: MIL-STD-202, Method 107D, air-to-air

• Case Resistance: EIA/IS-722

• Resistance to Dissolution of Metallization:

ANSI J-STD-002, Test D

• Mechanical Shock: MIL-STD-202, Method 213B, Test

Condition A

• High Frequency Vibration: MIL-STD-202, Method 204D,

Test Condition D

• Resistance to Solvents: MIL-STD-202, Method 215A

Ordering

• Specify packaging and product code

(i.e., TR1/6125TD500-R)

Dimensions

mm

⁄

(inches)

Land Pattern

2.6

(0.102)

3.0

(0.118)

4.0

(0.157)

8.6

(0.338)

Soldering Method

• Wave Immersion: 260°C, 10 sec max.

• Infrared: 260°C, 30 sec max.

Resistance

(ohms)**

Typ.

0.4025

0.2350

0.1680

0.0630

0.0480

0.0350

0.0263

0.0195

0.0185

0.0133

0.0087

Typical

Melting

I

2

t†

0.716

1.07

2.88

2.35

9.45

16.2

15.3

14.5

38.8

34.4

90.2

Typical

Voltage

Drop‡

245 mV

250 mV

256 mV

125 mV

133 mV

130 mV

97 mV

95 mV

106 mV

100 mV

99 mV

SPECIFICATIONS

Product

Code

6125TD500-R

6125TD750-R

6125TD1-R

6125TD1.5-R

6125TD2-R

6125TD2.5-R

6125TD3-R

6125TD3.5-R

6125TD4-R

6125TD5-R

6125TD7-R

Current

Rating

500mA

750mA

1A

1.5A

2A

2.5A

3A

3.5A

4A

5A

7A

Voltage

Rating

AC

DC

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

125V

60V

Interrupting

Rating*

125VAC 60VDC

50A

* AC Interrupting Rating (Measured at designated voltage, 100% power factor); DC Interrupting Rating (Measured at designated voltage, time constant of less than

50 microseconds, battery source)

** DC Cold Resistance (Measured at 10% of rated current)

† Typical Melting I

2

t (Measured with a battery bank at rated DC voltage, 10x-rated current (not to exceed IR), time constant of calibrated circuit less than 50 microseconds)

‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)

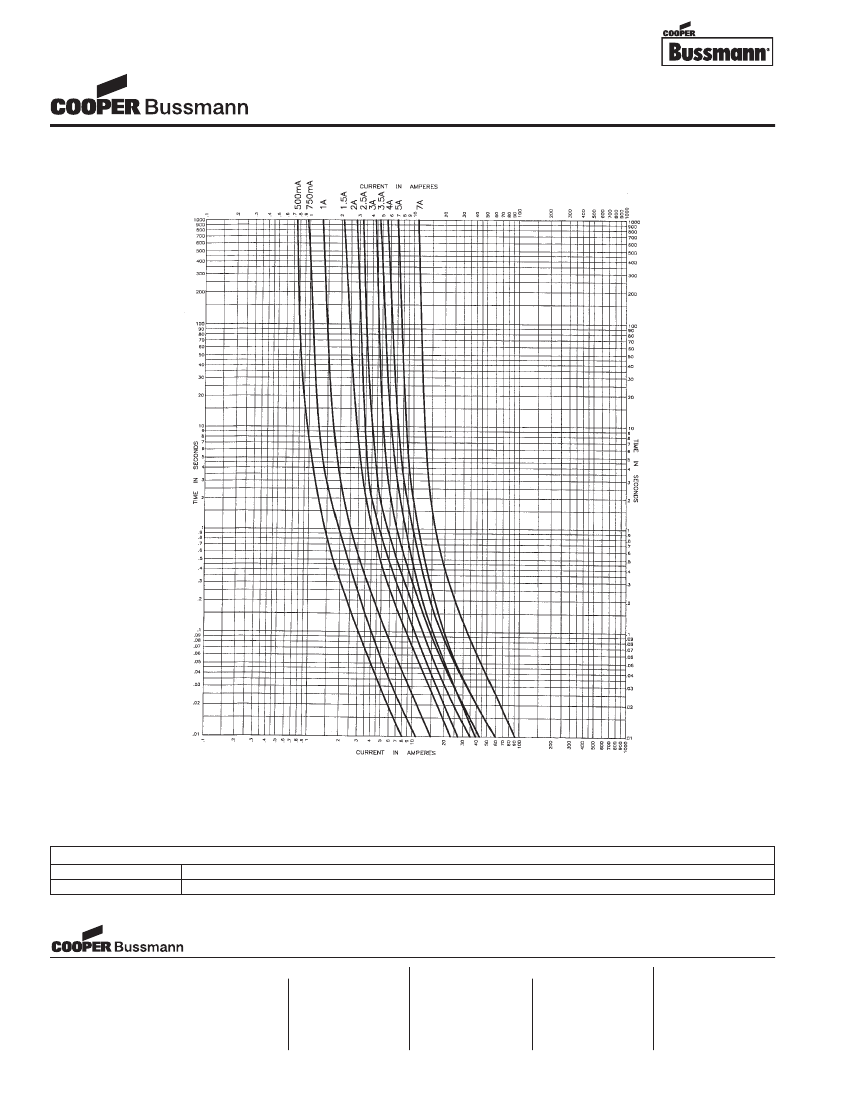

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at

elevated ambient temperatures.
