J23CF-03V-KS3: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size546KB，15 Pages; ManufacturerJST

Download Datasheet Parametric View All

J23CF-03V-KS3 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle,

J23CF-03V-KS3 Parametric

Parameter Name	Attribute value
Objectid	309269840
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.25
body width	0.232 inch
subject depth	0.608 inch
body length	0.232 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	JFA
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	4.6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	3
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

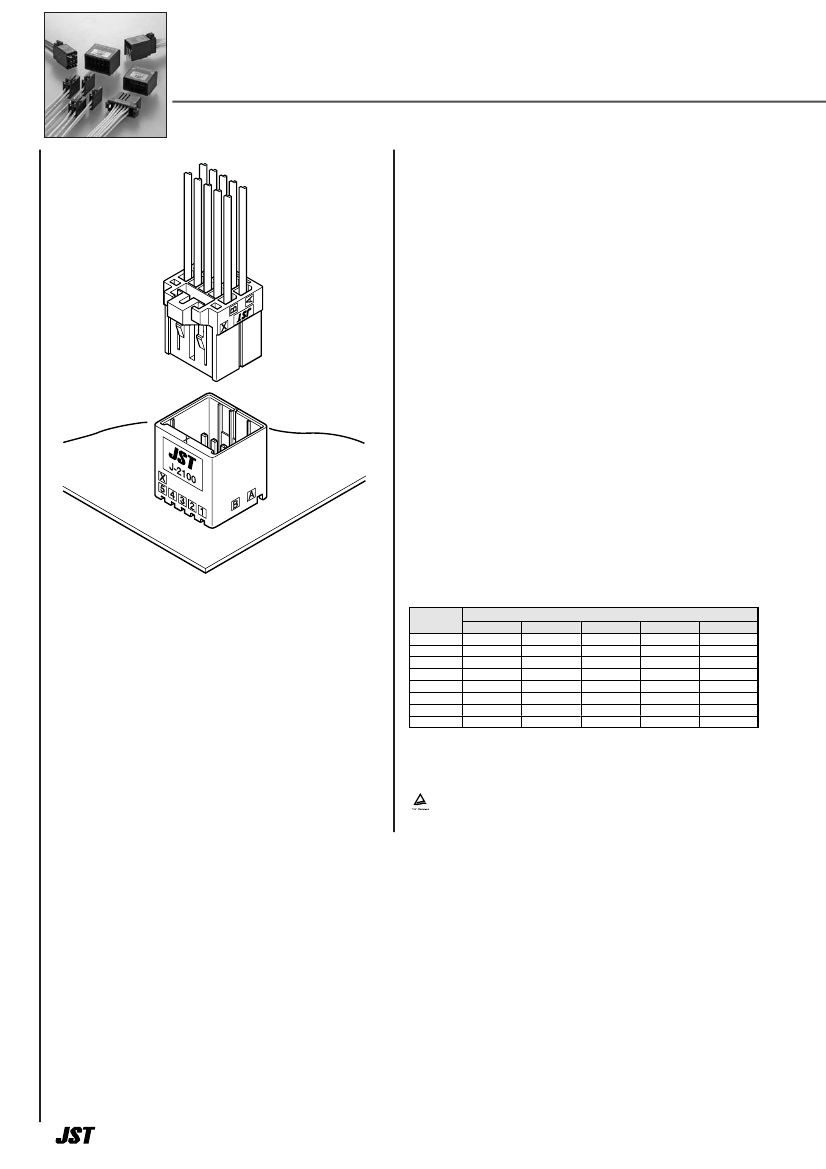

2.5mm pitch/Disconnectable Crimp style connectors(Wire-to-board/Wire-to-wire)

JFA

CONNECTOR J2000

SERIES

Specifications –––––––––––––––––––

• Current rating: 4.6 A max. AC, DC (3 circuits/AWG #20)

• Voltage rating: 250 VAC, DC

• Temperature range: -55°C to +105°C

(including temperature rise in applying

electrical current)

• Withstanding voltage: 1,500 VAC/minute

• Applicable wire: AWG #28 to #20 (0.08 to 0.75 mm

)

• Applicable PC board thickness: 1.6 mm

*In

using the products, refer to "Handling Precaution for Terminal

and Connector" described on our website (Technical documents

of Product information page).

*Contact

JST for details.

*RoHS2

compliance.

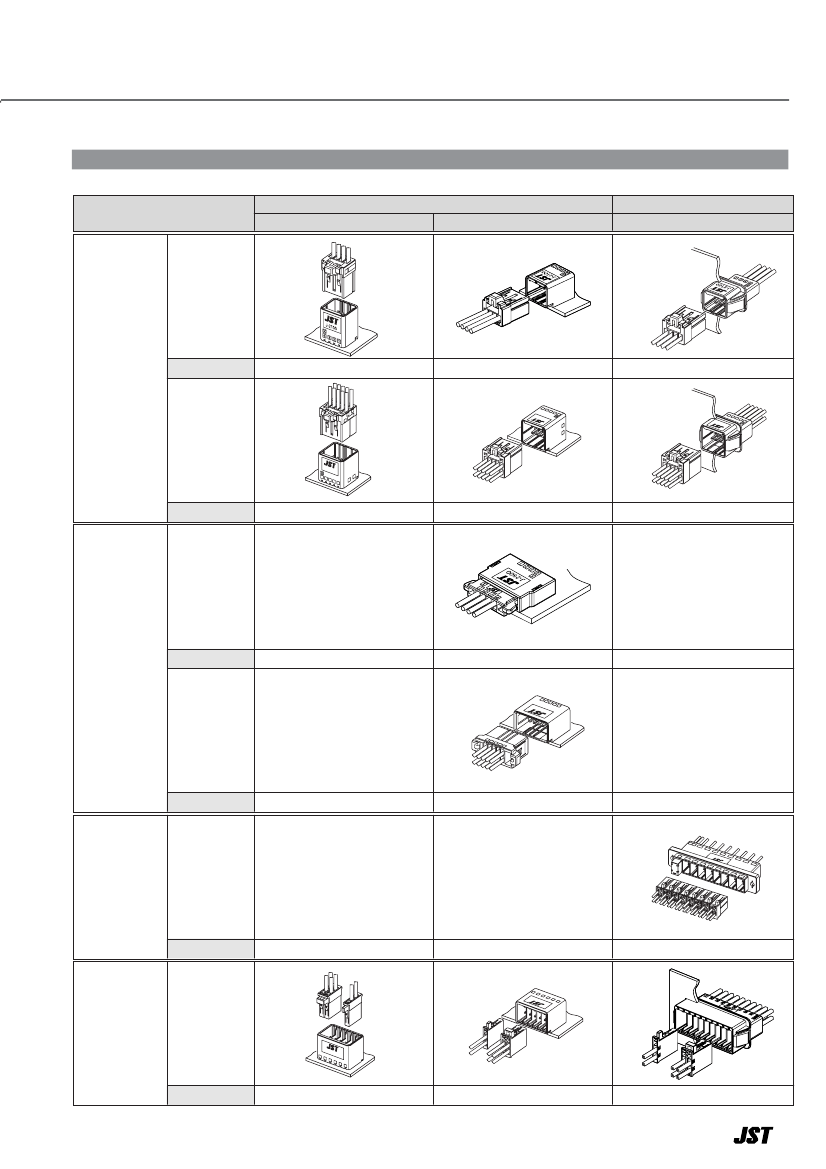

2.5 mm pitch connector for miniaturization

of electronic equipment.

Center locking or side locking options can

be used depending on the required

application.

Receptacle contacts are designed to be

common with all JFA connector J2000

series.

• Double-spring construction

• 2 kinds of locking method

• Housing lance

• Clear "click feeling"

Current rating

Circuits

#20

4.6

4.5

4.3

4.1

3.9

3.6

3.2

2.9

#22

4.4

4.3

4.1

3.6

3.4

3.1

2.8

2.5

Wire size (AWG)

#24

3.4

3.2

2.8

2.6

2.5

2.4

2.2

2.1

#26

3.0

2.8

2.6

2.3

2.2

2.0

1.8

1.7

Unit: A

#28

2.4

2.3

2.1

1.9

1.8

1.6

1.4

1.3

Standards ––––––––––––––––––––––

Recognized E60389
