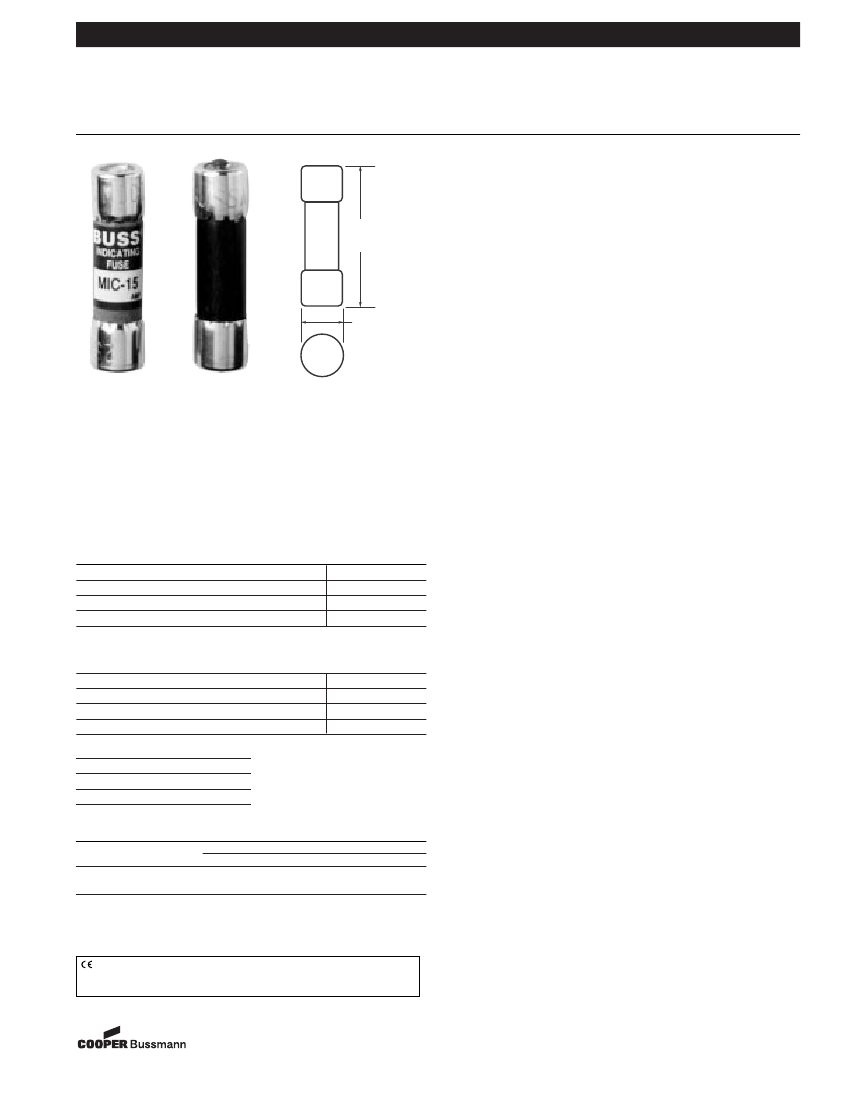

Bussmann
®
Indicating, Fast-Acting Fuse
For 13/32” x 1-1/2” (10.3mm x 38.1mm)
Dimensional Data
MIC/MIN
1.5" (±0.031)
(38.1mm)
• Use in power electronic circuits in which fuse opening must
be quickly apparent.
• Opening of fuse results in ejection of end pin.
• Type
MIN
has a red pin for high visibility.
• Type
MIC
has a silver-plated pin for positive, electrical
signal activation.
• Use Buss fuseblock BM series for visual indication.
• Use Buss HPF-C panel-mounted fuseholders for visual
indication and signal-block 3839 for signal activation.
.41" (±0.003)
(10.3mm)
Catalog Symbol:
MIC/MIN (5AG)
INDICATING, FAST-ACTING
UL LISTED, STD. 248-14
MIC 0-15A (GUIDE #JDYX, FILE #E19180)
CSA CERTIFIED, C22.2 NO. 248.14
MIN 1-5A (CLASS #1422-01, FILE #53787)
Body Material:
FIBER TUBE
Ferrule Material:
BRONZE
Ferrule Plating:
NICKEL
Electrical Ratings (Catalog Symbol and Amperes)
250Vac; UL Listed
MIC-1 (IR = 35A)
MIC-2 (IR = 100A)
MIC-3 (IR = 100A)
MIC-5 (IR = 200A)
MIC-10 (IR = 200A)
MIC-15 (IR = 750A)
32 Volts AC
MIC-20 (IR = 10kA)
MIC-25 (IR = 10kA)
MIC-30 (IR = 10kA)
MIC - (1-15) UL Listed 125Vac / IR = 10kA
Electrical Ratings (Catalog Symbol and Amperes)
250Vac
MIN-1 (IR = 35A)
MIN-2 (IR = 100A)
MIN-3 (IR = 100A)
MIN-5 (IR = 200A)
MIN-10 (IR = 200A)
MIN-15 (IR = 750A)
32Vac
MIN-20 (IR = 10kA)
MIN-25 (IR = 10kA)
MIN-30 (IR = 10kA)
Test Specifications
Load
110%
135%
Opening Time
Indefinitely
1 hr. (max.)
Carton Quantity and Weight
Ampere
Ratings
MIC 0-15A
MIN 1-5A
Carton
Qty
100
Weight*
Lbs.
1.5
Kg.
650
*Weight per carton.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
8-01-02
J02128
Form No. MIC/MIN
Page 1 of 2
Data Sheet: 2047
Bussmann
®
Indicating, Fast-Acting Fuse
For 13/32” x 1-1/2” (10.3mm x 38.1mm)

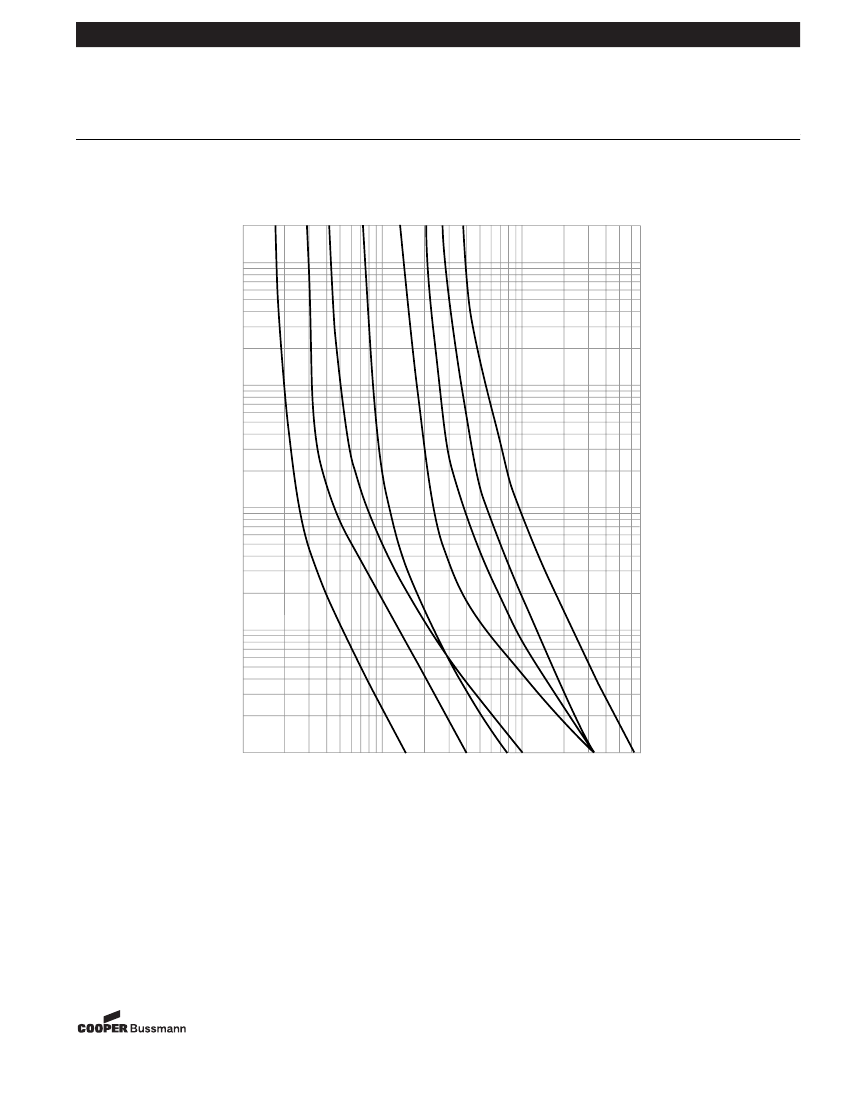

Time-Current Characteristic Curves–Average Melt
(Full Size Curves Available)
MIC/MIN
AMPERE
RATING
10A
15A
20A
200
100
10
TIME IN SECONDS
1
.1
1
10
100
CURRENT IN AMPERES
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clear-
ly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any prod-
ucts and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected,
it should be tested by the user in all possible applications.
700
.01
30A
1A
2A
3A
5A
8-01-02
J02128
Form No. MIC/MIN
Page 2 of 2
Data Sheet: 2047
