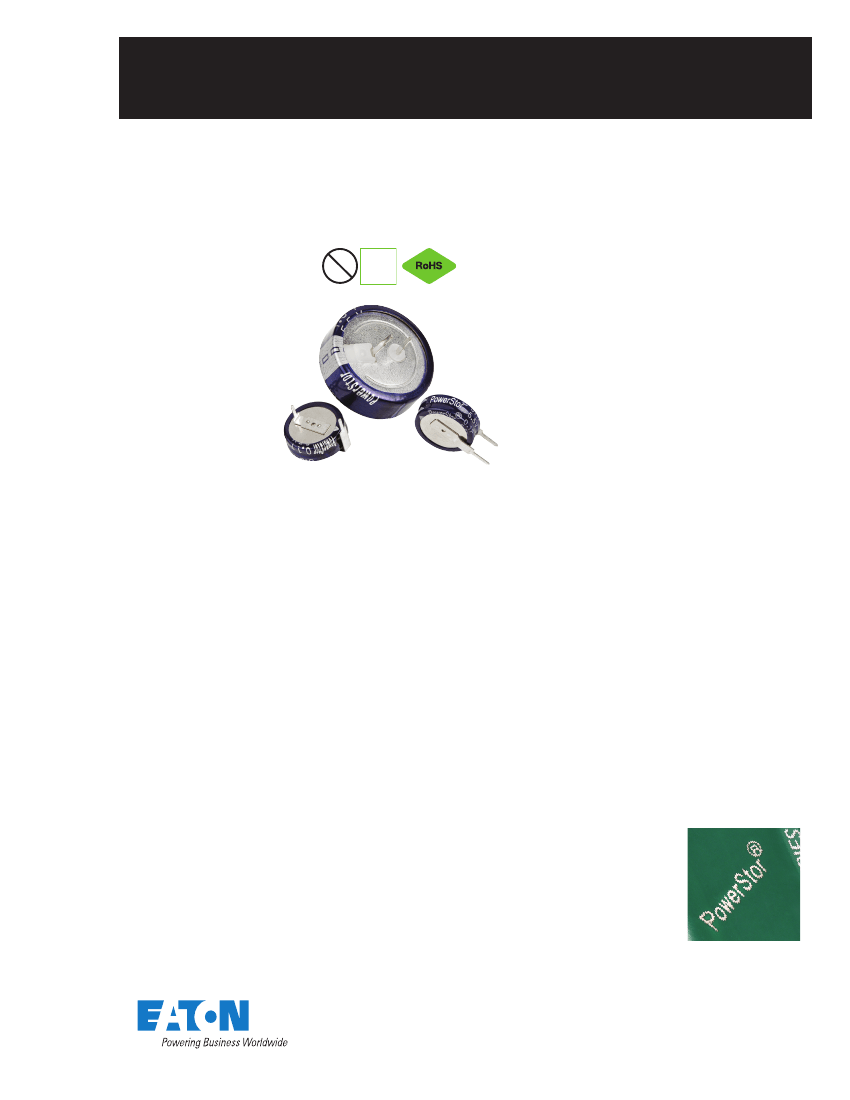

Technical Data 4327
Effective August 2014
Supersedes May 2008
PowerStor KR Series
Coin cell supercapacitors
Pb
HF
FREE
HALOGEN
Features and benefits
•
•
•
•
High specific capacitance
Low leakage current
Long cycle life
Eco-friendly
Applications
•
•
•
•
•
•
•
Computers and peripherals
Network switches and routers
Utility meters
HVAC Controls
White good and kitchen appliances
Real-time clock backup
Office equipment
Description
Eaton PowerStor supercapacitors are
unique, ultra-high capacitance devices
utilizing electrochemical double layer
capacitor (EDLC) construction combined
with new, high performance materials.
This combination of advanced technologies
allows Eaton to offer a wide variety of
capacitor solutions tailored to specific
applications that range from a few micro-
amps for several days to several milliamps
for milliseconds.
The PowerStor brand of
supercapacitors (formerly
of the Bussmann Division
of Cooper Industries)
is now part of
Eaton’s Electrical Group,
Electronics Division.
PowerStor is now
part of Eaton
Same great
products plus
even more.
KR Series
Coin cell supercapacitors
Specifications
Capacitance
Working voltage
Surge voltage
Capacitance tolerance
Operating temperature range
0.1F to 1.5F
5.5V
6.3V
-20% to +80% (20°C)
-25°C to 70°C
Technical Data 4327
Effective August 2014
Standard Product
1
Capacitance (F)
0.1
Part number
KR-5R5V104-R
KR-5R5H104-R
KR-5R5C104-R
KR-5R5V224-R
0.22
KR-5R5H224-R
KR-5R5C224-R
KR-5R5V334-R
0.33
KR-5R5H334-R
KR-5R5C334-R
KR-5R5V474-R
0.47
KR-5R5H474-R
KR-5R5C474-R
KR-5R5V105-R
1.0
KR-5R5H105-R
KR-5R5C105-R
KR-5R5V155-R
1.5
KR-5R5H155-R
KR-5R5C155-R
30
50
75
Maximun initial ESR (Ω)
(Equivalent Series Resistance) measured @ 1kHz
Typical mass (grams/piece)
1.4
3.3
1.4
3.3
1.4
3.3
1.4
3.3
4.2
9.1
4.2
9.1
Performance
Parameter
Life
70°C @ 5.5Vdc
Storage Life
-25°C to +70°C
1000 hours
≤
30%
≤
400%
1000 hours
≤
30%
≤
400%
Capacitance change
(% of initial value)
ESR
(% of max. initial value)
2
www.eaton.com/elx

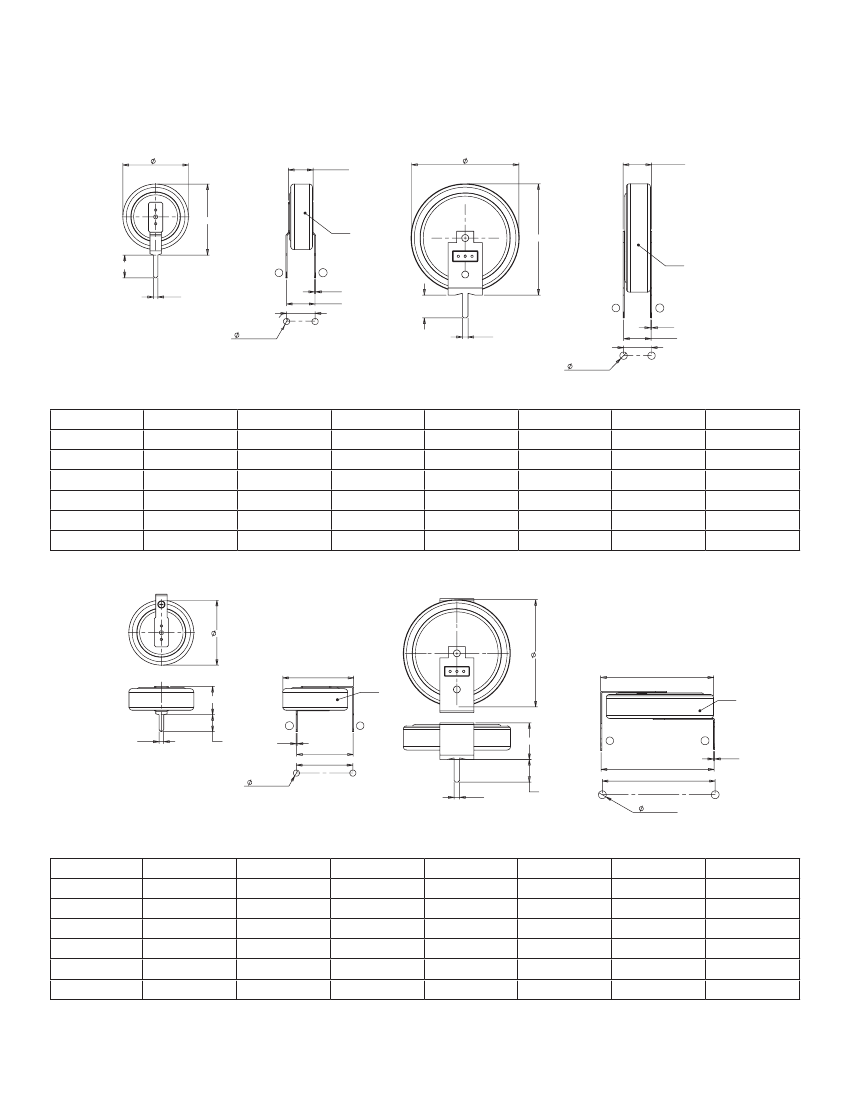

Technical Data 4327
Effective August 2014
KR Series
Coin cell supercapacitors
Part Numbering System
KR
-
5
R
5
o
Configuration
V - Vertical
H = Horizontal
C = Cylindrical
o
Value
o
Capacitance (µF)
Voltage (V) R = Decimal
Multiplier
-R
Series Code
5R5 = 5.5V
Example: 474 = 47 x 10
4
µF or 0.47F
RoHS Compliant
Packaging information
•
•
•
Part marking
•
•
•
•
Standard packaging: 500 pieces per package
For 0.1F to 0.47F, 500 pieces per bag
For 1.0F to 1.5F, 100 pieces per tray, 5 trays per box
Manufacturer
Capacitance (F)
Max operating voltage (V)
Polarity
North America
Eaton’s Electrical Group
Electronics Division
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Eaton’s Electrical Group
Electronics Division
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Eaton’s Electrical Group
Electronics Division
Burton-on-the-Wolds
Leicestershire, LE 12 5th UK
Phone: +44 (0) 1509 882 600
Fax: +44 (0) 1509 882 786
Eaton’s Electrical Group
Electronics Division
Avda Santa Eulalia, 290
Terrassa, Barcelona 08223 Spain
Phone: +34-93-736-2813
Fax: +34-93-783-5055
Asia Pacific
Eaton’s Electrical Group
Electronics Division
No.2, #06-01
Serangoon North Avenue 5
Singapore 554911
Tel: +65 6645 9888
Fax: +65 6728 3155
