KTK-R-30BC Overview

industrial & electrical fuses class CC FA fuse

KTK-R-30BC Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Industrial & Electrical Fuses
RoHS	N
Body Style	Cartridge Fuses
Current Rating	30 A
Voltage Rating AC	600 V
Mounting Style	Holde
Termination Style	Cli
Fuse Type	Fast Blow
Fuse Size / Grou	Limi
Indicator Style	Without Indic
Packaging	Bulk
Produc	Industrial Power Fuses
Factory Pack Quantity	3
Unit Weigh	8.165 g

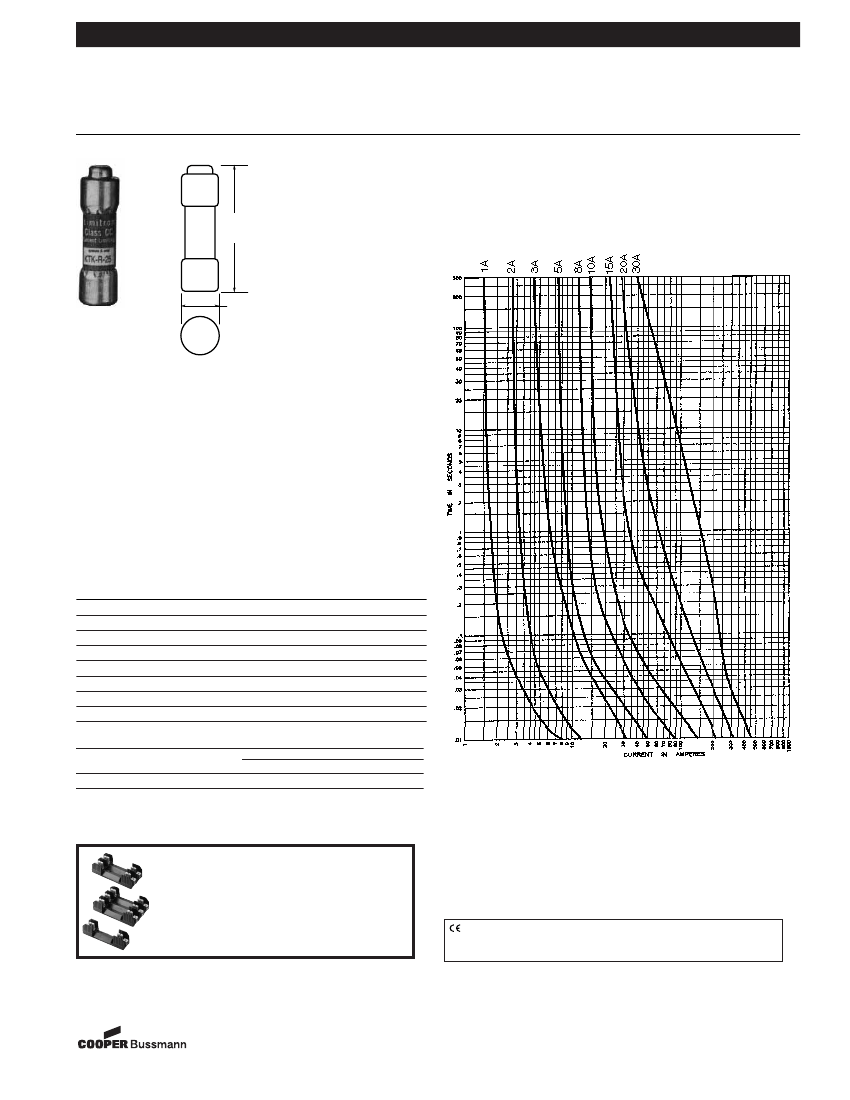

Preview

Download Datasheet

View All

Bussmann

LIMITRON

Fast-Acting Fuses

13/32” x 1-1/2”, Class CC - 600 Volt, 1/10 - 30 Amps

Dimensional Data

•

KTK-R

1.5

(±0.031)

(38.1mm)

LIMITRON

fast-acting fuse.

Melamine tube. Nickel-plated brass endcaps.

U.L. Listed for branch circuit protection.

Rejection type; for both standard holders or those which

reject other type fuses.

Time-Current Characteristic Curves–Average Melt

.41

(±0.005)

(10.3mm)

Catalog Symbol:

KTK-R

Fast-Acting Branch Circuit Fuse:

1/10 TO 30A

Voltage Rating:

600Vac (or less): 0-30A

Interrupting Rating:

ac: 200,000A RMS Sym.

UL LIisted, STD. 248-4, Class CC,

(Guide #JDDZ, File #E4273)

CSA Certified, C22.2 NO. 248.4, (File #53787—Class

#1422-02)

Electrical Ratings (Catalog Symbol and Amperes)

600Vac - UL Listed & C.S.A.

KTK-R-1/10

KTK-R-1/8

KTK-R-2/10

KTK-R-1/4

KTK-R-3/10

KTK-R-4/10

KTK-R-1/2

KTK-R-6/10

KTK-R-3/4

KTK-R-1

KTK-R-1-1/2

KTK-R-2

KTK-R-2-1/2

KTK-R-3

KTK-R-3-1/2

KTK-R-4

KTK-R-5

KTK-R-6

KTK-R-7

KTK-R-8

KTK-R-9

KTK-R-10

KTK-R-12

KTK-R-15

KTK-R-20

KTK-R-25

KTK-R-30

–

Carton Quantity and Weight

Ampere

Ratings

1/10–30

*Weight per carton.

Carton

Qty.

Weight*

Lbs.

.180

Kg.

.082

Recommended fuseblocks/fuseholders for

Class CC 600V fuses

See Data Sheets listed below

• Open fuseblocks - 1105

• Finger-safe fuseholders - 1109, 1102, 1103, 1151

• Panel-mount fuseholders - 2114, 2113

• In-line fuseholders - 2126

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly

present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products

and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it

should be tested by the user in all possible applications.

3-19-03

SB03078

Form No. KTK-R

Page 1 of 1

Data Sheet: 1015
