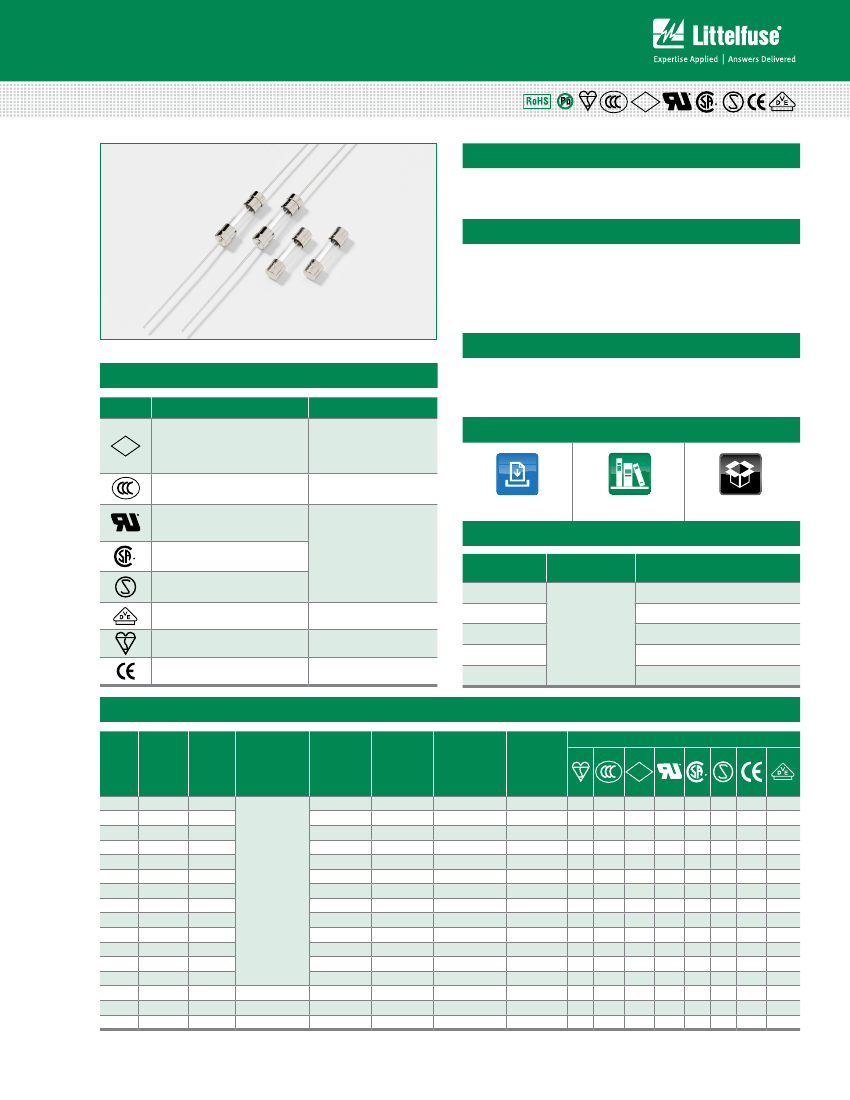

Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series
213 Series, 5×20 mm, Time-Lag (Slo-Blo
®
) Fuse
Description
PS
E
5×20mm time-Lag surge withstand glass body cartridge
fuse designed to IEC specification.
Features
• Designed to International
(IEC ) Standards for use
globally
• Available in cartridge and
axial lead form
Applications
Agency Approvals
Agency
Agency File Number
Ampere Range
• Meets the IEC 60127-2,
Sheet 3 specification for
time-Lag fuses
• RoHS compliant and
lead-free.
Used as supplementary protection in appliance or
utilization equipment to provide individual protection for
components or internal circuits.
Additional Information
PS
E
Cartridge Certificates:
NBK120802-E10480 A&C
Leaded Certificates:
NBK120802-E10480 B&D
Certificates:
2003010207045592
Recognised File: E10480
Guide: JDYX2
File: 029862
Acc. Class: LR1422-30
File: 1402840
License: 40015638
License: KM41462
1A – 5A
6.3A
200mA – 6.3A
Datasheet
Resources
Samples
Electrical Characteristic for Series
200mA – 6.3A
% of Ampere
Rating
150%
200mA – 4A, 6.3A
200mA – 6.3A
200mA – 6.3A
210%
275%
400%
1000%
All Ratings
Ampere Rating
Opening Time
60 minutes, Minimum
2 minutes, Maximum
0.6 sec., Min.; 10 sec. Max.
.15 sec., Min.; 3 sec. Max.
0.02 sec., Min.; 0.3 sec. Max.
Electrical Characteristic Specifications by Item
Voltage
Ampere
Rating
Rating
(V)
0.2
0.25
0.315
0.4
0.5
0.63
0.8
1
1.25
1.6
2
2.5
3.15
4
5
6.3
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Maximum Maximum
Nominal
Power
Nominal Voltage Drop
Cold
at Rated
Dissipation
Melting
Resistance
2
Current
at 1.5ln
I t (A
2
sec)
(Ohms)
(mV)
(W)
1.6000
0.22500
1500
1.6
1.0495
0.55500
1300
1.6
0.8475
1.14000
1100
1.6
0.5350
1.36000
1000
1.6
0.3700
2.90500
900
1.6
0.2750
4.80000
300
1.6
0.1635
9.42000
250
1.6
0.1165
19.20000
150
1.6
0.0817
27
.15000
150
1.6
0.0551
44.20000
150
1.6
0.0452
92.70500
150
1.6
0.0305
138.00000
120
1.6
0.0231
202.00000
100
1.6
0.0170
226.50500
100
1.6
0.0116
314.00000
100
1.6
0.0095
600.00000
100
1.6
Agency Approvals
PS
E
Amp
Code
.200
.250
.315
.400
.500
.630
.800
001.
1.25
01.6
002.
02.5
3.15
004.
005.
06.3
Interrupting
Rating
35A@250Vac
40A@250Vac
50A@250Vac
63A@250Vac
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 03/14/14
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series

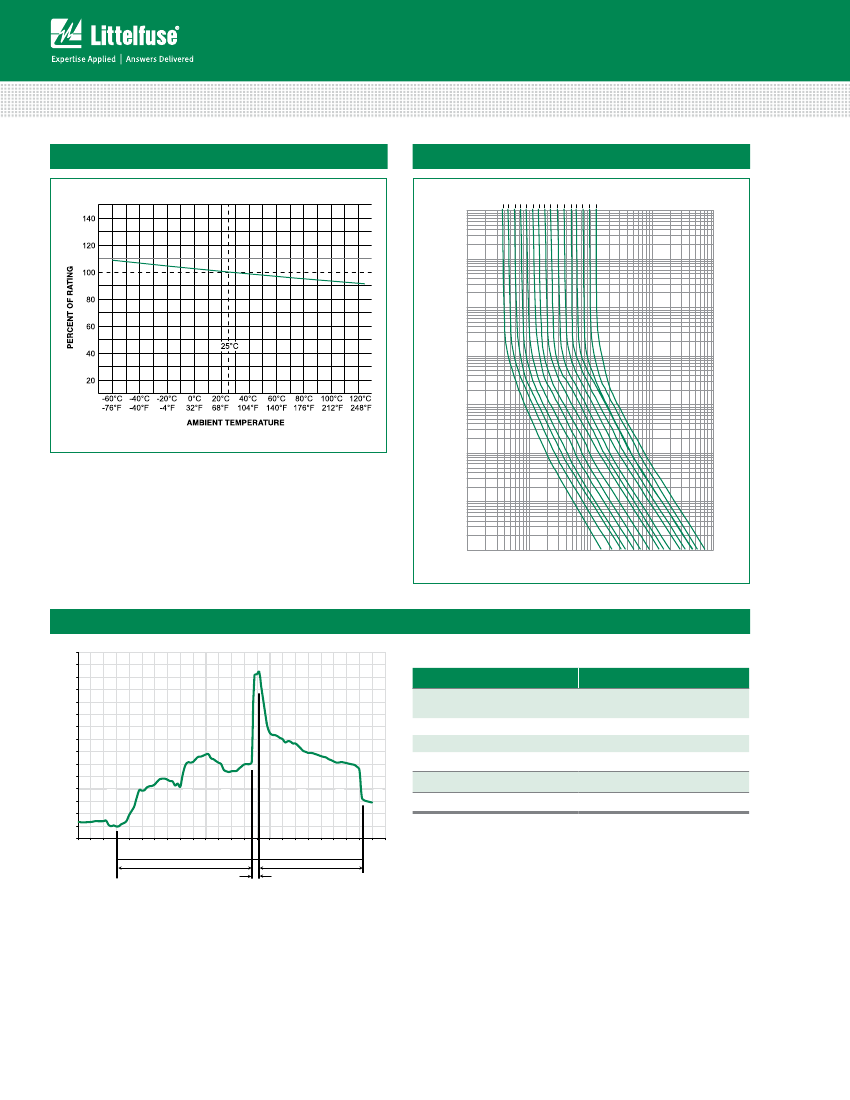

Temperature Rerating Curve
Average Time Current Curves
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 03/14/14
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 213 Series
Product Characteristics
Material
Body: Glass
Cap: Nickel–plated brass
Leads: Tin–plated Copper
MIL
-STD-202G, Method 211A, Test
Condition A
Reference IEC 60127
, Second Edition
2003-01, Annex A
Cap1: Brand logo, current and voltage
Cap2: Agency approval marks Series
Packaging
Available in Bulk (M=1000 pcs/pkg) or
on Tape/Reel (MRET1=1000 pcs/reel)
Salt Spray
Operating Temperature
Thermal Shock
Vibration
Humidity
–55ºC to +125ºC
MIL
-STD-202G, Method 107G, Test
Condition B: (5 cycles –65
°
C to
+125
°
C)
MIL
-STD-202G, Method 201A
MIL
-STD-202G, Method 103B, Test
Condition A. High RH (95%) and
elevated temperature (40
°
C) for 240
hours.
MIL
-STD-202G, Method 101D, Test
Condition B
Terminal Strength
Solderability
Product Marking
Dimensions
20+0.5
Part Numbering System
5.2+0.1
-0.2
5.1+0.6
5.1+0.6
0213
000P
0213 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
0213
000
XEP
40
22.5 MAX
5.8 MAX
Quantity Code
M = 1000
0.65
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
Packaging Code
X = Filler
Option Codes
Blank : Cartidge Type Fuse
E
: Axial Leaded Fuse
Lead-free
Packaging
Packaging Option
213 Series
Bulk
Bulk
Reel and Tape
Bulk
Bulk
Bulk
Packaging Specification
N/A
N/A
N/A
N/A
N/A
N/A
Quantity
1000
1000
1000
1000
1000
100
Quantity &
Packaging Code
MX
MXE
MRET1
MXG
MXB
HX
Taping Width
N/A
N/A
T1=53mm (2.087”)
N/A
N/A
N/A
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 03/14/14
