TPS-60L

Description
specialty fuses 60a
CategoryCircuit protection
File Size37KB,2 Pages
ManufacturerBussmann (Eaton)
Environmental Compliance
Download Datasheet Parametric View All

TPS-60L Online Shopping

Suppliers Part Number Price MOQ In stock
TPS-60L - - View Buy Now

TPS-60L Overview

specialty fuses 60a

TPS-60L Parametric

Parameter NameAttribute value
ManufactureCooper Bussm
Product CategorySpecialty Fuses
RoHSYes
Body StyleCartridge Blade Fuses
Current Rating60 A
Voltage Rating DC170 V
Mounting StyleThrough Hole
Termination StyleRadial Blade Bend
Fuse TypeFast Blow
Fuse Size / GrouTelepowe
Indicator StyleWithout Indic
Dimensions22.2 mm L x 14.3 mm D
Case Diamete14.3 mm
Case Length22.2 mm
Interrupt Rating10 kA
PackagingBulk
ProducSpecialty Fuses
Factory Pack Quantity10
TypeFused Disconnect Fuse
Unit Weigh11.340 g

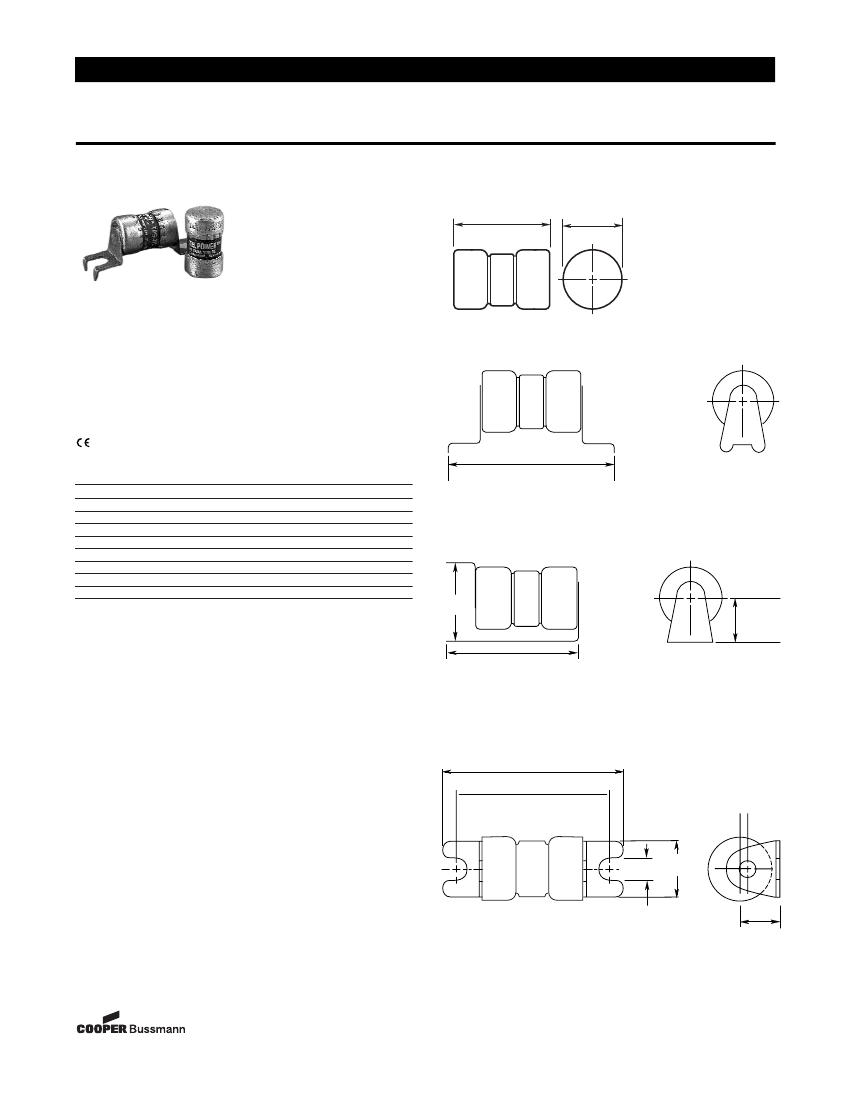

Bussmann
®
Telpower Fuses
®
1 to 70 Amps, 170 Volts DC
Dimensional Data
TPS-(AMP)
.88• (± .015)
(22.2mm) (± .38)
.56• (± .002)
(14.3mm) (± .05)
TPS
Catalog Symbol:
TPS
DC Power Distribution Fuses
Ampere Rating:
1 to 70A
Voltage Rating:
170Vdc
Interrupting Rating:
100,000A
Agency Information:
UL Recognized, File E56412, Guide JFHR2
TPS-(AMP)L
Catalog Numbers
TPS-1
TPS-1L
TPS-1LB
TPS-2
TPS-2L
TPS-3
TPS-3L
TPS-5
TPS-5L
TPS-6
TPS-6L
TPS-10
TPS-10L
TPS-15
TPS-15L
TPS-20
TPS-20L
TPS-25
TPS-25L
TPS-25V
TPS-30
TPS-30L
TPS-35
TPS-35L
TPS-40
TPS-40L
TPS-40V
TPS-50
TPS-50L
TPS-50V
TPS-60
TPS-60L
TPS-70
TPS-70L
TPS-70LB
1.76• ±.02
(44.65mm ± .51)
TPS-(AMP)V
0.74•
(18.69mm)
General Information:
• TELPOWER
®
fuses bring modern power fuse design to the
telecommunications industry.
• TELPOWER
®
fuse line is the first to be specifically designed
to meet the unique needs of DC Power Distribution
Systems.
• The U.L. Recognized ratings of 170Vdc and 100,000A
interrupting rating along with the fuse’s current-
limiting capability make this fuse ideal for overcurrent
protection on existing DC Distribution Systems.
• A unique BLUE label is used on all TELPOWER
®
fuses to
designate their DC capability.
• Circuit board applications available.
• Silver-plated brass ferrules.
• Glass melamine tube.
• For use with Bussmann Fused Disconnect Switch
15800.
• Spare Fuseholder: TPSFH-AS
Custom Designs
• Printed circuit board variations available.
.348•
(8.84mm)
1.261• ± .005
(32.03mm ± .13)
TPS-(AMP)LB
1.59• ± .02
(40.26mm ± .51)
1.35• ± .015
(34.16mm ± .38)
.500•
(12.70mm)
.190• ± .005*
(4.8mm ± .12)
*Recommend #8 Slotted Hex Washer
Head Machine Screw for mounting
.348•
(8.84mm)
4-23-03
SB03090
Form No. TPS
Page 1 of 2

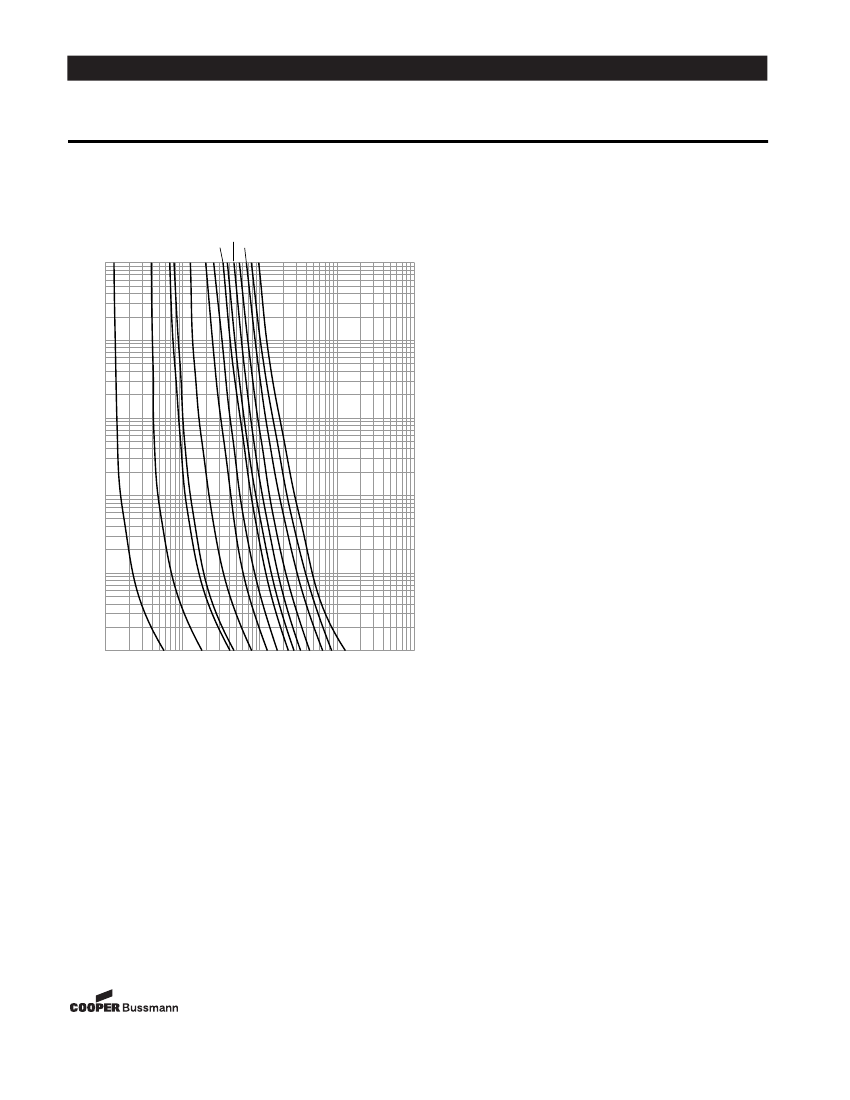

Data Sheet: 5009
