17.12
5.34
CABLE SUPPORT
19.00
18.312 REF
SEE NOTE 1
16X E3FSCB
FEMALE 3 PIN
1.03 TYP
SEE NOTE 1
3.000
3.47
0.25 x 0.44
SLOT TYP
NOTES:
16X E3MSCB
MALE 3 PIN
QG PANEL
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
1. COVERS AND MARKING STRIPS SHIPPED UNASSEMBLED.
2. MATERIALS:
QG PANEL - ALUMINUM, BLACK ANODZIED
CABLE BAR - STEEL, BLACK EPOXY
SCREWS - STEEL, BLACK
MARKING STRIP - THERMOPLASTIC, WHITE
MARKING STRIP COVER - THERMOPLASTIC, CLEAR
CONNECTOR HOUSING - ZINC, BLACK SATIN CHROME
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES
- TWO PLACE DECIMALS
- THREE PLACE DECIMALS
0.02
0.005
SIZE
FINISH
WIDTH
MULT
LBS/M
MATERIAL
SPEC No.
TEMPER
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
1:2
B
REV
25094
ECO NUMBER
08/16/05
DATE
BL
BY
TJK
APVD
07/13/11
BL
REVISIONS
DO NOT SCALE DRAWING
NAME

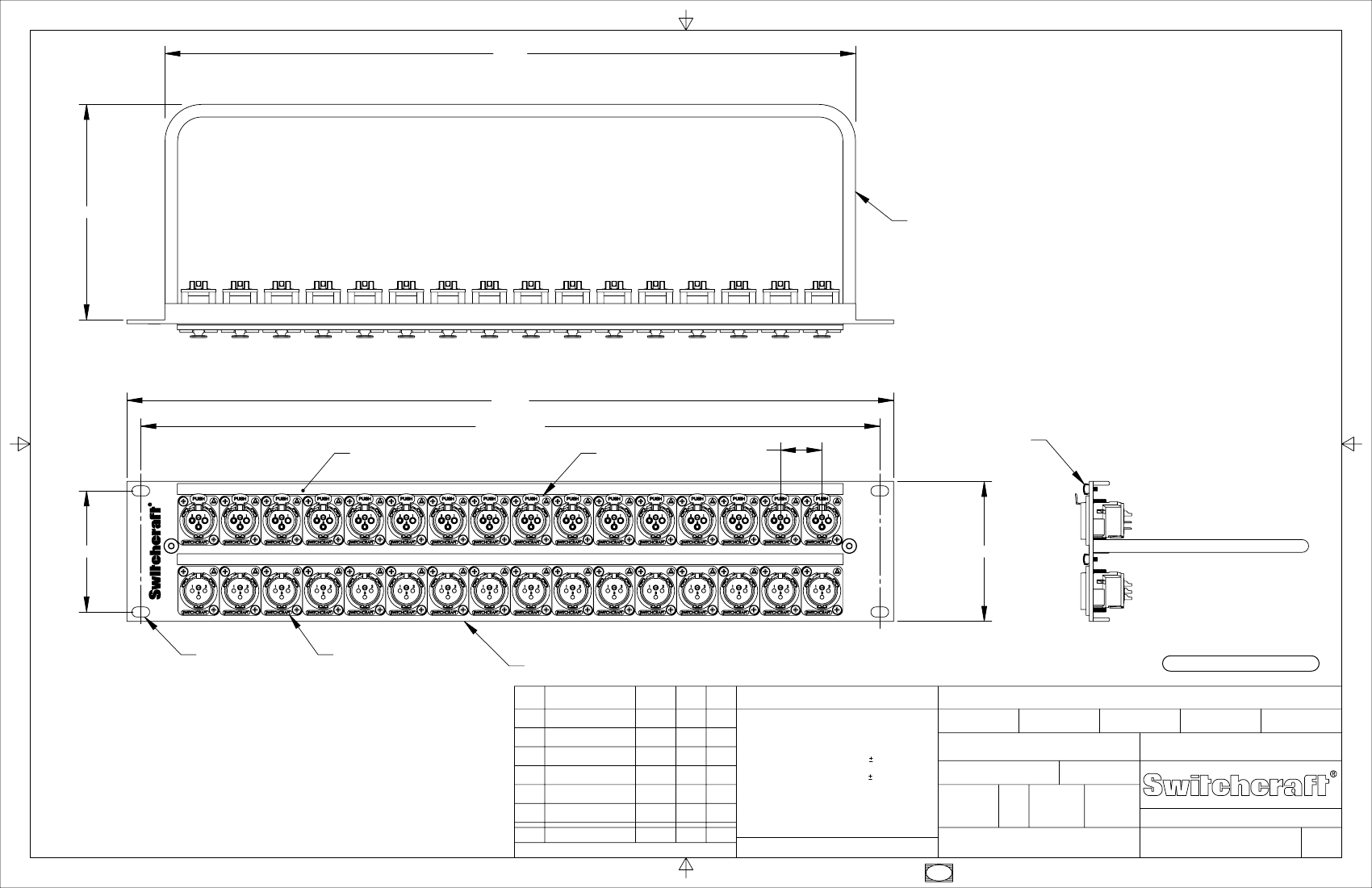

QG PATCHBAY
16 - 3 PIN FEMALE CONNECTORS
16 - 3 PIN MALE CONNECTORS
07/13/11
BL
07/13/11
TJK
PART No.
APVD
SHEET
1
OF
1
REV
QGPK332MFB
B
SolidWorks CAD File
B
